delphi7通过treeview增加个性化增加checkbox功能

hills95 2015-06-29 08:49:55

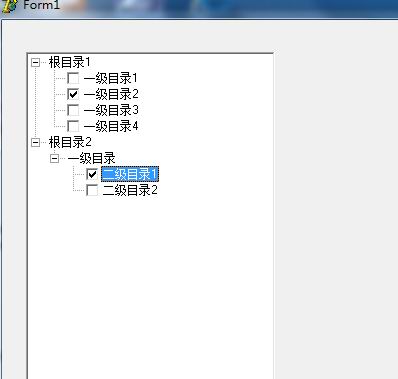

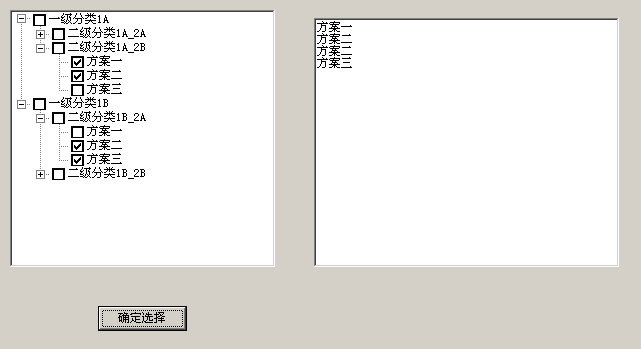

DELPHI7 环境下，treeview通过语句实现增加checkbox功能，但现场需要的是不是所有分支都出现checkbox框，具体是分类支不出现，没有下级分类的才出现。好比是文件夹与文件，文件夹前没有选择框，文件名前才有选择框。如附图，只需要方案前出现复选框，一级分类与二级分类前不出现分类框（不想使用第三方控件）。

SetWindowLong(tvDemo.Handle, GWL_STYLE, GetWindowLong(tvDemo.Handle,
GWL_STYLE) or $0000100); //使树形控件具有复选框功能



unit TVDemo;



interface



uses

  Windows, Messages, SysUtils, Variants, Classes, Graphics, Controls, Forms,

  Dialogs, ComCtrls, CommCtrl, StdCtrls;



type

  TfrmtvDemo = class(TForm)

    tvDemo: TTreeView;

    Memo1: TMemo;

    Button1: TButton;

    procedure FormCreate(Sender: TObject);

    procedure tvDemoKeyPress(Sender: TObject; var Key: Char);

    procedure tvDemoClick(Sender: TObject);

    procedure Button1Click(Sender: TObject);

  private

    { Private declarations }

  public

    { Public declarations }

    function IsChecked(Node: TTreeNode): Boolean;

    procedure SetChecked(Node: TTreeNode; Checked: Boolean);

    procedure Checkbox(TreeView: TTreeView; Node: TTreeNode; isclick:

      boolean = false);

  end;



var

  frmtvDemo: TfrmtvDemo;



implementation



{$R *.dfm}



const

  TVIS_CHECKED = $2000; //节点是否被选中



procedure TfrmtvDemo.FormCreate(Sender: TObject);

var

  Node1A, NodeB:TTreeNode;

begin

  SetWindowLong(tvDemo.Handle, GWL_STYLE, GetWindowLong(tvDemo.Handle,

    GWL_STYLE) or $0000100); //使树形控件具有复选框功能

  self.tvDemo.Items.Clear;

  Node1A := self.tvDemo.Items.AddFirst(nil, '一级分类1A');

  NodeB := self.tvDemo.Items.AddChildFirst(Node1A,'二级分类1A_2A');

  self.tvDemo.Items.AddChildFirst(NodeB,'方案一');

  self.tvDemo.Items.AddChild(NodeB,'方案二');

  self.tvDemo.Items.AddChild(NodeB,'方案三');

  NodeB := self.tvDemo.Items.AddChild(Node1A,'二级分类1A_2B');

  self.tvDemo.Items.AddChildFirst(NodeB,'方案一');

  self.tvDemo.Items.AddChild(NodeB,'方案二');

  self.tvDemo.Items.AddChild(NodeB,'方案三');

  Node1A := self.tvDemo.Items.Add(nil, '一级分类1B');

  NodeB := self.tvDemo.Items.AddChildFirst(Node1A,'二级分类1B_2A');

  self.tvDemo.Items.AddChildFirst(NodeB,'方案一');

  self.tvDemo.Items.AddChild(NodeB,'方案二');

  self.tvDemo.Items.AddChild(NodeB,'方案三');

  NodeB := self.tvDemo.Items.AddChild(Node1A,'二级分类1B_2B');

  self.tvDemo.Items.AddChildFirst(NodeB,'方案一');

  self.tvDemo.Items.AddChild(NodeB,'方案二');

  self.tvDemo.Items.AddChild(NodeB,'方案三');

end;



function TfrmtvDemo.IsChecked(Node: TTreeNode): Boolean;

//节点是否被选中

var

  TvItem: TTVItem;

begin

  TvItem.Mask := TVIF_STATE;

  TvItem.hItem := Node.ItemId;

  TreeView_GetItem(Node.TreeView.Handle, TvItem);

  Result := (TvItem.State and TVIS_CHECKED) = TVIS_CHECKED;

end;



procedure TfrmtvDemo.SetChecked(Node: TTreeNode; Checked: Boolean);

//让某个节点被选中

var

  TvItem: TTVItem;

begin

  FillChar(TvItem, SizeOf(TvItem), 0);

  with TvItem do

  begin

    hItem := Node.ItemId;

    Mask := TVIF_STATE;

    StateMask := TVIS_STATEIMAGEMASK;

    if Checked then

      TvItem.State := TVIS_CHECKED

    else

      TvItem.State := TVIS_CHECKED shr 1;

    TreeView_SetItem(Node.TreeView.Handle, TvItem);

  end;

end;



procedure TfrmtvDemo.Checkbox(TreeView: TTreeView;

  Node: TTreeNode; isclick: boolean = false); //节点选择后子节点状态处理

var

  CurNode, ParentNode, GrandSonNode, sonNode: TTreeNode;

  flag: boolean;

begin

  CurNode := node;

  with TreeView do

  begin

    if IsChecked(CurNode) then

    begin

      sonNode := CurNode.GetFirstChild;

      while sonNode <> nil do

      begin

        SetChecked(sonNode, true);

        Checkbox(TreeView, sonNode, true);

        sonNode := sonNode.GetNextSibling;

      end;

      ParentNode := CurNode.Parent;

      if ParentNode <> nil then

      begin

        if not isChecked(parentNode) then

        begin

          GrandSonNode := ParentNode.GetFirstChild;

          flag := false;

          while GrandSonNode <> nil do

          begin

            if (not IsChecked(GrandSonNode)) then

              flag := true;

            if flag then

              GrandSonNode := nil

            else

              GrandSonNode := GrandSonNode.GetNextSibling;

          end;

          SetChecked(ParentNode, not flag);

          Checkbox(TreeView, ParentNode, false);

        end;

      end;

    end

    else if not IsChecked(CurNode) then

    begin

      ParentNode := CurNode.Parent;

      if ParentNode <> nil then

      begin

        if isChecked(parentNode) then

        begin

          SetChecked(ParentNode, false);

          Checkbox(TreeView, ParentNode);

        end;

      end;

      if (isclick) then

      begin

        sonNode := CurNode.GetFirstChild;

        while sonNode <> nil do

        begin

          SetChecked(sonNode, false);

          Checkbox(TreeView, sonNode, true);

          sonNode := sonNode.GetNextSibling;

        end;

      end;

    end;

  end;

end;



procedure TfrmtvDemo.tvDemoClick(Sender: TObject); //鼠标单击时选择

var

  P: TPoint;

  treenode: TTreeNode;

begin

  GetCursorPos(P);

  P := tvDemo.ScreenToClient(P);

  if (htOnStateIcon in tvDemo.GetHitTestInfoAt(P.X, P.Y)) then

  begin

    treenode := tvDemo.GetNodeAt(P.X, P.Y);

    Checkbox(tvDemo, treenode, true);

  end;

end;



procedure TfrmtvDemo.tvDemoKeyPress(Sender: TObject; var Key: Char);

//键盘空格时选择

begin

  if (Key = #32) and Assigned(tvDemo.Selected) then

    Checkbox(tvDemo, tvDemo.Selected, true);

end;



procedure TfrmtvDemo.Button1Click(Sender: TObject);

var

  i:integer;

  node:TTreeNode;

  s:String;

begin

  for i:=0 to tvDemo.Items.Count -1  do

  begin

    node := tvDemo.Items[i];

    if IsChecked(node) and (self.tvDemo.Items[i].Level = 2) then

    begin

      s := s + tvDemo.Items[i].Text + #13 +#10;

    end;

  end;

  self.memo1.text := s;



end;



end.
