点击快了会闪烁,有解决方案吗?

2013-07-11 08:45:17 196 阅读 AI 写同款 · GEO 优化AI 选题数据监测一键分发 ›

chinayu2007 墨衍会员 · AI 创作全网分发关注 + 加入社区

记一次解决 CMOS sensor 图像闪烁很长一段时间没有更新博客了，忙，也没有很好的议题，就没有更新博客了。上个月遇到一个比较有意思的问题 — camera 图像亮度闪烁，今天就拿这个问题更新一下博客，记录一下当时的排查步骤，回顾一下自己漏掉的信息点，铭记。【背景】预览时画面闪烁，闪烁似乎是不规律的。【排查步骤】使能 AE log，通过 log 确认是否由于 AE 步进过快，容忍度较小，导致 AE 来回震荡。通过查看 log ，结合 isp ae 参数，确实存在 AE 步进过快，容忍度较小的情况。修改点：将 AE 步进降低，提阅读详情



.h文件

//---------------------------------------------------------------------------

#ifndef Unit1H

#define Unit1H

//---------------------------------------------------------------------------

#include <Classes.hpp>

#include <Controls.hpp>

#include <StdCtrls.hpp>

#include <Forms.hpp>

//---------------------------------------------------------------------------

class TForm1 : public TForm

{

__published:	// IDE-managed Components

        TButton *Button1;

        TButton *Button2;

private:	// User declarations

        TWndMethod OldProc;

        void __fastcall NewProc(TMessage &Msg);

public:		// User declarations

        __fastcall TForm1(TComponent* Owner);

};

//---------------------------------------------------------------------------

extern PACKAGE TForm1 *Form1;

//---------------------------------------------------------------------------

#endif



//---------------------------------------------------------------------------

.cpp文件

#include <vcl.h>

#pragma hdrstop



#include "Unit1.h"

//---------------------------------------------------------------------------

#pragma package(smart_init)

#pragma resource "*.dfm"

TForm1 *Form1;

//---------------------------------------------------------------------------

__fastcall TForm1::TForm1(TComponent* Owner)

        : TForm(Owner)

{

    //SetWindowLong(Button1->Handle, GWL_STYLE, GetWindowLong(Button1->Handle,GWL_STYLE) | BS_OWNERDRAW );



    OldProc = Button1->WindowProc;

    Button1->WindowProc = NewProc;

    DoubleBuffered = true;

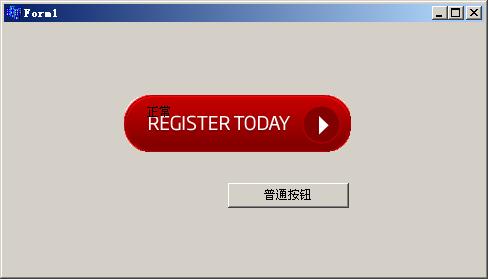

    //创建圆角矩形按钮，去掉这两句就是默认的矩形区域

    HRGN hRgnR = CreateRoundRectRgn(0,0,Button1->Width,Button1->Height,45,45);

    SetWindowRgn(Button1->Handle,hRgnR,TRUE);

}

//---------------------------------------------------------------------------

//用到三张图片，分别表示几种状态：正常（移出），移入（抬起），按下

void __fastcall TForm1::NewProc(TMessage &Msg)

{

    TRect Rect;

    Graphics::TBitmap* Bmp;

    TControlCanvas* Canvas;



    OldProc(Msg);



    if(Msg.Msg == CM_MOUSEENTER)//鼠标移入

    {

        Bmp = new Graphics::TBitmap;

        Bmp->LoadFromFile("over2.bmp");

        Bmp->Transparent = true;

        Bmp->TransparentColor = clWhite;



        Canvas = new TControlCanvas;

        Canvas->Control = Button1;

        Canvas->Brush->Style= bsClear;



        Canvas->CopyRect(TRect(0,0,228,58), Bmp->Canvas,TRect(0,0,228,58));

        Canvas->Font->Color=clBlack;



        Canvas->TextOutA(23,10,"正常");

        delete Bmp;  delete Canvas;

    }

    if(Msg.Msg == CM_MOUSELEAVE)//鼠标移出

    {

        Bmp = new Graphics::TBitmap;

        Bmp->LoadFromFile("normal2.bmp");

        Bmp->Transparent = true;

        Bmp->TransparentColor = clWhite;//背景透明色



        Canvas = new TControlCanvas;

        Canvas->Control = Button1;

        Canvas->Brush->Style= bsClear; //文字透明



        Canvas->Draw(0, 0, Bmp);

        Canvas->Font->Color=clBlack;

        Canvas->Brush->Style= bsClear;

        Canvas->TextOutA(23,10,"正常");

        delete Bmp;  delete Canvas;

    }

    if(Msg.Msg == WM_LBUTTONDOWN) //鼠标按下

    {

        Bmp = new Graphics::TBitmap;

        Bmp->LoadFromFile("down2.bmp");

        Bmp->Transparent = true;

        Bmp->TransparentColor = clWhite;



        Canvas = new TControlCanvas;

        Canvas->Control = Button1;

        Canvas->Control->Parent->DoubleBuffered =true;



        Canvas->CopyRect(TRect(0,0,228,58), Bmp->Canvas,TRect(0,0,228,58));

        Canvas->Font->Color=clBlack;



        Canvas->Brush->Style= bsClear;

        Canvas->TextOutA(23,10,"按下");

        delete Bmp;  delete Canvas;

        return;

    }

    if(Msg.Msg == WM_LBUTTONUP) //鼠标抬起

    {

        Bmp = new Graphics::TBitmap;

        Bmp->LoadFromFile("over2.bmp");



        Canvas = new TControlCanvas;

        Canvas->Control = Button1;



        Canvas->CopyRect(TRect(0,0,228,58), Bmp->Canvas,TRect(0,0,228,58));

        Canvas->Font->Color=clBlack;

        Canvas->Brush->Style= bsClear;

        Canvas->TextOutA(23,10,"抬起");

        delete Bmp;  delete Canvas;

        return;

    }



    if (Msg.Msg == WM_PAINT || Msg.Msg==BM_SETSTATE)//常规状态

    {

        Bmp = new Graphics::TBitmap;

        Bmp->Transparent = true;

        Bmp->TransparentColor = clWhite;



        Canvas = new TControlCanvas;

        Canvas->Control = Button1;

        Canvas->Control->Parent->DoubleBuffered =true;



        if(Msg.WParam == MK_LBUTTON)

        {

          Bmp->LoadFromFile("down2.bmp");

        }

        else

          Bmp->LoadFromFile("normal2.bmp");



        Canvas->CopyRect(TRect(0,0,228,58), Bmp->Canvas,TRect(0,0,228,58));



        Canvas->Brush->Style= bsClear;

        if(Msg.WParam == MK_LBUTTON)

        {

          Canvas->Font->Color=clBlack;

          Canvas->TextOutA(23,10,"按下");

        }

        else

        {

          Canvas->Font->Color=clBlack;

          Canvas->TextOutA(23,10,"正常");

        }

        delete Bmp;  delete Canvas;

    }

}
