分享高手请出，请教联通webservice短信接口调用问题！！！
本人程序白痴，领导需要我们OA系统集成联通的webservice短信接口，根据联通发来的资料，一头雾水啊，不知从何下手，请高人指教，实现这个发短信的简单功能
下面是联通发的一些接口和规范：
1、ClientInterface.wsdl
2、ServerInterface.wsdl
3、send-sms.xml
5、SOAP Header信息
5.1．SP认证信息：
SP认证信息SOAP头部标签为：SpInfo，包含两个属性：
SpID，必选，类型：xsd:string，SP唯一标识吗，由短信监控平台分配SP使用；
SpPassword，必选，类型：xsd:string，SP口令，由短信监控平台分配SP使用。
5.2．会话信息：
会话信息SOAP头部标签为：TransactionInfo，可选。当且仅当该下行通道已授权进行主动推送时，可以忽略该项信息。
具有一个属性：
LinkID，必选，类型：xsd:string，短消息的上下文标识。由短信监控平台在处理上行短消息时分配给SP，SP在发送下行消息时须携带此标识。对于SP主动推送短消息的情况，该属性值可为空。
6、其他信息
业务名称:行业服务短信
接入号码:10655xxxxxxxxxx
接入方式: Webservice接口
网关地址:61.240.233.235
网关端口:20000
用户名:rixxxx
密码:cxxxxxx
验证SP的IP地址为：58.20.xx.xxx
--------------------------------

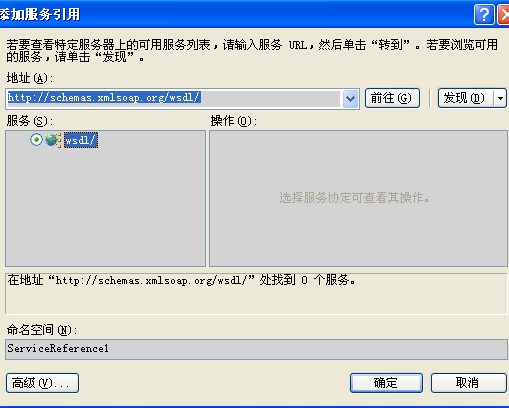

在网上搜索了好多天，都是那种傻瓜式的添加web引用的例子，而联通的好像是用C++ gSOAP开发的，那种添加web引用的方法行不通，我又试着用wsdl.exe把联通给的两个wsdl文件生成了对应的CS代码文件，直接实例化，调用里面的send()方法，行不通
还望各位程序大牛们不吝赐教，给小弟一些指导，谢谢，谢谢！！！！
下面是联通发的一些接口和规范：
1、ClientInterface.wsdl
<?xml version="1.0" encoding="UTF-8"?>
<wsdl:definitions xmlns:wsdl="http://schemas.xmlsoap.org/wsdl/" xmlns:soap11="http://schemas.xmlsoap.org/soap/envelope/" xmlns:soap12="http://www.w3.org/2003/05/soap-envelope" xmlns:soapenc11="http://schemas.xmlsoap.org/soap/encoding/" xmlns:soapenc12="http://www.w3.org/2003/05/soap-encoding" xmlns:tns="http://smsmonitor.asiainfo.com" xmlns:wsdlsoap="http://schemas.xmlsoap.org/wsdl/soap/" xmlns:xsd="http://www.w3.org/2001/XMLSchema" targetNamespace="http://smsmonitor.asiainfo.com">
<wsdl:types>
<xsd:schema targetNamespace="http://smsmonitor.asiainfo.com" elementFormDefault="qualified" attributeFormDefault="qualified">
<xsd:element name="report">
<xsd:complexType>
<xsd:sequence>
<xsd:element name="messageID" type="xsd:string" nillable="true" minOccurs="1" maxOccurs="1" />
<xsd:element name="mobileNumber" type="xsd:string" nillable="true" minOccurs="1" maxOccurs="1" />
<xsd:element name="statusCode" type="xsd:string" nillable="true" minOccurs="1" maxOccurs="1" />
<xsd:element name="timeStamp" type="xsd:string" nillable="true" minOccurs="1" maxOccurs="1" />
</xsd:sequence>
</xsd:complexType>
</xsd:element>
<xsd:element name="reportResponse">
<xsd:complexType />
</xsd:element>
<xsd:element name="notification">
<xsd:complexType>
<xsd:sequence>
<xsd:element name="mobileNumber" type="xsd:string" nillable="true" minOccurs="1" maxOccurs="1" />
<xsd:element name="channelID" type="xsd:string" nillable="true" minOccurs="1" maxOccurs="1" />
<xsd:element name="content" type="xsd:string" nillable="true" minOccurs="1" maxOccurs="1" />
<xsd:element name="timeStamp" type="xsd:string" nillable="true" minOccurs="1" maxOccurs="1" />
</xsd:sequence>
</xsd:complexType>
</xsd:element>
<xsd:element name="notificationResponse">
<xsd:complexType />
</xsd:element>
</xsd:schema>
</wsdl:types>
<wsdl:message name="notificationRequest">
<wsdl:part element="tns:notification" name="parameters" />
</wsdl:message>
<wsdl:message name="reportResponse">
<wsdl:part element="tns:reportResponse" name="parameters" />
</wsdl:message>
<wsdl:message name="reportRequest">
<wsdl:part element="tns:report" name="parameters" />
</wsdl:message>
<wsdl:message name="notificationResponse">
<wsdl:part element="tns:notificationResponse" name="parameters" />
</wsdl:message>
<wsdl:portType name="SpSMServicePortType">
<wsdl:operation name="report">
<wsdl:input message="tns:reportRequest" name="reportRequest" />
<wsdl:output message="tns:reportResponse" name="reportResponse" />
</wsdl:operation>
<wsdl:operation name="notification">
<wsdl:input message="tns:notificationRequest" name="notificationRequest" />
<wsdl:output message="tns:notificationResponse" name="notificationResponse" />
</wsdl:operation>
</wsdl:portType>
<wsdl:binding name="SpSMServiceHttpBinding" type="tns:SpSMServicePortType">
<wsdlsoap:binding style="document" transport="http://schemas.xmlsoap.org/soap/http" />
<wsdl:operation name="report">
<wsdlsoap:operation soapAction="" />
<wsdl:input name="reportRequest">
<wsdlsoap:body use="literal" />
</wsdl:input>
<wsdl:output name="reportResponse">
<wsdlsoap:body use="literal" />
</wsdl:output>
</wsdl:operation>
<wsdl:operation name="notification">
<wsdlsoap:operation soapAction="" />
<wsdl:input name="notificationRequest">
<wsdlsoap:body use="literal" />
</wsdl:input>
<wsdl:output name="notificationResponse">
<wsdlsoap:body use="literal" />
</wsdl:output>
</wsdl:operation>
</wsdl:binding>
<wsdl:service name="SpSMService">
<wsdl:port binding="tns:SpSMServiceHttpBinding" name="SpSMServiceHttpPort">
<wsdlsoap:address location="SERVICE_URL" />
</wsdl:port>
</wsdl:service>
</wsdl:definitions>
2、ServerInterface.wsdl
<?xml version="1.0" encoding="UTF-8"?>
<wsdl:definitions xmlns:wsdl="http://schemas.xmlsoap.org/wsdl/" xmlns:soap11="http://schemas.xmlsoap.org/soap/envelope/" xmlns:soap12="http://www.w3.org/2003/05/soap-envelope" xmlns:soapenc11="http://schemas.xmlsoap.org/soap/encoding/" xmlns:soapenc12="http://www.w3.org/2003/05/soap-encoding" xmlns:tns="http://smsmonitor.asiainfo.com" xmlns:wsdlsoap="http://schemas.xmlsoap.org/wsdl/soap/" xmlns:xsd="http://www.w3.org/2001/XMLSchema" targetNamespace="http://smsmonitor.asiainfo.com">
<wsdl:types>
<xsd:schema targetNamespace="http://smsmonitor.asiainfo.com" elementFormDefault="qualified" attributeFormDefault="qualified">
<xsd:element name="send">
<xsd:complexType>
<xsd:sequence>
<xsd:element name="taskID" type="xsd:string" nillable="true" minOccurs="1" maxOccurs="1" />
<xsd:element name="mobileNumber" type="xsd:string" nillable="true" minOccurs="1" maxOccurs="1" />
<xsd:element name="channelID" type="xsd:string" nillable="true" minOccurs="1" maxOccurs="1" />
<xsd:element name="messageClass" type="xsd:int" minOccurs="1" maxOccurs="1" />
<xsd:element name="title" type="xsd:string" nillable="true" minOccurs="1" maxOccurs="1" />
<xsd:element name="content" type="xsd:string" nillable="true" minOccurs="1" maxOccurs="1" />
<xsd:element name="method" type="xsd:int" minOccurs="1" maxOccurs="1" />
<xsd:element name="scheduledTime" type="xsd:string" nillable="true" minOccurs="1" maxOccurs="1" />
<xsd:element name="repeatTime" type="xsd:int" minOccurs="0" maxOccurs="1" />
<xsd:element name="repeatInterval" type="xsd:int" minOccurs="0" maxOccurs="1" />
<xsd:element name="repeatUnit" type="xsd:int" minOccurs="0" maxOccurs="1" />
<xsd:element name="permitedPeriod" type="xsd:string" nillable="true" minOccurs="1" maxOccurs="1" />
<xsd:element name="priority" type="xsd:int" minOccurs="1" maxOccurs="1" />
</xsd:sequence>
</xsd:complexType>
</xsd:element>
<xsd:element name="sendResponse">
<xsd:complexType>
<xsd:sequence>
<xsd:element name="out" type="xsd:string" nillable="true" minOccurs="1" maxOccurs="1" />
</xsd:sequence>
</xsd:complexType>
</xsd:element>
</xsd:schema>
</wsdl:types>
<wsdl:message name="sendResponse">
<wsdl:part element="tns:sendResponse" name="parameters" />
</wsdl:message>
<wsdl:message name="sendRequest">
<wsdl:part element="tns:send" name="parameters" />
</wsdl:message>
<wsdl:portType name="SMServicePortType">
<wsdl:operation name="send">
<wsdl:input message="tns:sendRequest" name="sendRequest" />
<wsdl:output message="tns:sendResponse" name="sendResponse" />
</wsdl:operation>
</wsdl:portType>
<wsdl:binding name="SMServiceHttpBinding" type="tns:SMServicePortType">
<wsdlsoap:binding style="document" transport="http://schemas.xmlsoap.org/soap/http" />
<wsdl:operation name="send">
<wsdlsoap:operation soapAction="" />
<wsdl:input name="sendRequest">
<wsdlsoap:body use="literal" />
</wsdl:input>
<wsdl:output name="sendResponse">
<wsdlsoap:body use="literal" />
</wsdl:output>
</wsdl:operation>
</wsdl:binding>
<wsdl:service name="SMService">
<wsdl:port binding="tns:SMServiceHttpBinding" name="SMServiceHttpPort">
<wsdlsoap:address location="SERVICE_URL" />
</wsdl:port>
</wsdl:service>
</wsdl:definitions>
3、send-sms.xml
<?xml version="1.0" encoding="UTF-8"?>
<SOAP-ENV:Envelope xmlns:SOAP-ENV="http://schemas.xmlsoap.org/soap/envelope/" xmlns:SOAP-ENC="http://schemas.xmlsoap.org/soap/encoding/" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema">
<SOAP-ENV:Header>
<!--m:abc xmlns:m="http://smsmonitor.asiainfo.com">aaaa</m:abc-->
<m:SpInfo m:SpID="wujl" xmlns:m="http://smsmonitor.asiainfo.com" m:SpPassword="wujl"/>
<m:TransactionInfo xmlns:m="http://smsmonitor.asiainfo.com" m:LinkID="06151437320481010001"/>
</SOAP-ENV:Header>
<SOAP-ENV:Body>
<m:send xmlns:m="http://smsmonitor.asiainfo.com">
<m:taskID>1230002</m:taskID>
<m:mobileNumber>86接收号码</m:mobileNumber>
<m:channelID>接入号</m:channelID>
<m:messageClass>1</m:messageClass>
<m:title></m:title>
<m:content>abc333123sdfdsfdsafldskkss</m:content>
<m:method>1</m:method>
<m:scheduledTime>2008-06-12 17:20:00</m:scheduledTime>
<m:repeatTime>0</m:repeatTime>
<m:repeatInterval>0</m:repeatInterval>
<m:repeatUnit>0</m:repeatUnit>
<m:permitedPeriod>String</m:permitedPeriod>
<m:priority>0</m:priority>
</m:send>
</SOAP-ENV:Body>
</SOAP-ENV:Envelope>
5、SOAP Header信息
5.1．SP认证信息：
SP认证信息SOAP头部标签为：SpInfo，包含两个属性：
SpID，必选，类型：xsd:string，SP唯一标识吗，由短信监控平台分配SP使用；
SpPassword，必选，类型：xsd:string，SP口令，由短信监控平台分配SP使用。
5.2．会话信息：
会话信息SOAP头部标签为：TransactionInfo，可选。当且仅当该下行通道已授权进行主动推送时，可以忽略该项信息。
具有一个属性：
LinkID，必选，类型：xsd:string，短消息的上下文标识。由短信监控平台在处理上行短消息时分配给SP，SP在发送下行消息时须携带此标识。对于SP主动推送短消息的情况，该属性值可为空。
6、其他信息
业务名称:行业服务短信
接入号码:10655xxxxxxxxxx
接入方式: Webservice接口
网关地址:61.240.233.235
网关端口:20000
用户名:rixxxx
密码:cxxxxxx
验证SP的IP地址为：58.20.xx.xxx
--------------------------------
在网上搜索了好多天，都是那种傻瓜式的添加web引用的例子，而联通的好像是用C++ gSOAP开发的，那种添加web引用的方法行不通，我又试着用wsdl.exe把联通给的两个wsdl文件生成了对应的CS代码文件，直接实例化，调用里面的send()方法，行不通
还望各位程序大牛们不吝赐教，给小弟一些指导，谢谢，谢谢！！！！
...全文
请发表友善的回复…
发表回复
辛末子午 2014-08-21
- 打赏
- 举报
楼主最后搞定了没？可怜的我现在也要搞这破东西，完全没头绪
fomyth 2014-01-10
- 打赏
- 举报
应该不能这样搞的
fomyth 2014-01-10
- 打赏
- 举报
大牛，关键是MWSeviceDemo这个类怎么写啊，可以分享出来吗，谢谢！！！！
Andy__Huang 2013-12-02
- 打赏
- 举报
<%@ Page language="c#" Codebehind="WebForm1.aspx.cs" AutoEventWireup="false" Inherits="MWSeviceDemo.WebForm1" %>
<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.0 Transitional//EN" >
<HTML>
<HEAD>
<title>Web短信测试</title>
<meta name="GENERATOR" Content="Microsoft Visual Studio .NET 7.1">
<meta name="CODE_LANGUAGE" Content="C#">
<meta name="vs_defaultClientScript" content="JavaScript">
<meta name="vs_targetSchema" content="http://schemas.microsoft.com/intellisense/ie5">
</HEAD>
<body MS_POSITIONING="GridLayout">
<form id="Form1" method="post" runat="server">
<FONT face="宋体">
<asp:TextBox id="TextBox1" style="Z-INDEX: 101; LEFT: 264px; POSITION: absolute; TOP: 64px" runat="server"
Width="145" Height="24px"></asp:TextBox>
<asp:Label id="Label1" style="Z-INDEX: 102; LEFT: 192px; POSITION: absolute; TOP: 64px" runat="server">用户名</asp:Label>
<asp:Label id="Label2" style="Z-INDEX: 103; LEFT: 192px; POSITION: absolute; TOP: 96px" runat="server"
Height="10px">密码</asp:Label>
<asp:TextBox id="TextBox2" style="Z-INDEX: 104; LEFT: 264px; POSITION: absolute; TOP: 96px" runat="server"
Width="145px" Height="24px"></asp:TextBox>
<asp:Button id="Button1" style="Z-INDEX: 105; LEFT: 504px; POSITION: absolute; TOP: 64px" runat="server"
Width="81" Text="发普通信息"></asp:Button>
<asp:Label id="Label3" style="Z-INDEX: 106; LEFT: 192px; POSITION: absolute; TOP: 128px" runat="server"
Height="10px">信息内容</asp:Label>
<asp:Label id="Label4" style="Z-INDEX: 107; LEFT: 192px; POSITION: absolute; TOP: 208px" runat="server"
Height="10px">手机号码</asp:Label>
<asp:Label id="Label5" style="Z-INDEX: 108; LEFT: 192px; POSITION: absolute; TOP: 240px" runat="server"
Height="10px">号码个数</asp:Label>
<asp:TextBox id="TextBox3" style="Z-INDEX: 109; LEFT: 264px; POSITION: absolute; TOP: 128px"
runat="server" Width="424px" Height="72px" TextMode="MultiLine"></asp:TextBox>
<asp:TextBox id="TextBox4" style="Z-INDEX: 110; LEFT: 264px; POSITION: absolute; TOP: 208px"
runat="server" Width="145px" Height="24px"></asp:TextBox>
<asp:TextBox id="TextBox5" style="Z-INDEX: 111; LEFT: 264px; POSITION: absolute; TOP: 240px"
runat="server" Width="145px" Height="24px">1</asp:TextBox>
<asp:ListBox id="ListBox1" style="Z-INDEX: 112; LEFT: 192px; POSITION: absolute; TOP: 304px"
runat="server" Width="344px" Height="112px"></asp:ListBox>
<asp:Button id="Button2" style="Z-INDEX: 113; LEFT: 504px; POSITION: absolute; TOP: 96px" runat="server"
Width="81px" Text="帐户查询"></asp:Button>
<asp:Button id="Button3" style="Z-INDEX: 114; LEFT: 600px; POSITION: absolute; TOP: 96px" runat="server"
Width="81px" Text="接收信息"></asp:Button>
<asp:Button id="Button4" style="Z-INDEX: 115; LEFT: 504px; POSITION: absolute; TOP: 208px" runat="server"
Width="81px" Text="读报告"></asp:Button>
<asp:Button id="Button5" style="Z-INDEX: 116; LEFT: 504px; POSITION: absolute; TOP: 240px" runat="server"
Width="80px" Text="发双向信息"></asp:Button>
<asp:Label id="Label6" style="Z-INDEX: 117; LEFT: 232px; POSITION: absolute; TOP: 24px" runat="server"
Width="240px">网关WebService调用示例程序</asp:Label>
<asp:TextBox id="TextBox6" style="Z-INDEX: 118; LEFT: 264px; POSITION: absolute; TOP: 272px"
runat="server"></asp:TextBox>
<asp:Label id="Label7" style="Z-INDEX: 119; LEFT: 200px; POSITION: absolute; TOP: 272px" runat="server">子端口：</asp:Label></FONT>
</form>
</body>
</HTML>
using System;
using System.Collections;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Web;
using System.Web.SessionState;
using System.Web.UI;
using System.Web.UI.WebControls;
using System.Web.UI.HtmlControls;
namespace MWSeviceDemo
{
/// <summary>
/// WebForm1 的摘要说明。
/// </summary>
public class WebForm1 : System.Web.UI.Page
{
MWSeviceDemo.MW.wmgw ws;
protected System.Web.UI.WebControls.TextBox TextBox1;
protected System.Web.UI.WebControls.Label Label1;
protected System.Web.UI.WebControls.Label Label2;
protected System.Web.UI.WebControls.TextBox TextBox2;
protected System.Web.UI.WebControls.Button Button1;
protected System.Web.UI.WebControls.Label Label3;
protected System.Web.UI.WebControls.Label Label4;
protected System.Web.UI.WebControls.Label Label5;
protected System.Web.UI.WebControls.TextBox TextBox3;
protected System.Web.UI.WebControls.TextBox TextBox4;
protected System.Web.UI.WebControls.TextBox TextBox5;
protected System.Web.UI.WebControls.ListBox ListBox1;
protected System.Web.UI.WebControls.Button Button2;
protected System.Web.UI.WebControls.Button Button3;
protected System.Web.UI.WebControls.Button Button5;
protected System.Web.UI.WebControls.Label Label6;
protected System.Web.UI.WebControls.TextBox TextBox6;
protected System.Web.UI.WebControls.Label Label7;
protected System.Web.UI.WebControls.Button Button4;
private void Page_Load(object sender, System.EventArgs e)
{
// 在此处放置用户代码以初始化页面
ws = new MWSeviceDemo.MW.wmgw();
}
#region Web 窗体设计器生成的代码
override protected void OnInit(EventArgs e)
{
//
// CODEGEN: 该调用是 ASP.NET Web 窗体设计器所必需的。
//
InitializeComponent();
base.OnInit(e);
}
/// <summary>
/// 设计器支持所需的方法 - 不要使用代码编辑器修改
/// 此方法的内容。
/// </summary>
private void InitializeComponent()
{
this.Button1.Click += new System.EventHandler(this.Button1_Click);
this.Button2.Click += new System.EventHandler(this.Button2_Click);
this.Button3.Click += new System.EventHandler(this.Button3_Click);
this.Button4.Click += new System.EventHandler(this.Button4_Click);
this.Button5.Click += new System.EventHandler(this.Button5_Click);
this.Load += new System.EventHandler(this.Page_Load);
}
#endregion
private void Button1_Click(object sender, System.EventArgs e)
{
//单发
int result;
result=ws.MongateSendSms(TextBox1.Text,TextBox2.Text,TextBox4.Text,TextBox3.Text);
if(result > 0)
ListBox1.Items.Insert(0,"发送信息成功！");
else
ListBox1.Items.Insert(0,"发送信息失败！返回："+result.ToString());
}
private void Button2_Click(object sender, System.EventArgs e)
{
int bal=ws.MongateQueryBalance(TextBox1.Text,TextBox2.Text);
int use=ws.MongateQueryUsed(TextBox1.Text,TextBox2.Text);
if(bal>=0 && use >=0){ListBox1.Items.Insert(0,"帐户余额:"+bal.ToString()+";帐户已用:"+use.ToString());}
else{ListBox1.Items.Insert(0,"返回：" + bal.ToString()+","+use.ToString());}
}
private void Button3_Click(object sender, System.EventArgs e)
{
string []result = ws.MongateCsGetSmsExEx(TextBox1.Text,TextBox2.Text);
if(result==null){ListBox1.Items.Insert(0,"无信息");}
else
foreach (string s in result)
{
ListBox1.Items.Insert(0,new ListItem(s,""));
}
}
private void Button4_Click(object sender, System.EventArgs e)
{
string []result = ws.MongateCsGetStatusReportExEx(TextBox1.Text,TextBox2.Text);
if(result==null){ListBox1.Items.Insert(0,"无状态报告");}
else
foreach (string s in result)
{
ListBox1.Items.Insert(0,new ListItem(s,""));
}
}
private void Button5_Click(object sender, System.EventArgs e)
{
string []ret=null;
//子端口发送
ret = ws.MongateCsSPSendSmsExEx(TextBox1.Text,TextBox2.Text,TextBox4.Text,TextBox3.Text,this.TextBox6.Text);
if(ret[0] == null)
{
ListBox1.Items.Insert(0,"发送信息成功！信息编号："+ret[1]);
ListBox1.Items.Insert(0,"正确号码："+ret[2]);
ListBox1.Items.Insert(0,"错误号码："+ret[3]);
}
else
{
ListBox1.Items.Insert(0,"发送失败：" + ret[0] + "错误号码："+ret[2]);
}
}
}
}
Andy__Huang 2013-12-02
- 打赏
- 举报
其实这个很简单呀,那是WSDL调用远程服务的方法,你只要知道什么调用就可以了,不用去研究那个代码
ljz_08 2013-12-02
- 打赏
- 举报
联通的这个web服务是官方发布的吗？你是哪里得到这个服务地址的呀？我在.NET中添加服务引用，前往后提示找到0个方法
风之影子 2013-10-18
- 打赏
- 举报
楼主：建议你先在IDE里添加WEB引用，把功能都实现了再说。动态调用WS的贴子很多，搜一下即可。
jt9079 2013-09-22
- 打赏
- 举报
直接引用就可以了，这个简单吧
fomyth 2013-09-17
- 打赏
- 举报
兄弟，你什么时候有眉目了，来说一声啊
xsgbot 2013-09-03
- 打赏
- 举报
我也遇到这个问题了，快来人啊fomyth 2013-08-23
- 打赏
- 举报
2、ClientInterface.wsdl -〉smsClientProxyClass.cs
//------------------------------------------------------------------------------
// <auto-generated>
// This code was generated by a tool.
// Runtime Version:4.0.30319.18051
//
// Changes to this file may cause incorrect behavior and will be lost if
// the code is regenerated.
// </auto-generated>
//------------------------------------------------------------------------------
using System;
using System.ComponentModel;
using System.Diagnostics;
using System.Web.Services;
using System.Web.Services.Protocols;
using System.Xml.Serialization;
//
// This source code was auto-generated by wsdl, Version=4.0.30319.17929.
//
/// <remarks/>
[System.CodeDom.Compiler.GeneratedCodeAttribute("wsdl", "4.0.30319.17929")]
[System.Diagnostics.DebuggerStepThroughAttribute()]
[System.ComponentModel.DesignerCategoryAttribute("code")]
[System.Web.Services.WebServiceBindingAttribute(Name="SpSMServiceHttpBinding", Namespace="http://smsmonitor.asiainfo.com")]
public partial class SpSMService : System.Web.Services.Protocols.SoapHttpClientProtocol {
private System.Threading.SendOrPostCallback reportOperationCompleted;
private System.Threading.SendOrPostCallback notificationOperationCompleted;
/// <remarks/>
public SpSMService() {
this.Url = "SERVICE_URL";
}
/// <remarks/>
public event reportCompletedEventHandler reportCompleted;
/// <remarks/>
public event notificationCompletedEventHandler notificationCompleted;
/// <remarks/>
[System.Web.Services.Protocols.SoapDocumentMethodAttribute("", RequestNamespace="http://smsmonitor.asiainfo.com", ResponseNamespace="http://smsmonitor.asiainfo.com", Use=System.Web.Services.Description.SoapBindingUse.Literal, ParameterStyle=System.Web.Services.Protocols.SoapParameterStyle.Wrapped)]
public void report([System.Xml.Serialization.XmlElementAttribute(IsNullable=true)] string messageID, [System.Xml.Serialization.XmlElementAttribute(IsNullable=true)] string mobileNumber, [System.Xml.Serialization.XmlElementAttribute(IsNullable=true)] string statusCode, [System.Xml.Serialization.XmlElementAttribute(IsNullable=true)] string timeStamp) {
this.Invoke("report", new object[] {
messageID,
mobileNumber,
statusCode,
timeStamp});
}
/// <remarks/>
public System.IAsyncResult Beginreport(string messageID, string mobileNumber, string statusCode, string timeStamp, System.AsyncCallback callback, object asyncState) {
return this.BeginInvoke("report", new object[] {
messageID,
mobileNumber,
statusCode,
timeStamp}, callback, asyncState);
}
/// <remarks/>
public void Endreport(System.IAsyncResult asyncResult) {
this.EndInvoke(asyncResult);
}
/// <remarks/>
public void reportAsync(string messageID, string mobileNumber, string statusCode, string timeStamp) {
this.reportAsync(messageID, mobileNumber, statusCode, timeStamp, null);
}
/// <remarks/>
public void reportAsync(string messageID, string mobileNumber, string statusCode, string timeStamp, object userState) {
if ((this.reportOperationCompleted == null)) {
this.reportOperationCompleted = new System.Threading.SendOrPostCallback(this.OnreportOperationCompleted);
}
this.InvokeAsync("report", new object[] {
messageID,
mobileNumber,
statusCode,
timeStamp}, this.reportOperationCompleted, userState);
}
private void OnreportOperationCompleted(object arg) {
if ((this.reportCompleted != null)) {
System.Web.Services.Protocols.InvokeCompletedEventArgs invokeArgs = ((System.Web.Services.Protocols.InvokeCompletedEventArgs)(arg));
this.reportCompleted(this, new System.ComponentModel.AsyncCompletedEventArgs(invokeArgs.Error, invokeArgs.Cancelled, invokeArgs.UserState));
}
}
/// <remarks/>
[System.Web.Services.Protocols.SoapDocumentMethodAttribute("", RequestNamespace="http://smsmonitor.asiainfo.com", ResponseNamespace="http://smsmonitor.asiainfo.com", Use=System.Web.Services.Description.SoapBindingUse.Literal, ParameterStyle=System.Web.Services.Protocols.SoapParameterStyle.Wrapped)]
public void notification([System.Xml.Serialization.XmlElementAttribute(IsNullable=true)] string mobileNumber, [System.Xml.Serialization.XmlElementAttribute(IsNullable=true)] string channelID, [System.Xml.Serialization.XmlElementAttribute(IsNullable=true)] string content, [System.Xml.Serialization.XmlElementAttribute(IsNullable=true)] string timeStamp) {
this.Invoke("notification", new object[] {
mobileNumber,
channelID,
content,
timeStamp});
}
/// <remarks/>
public System.IAsyncResult Beginnotification(string mobileNumber, string channelID, string content, string timeStamp, System.AsyncCallback callback, object asyncState) {
return this.BeginInvoke("notification", new object[] {
mobileNumber,
channelID,
content,
timeStamp}, callback, asyncState);
}
/// <remarks/>
public void Endnotification(System.IAsyncResult asyncResult) {
this.EndInvoke(asyncResult);
}
/// <remarks/>
public void notificationAsync(string mobileNumber, string channelID, string content, string timeStamp) {
this.notificationAsync(mobileNumber, channelID, content, timeStamp, null);
}
/// <remarks/>
public void notificationAsync(string mobileNumber, string channelID, string content, string timeStamp, object userState) {
if ((this.notificationOperationCompleted == null)) {
this.notificationOperationCompleted = new System.Threading.SendOrPostCallback(this.OnnotificationOperationCompleted);
}
this.InvokeAsync("notification", new object[] {
mobileNumber,
channelID,
content,
timeStamp}, this.notificationOperationCompleted, userState);
}
private void OnnotificationOperationCompleted(object arg) {
if ((this.notificationCompleted != null)) {
System.Web.Services.Protocols.InvokeCompletedEventArgs invokeArgs = ((System.Web.Services.Protocols.InvokeCompletedEventArgs)(arg));
this.notificationCompleted(this, new System.ComponentModel.AsyncCompletedEventArgs(invokeArgs.Error, invokeArgs.Cancelled, invokeArgs.UserState));
}
}
/// <remarks/>
public new void CancelAsync(object userState) {
base.CancelAsync(userState);
}
}
/// <remarks/>
[System.CodeDom.Compiler.GeneratedCodeAttribute("wsdl", "4.0.30319.17929")]
public delegate void reportCompletedEventHandler(object sender, System.ComponentModel.AsyncCompletedEventArgs e);
/// <remarks/>
[System.CodeDom.Compiler.GeneratedCodeAttribute("wsdl", "4.0.30319.17929")]
public delegate void notificationCompletedEventHandler(object sender, System.ComponentModel.AsyncCompletedEventArgs e);
fomyth 2013-08-23
- 打赏
- 举报
下面是我用wsdl.exe生成的CS代码
1、ServerInterface.wsdl -〉smsServerProxyClass.cs
//------------------------------------------------------------------------------
// <auto-generated>
// This code was generated by a tool.
// Runtime Version:4.0.30319.18051
//
// Changes to this file may cause incorrect behavior and will be lost if
// the code is regenerated.
// </auto-generated>
//------------------------------------------------------------------------------
using System;
using System.ComponentModel;
using System.Diagnostics;
using System.Web.Services;
using System.Web.Services.Protocols;
using System.Xml.Serialization;
//
// This source code was auto-generated by wsdl, Version=4.0.30319.17929.
//
/// <remarks/>
[System.CodeDom.Compiler.GeneratedCodeAttribute("wsdl", "4.0.30319.17929")]
[System.Diagnostics.DebuggerStepThroughAttribute()]
[System.ComponentModel.DesignerCategoryAttribute("code")]
[System.Web.Services.WebServiceBindingAttribute(Name="SMServiceHttpBinding", Namespace="http://smsmonitor.asiainfo.com")]
public partial class SMService : System.Web.Services.Protocols.SoapHttpClientProtocol {
private System.Threading.SendOrPostCallback sendOperationCompleted;
/// <remarks/>
public SMService() {
this.Url = "SERVICE_URL";
}
/// <remarks/>
public event sendCompletedEventHandler sendCompleted;
/// <remarks/>
[System.Web.Services.Protocols.SoapDocumentMethodAttribute("", RequestNamespace="http://smsmonitor.asiainfo.com", ResponseNamespace="http://smsmonitor.asiainfo.com", Use=System.Web.Services.Description.SoapBindingUse.Literal, ParameterStyle=System.Web.Services.Protocols.SoapParameterStyle.Wrapped)]
[return: System.Xml.Serialization.XmlElementAttribute("out", IsNullable=true)]
public string send(
[System.Xml.Serialization.XmlElementAttribute(IsNullable=true)] string taskID,
[System.Xml.Serialization.XmlElementAttribute(IsNullable=true)] string mobileNumber,
[System.Xml.Serialization.XmlElementAttribute(IsNullable=true)] string channelID,
int messageClass,
[System.Xml.Serialization.XmlElementAttribute(IsNullable=true)] string title,
[System.Xml.Serialization.XmlElementAttribute(IsNullable=true)] string content,
int method,
[System.Xml.Serialization.XmlElementAttribute(IsNullable=true)] string scheduledTime,
int repeatTime,
[System.Xml.Serialization.XmlIgnoreAttribute()] bool repeatTimeSpecified,
int repeatInterval,
[System.Xml.Serialization.XmlIgnoreAttribute()] bool repeatIntervalSpecified,
int repeatUnit,
[System.Xml.Serialization.XmlIgnoreAttribute()] bool repeatUnitSpecified,
[System.Xml.Serialization.XmlElementAttribute(IsNullable=true)] string permitedPeriod,
int priority) {
object[] results = this.Invoke("send", new object[] {
taskID,
mobileNumber,
channelID,
messageClass,
title,
content,
method,
scheduledTime,
repeatTime,
repeatTimeSpecified,
repeatInterval,
repeatIntervalSpecified,
repeatUnit,
repeatUnitSpecified,
permitedPeriod,
priority});
return ((string)(results[0]));
}
/// <remarks/>
public System.IAsyncResult Beginsend(
string taskID,
string mobileNumber,
string channelID,
int messageClass,
string title,
string content,
int method,
string scheduledTime,
int repeatTime,
bool repeatTimeSpecified,
int repeatInterval,
bool repeatIntervalSpecified,
int repeatUnit,
bool repeatUnitSpecified,
string permitedPeriod,
int priority,
System.AsyncCallback callback,
object asyncState) {
return this.BeginInvoke("send", new object[] {
taskID,
mobileNumber,
channelID,
messageClass,
title,
content,
method,
scheduledTime,
repeatTime,
repeatTimeSpecified,
repeatInterval,
repeatIntervalSpecified,
repeatUnit,
repeatUnitSpecified,
permitedPeriod,
priority}, callback, asyncState);
}
/// <remarks/>
public string Endsend(System.IAsyncResult asyncResult) {
object[] results = this.EndInvoke(asyncResult);
return ((string)(results[0]));
}
/// <remarks/>
public void sendAsync(
string taskID,
string mobileNumber,
string channelID,
int messageClass,
string title,
string content,
int method,
string scheduledTime,
int repeatTime,
bool repeatTimeSpecified,
int repeatInterval,
bool repeatIntervalSpecified,
int repeatUnit,
bool repeatUnitSpecified,
string permitedPeriod,
int priority) {
this.sendAsync(taskID, mobileNumber, channelID, messageClass, title, content, method, scheduledTime, repeatTime, repeatTimeSpecified, repeatInterval, repeatIntervalSpecified, repeatUnit, repeatUnitSpecified, permitedPeriod, priority, null);
}
/// <remarks/>
public void sendAsync(
string taskID,
string mobileNumber,
string channelID,
int messageClass,
string title,
string content,
int method,
string scheduledTime,
int repeatTime,
bool repeatTimeSpecified,
int repeatInterval,
bool repeatIntervalSpecified,
int repeatUnit,
bool repeatUnitSpecified,
string permitedPeriod,
int priority,
object userState) {
if ((this.sendOperationCompleted == null)) {
this.sendOperationCompleted = new System.Threading.SendOrPostCallback(this.OnsendOperationCompleted);
}
this.InvokeAsync("send", new object[] {
taskID,
mobileNumber,
channelID,
messageClass,
title,
content,
method,
scheduledTime,
repeatTime,
repeatTimeSpecified,
repeatInterval,
repeatIntervalSpecified,
repeatUnit,
repeatUnitSpecified,
permitedPeriod,
priority}, this.sendOperationCompleted, userState);
}
private void OnsendOperationCompleted(object arg) {
if ((this.sendCompleted != null)) {
System.Web.Services.Protocols.InvokeCompletedEventArgs invokeArgs = ((System.Web.Services.Protocols.InvokeCompletedEventArgs)(arg));
this.sendCompleted(this, new sendCompletedEventArgs(invokeArgs.Results, invokeArgs.Error, invokeArgs.Cancelled, invokeArgs.UserState));
}
}
/// <remarks/>
public new void CancelAsync(object userState) {
base.CancelAsync(userState);
}
}
/// <remarks/>
[System.CodeDom.Compiler.GeneratedCodeAttribute("wsdl", "4.0.30319.17929")]
public delegate void sendCompletedEventHandler(object sender, sendCompletedEventArgs e);
/// <remarks/>
[System.CodeDom.Compiler.GeneratedCodeAttribute("wsdl", "4.0.30319.17929")]
[System.Diagnostics.DebuggerStepThroughAttribute()]
[System.ComponentModel.DesignerCategoryAttribute("code")]
public partial class sendCompletedEventArgs : System.ComponentModel.AsyncCompletedEventArgs {
private object[] results;
internal sendCompletedEventArgs(object[] results, System.Exception exception, bool cancelled, object userState) :
base(exception, cancelled, userState) {
this.results = results;
}
/// <remarks/>
public string Result {
get {
this.RaiseExceptionIfNecessary();
return ((string)(this.results[0]));
}
}
}
fomyth 2013-08-23
- 打赏
- 举报
上一贴，字数限制，附上Webservice消息发送接口报文样例：
<?xml version="1.0" encoding="UTF-8" ?>
<SOAP-ENV:Envelope xmlns:SOAP-ENV="http://schemas.xmlsoap.org/soap/envelope/"
xmlns:SOAP-ENC="http://schemas.xmlsoap.org/soap/encoding/" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:xsd="http://www.w3.org/2001/XMLSchema">
<SOAP-ENV:Header>
<m:SpInfo m:SpID="smwsp1" xmlns:m="http://smsmonitor.asiainfo.com" m:SpPassword="smwsp1"
/>
<m:TransactionInfo xmlns:m="http://smsmonitor.asiainfo.com" m:LinkID="25712944"
/>
</SOAP-ENV:Header>
<SOAP-ENV:Body>
<m:send xmlns:m="http://smsmonitor.asiainfo.com">
<m:taskID>
TaskID-003761653
</m:taskID>
<m:mobileNumber>
8613301261178
</m:mobileNumber>
<m:channelID>
106557503
</m:channelID>
<m:messageClass>
1
</m:messageClass>
<m:title>
</m:title>
<m:content>
This is test message
</m:content>
<m:method>
1
</m:method>
<m:scheduledTime>
</m:scheduledTime>
<m:repeatTime>
</m:repeatTime>
<m:repeatInterval>
</m:repeatInterval>
<m:repeatUnit>
</m:repeatUnit>
<m:permitedPeriod>
00:00-23:59
</m:permitedPeriod>
<m:priority>
3
</m:priority>
</m:send>
</SOAP-ENV:Body>
</SOAP-ENV:Envelope>
