关于双NAT请帮我看下这个实验

[都叫我大Q]

做了半天实在不通，请各位帮看看是哪里有问题：

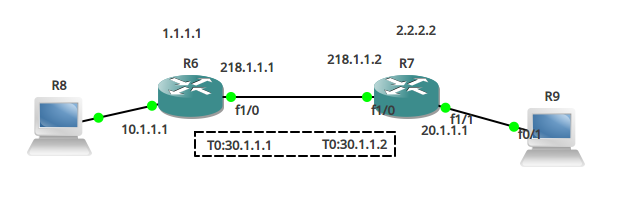

基本拓扑如图：


请无视那个T0

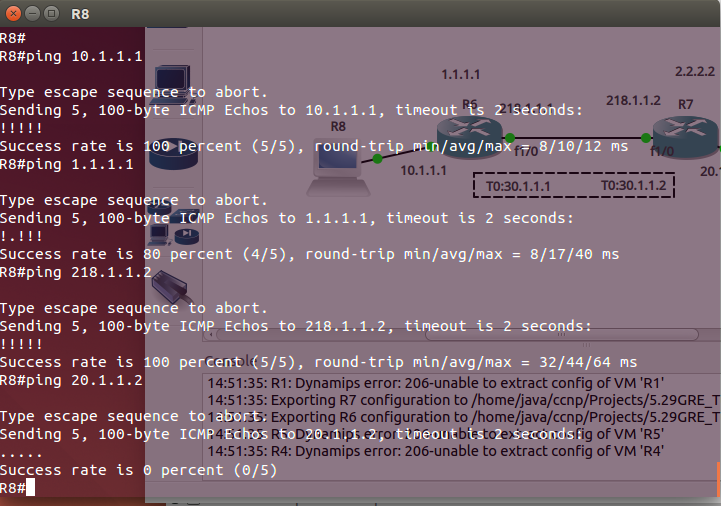

R6、R7（C7200）为两个NAT服务器，算公网接入吧，R8、R9本来该是主机暂用路由代替（C2600），路由上配置了Rip，NAT，Loopback（测试用），以R8为例，测试结果如图：



即R8--R6通，R8-R6 loopback通，R8-R9通，但就是R8到R9的inside不通了，抓包数据请看下图：

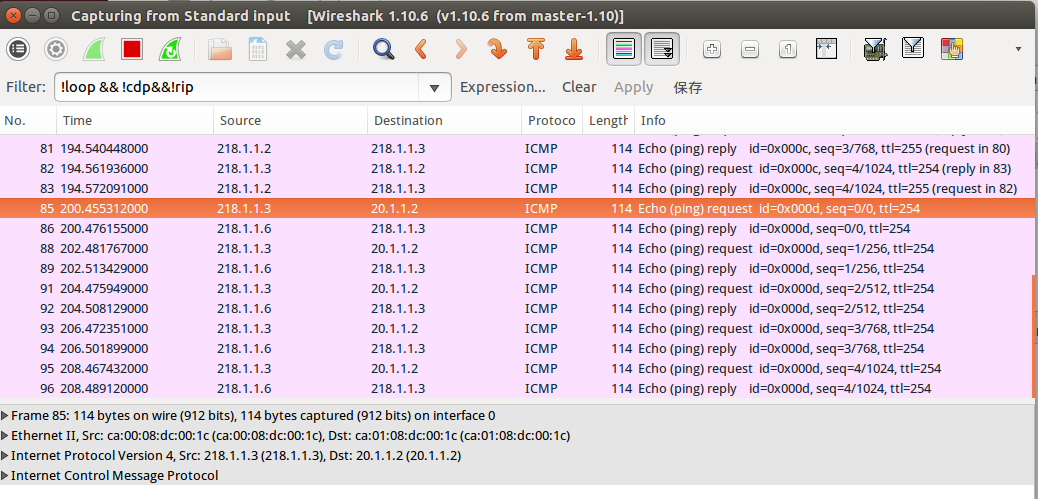

这是从R7的F1/1口上抓的，应该是从85号开始。

各设备start conf如下：

R6：
!

!
upgrade fpd auto
version 12.4
service timestamps debug datetime msec
service timestamps log datetime msec
no service password-encryption
!
hostname R6
!
boot-start-marker
boot-end-marker
!
logging message-counter syslog
!
no aaa new-model
ip source-route
no ip icmp rate-limit unreachable
ip cef
!
!
!
!
no ip domain lookup
no ipv6 cef
!
multilink bundle-name authenticated
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
memory-size iomem 0
archive
log config
hidekeys
!
!
!
!
!
ip tcp synwait-time 5
!
!
!
!
interface Loopback0
ip address 1.1.1.1 255.255.255.0
!
interface FastEthernet0/0
no ip address
shutdown
duplex half
!
interface FastEthernet1/0
ip address 218.1.1.1 255.255.255.0
ip nat outside
ip virtual-reassembly
duplex auto
speed auto
!
interface FastEthernet1/1
ip address 10.1.1.1 255.255.255.0
ip nat inside
ip virtual-reassembly
duplex auto
speed auto
!
router rip
version 2
network 1.0.0.0
network 10.0.0.0
network 218.1.1.0
no auto-summary
!
ip forward-protocol nd
no ip http server
no ip http secure-server
!
!
ip nat pool NAT 218.1.1.3 218.1.1.4 netmask 255.255.255.0
ip nat inside source list 1 pool NAT overload
!
access-list 1 permit 10.1.1.0 0.0.0.255
!
!
!
!
!
!
control-plane
!
!
!
mgcp fax t38 ecm
!
!
!
!
gatekeeper
shutdown
!
!
line con 0
exec-timeout 0 0
privilege level 15
logging synchronous
stopbits 1
line aux 0
exec-timeout 0 0
privilege level 15
logging synchronous
stopbits 1
line vty 0 4
login
!
end



R7：
!

!
upgrade fpd auto
version 12.4
service timestamps debug datetime msec
service timestamps log datetime msec
no service password-encryption
!
hostname R7
!
boot-start-marker
boot-end-marker
!
logging message-counter syslog
!
no aaa new-model
ip source-route
no ip icmp rate-limit unreachable
ip cef
!
!
!
!
no ip domain lookup
no ipv6 cef
!
multilink bundle-name authenticated
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
memory-size iomem 0
archive
log config
hidekeys
!
!
!
!
!
ip tcp synwait-time 5
!
!
!
!
interface Loopback0
ip address 2.2.2.2 255.255.255.0
!
interface FastEthernet0/0
no ip address
shutdown
duplex half
!
interface FastEthernet1/0
ip address 218.1.1.2 255.255.255.0
ip nat outside
ip virtual-reassembly
duplex auto
speed auto
!
interface FastEthernet1/1
ip address 20.1.1.1 255.255.255.0
ip nat inside
ip virtual-reassembly
duplex auto
speed auto
!
router rip
version 2
network 2.0.0.0
network 20.0.0.0
network 218.1.1.0
no auto-summary
!
ip forward-protocol nd
no ip http server
no ip http secure-server
!
!
ip nat pool NAT 218.1.1.5 218.1.1.6 netmask 255.255.255.0
ip nat inside source list 1 pool NAT overload
!
access-list 1 permit 20.1.1.0 0.0.0.255
!
!
!
!
!
!
control-plane
!
!
!
mgcp fax t38 ecm
!
!
!
!
gatekeeper
shutdown
!
!
line con 0
exec-timeout 0 0
privilege level 15
logging synchronous
stopbits 1
line aux 0
exec-timeout 0 0
privilege level 15
logging synchronous
stopbits 1
line vty 0 4
login
!
end


R8：
!

!
version 12.4
service timestamps debug datetime msec
service timestamps log datetime msec
no service password-encryption
!
hostname R8
!
boot-start-marker
boot-end-marker
!
!
no aaa new-model
memory-size iomem 5
no ip routing
no ip icmp rate-limit unreachable
no ip cef
ip tcp synwait-time 5
!
!
!
!
no ip domain lookup
!
multilink bundle-name authenticated
!
!
!
!
!
!
!
!
!
!
!
interface FastEthernet0/0
no ip address
no ip route-cache
shutdown
duplex auto
speed auto
!
interface FastEthernet0/1
ip address 10.1.1.2 255.255.255.0
no ip route-cache
duplex auto
speed auto
!
ip default-gateway 10.1.1.1
!
!
no ip http server
no ip http secure-server
!
!
!
!
!
!
control-plane
!
!
!
line con 0
exec-timeout 0 0
privilege level 15
logging synchronous
line aux 0
exec-timeout 0 0
privilege level 15
logging synchronous
line vty 0 4
login
!
!
end


R9：
!

!
version 12.4
service timestamps debug datetime msec
service timestamps log datetime msec
no service password-encryption
!
hostname R9
!
boot-start-marker
boot-end-marker
!
!
no aaa new-model
memory-size iomem 5
no ip routing
no ip icmp rate-limit unreachable
no ip cef
ip tcp synwait-time 5
!
!
!
!
no ip domain lookup
!
multilink bundle-name authenticated
!
!
!
!
!
!
!
!
!
!
!
interface FastEthernet0/0
no ip address
no ip route-cache
shutdown
duplex auto
speed auto
!
interface FastEthernet0/1
ip address 20.1.1.2 255.255.255.0
no ip route-cache
duplex auto
speed auto
!
ip default-gateway 20.1.1.1
!
!
no ip http server
no ip http secure-server
!
!
!
!
!
!
control-plane
!
!
!
line con 0
exec-timeout 0 0
privilege level 15
logging synchronous
line aux 0
exec-timeout 0 0
privilege level 15
logging synchronous
line vty 0 4
login
!
!
end
