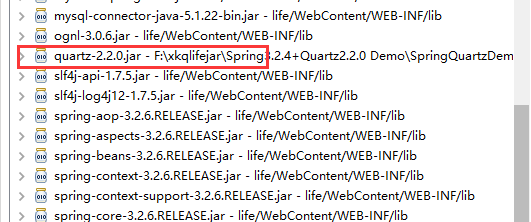

string3.2.6+quartz2.2.0,tomcat启动时报错，不知是什么原因，大神们帮忙看看。


applicationContext.xml配置如下：
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
  xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  xmlns:context="http://www.springframework.org/schema/context"
  xsi:schemaLocation="http://www.springframework.org/schema/beans
      http://www.springframework.org/schema/beans/spring-beans-3.2.xsd
      http://www.springframework.org/schema/context
      http://www.springframework.org/schema/context/spring-context-3.2.xsd" >

    <!-- 自动扫描并注入
    <context:component-scan base-package="com.yl" />
     -->

   <!-- 创建SqlSessionFactory，同时指定数据源 -->
    <bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
        <property name="dataSource" ref="dataSource" />
         <property name="configLocation" value="classpath:mybatis-config.xml"></property>
    </bean>
    <import resource="applicationContext-jobs.xml"/>
<import resource="applicationContext-transaction.xml"/>
    <import resource="applicationContext-pojo.xml" />
<import resource="applicationContext-dao.xml" />
<import resource="applicationContext-service.xml" />
<import resource="applicationContext-action.xml" />

<!-- 启动触发器的配置开始 -->
     <bean name="startQue" lazy-init="false"  class="org.springframework.scheduling.quartz.SchedulerFactoryBean">
        <property name="triggers">
            <list>
                <ref bean="myJobTrigger" />
            </list>
        </property>
    </bean>
    <!-- 启动触发器的配置结束 -->

    <!-- 调度的配置开始 -->
    <!-- quartz-2.x的配置 -->
    <bean id="myJobTrigger"
        class="org.springframework.scheduling.quartz.CronTriggerFactoryBean">
        <property name="jobDetail">
            <ref bean="myJobDetail" />
        </property>
        <property name="cronExpression">
            <value>0/1 * * * * ?</value>
        </property>
    </bean>
    <!-- 调度的配置结束 -->

    <!-- job的配置开始 -->
    <bean id="myJobDetail"
        class="org.springframework.scheduling.quartz.MethodInvokingJobDetailFactoryBean">
        <property name="targetObject">
            <ref bean="myJob" />
        </property>
        <property name="targetMethod">
            <value>work</value>
        </property>
    </bean>
    <!-- job的配置结束 -->

    <!-- 工作的bean -->
    <bean id="myJob" class="com.yl.job.MyJob" />

</beans>

tomcat报错如下：
2016-03-31 13:19:55 [org.springframework.web.context.ContextLoader]-[ERROR] Context initialization failed
org.springframework.beans.factory.BeanCreationException: Error creating bean with name 'startQue' defined in ServletContext resource [/WEB-INF/classes/applicationContext.xml]: Instantiation of bean failed; nested exception is java.lang.NoClassDefFoundError: org/quartz/spi/ClassLoadHelper
at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.instantiateBean(AbstractAutowireCapableBeanFactory.java:1037)
at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.createBeanInstance(AbstractAutowireCapableBeanFactory.java:983)
at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.doCreateBean(AbstractAutowireCapableBeanFactory.java:487)
at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.createBean(AbstractAutowireCapableBeanFactory.java:458)
at org.springframework.beans.factory.support.AbstractBeanFactory$1.getObject(AbstractBeanFactory.java:296)
at org.springframework.beans.factory.support.DefaultSingletonBeanRegistry.getSingleton(DefaultSingletonBeanRegistry.java:223)
at org.springframework.beans.factory.support.AbstractBeanFactory.doGetBean(AbstractBeanFactory.java:293)
at org.springframework.beans.factory.support.AbstractBeanFactory.getBean(AbstractBeanFactory.java:194)
at org.springframework.beans.factory.support.DefaultListableBeanFactory.preInstantiateSingletons(DefaultListableBeanFactory.java:610)
.....
Caused by: java.lang.ClassNotFoundException: org.quartz.spi.ClassLoadHelper
at org.apache.catalina.loader.WebappClassLoaderBase.loadClass(WebappClassLoaderBase.java:1856)
at org.apache.catalina.loader.WebappClassLoaderBase.loadClass(WebappClassLoaderBase.java:1705)
... 32 more
三月 31, 2016 1:19:55 下午 org.apache.catalina.core.StandardContext listenerStart
严重: Exception sending context initialized event to listener instance of class org.springframework.web.context.ContextLoaderListener
org.springframework.beans.factory.BeanCreationException: Error creating bean with name 'startQue' defined in ServletContext resource [/WEB-INF/classes/applicationContext.xml]: Instantiation of bean failed; nested exception is java.lang.NoClassDefFoundError: org/quartz/spi/ClassLoadHelper
at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.instantiateBean(AbstractAutowireCapableBeanFactory.java:1037)
at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.createBeanInstance(AbstractAutowireCapableBeanFactory.java:983)
at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.doCreateBean(AbstractAutowireCapableBeanFactory.java:487)
......
Caused by: java.lang.ClassNotFoundException: org.quartz.spi.ClassLoadHelper
at org.apache.catalina.loader.WebappClassLoaderBase.loadClass(WebappClassLoaderBase.java:1856)
at org.apache.catalina.loader.WebappClassLoaderBase.loadClass(WebappClassLoaderBase.java:1705)
... 32 more

三月 31, 2016 1:19:55 下午 org.apache.catalina.core.ApplicationContext log
信息: Log4jServletContextListener ensuring that Log4j starts up properly.
