实现方法：

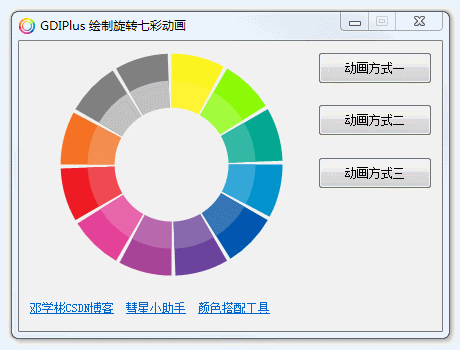

使用GDIPlus，FillPie方法，把各个色块当饼形图画出。

void CRotateAnimation::DrawPie(HDC hDC)

{

	Gdiplus::Graphics* pGraphics=new Gdiplus::Graphics(hDC);

	pGraphics->SetSmoothingMode(SmoothingModeHighQuality);

	Gdiplus::Color clr(150,0,0,0);

	Gdiplus::SolidBrush* pBrush=new Gdiplus::SolidBrush(clr);

	//--------------------------------------------------------

	//计算外圈、内圈位置

	Gdiplus::Rect rcOut(m_Rect);

	Gdiplus::Rect rcIn(rcOut);

	rcIn.Inflate(-m_ItemSize,-m_ItemSize);

	//--------------------------------------------------------

	//先画出外圈小方块

	float fStartAngle = -90;//起始绘制角度

	float fSweepAngle = 360 / m_AnimationCount;//每小块的角度

	for(int i=0;i<m_AnimationCount;i++)

	{

		clr.SetFromCOLORREF(m_pAnimationArray[i].clrOut);

		pBrush->SetColor(clr);

		pGraphics->FillPie(pBrush,rcOut, fStartAngle, fSweepAngle - m_MarginAngle);

		fStartAngle = fStartAngle + fSweepAngle;

	}

	//--------------------------------------------------------

	//画出内圈小方块;

	fStartAngle = -90;

	for(int i=0;i<m_AnimationCount;i++)

	{

		clr.SetFromCOLORREF(m_pAnimationArray[i].clrIn);

		pBrush->SetColor(clr);

		pGraphics->FillPie(pBrush,rcIn, fStartAngle, fSweepAngle - m_MarginAngle);

		fStartAngle = fStartAngle + fSweepAngle;

	}

	//--------------------------------------------------------

	//画出中间圆心，用控件底色填充

	rcIn.Inflate(-m_ItemSize,-m_ItemSize);

	clr.SetFromCOLORREF(m_ColorBack);

	pBrush->SetColor(clr);

	pGraphics->FillEllipse(pBrush,rcIn);

	//--------------------------------------------------------

	delete pBrush;

	delete pGraphics;

}

源码下载
