Remarks

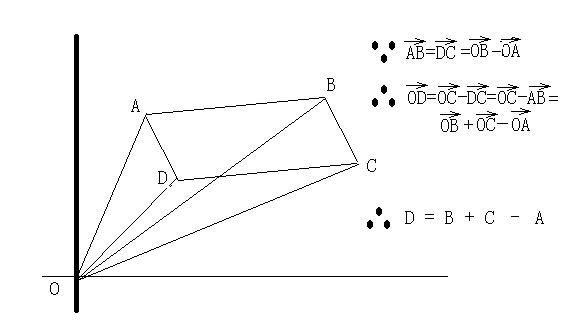

The fourth vertex of the parallelogram (D) is defined by treating the first three points (A, B, and C) as vectors and computing D = B + C – A.
Bitmap Rotation

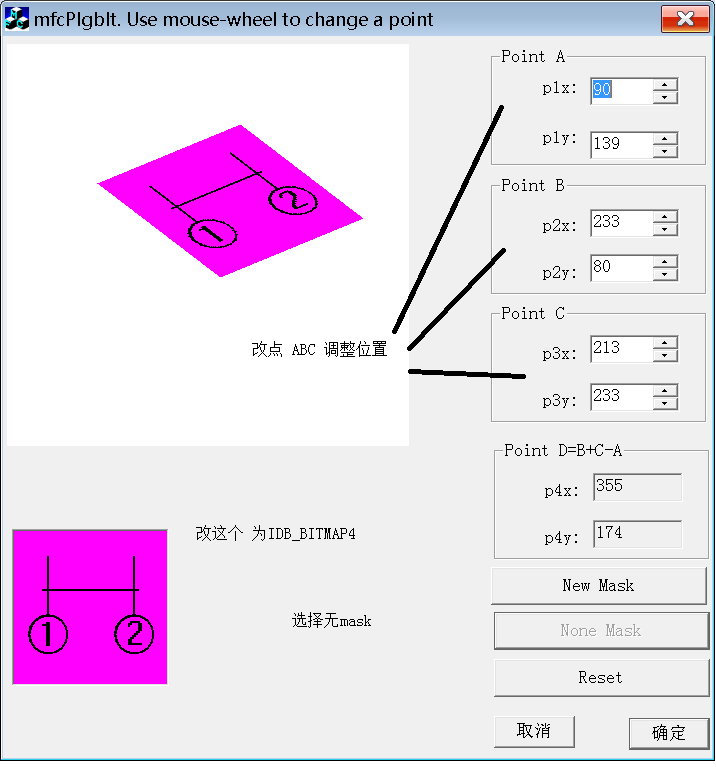

The Win32 API provides a function to copy a bitmap into a parallelogram; this function, PlgBlt, performs a bit-block transfer from a rectangle in a source device context into a parallelogram in a destination device context. In order to rotate the bitmap, an application must provide the coordinates, in world units, to be used for the corners of the parallelogram. (For more information about rotation and world units, see Coordinate Spaces and Transformations.)
Using the World Transformation
--------------------------------------------------------------------------------
The world transformation is a property of the Graphics class. The numbers that specify the world transformation are stored in a Matrix object, which represents a 3 ×3 matrix. The Matrix and Graphics classes have several methods for setting the numbers in the world transformation matrix. The examples in this section manipulate rectangles because rectangles are easy to draw and it is easy to see the effects of transformations on rectangles.
We start by creating a 50 by 50 rectangle and locating it at the origin (0, 0). The origin is at the upper-left corner of the client area.
Rect rect(0, 0, 50, 50);
Pen pen(Color(255, 255, 0, 0), 0);
graphics.DrawRectangle(&pen, rect);
The following code applies a scaling transformation that expands the rectangle by a factor of 1.75 in the x direction and shrinks the rectangle by a factor of 0.5 in the y direction:
Rect rect(0, 0, 50, 50);
Pen pen(Color(255, 255, 0, 0), 0);
graphics.ScaleTransform(1.75f, 0.5f);
graphics.DrawRectangle(&pen, rect);
The result is a rectangle that is longer in the x direction and shorter in the y direction than the original.
To rotate the rectangle instead of scaling it, use the following code instead of the preceding code:
Rect rect(0, 0, 50, 50);
Pen pen(Color(255, 255, 0, 0), 0);
graphics.RotateTransform(28.0f);
graphics.DrawRectangle(&pen, rect);
To translate the rectangle, use the following code:
Rect rect(0, 0, 50, 50);
Pen pen(Color(255, 255, 0, 0), 0);
graphics.TranslateTransform(150.0f, 150.0f);
graphics.DrawRectangle(&pen, rect);
--------------------------------------------------------------------------------
