升级了androidstudio，原有的xml格式的图片加载报错 Error inflating class ImageView

首先排除了文件不存在的错误。因为我的文件确实存在的。也排除代码的错误，代码之前也没有动过，并且换一张xml的就可以了。
我也怀疑过是否是图片的原因，但是图片被我放到android studio2.3.3版本上就可以访问，并且同事的android studio3.3版本也能运行的起。
我在想是不是我的android studio什么设置的原因？我单独把图片写出来也报错，并且编译通过，报运行时的错误。
请问各位大佬这是怎么回事？

报错代码：
Caused by: android.view.InflateException: Binary XML file line #19: Binary XML file line #19: Error inflating class ImageView
Caused by: android.view.InflateException: Binary XML file line #19: Error inflating class ImageView
Caused by: android.content.res.Resources$NotFoundException: Drawable com.llx.myapplication:drawable/a_ic_index__4 with resource ID #0x7f060001
Caused by: android.content.res.Resources$NotFoundException: File res/drawable/a_ic_index__4.xml from drawable resource ID #0x7f060001
at android.content.res.ResourcesImpl.loadDrawableForCookie(ResourcesImpl.java:982)
at android.content.res.ResourcesImpl.loadDrawable(ResourcesImpl.java:769)
at android.content.res.Resources.getDrawableForDensity(Resources.java:918)
at android.content.res.Resources.getDrawable(Resources.java:860)
at android.content.Context.getDrawable(Context.java:611)
at android.support.v4.content.ContextCompat.getDrawable(ContextCompat.java:351)
at android.support.v7.widget.AppCompatDrawableManager.getDrawable(AppCompatDrawableManager.java:200)
at android.support.v7.widget.AppCompatDrawableManager.getDrawable(AppCompatDrawableManager.java:188)
at android.support.v7.content.res.AppCompatResources.getDrawable(AppCompatResources.java:100)
at android.support.v7.widget.AppCompatImageHelper.loadFromAttributes(AppCompatImageHelper.java:58)
at android.support.v7.widget.AppCompatImageView.<init>(AppCompatImageView.java:78)
at android.support.v7.widget.AppCompatImageView.<init>(AppCompatImageView.java:68)
at android.support.v7.app.AppCompatViewInflater.createView(AppCompatViewInflater.java:106)
at android.support.v7.app.AppCompatDelegateImplV9.createView(AppCompatDelegateImplV9.java:1024)
at android.support.v7.app.AppCompatDelegateImplV9.onCreateView(AppCompatDelegateImplV9.java:1081)
at android.view.LayoutInflater.createViewFromTag(LayoutInflater.java:779)
at android.view.LayoutInflater.createViewFromTag(LayoutInflater.java:737)
at android.view.LayoutInflater.rInflate(LayoutInflater.java:870)
at android.view.LayoutInflater.rInflateChildren(LayoutInflater.java:831)
at android.view.LayoutInflater.inflate(LayoutInflater.java:515)
at android.view.LayoutInflater.inflate(LayoutInflater.java:423)
at android.view.LayoutInflater.inflate(LayoutInflater.java:374)
at android.support.v7.app.AppCompatDelegateImplV9.setContentView(AppCompatDelegateImplV9.java:287)
at android.support.v7.app.AppCompatActivity.setContentView(AppCompatActivity.java:139)
at com.llx.myapplication.MainActivity.onCreate(MainActivity.java:24)
at android.app.Activity.performCreate(Activity.java:7267)
at android.app.Activity.performCreate(Activity.java:7258)
at android.app.Instrumentation.callActivityOnCreate(Instrumentation.java:1214)
at android.app.ActivityThread.performLaunchActivity(ActivityThread.java:2953)
at android.app.ActivityThread.handleLaunchActivity(ActivityThread.java:3078)
at android.app.ActivityThread.-wrap11(Unknown Source:0)
at android.app.ActivityThread$H.handleMessage(ActivityThread.java:1794)
2019-02-19 09:45:02.299 7346-7346/? E/AndroidRuntime: at android.os.Handler.dispatchMessage(Handler.java:106)
at android.os.Looper.loop(Looper.java:183)
at android.app.ActivityThread.main(ActivityThread.java:7014)
at java.lang.reflect.Method.invoke(Native Method)
at com.android.internal.os.RuntimeInit$MethodAndArgsCaller.run(RuntimeInit.java:514)
at com.android.internal.os.ZygoteInit.main(ZygoteInit.java:888)

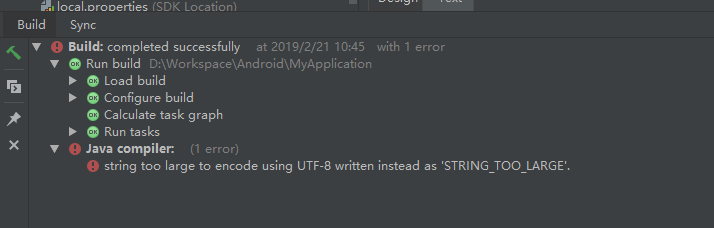

Caused by: java.lang.IllegalArgumentException: Invalid pathData. Failure occurred at position 2 of path: STRING_TOO_LARGE
at android.util.PathParser.nCreatePathDataFromString(Native Method)
at android.util.PathParser.-wrap1(Unknown Source:0)
at android.util.PathParser$PathData.<init>(PathParser.java:76)
at android.graphics.drawable.VectorDrawable$VFullPath.updateStateFromTypedArray(VectorDrawable.java:1931)
at android.graphics.drawable.VectorDrawable$VFullPath.inflate(VectorDrawable.java:1882)
at android.graphics.drawable.VectorDrawable.inflateChildElements(VectorDrawable.java:741)
at android.graphics.drawable.VectorDrawable.inflate(VectorDrawable.java:639)
at android.graphics.drawable.DrawableInflater.inflateFromXmlForDensity(DrawableInflater.java:142)
at android.graphics.drawable.Drawable.createFromXmlInnerForDensity(Drawable.java:1295)
at android.graphics.drawable.Drawable.createFromXmlForDensity(Drawable.java:1254)
at android.content.res.ResourcesImpl.loadDrawableForCookie(ResourcesImpl.java:962)
... 37 more

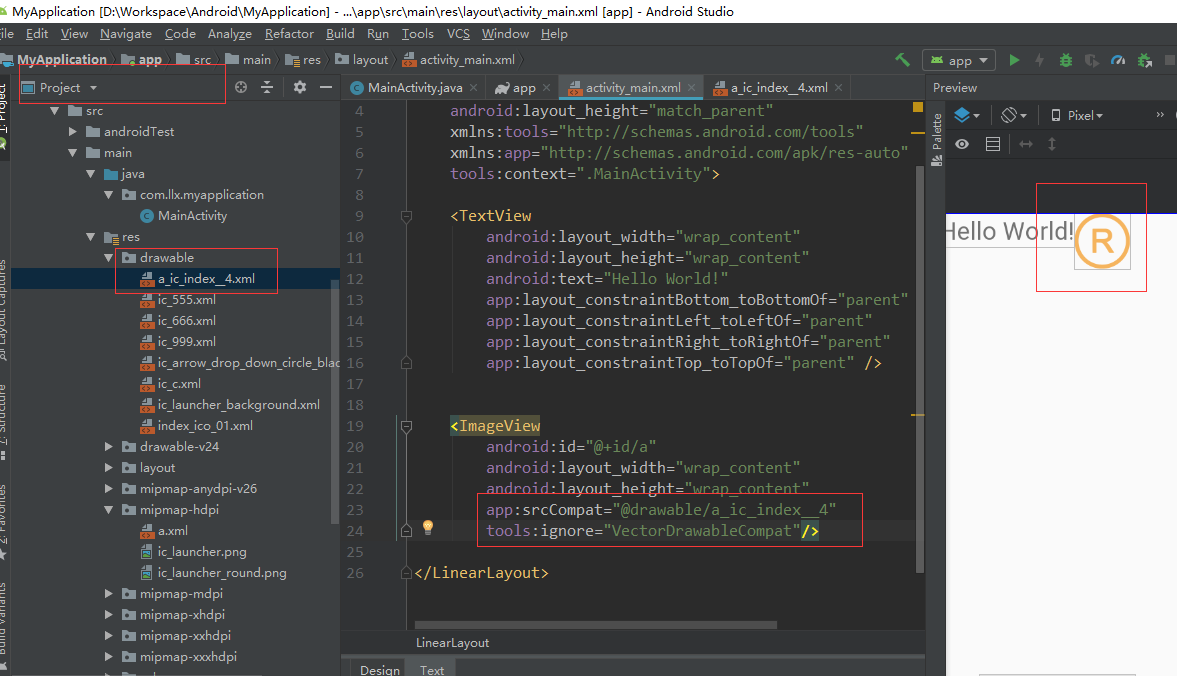

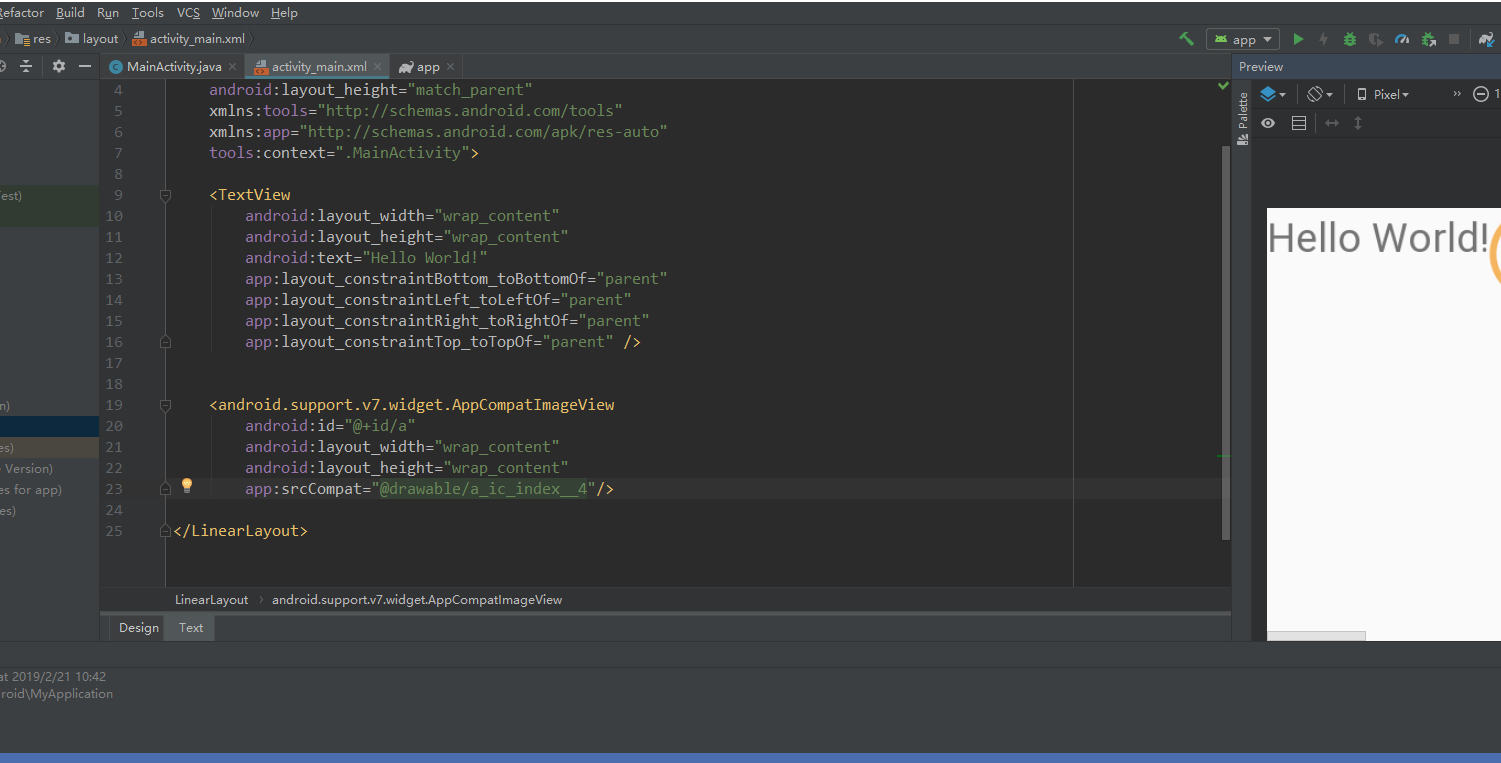

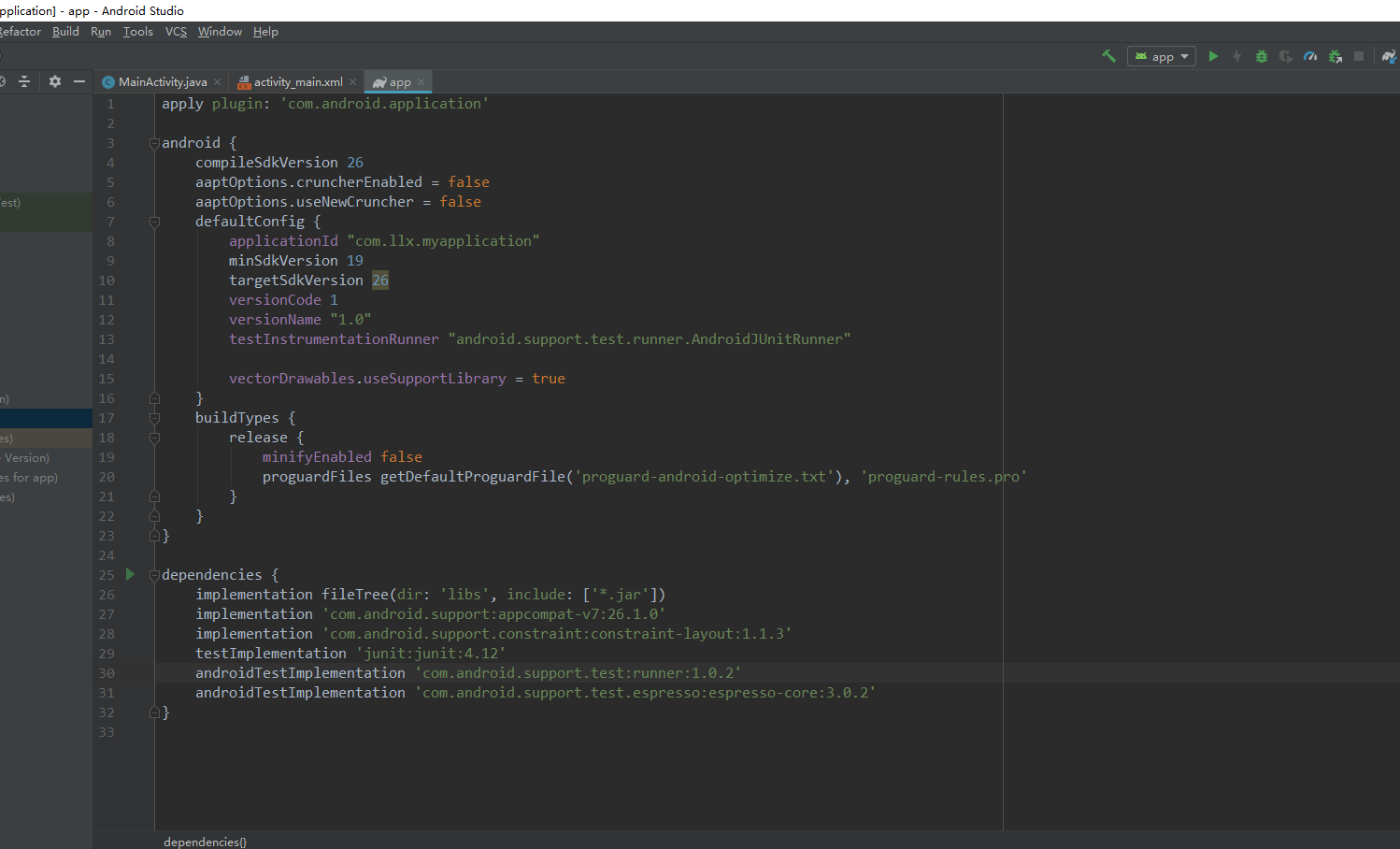

我的代码贴图：



我的svg：

<?xml version="1.0" encoding="utf-8"?>

<vector android:height="32dp" android:viewportHeight="400.0"

    android:viewportWidth="400.0" android:width="32dp" xmlns:android="http://schemas.android.com/apk/res/android"

    >

    <path android:fillColor="#f5b45e"

        android:pathData="M179.9,1.5C178,1.6 176.4,1.8 176.4,2C176.4,2.2 175.2,2.4 173.8,2.4C172.4,2.4 171.2,2.6 171.2,2.7C171.2,2.9 169.4,3.2 167.3,3.4C165.2,3.5 163.3,3.8 163.3,4C163.2,4.2 162.2,4.4 161.2,4.4C160.1,4.4 159.2,4.6 159.2,4.8C159.2,5 157.9,5.2 156.4,5.4C154.9,5.6 153.5,5.8 153.4,6C153.3,6.2 152.5,6.4 151.8,6.4C151,6.4 150.4,6.6 150.4,6.8C150.4,7 149.3,7.2 148,7.4C146.7,7.6 145.6,7.8 145.6,8C145.6,8.2 145.1,8.4 144.4,8.4C143.7,8.4 143.2,8.6 143.2,8.8C143.2,9 142.3,9.2 141.2,9.4C140.1,9.6 139.2,9.8 139.2,10C139.2,10.2 138.8,10.4 138.2,10.4C137.7,10.4 137.1,10.6 137,10.8C136.9,11 136,11.3 135,11.4C134,11.6 133.2,11.9 133.2,12C133.2,12.2 132.8,12.4 132.2,12.4C131.6,12.4 131.2,12.6 131.2,12.8C131.2,12.9 130.4,13.2 129.4,13.4C128.4,13.5 127.6,13.8 127.6,14C127.6,14.2 127.2,14.4 126.6,14.4C126.1,14.4 125.6,14.6 125.6,14.8C125.6,15 125.1,15.2 124.5,15.4C123,15.7 121.2,16.5 121.2,16.8C121.2,17 120.6,17.2 119.9,17.4C118.3,17.7 116.4,18.5 116.4,18.9C116.4,19 115.8,19.3 115,19.4C114.2,19.6 113.6,19.8 113.6,20C113.6,20.2 113.3,20.4 113,20.4C112.7,20.4 112.4,20.6 112.4,20.8C112.4,21 112.2,21.2 112,21.2C111.3,21.2 108.4,22.6 108.4,22.9C108.4,23.1 108.2,23.2 108,23.2C107.4,23.2 104.7,24.5 104.4,24.8C104.3,25 103.8,25.2 103.3,25.4C102.8,25.5 102.4,25.8 102.4,26C102.4,26.2 102.1,26.4 101.8,26.4C101.5,26.4 101.2,26.6 101.2,26.8C101.2,26.9 100.7,27.2 100.1,27.3C99.5,27.4 98.6,27.9 98.2,28.3C97.7,28.7 96.7,29.3 95.9,29.8C95.1,30.2 94.4,30.7 94.4,30.8C94.4,31 93.9,31.2 93.4,31.4C92.8,31.5 92.4,31.8 92.4,32C92.4,32.2 92.1,32.4 91.8,32.4C91.5,32.4 91.2,32.6 91.2,32.8C91.2,33 90.8,33.3 90.2,33.4C89.7,33.6 89.2,33.8 89.2,34C89.2,34.1 88.6,34.6 87.8,35C87,35.4 86.4,35.9 86.4,36.1C86.4,36.3 86.1,36.4 85.8,36.4C85.5,36.4 85.2,36.6 85.2,36.8C85.2,37 84.9,37.2 84.5,37.4C84.1,37.5 83.2,38.1 82.4,38.8C81.6,39.5 80.9,40 80.8,40C80.6,40 80.1,40.4 79.5,40.9C78.5,41.8 77.2,42.8 75.3,44.2C74.7,44.6 73.4,45.8 72.4,46.7C71.4,47.6 70.5,48.4 70.3,48.4C70.2,48.4 69.1,49.3 67.9,50.5C66.7,51.7 64.5,53.7 63,55C61.5,56.3 60.1,57.6 59.9,57.9C59.6,58.2 58,59.8 56.4,61.5C52.4,65.8 48.6,69.9 48.5,70.4C48.4,70.6 47.6,71.6 46.8,72.5C45.9,73.4 45.2,74.4 45.2,74.7C45.2,74.9 44.8,75.3 44.4,75.4C44,75.5 43.5,75.9 43.4,76.3C43.2,76.9 42.7,77.7 40.8,79.9C40.6,80.1 40.4,80.5 40.4,80.7C40.4,80.9 40.1,81.2 39.8,81.3C39.5,81.5 39.2,81.8 39.2,82.1C39.2,82.4 38.8,83 38.2,83.5C37.7,84 37.2,84.7 37.2,85C37.2,85.3 37,85.6 36.9,85.6C36.7,85.6 36.2,86.2 35.8,87C35.4,87.8 34.9,88.4 34.7,88.4C34.5,88.4 34.4,88.7 34.4,89C34.4,89.3 34.2,89.6 34,89.6C33.8,89.6 33.5,90 33.4,90.5C33.2,91 32.8,91.7 32.4,92C32.1,92.3 31.6,93.1 31.3,93.6C31,94.2 30.4,95.3 29.8,96.2C29.2,97.1 28.7,98.1 28.5,98.5C28.4,98.9 28.2,99.2 28,99.2C27.8,99.2 27.6,99.7 27.4,100.2C27.3,100.8 26.8,101.7 26.4,102.1C25.9,102.6 25.4,103.5 25.3,104.1C25.2,104.7 24.9,105.2 24.8,105.2C24.6,105.2 24.4,105.5 24.4,105.8C24.4,106.1 24.2,106.4 24,106.4C23.8,106.4 23.5,107 23.4,107.8C23.2,108.6 23,109.2 22.8,109.2C22.6,109.2 22.4,109.5 22.4,109.8C22.4,110.1 22.2,110.4 22,110.4C21.8,110.4 21.5,111 21.4,111.8C21.2,112.6 21,113.2 20.8,113.2C20.6,113.2 20.4,113.5 20.4,113.8C20.4,114.1 20.2,114.4 20,114.4C19.8,114.4 19.5,115 19.4,115.8C19.2,116.6 19,117.2 18.8,117.2C18.6,117.2 18.4,117.4 18.4,117.7C18.4,118.2 17.6,120.1 16.8,121.7C16.6,122.1 16.4,122.7 16.4,123C16.4,123.3 16.2,123.6 16,123.6C15.8,123.6 15.5,124.4 15.4,125.3C15.2,126.2 15,127.1 14.8,127.2C14.4,127.5 13.2,130.7 13.2,131.6C13.2,132 13,132.4 12.8,132.4C12.6,132.4 12.4,132.9 12.4,133.4C12.4,133.9 12.2,134.4 12,134.4C11.8,134.4 11.6,135.3 11.4,136.4C11.2,137.5 11,138.4 10.8,138.4C10.6,138.4 10.4,138.9 10.4,139.4C10.4,139.9 10.2,140.4 10,140.4C9.8,140.4 9.5,141.5 9.4,142.8C9.2,144.1 8.9,145.2 8.7,145.2C8.6,145.2 8.4,145.6 8.4,146.2C8.4,146.7 8.2,147.3 8,147.4C7.8,147.5 7.6,148.7 7.4,150C7.2,151.3 7,152.4 6.8,152.4C6.6,152.4 6.4,153.1 6.4,154C6.4,154.8 6.2,155.6 6,155.7C5.8,155.7 5.5,157.3 5.4,159.1C5.2,160.9 4.9,162.4 4.7,162.4C4.6,162.4 4.4,163.2 4.4,164.1C4.4,165.1 4.2,166 4,166.2C3.8,166.4 3.5,168.6 3.4,171.1C3.2,173.6 2.9,175.6 2.7,175.6C2.6,175.6 2.4,177.1 2.4,179C2.4,181 2.2,182.4 2,182.4C1.5,182.4 1.5,214.3 2,214.6C2.2,214.7 2.4,216.4 2.4,218.2C2.4,220 2.6,221.7 2.8,221.8C2.9,221.9 3.2,224.1 3.4,226.6C3.5,229.1 3.8,231.3 4,231.4C4.2,231.5 4.4,232.3 4.4,233.2C4.4,234.1 4.6,234.8 4.7,235C4.9,235.1 5.2,236.6 5.4,238.4C5.5,240.2 5.8,241.6 6,241.6C6.2,241.6 6.4,242.2 6.4,243C6.4,243.7 6.6,244.4 6.7,244.6C6.9,244.7 7.2,245.9 7.4,247.2C7.5,248.5 7.8,249.7 8,249.8C8.2,249.9
