跨交换机同vlan ARP不通

LubinLew 2019-07-21 07:21:07

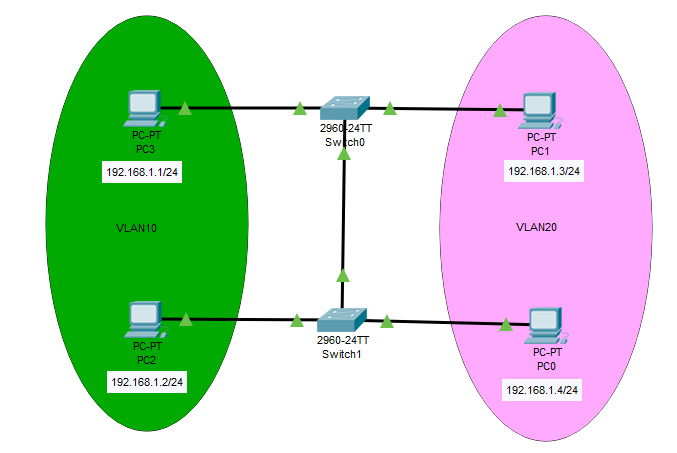

下面这种简单的情况 跨交换机 同vlan可以ping通

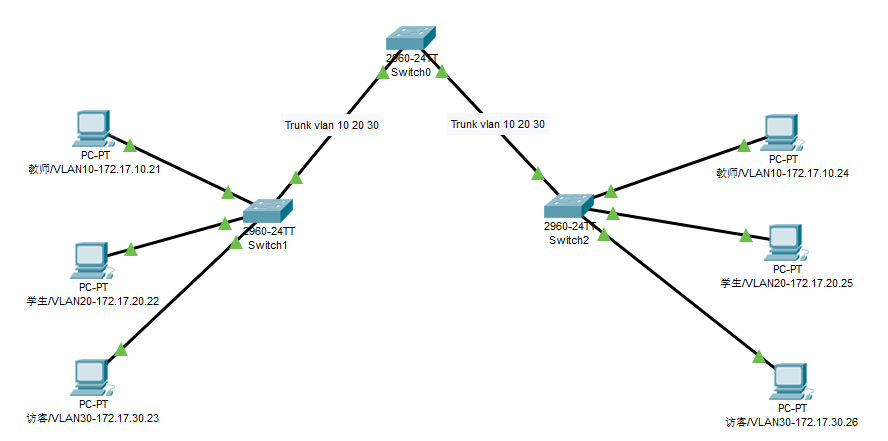

下面这个跨2个交换机 就ping不通了, 左面ping右面 arp到Switch0没被广播丢弃了(仿真时看到的)


4个trunk端口设置都是一样的 trunk模式 允许 vlan 10 20 30 通过

Switch#show interfaces GigabitEthernet 0/1 switchport
Name: Gig0/1
Switchport: Enabled
Administrative Mode: trunk
Operational Mode: trunk
Administrative Trunking Encapsulation: dot1q
Operational Trunking Encapsulation: dot1q
Negotiation of Trunking: On
Access Mode VLAN: 1 (default)
Trunking Native Mode VLAN: 1 (default)
Voice VLAN: none
Administrative private-vlan host-association: none
Administrative private-vlan mapping: none
Administrative private-vlan trunk native VLAN: none
Administrative private-vlan trunk encapsulation: dot1q
Administrative private-vlan trunk normal VLANs: none
Administrative private-vlan trunk private VLANs: none
Operational private-vlan: none
Trunking VLANs Enabled: 10,20,30
Pruning VLANs Enabled: 2-1001
Capture Mode Disabled
Capture VLANs Allowed: ALL
Protected: false
...全文
454 7 打赏 收藏 转发到动态 举报
AI 作业
写回复
用AI写文章
7 条回复
切换为时间正序
请发表友善的回复…
发表回复
Iforgetmyid 2019-07-23
  • 打赏
  • 举报
回复
ping和arp不是一回事,ping是icmp哦! “左面ping右面 arp到Switch0没被广播丢弃了”这句话的意思不是很明白
weixin_40290083 2019-07-23
  • 打赏
  • 举报
回复
switch 0 的配置帖上来
LubinLew 2019-07-23
  • 打赏
  • 举报
回复
引用 5 楼 weixin_40290083 的回复:
switch 0 的配置帖上来


=================SWITCH 0
interface GigabitEthernet0/1
switchport trunk native vlan 99
switchport trunk allowed vlan 10,20,30,99
switchport mode trunk
!
interface GigabitEthernet0/2
switchport trunk native vlan 99
switchport trunk allowed vlan 10,20,30,99
switchport mode trunk

=================SWITCH 1
interface FastEthernet0/1
switchport access vlan 10
switchport mode access
!
interface FastEthernet0/2
switchport access vlan 20
switchport mode access
!
interface FastEthernet0/3
switchport access vlan 30
switchport mode access
!
interface GigabitEthernet0/1
switchport trunk native vlan 99
switchport trunk allowed vlan 10,20,30,99
switchport mode trunk

=================SWITCH 2
interface FastEthernet0/1
switchport access vlan 10
switchport mode access
!
interface FastEthernet0/2
switchport access vlan 20
switchport mode access
!
interface FastEthernet0/3
switchport access vlan 30
switchport mode access
!
interface GigabitEthernet0/1
switchport trunk native vlan 99
switchport trunk allowed vlan 10,20,30,99
switchport mode trunk
xiami—— 2019-07-22
  • 打赏
  • 举报
回复
二层通讯不涉及arp,还是查配置吧,应该是配置问题
LubinLew 2019-07-22
  • 打赏
  • 举报
回复
引用 3 楼 Iforgetmyid 的回复:
Switch 0的两个端口呢?

都是同样的trunk设置
Iforgetmyid 2019-07-22
  • 打赏
  • 举报
回复
Switch 0的两个端口呢?
porvy 2019-07-21
  • 打赏
  • 举报
回复
6666666
