HCK测试 NVMe Queue Utilization Test (LOGO) 失败，错误信息： Failed to Send IOCTL to SHIM, GLE = 0x2

[weixin_38069418]

该测试项有时候能通过，但是最近一直无法通过，查看日志如下：
<o:p></o:p>
Machine: Build=9200.00
         Platform=AMD64
         OS=Windows Server 2012 R2 Standard Evaluation
         ServicePack=""
         Version=6.3
         BuildLab="winblue_rtm"
         BuildDate=130821-1623
         Language=Chinese (Simplified) (REDMOND)
         Config=n/a

Start: Parse command line arguments, TUID=
End: Pass, Parse command line arguments, TUID=, Repro=nvmeshim.exe  /DriveNumber 4 /DriveLetter D: /operation QueueUtilization /scenario All /verbosity 4 /Duration 300

Start: Creating Operation, TUID=
Obtained scenario handle
HWID: SCSI\DiskNVMe____________0235G6PF2.30
End: Pass, Creating Operation, TUID=, Repro=nvmeshim.exe  /DriveNumber 4 /DriveLetter D: /operation QueueUtilization /scenario All /verbosity 4 /Duration 300

Start: IO Workload with Queue Statistics, TUID=
Description: Run multithreaded IO workload, check for Queue utilization
Expectation: Device should be able to utilize all the queue slots for IO
#Workload instances: 1
Disk Size in bytes =  1d1c0e98200
Waiting for drive to be cleared up...
Instantiating 1 workload threads
Workload app string: diskio.exe /d D: /c sw;rw /b 512KB /t 300 /q 130 /s 1676GB /v /uniquelogname /f
Launching workload threads...
Output file: Scenario1WorkloadInstance0.out
Set affinity of workload threads...
Error: 0x0, Error 0x00000000
         Failed to send IOCTL to SHIM, GLE = 0x2
         File=testsrc\driverstest\storage\wdk\nvme\queue.cpp Line=446
End: Fail, IO Workload with Queue Statistics, TUID=, Repro=nvmeshim.exe  /DriveNumber 4 /DriveLetter D: /operation QueueUtilization /scenario All /verbosity 4 /Duration 300

Start: IO Workload with Queue Statistics, TUID=
Description: Run multithreaded IO workload, check for Queue utilization
Expectation: Device should be able to utilize all the queue slots for IO
#Workload instances: 16
Disk Size in bytes =  1d1c0e98200
Waiting for drive to be cleared up...
Instantiating 16 workload threads
Workload app string: diskio.exe /d D: /c sw;rw /b 512KB /t 300 /q 130 /s 104GB /v /uniquelogname /f
Workload app string: diskio.exe /d D: /c sw;rw /b 512KB /t 300 /q 130 /s 104GB /v /uniquelogname /f
Workload app string: diskio.exe /d D: /c sw;rw /b 512KB /t 300 /q 130 /s 104GB /v /uniquelogname /f
Workload app string: diskio.exe /d D: /c sw;rw /b 512KB /t 300 /q 130 /s 104GB /v /uniquelogname /f
Workload app string: diskio.exe /d D: /c sw;rw /b 512KB /t 300 /q 130 /s 104GB /v /uniquelogname /f
Workload app string: diskio.exe /d D: /c sw;rw /b 512KB /t 300 /q 130 /s 104GB /v /uniquelogname /f
Workload app string: diskio.exe /d D: /c sw;rw /b 512KB /t 300 /q 130 /s 104GB /v /uniquelogname /f
Workload app string: diskio.exe /d D: /c sw;rw /b 512KB /t 300 /q 130 /s 104GB /v /uniquelogname /f
Workload app string: diskio.exe /d D: /c sw;rw /b 512KB /t 300 /q 130 /s 104GB /v /uniquelogname /f
Workload app string: diskio.exe /d D: /c sw;rw /b 512KB /t 300 /q 130 /s 104GB /v /uniquelogname /f
Workload app string: diskio.exe /d D: /c sw;rw /b 512KB /t 300 /q 130 /s 104GB /v /uniquelogname /f
Workload app string: diskio.exe /d D: /c sw;rw /b 512KB /t 300 /q 130 /s 104GB /v /uniquelogname /f
Workload app string: diskio.exe /d D: /c sw;rw /b 512KB /t 300 /q 130 /s 104GB /v /uniquelogname /f
Workload app string: diskio.exe /d D: /c sw;rw /b 512KB /t 300 /q 130 /s 104GB /v /uniquelogname /f
Workload app string: diskio.exe /d D: /c sw;rw /b 512KB /t 300 /q 130 /s 104GB /v /uniquelogname /f
Workload app string: diskio.exe /d D: /c sw;rw /b 512KB /t 300 /q 130 /s 104GB /v /uniquelogname /f
Launching workload threads...
Output file: Scenario2WorkloadInstance0.out
Output file: Scenario2WorkloadInstance1.out
Output file: Scenario2WorkloadInstance2.out
Output file: Scenario2WorkloadInstance3.out
Output file: Scenario2WorkloadInstance4.out
Output file: Scenario2WorkloadInstance5.out
Output file: Scenario2WorkloadInstance6.out
Output file: Scenario2WorkloadInstance7.out
Output file: Scenario2WorkloadInstance8.out
Output file: Scenario2WorkloadInstance9.out
Output file: Scenario2WorkloadInstance10.out
Output file: Scenario2WorkloadInstance11.out
Output file: Scenario2WorkloadInstance12.out
Output file: Scenario2WorkloadInstance13.out
Output file: Scenario2WorkloadInstance14.out
Output file: Scenario2WorkloadInstance15.out
Set affinity of workload threads...
Error: 0x0, Error 0x00000000
         Failed to send IOCTL to SHIM, GLE = 0x2
         File=testsrc\driverstest\storage\wdk\nvme\queue.cpp Line=446
End: Fail, IO Workload with Queue Statistics, TUID=, Repro=nvmeshim.exe  /DriveNumber 4 /DriveLetter D: /operation QueueUtilization /scenario All /verbosity 4 /Duration 300

Summary: Total=4, Passed=2, Failed=2, Blocked=0, Warned=0, Skipped=0

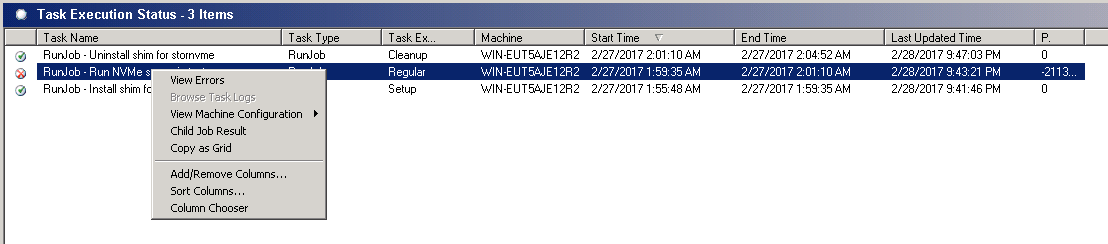

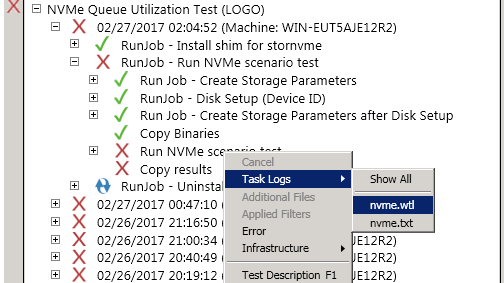

另外，在HCK Manager的Job
Monitor的Task Execution Status里无法查看日志，如下图：

特别是经常有以前成功现在失败，多试几次可能成功的情况的发生，现在试了很多次都是失败，请帮忙看看如何解决？
<o:p>谢谢！</o:p>
