EE308_LAB2

[Wei_Liu_19103832]

The Link Your Class	https://bbs.csdn.net/forums/MUEE308FZ
The Link of Requirement of This Assignment	https://bbs.csdn.net/topics/600798588
The Aim of This Assignment	Extract keywords of different levels from the C or C++ code files that are read in.
MU STU ID and FZU STU ID	19103832_831901226

The whole code in my Github: https://github.com/WeiLiu1677994513/EE308_LAB2

PSP form

Personal Software Process Stages	Estimated Time(minutes)	Completed Time(minutes)
Planning	-	-
Estimate	5	10
Development	-	-
Analysis	60	90
Design Spec	60	80
Design Review	30	30
Coding Standard	30	20
Design	20	30
Coding	1440	1440
Code Review Planning	120	90
Test	50	30
Reporting	-	-
Test Report	60	60
Size Measurement	30	30
Postmortem&Process Improvement	60	30
Total	1965	1940

Problem-solving ideas

Program Requirements

1. Basic requirement: output "keyword" statistics
2. Advanced requirement: output the number of "switch case" structures, and output the number of "case" corresponding to each group
3. Uplifting requirement: output the number of "if else" structures
4. Ultimate requirement: output the number of "if, else if, else" structures
   Before completing the more difficult requirements, you need to complete the Lower requirements.

My minds

1. Read sample file
2. Write each of these levels as a function
3. Connect these functions in main function

• I chose to write this program in C++ by Dec-C++, but the software has no functions in test coverage optimization and performance testing.

Design and implementation process

Read the file

• The first and the most basic thing is read the file, but I can only read it line by line, which is not good for later operations, so after reading them, I store them in a vector.

• function:

void file_read(string filename){
    ifstream inFile;
    string line;
    inFile.open(filename.c_str());
    if (!inFile.is_open()){
        cout << "\nThe file was not successfully opened"
        << "\n Please check that the file currently exists."
        << endl;
        exit(1);
    }          // check for successful open
    while (getline(inFile, line)) {
        file_content.push_back(line);
    }
    inFile.close();     //close the file
}

Delete the useless contents

• To prevent the possible keywords in the comment statement and string from interfering with the extraction results, it is necessary to delete statements and strings in the comment.Here I learned and used the find() function and the copy substr() function.

• function:

void delete_useless_content(){
    string Line,words;
    int index;
    size_t tabs_location,annotation_location,quot_location,star1_location,star2_location;
    for(int i=0;i<file_content.size(); i++){
        Line=file_content[i];
        if(Line.find("\t")!=Line.npos&&Line.find("\t")==0){
            do{
                tabs_location=Line.find("\t")+1;
                Line=Line.substr(tabs_location,Line.length()-tabs_location);
            }while(Line.find("\t") != Line.npos && Line.find("\t") == 0);
            file_content[i] = Line;
        }
        if (Line.find("//") != Line.npos) {
            annotation_location=Line.find("//");
            if (annotation_location==0) {
                file_content.erase(file_content.begin()+i);
                i--;
            } else {
                words = Line.substr(0,annotation_location);
                file_content[i] = words;
            }
        }else if(Line.find("\"") !=Line.npos){
            size_t temp[50]={0};
            tabs_location=0;
            index=0;
            while ((quot_location=Line.find("\"",tabs_location)) != Line.npos) {
                temp[index]=quot_location;
                index++;
                tabs_location=quot_location+1;
            }
            temp[index]=Line.length();
            words= Line.substr(0,temp[0]);
            for (int j=1; temp[j]!=0; j+=2) {
                words += Line.substr(temp[j]+1,temp[j+1]-temp[j]-1);
            }
            file_content[i]=words;
        } else if(Line.find("/*") != Line.npos){
            star1_location=Line.find("/*");
            star2_location= Line.find("*/");
            if (star2_location!= Line.npos) {
                if (star1_location== 0) {
                    file_content[i] = Line.substr(star2_location+2,Line.length());
                } else {
                    file_content[i] = Line.substr(0,star1_location);
                }
                i--;
            }else{
                file_content[i] = Line.substr(0,star1_location);
                i += 1;
                Line = file_content[i];
                while (Line.find("*/") == Line.npos) {
                    file_content.erase(file_content.begin()+i);
                    Line = file_content[i];
                }
                star2_location = Line.find("*/")+2;
                file_content[i] = Line.substr(star2_location,Line.length()-star2_location);
            }

        }
    }
}

Judge keywords

• In order to prevent the error recognition caused by keywords in non-keyword fields, it is necessary to check whether the keywords are independent.I referred to the ideas of other students, using ASCII code to distinguish

• function:

bool independence_judge(string line,long i){
    if (line[i] < 48 || (line[i] > 57 && line[i] < 65) || (line[i] > 90 && line[i] < 97) ||line[i] >122) {
        return true;
    } else {
        return false;
    }
}
bool involve_judge(string line, string word){
    size_t word_location;
    word_location=line.find(word);
    if (word_location == 0) {
        if (independence_judge(line, word.length()) || word.length() == line.length()) {
            return true;
        } else {
            return false;
        }
    } else {
        if (independence_judge(line, word_location-1) && (independence_judge(line, word_location+word.length()) || word_location+word.length() == line.length())) {
            return true;
        } else {
            return false;
        }
    }

}

Calculate the keywords number

void cal_keywords_num(){
    int keywords_num=0;
    string line;
    for (int i = 0; i<file_content.size(); i++) {
        line = file_content[i];
        for (int j=0; j<32; j++) {
            size_t keywords_location = line.find(keywords[j], 0);
            while (keywords_location!=line.npos && involve_judge(line,keywords[j])) {
                keywords_num++;
                keywords_location = line.find(keywords[j],keywords_location + 1);
            }
        }
    }
    cout<<"total num: "<<keywords_num<<endl;
}

Calculate switch and case numbers

void cal_switch_case_num(){
    int switch_num = 0,last = -1,case_num[200]={0};
    string line;
    for (int i = 0; i<file_content.size(); i++) {
        line = file_content[i];
        if (line.find("switch") != line.npos && involve_judge(line, "switch")) {
            switch_num += 1;
            last += 1;
        }
        if (line.find("case") != line.npos && involve_judge(line, "case")) {        /*查找case*/
            case_num[last] += 1;
        }
    }
    cout<<"switch num: "<<switch_num<<endl;
    cout<<"case num:";
    for (int j = 0; j<=last; j++) {
        cout<<" "<<case_num[j];
    }
    cout<<endl;
}

Calculate if-else and if-elseif-else number

• I'm using stack matching to push 1 when I encounter if, 2 when I encounter if_else, and off when I encounter else, if the top of the stack is 1 it matches if else, if the top of the stack is 2 it matches if else_if else.

void cal_if_else_num(int level) {
    int if_else_num = 0,if_elseif_else_num= 0;
    stack<int> s;
    string line;
    for (int i = 0; i<file_content.size(); i++) {
        line = file_content[i];
        if (line.find("if") != line.npos && line.find("else") == line.npos && involve_judge(line, "if")) {
            s.push(1);
        } else if (line.find("if") == line.npos && line.find("else") != line.npos &&  s.empty() == false) {
            if (s.top() == 1) {
                if_else_num++;
            } else {
                if_elseif_else_num++;
            }
            s.pop();

        }else  if (line.find("if") != line.npos && line.find("else") != line.npos && involve_judge(line, "if")) {
            s.push(2);
        }
    }
    if (level == 3) {
        cout<<"if-else num: "<<if_else_num<<endl;
    } else if (level == 4) {
        cout<<"if-else num: "<<if_else_num<<endl;
        cout<<"if-else-if num: "<<if_elseif_else_num<<endl;
    }
}

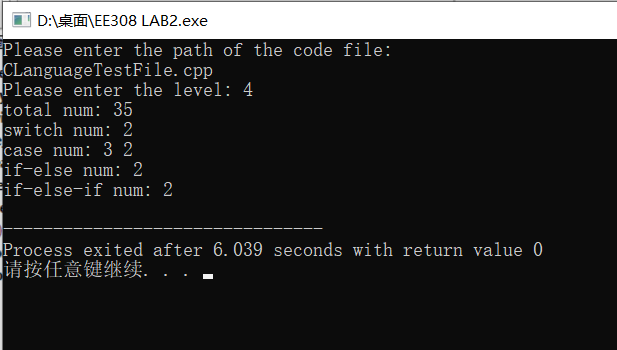

Unit test screenshots and description.

The program worked correctly on the sample

performance optimization screenshots and descriptions.

The software I use does not have this function. I tried several methods, but all failed. Due to time problem, this experiment was not carried out this part.

In summary

In this experiment, I encountered many difficulties, including the formulation of methods in the early stage, but these problems were solved by referring to other people's methods.The biggest regret is that I didn't learn how to test and optimize performance. I will try to learn this knowledge in the future.
