EE308_Lab1

[砍柴人。]

The Link Your Class	https://bbs.csdn.net/forums/MUEE308FZ?category=0
The Link of Requirement of This Assignment	https://bbs.csdn.net/topics/600798588
The Aim of This Assignment	Git/GitHub Using & Keywords Capturing
MU STU ID and FZU STU ID	19104251_831901213

GitHub Repository

https://github.com/JiXianDaDa/EE308-LAB2



PSP

Personal Software Process Stages	Estimated time(min）	Time(min）
Planning	20	20
Estimate	10	10
Development	-	-
Analysis	180	200
Design Spec	10	15
Design Review	10	15
Coding Standard	30	40
Design	40	60
Coding	300	440
Code Review	60	110
Test	300	1200
Test Report	60	110
Postmortem & Process Improvement Plan· Design Review	20	20
Summary	1040	2240



Program Requirements

In total, this problem can be broken down into five small questions:

(1).Read in a c/c++ code file.

(2).Count the number of keywords in the code.

(3).Count the number of "switch case" structures and the number of "case" corresponding to each group.

(4).Count the number of "if else" structures.

(5).Count the number of "if, else if, else" structures.

For (1), we can just use class "BufferedReader" and "FileInputStream" to realize.

And the first step to solve other four questions is to use some operations to modify the original content (c/c++ code which was read in). Then the modified content will be easier for me to solve these four questions.

So I use some operations (Regular Expression, String relevant operations, etc.) to modify the input code and I will show this process later in this blog.

After obtaining modified input, Then the main idea to resolve these four questions is to find the traits of each request:

For (2), it asks us to count the number of keywords, so we can just search the content and use a judge to realize this.

For (3), we should firstly count the number of keyword "switch" and this is the same as (2). And the number of case can be count .

For (4) and (5), we should find out how to convert the number of sturctures into the number of keywords "if", "else if" and "else".



To implement this program, I chose to use the C++ language I'm most familiar with

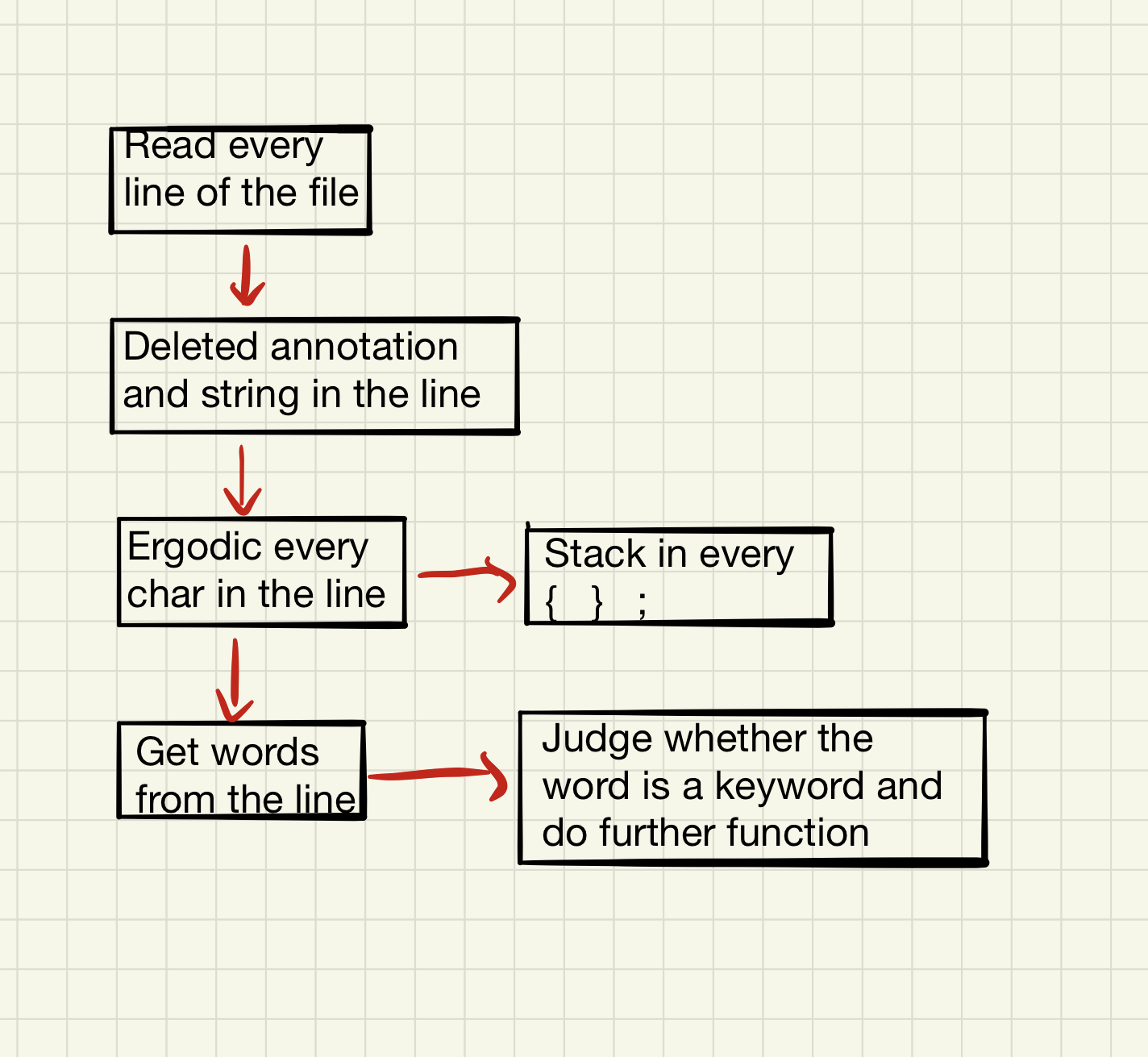

Problem-Solving Ideas































Create an array

string key_word[32]=
{
		"auto","break","case","char","const","continue","default","double",
		"do","else","enum","extern","float","for","goto","if","int","long",
		"register","return","short","signed","sizeof","static","struct",
		"switch","typedef","union","unsigned","void","volatile","while"
};

Create a function

vector<int> Case_num;
int switch_num=0;
int case_num=0;
int total_num=0;
int stack[1000]={0};
int ifelse_num=0;
int if_elseif_Else_num=0;
int top=-1;


int Judge_1 ( string x, string y )
{
	int Judge_2( char str );
	int position = x.find( y , 0 );
	int len = y.length();
	if( position != string::npos )
	{
		if( position == 0 )
		{
			if(Judge_2( x[position+len] ) == 0 )
			{
				return 1;
			}
			else
			  	return 0;
		}
		else
		{
			if(Judge_2( x[position+len] ) == 0 && Judge_2( x[position-1] ) ==0 )
			{
				return 1;
			}
			else
				return 0;
		}
	}
	return 0;
}



Check for letter

int Judge_2( char str )//Check if it's a letter, return 1, not 0
{
	if( ( str<='z' && str >= 'a' ) || ( str <= 'Z' && str >= 'A' ) )
		return 1;
	else
		return 0;
}

Compare

void rank_12(string str)//Core character comparison, and count the number of switch-case
{
		for(int i = 0; i < 32; i++ )
		{
			if(Judge_1( str , key_word[i] ) == 1)
			{
				if( Judge_1( str , "switch" ) )
				{
					Case_num.push_back( case_num );
					switch_num++;
					case_num = 0;
				}
				if( Judge_1( str , "case" ))
				{
					case_num++;
				}
				total_num++;
				break;
			}
		}
}


void rank_34( string str )//if_else count and if_elseif_else nested count
{
	if( Judge_1( str , "else if" ) )
	{
		top++;
		stack[top] = 2;
	}
	else
	{
		if( Judge_1( str , "else" ) )
		{
			 if( stack[top] == 1 )
			 {
			 	ifelse_num++;
			 	top--;
			 }
			 else
			 {
			 	if( stack[top] == 2 )
			 	{
			 		if_elseif_Else_num++;
			 		top--;
				 }
			 }
		}
		else
		{
			if( Judge_1( str ,"if" ) )
			{
				top++;
				stack[top] = 1;
			}
		}
	}
}

work

int main()
{
	int Rank;
	string Myfile,temp;
	cout << "Please enter the file path：" << endl;
	cin >> Myfile;
	cout << "Please enter the query level：" << endl;
	cout << "1--Totalkeyword query" << endl;
	cout << "2--Switch-case query" << endl;
	cout << "3--If_else query" << endl;
	cout << "4--IF_elseif_Else query" << endl;
	cin >> Rank;
	ifstream myfile( Myfile.c_str() );
	int Judge_1( string x,string y );
	int judge_2( char str);
	void rank_12( string str );
	void rank_34( string str );
	while ( getline( myfile ,temp ))
	{
		istringstream is ( temp );
		string s;
		if( Rank >= 3)
		{
			rank_34( temp );
		}
		while( is >> s )
		{
			rank_12( s );
		}
	}
	if( Rank >= 1 )
	{
		cout << "Total num:" << total_num << endl;
	}
	if( Rank >= 2 )
	{
		cout << "Switch num:" << switch_num << endl;
		if( !Case_num.empty() )
		{
			Case_num.push_back(case_num);
		}
		else
		{
			Case_num.push_back(0);
		}
		cout << "Case_num :";
		for ( int i = 1; i <= switch_num; i++)
		{
			cout<< Case_num[i] << " ";
		}
		cout << endl;
	}
	if( Rank >=3 )
	{
		cout << "If-else num:" << ifelse_num << endl;
	}
	if( Rank >=4 )
	{
		cout << "If-elseif-else num:" <<if_elseif_Else_num;
	}
}

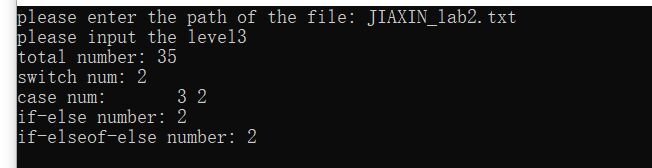

result



In Summary

This experiment was a little difficult for me. I could only finish it after consulting seniors from other colleges and getting replies.I want to learn a lot of things, I hope to be more skilled in the use of various codes, and post and GITHUB use can be more skilled.
