EE308 LAB2

[Hangv]

The Link Your Class	https://bbs.csdn.net/forums/MUEE308FZ
The Link of Requirement of This Assignment	https://bbs.csdn.net/topics/60079858L8
The Aim of This Assignment	<learn git and github>
MU STU ID and FZU STU ID	<19104065_831902128>



---

PSP TABLE

Personal Software Process Stages	Estimated time(min）	Time(min）
Planning	30	35
Estimate	20	20
Development	40	45
Analysis	70	80
Design Spec	--	--
Design Review	40	40
Coding Standard	50	50
Design	200	230
Coding	350	450
Code Review	300	480
Test	200	290
Reporting	120	120
Test Report	50	50
Size Measurement	20	20
Postmortem&Process Improvement	40	50
total	1530	1960



---

Program Requirements

1.Basic requirement: output "keyword" statistics
2.Advanced requirement: output the number of "switch case" structures, and output the number of "case" corresponding to each group
3.Uplifting requirement: output the number of "if else" structures
4.Ultimate requirement: output the number of "if, else if, else" structures
Before completing the more difficult requirements, you need to complete the Lower requirements.

My minds

1.Read sample file
2.Write each of these levels as a function
3.Connect these functions in main function
I chose to write this program in C++

Design and implementation process

First, read the file, delete the non-keyword components in the code, and then read the rest to get the number of keywords.

Read the file

The first and the most basic thing is read the file, but I can only read it line by line, which is not good for later operations, so after reading them, I store them in a vector.

function:

void file_read(string filename){
    ifstream inFile;
    string line;
    inFile.open(filename.c_str());
    if (!inFile.is_open()){
        cout << "\nThe file was not successfully opened"
        << "\n Please check that the file currently exists."
        << endl;
        exit(1);
    } // check for successful open
    while (getline(inFile, line)) {
        file_content.push_back(line);
    }
    inFile.close();     //close the file
}

Delete the useless contents

To prevent the possible keywords in the comment statement and string from interfering with the extraction results, it is necessary to delete statements and strings in the comment.Here I learned and used the find() function and the copy substr() function.

function:

void delete_useless_content(){
    string Line,words;
    int index;
    size_t tabs_location,annotation_location,quot_location,star1_location,star2_location;
    for(int i=0;i<file_content.size(); i++){
        Line=file_content[i];
        if(Line.find("\t")!=Line.npos&&Line.find("\t")==0){
            do{
                tabs_location=Line.find("\t")+1;
                Line=Line.substr(tabs_location,Line.length()-tabs_location);
            }while(Line.find("\t") != Line.npos && Line.find("\t") == 0);
            file_content[i] = Line;
        }
        if (Line.find("//") != Line.npos) {
            annotation_location=Line.find("//");
            if (annotation_location==0) {
                file_content.erase(file_content.begin()+i);
                i--;
            } else {
                words = Line.substr(0,annotation_location);
                file_content[i] = words;
            }
        }else if(Line.find("\"") !=Line.npos){
            size_t temp[50]={0};
            tabs_location=0;
            index=0;
            while ((quot_location=Line.find("\"",tabs_location)) != Line.npos) {
                temp[index]=quot_location;
                index++;
                tabs_location=quot_location+1;
            }
            temp[index]=Line.length();
            words= Line.substr(0,temp[0]);
            for (int j=1; temp[j]!=0; j+=2) {
                words += Line.substr(temp[j]+1,temp[j+1]-temp[j]-1);
            }
            file_content[i]=words;
        } else if(Line.find("/*") != Line.npos){
            star1_location=Line.find("/*");
            star2_location= Line.find("*/");
            if (star2_location!= Line.npos) {
                if (star1_location== 0) {
                    file_content[i] = Line.substr(star2_location+2,Line.length());
                } else {
                    file_content[i] = Line.substr(0,star1_location);
                }
                i--;
            }else{
                file_content[i] = Line.substr(0,star1_location);
                i += 1;
                Line = file_content[i];
                while (Line.find("*/") == Line.npos) {
                    file_content.erase(file_content.begin()+i);
                    Line = file_content[i];
                }
                star2_location = Line.find("*/")+2;
                file_content[i] = Line.substr(star2_location,Line.length()-star2_location);
            }

        }
    }
}


Judge keywords

function:

bool independence_judge(string line,long i){
    if (line[i] < 48 || (line[i] > 57 && line[i] < 65) || (line[i] > 90 && line[i] < 97) ||line[i] >122) {
        return true;
    } else {
        return false;
    }
}
bool involve_judge(string line, string word){
    size_t word_location;
    word_location=line.find(word);
    if (word_location == 0) {
        if (independence_judge(line, word.length()) || word.length() == line.length()) {
            return true;
        } else {
            return false;
        }
    } else {
        if (independence_judge(line, word_location-1) && (independence_judge(line, word_location+word.length()) || word_location+word.length() == line.length())) {
            return true;
        } else {
            return false;
        }
    }

}


Calculate the keywords number

void cal_keywords_num(){
    int keywords_num=0;
    string line;
    for (int i = 0; i<file_content.size(); i++) {
        line = file_content[i];
        for (int j=0; j<32; j++) {
            size_t keywords_location = line.find(keywords[j], 0);
            while (keywords_location!=line.npos && involve_judge(line,keywords[j])) {
                keywords_num++;
                keywords_location = line.find(keywords[j],keywords_location + 1);
            }
        }
    }
    cout<<"total num: "<<keywords_num<<endl;
}


Calculate switch and case numbers

void cal_switch_case_num(){
    int switch_num = 0,last = -1,case_num[200]={0};
    string line;
    for (int i = 0; i<file_content.size(); i++) {
        line = file_content[i];
        if (line.find("switch") != line.npos && involve_judge(line, "switch")) {
            switch_num += 1;
            last += 1;
        }
        if (line.find("case") != line.npos && involve_judge(line, "case")) {        /*2é?òcase*/
            case_num[last] += 1;
        }
    }
    cout<<"switch num: "<<switch_num<<endl;
    cout<<"case num:";
    for (int j = 0; j<=last; j++) {
        cout<<" "<<case_num[j];
    }
    cout<<endl;
}

Calculate if-else and if-elseif-else number

void cal_if_else_num(int level) {
    int if_else_num = 0,if_elseif_else_num= 0;
    stack<int> s;
    string line;
    for (int i = 0; i<file_content.size(); i++) {
        line = file_content[i];
        if (line.find("if") != line.npos && line.find("else") == line.npos && involve_judge(line, "if")) {
            s.push(1);
        } else if (line.find("if") == line.npos && line.find("else") != line.npos &&  s.empty() == false) {
            if (s.top() == 1) {
                if_else_num++;
            } else {
                if_elseif_else_num++;
            }
            s.pop();

        }else  if (line.find("if") != line.npos && line.find("else") != line.npos && involve_judge(line, "if")) {
            s.push(2);
        }
    }
    if (level == 3) {
        cout<<"if-else num: "<<if_else_num<<endl;
    } else if (level == 4) {
        cout<<"if-else num: "<<if_else_num<<endl;
        cout<<"if-else-if num: "<<if_elseif_else_num<<endl;
    }
}

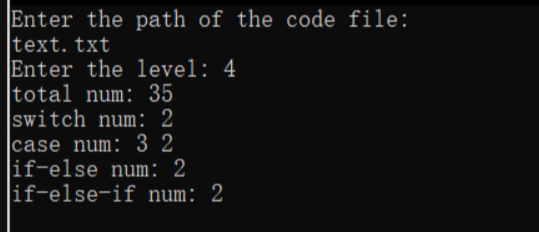

THE RESULT

Summary

It's really a big challenge for me, too. It takes a lot of time, but the final harvest is also a lot.
