(i) List some actors that interact with this system. Explain the relevance of each actor.

Your Answer:

Actor：Professional anchors，such as many celebrities and some big companies’ executives ，who need to supervise the content of merchants' live broadcast to comply with regulations, and also supervise the legality of merchants' goods sold

Actor：Merchants，who apply for livestreaming permission from the administrator and sell items to customers on the livestreaming platform

Actor：Customers，who are watching the live broadcast and buying the goods through the Live-streaming sale system.

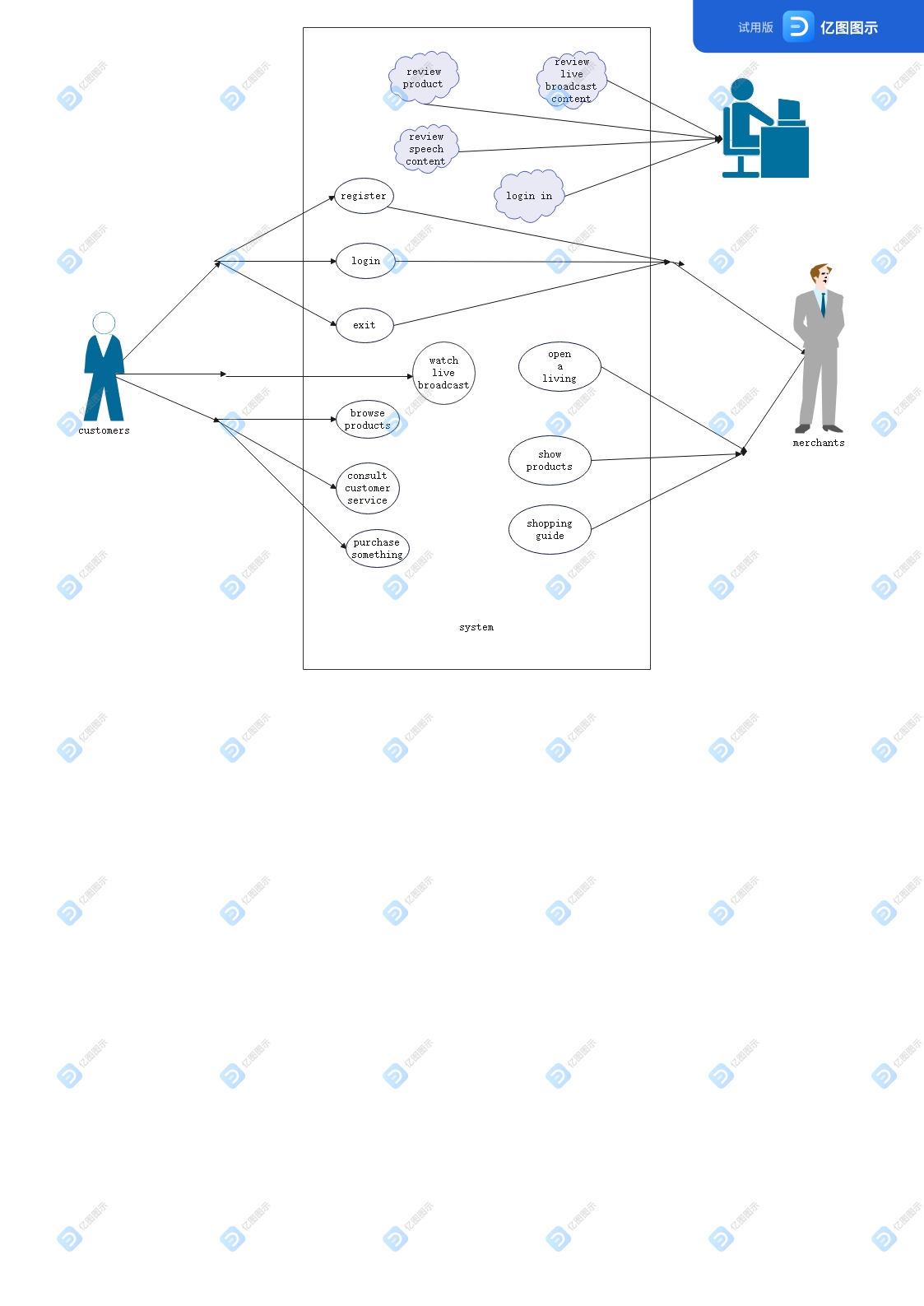

(ii) Prepare a use case diagram for this system.

Your Answer:

(iii) Prepare a normal scenario for each use case. (i.e. describe each use case in words)

Your Answer:

Register: anchors and customers need to register their accounts before

using this system.

Login: anchors and customer Login, including account and password;

Exit: all of them can exit;

Watch the live broadcast: Customers watch live broadcast, including live broadcast links and product links;

Browse Products: Customers know some significant information, including prices, live links,expression,quality and so on;

Consult Customer Service: Ask for store information;

Purchase somthing: The decision of something to buy, including customer balance, product information;

Open a living: Enables live streaming, including examing the quality of living shows;

Show products: show the information of products , including price and so on;

Shopping guide: provide customer with some assists about products ;

Review the product: check the products , including price ,quality,expression, details about payment an so on;

Review speech content: check the Living information, including the speeches and frames,something about authenticity.

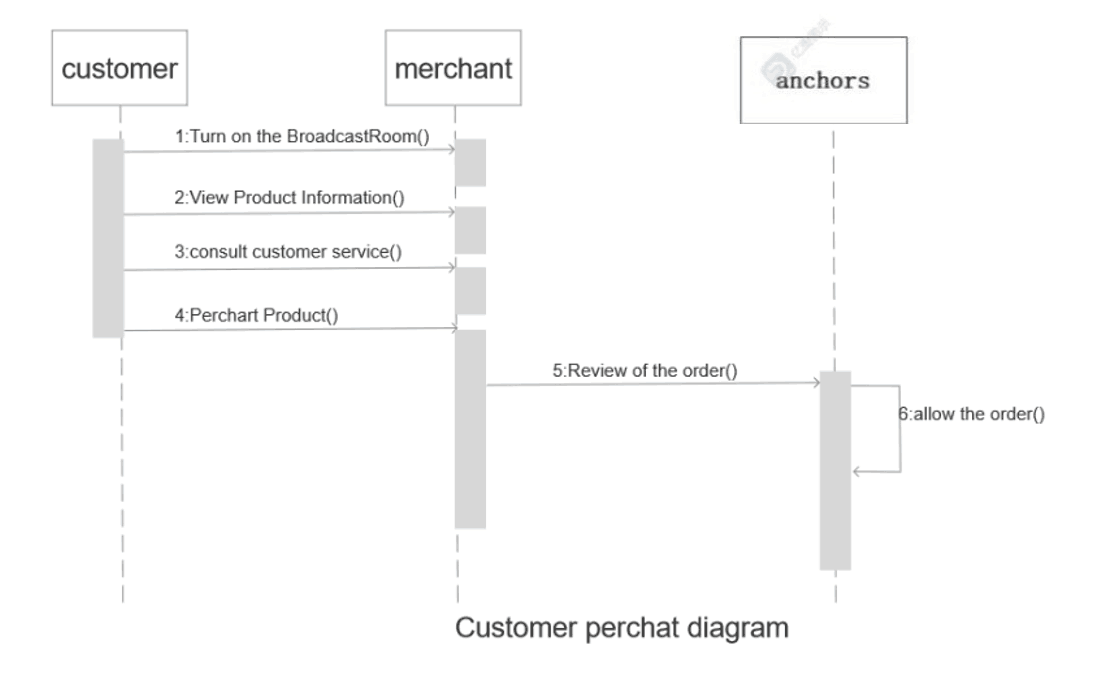

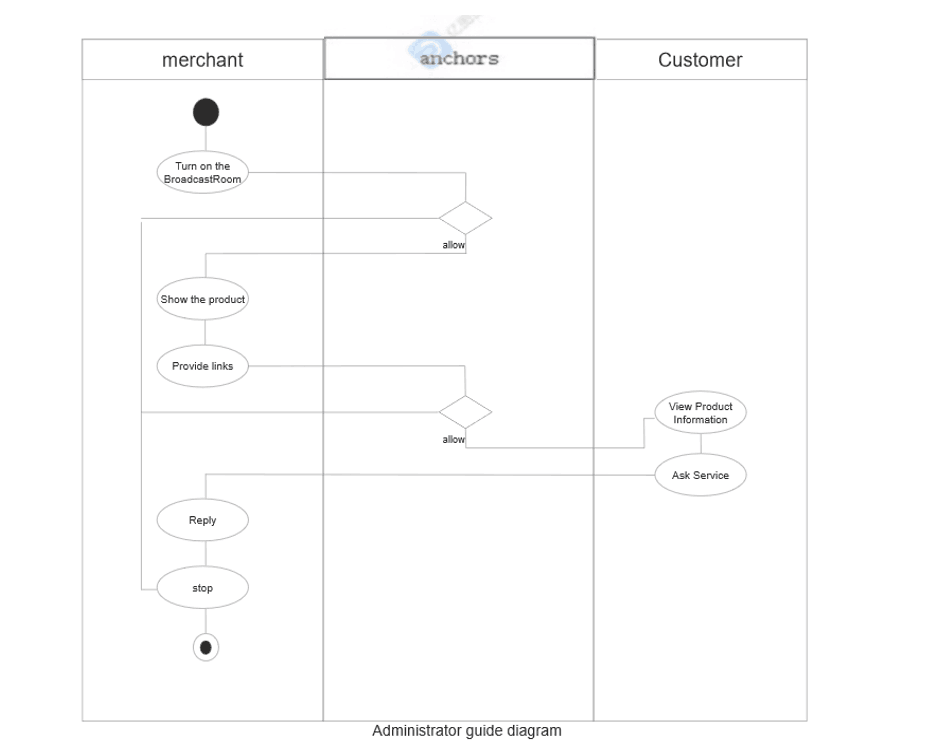

(iv) Prepare sequence diagrams or activity diagrams for primary scenarios. By the way, each scenario can be described by a sequence diagram or an activity diagram, but both diagrams must be used in this question.

Your Answer:

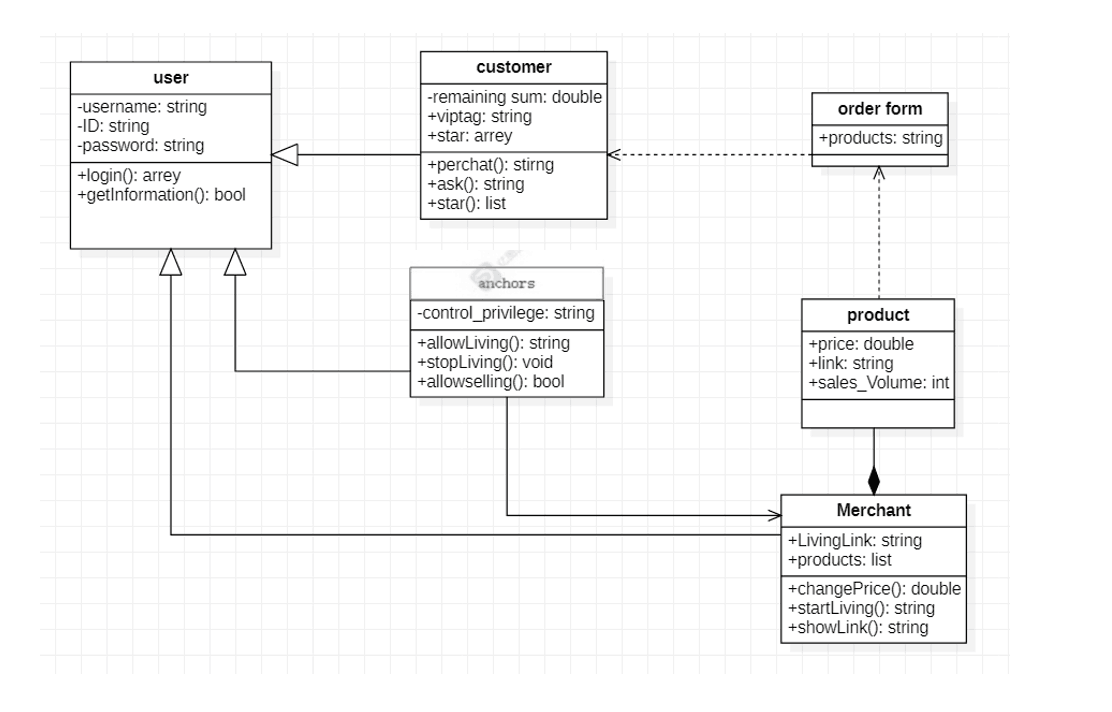

(v) Prepare a class diagram for this system. Explain which principles of object-oriented are applied in your design.

Your Answer:

(vi) Prepare state diagrams for primary classes.

Your Answer:

(vii) Write the skeleton code corresponding to the class diagram in C++, Java, Python, or C#.

Your Answer:

1.
   class user
2. {
3. private:
4.     string username;
5.     string ID;
6.     string password;
7. public:
8.
9.     void login(string a, string b){
10.         while(getInformation)
11.         {
12.         if (it exist in database)
13.          return list[a,b]
14.         else
15.          stop
16.         }
17.     }
18.     bool getinformation(arrey){
19.         if(it is compliant)
20.        true
21.         else
22.        false
23.     }
24. };
25.
26. class customer
27. {
28. private:
29.     string privilege;
30. public:
31.     string allowLiving(string merchant_ID)
32.     {
33.          if(no not allowed things)
34.        return link;
35.          else
36.          return stop;
37.     }
38.     void stopLiving(string link)
39.     {
40.          if(have not allowed things)
41.        stop;
42.     }
43.     string allowLiving(string merchant_ID)
44.     {
45.          if(no not allowed things)
46.        return link;
47.          else
48.          return stop;
49.     }
50.     string allowselling(string product){
51.          if(allowed)
52.        return true;
53.          else
54.        return false;
55.     }
56. };
57.
58. class customer
59. {
60. private:
61.     double sum;
62.     arrey star;
63. public:
64.     string viptag;
65.     string perchat(string product)
66.     {
67.          if(have enough remaining sum)
68.        return order num;
69.          else
70.        return hint;
71.     }
72.     string ask()
73.     {
74.        send information;
75.        return information_back;
76.     }
77.     arrey star(product)
78.     {
