EE308 LAB11

weixin_46091852 weixin_46091852 墨衍会员 · AI 创作全网分发 墨衍智能分发 通过墨衍一键同步至各平台 可同步平台 CSDN微信公众号微博知乎掘金百家号博客园抖音小红书 你的文章也可以这样分发 墨衍会员 ¥399起/年,写一次发全网 我也要 + 加入社区

The Link Your Class

https://bbs.csdn.net/forums/MUEE308FZ

The Link of Requirement of This Assignment

https://bbs.csdn.net/topics/603748107

The Aim of This Assignment

Software Testing

MU STU ID and FZU STU ID

19104154_831901227

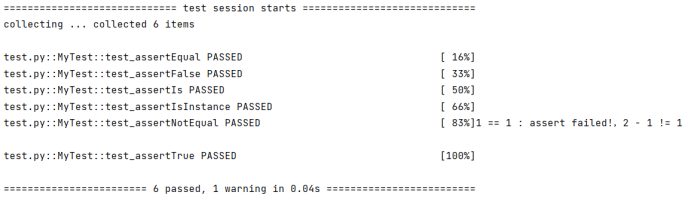

1. unittest assert test

import unittest,random

# Test Class
class MyClass(object):

    @classmethod
    def sum(self, a, b):
        return a + b

    @classmethod
    def div(self, a, b):
        return a / b

    @classmethod
    def return_None(self):
        return None
# Unit Test Class
class MyTest(unittest.TestCase):
    # assertEqual()
    def test_assertEqual(self):
        # test if a+b equals sum or not
        try:
            a, b = 1, 2
            sum = 3
            self.assertEqual(a + b, sum, 'assert failed!,%s + %s != %s' %(a, b, sum))
        except AssertionError as e:
            print (e)

    # assertNotEqual()
    def test_assertNotEqual(self):
        # fix missing three lines of codes below ‘try’, test if b-a equals res or not
        try:
            a, b = 5,2
            res = 1
            self.assertNotEqual(a - b, res, 'assert failed!,%s - %s != %s' % (a, b, res))
        except AssertionError as e:
            print (e)
    # assertTrue()
    def test_assertTrue(self):

        try:
            self.assertTrue(1 == 1, "False expression")
        except AssertionError as e:
            print (e)

    # assertFalse()
    def test_assertFalse(self):
        # fix missing codes below ‘try’, only a line of codes needed
        try:
            self.assertFalse(1 == 2, "True expression")
        except AssertionError as e:
            print (e)

    # assertIs()
    def test_assertIs(self):
        # test a and b are totally same
        try:
            a = 12
            b = a
            self.assertIs(a, b, "%s and %s are not same" %(a, b))
        except AssertionError as e:
            print (e)
    # assertIsInstance()
    def test_assertIsInstance(self):
        # fix missing codes below ‘y=object’ to test type(x) != y, only a line of codes needed
        try:
            x = MyClass
            y = object
            self.assertIsInstance(x, y, "%s and %s are not the same type" % (x, y))
        except AssertionError as e:
            print (e)

if __name__ == '__main__':
    # run unittest
    unittest.main()


2. unittest test groups

Calc.py

class Calc(object):

    def add(self, *d):
        #
        result = 0
        for i in d:
            result += i
        return result

    def mul(self, *d):
        #
        result =1
        for i in d:
            result = result*i
		return result

    def sub(self,a, *d):
        #
        result =a
        for i in d:
            result = result-i
		return result

    def div(self, a, *d):
        #
        result =a
        for i in d:
            result = result/i
		return result

TestCalc.py

import unittest
import random
from Calc import Calc

class TestCalcFunctions(unittest.TestCase):

    def setUp(self):
        self.c=Calc()
        print ("setup completed!")

    def test_sum(self):
        self.assertTrue(self.c.add(1,2,3,4)==10)

    def test_sub(self):
	# fix a line of codes to test c.sub(self, a, *b) method
        self.assertTrue(self.c.sub(1, 2, 3, 4) == -8)

    def test_mul(self):
        # fix a line of codes to test c.mul(self, *b) method
 		self.assertTrue(self.c.mul(1, 2, 3, 4) == 24)
    def test_div(self):
        # fix a line of codes to test c.div(self, a, *b) method
 		self.assertTrue(self.c.div(24, 2, 3, 4) == 1)
    def tearDown(self):
        print ("test completed!")

    def tearDown(self):
        print ("tearDown completed")

if __name__ == '__main__':
    unittest.main()

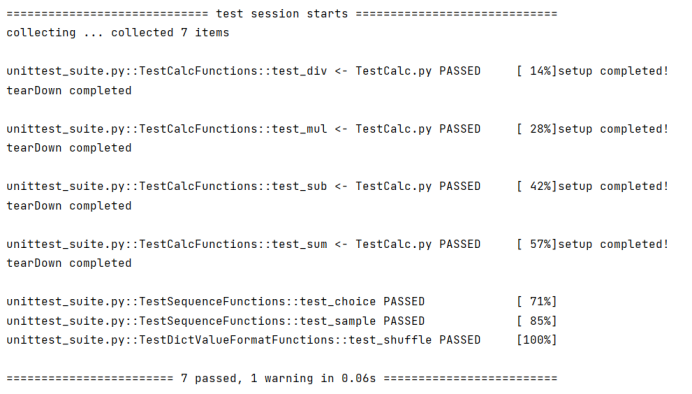

unittest_suite.py

import random
import unittest
from TestCalc import TestCalcFunctions

class TestSequenceFunctions(unittest.TestCase):
    def setUp(self):
        self.seq = list(range(10))

    def tearDown(self):
        pass

    def test_choice(self):
        # chose an element from seq randomly
        element = random.choice(self.seq)
        # check element is truly in the sequence
        self.assertTrue(element in self.seq)

    def test_sample(self):
        # if codes raise exception
        with self.assertRaises(ValueError):
            random.sample(self.seq, 20)

        for element in random.sample(self.seq, 5):
            self.assertTrue(element in self.seq)

class TestDictValueFormatFunctions(unittest.TestCase):
    def setUp(self):
        self.seq = list(range(10))

    def tearDown(self):
        pass

    def test_shuffle(self):
        # shuffle sequence
        random.shuffle(self.seq)
        self.seq.sort()
        self.assertEqual(self.seq, list(range(10)))
        # check TypeError exception
        self.assertRaises(TypeError, random.shuffle, (1, 2, 3))
if __name__ == '__main__':
    # get all test methods start with ‘test’ and return a suite
    suite1 = unittest.TestLoader().loadTestsFromTestCase(TestSequenceFunctions)
    # please fix another two suite, suite2 of TestCalcFunctions and suite3 of TestDictValueFormatFunctions
 	suite2 = unittest.TestLoader().loadTestsFromTestCase(TestCalcFunctions)
    suite3 = unittest.TestLoader().loadTestsFromTestCase(TestDictValueFormatFunctions)
# put more test class into suite
# you can change suites’ order, like [suite1, suite2, suite3]
    suite = unittest.TestSuite([suite2, suite1,suite3])
    # set verbosity = 2 you could get more detailed information
    unittest.TextTestRunner(verbosity = 2).run(suite)

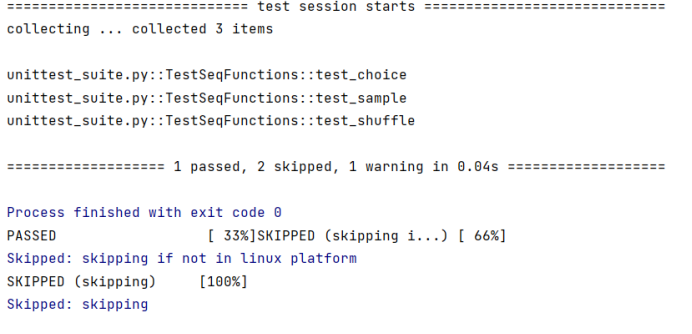

3. unittest skip test

#encoding=utf-8

import random,sys,unittest

class TestSeqFunctions(unittest.TestCase):

      a = 1
      def setUp(self):
            self.seq = list(range(20))

      @unittest.skip("skipping") # skip this method anyway
      def test_shuffle(self):
            random.shuffle(self.seq)
            self.seq.sort()
            self.assertEqual(self.seq,list(range(20)))
            self.assertRaises(TypeError,random.shuffle,(1,2,3))

      # add a line of annotation thatskip this method if a>5
      @unittest.skipIf(a>5, "skipping if a>5")
      def test_choice(self):
            element = random.choice(self.seq)
            self.assertTrue(element in self.seq)

      # add a line of annotation that skip if not in linux platform
      @unittest.skipIf(sys.platform != "linux*", "skipping if not in linux platform")
      def test_sample(self):
            with self.assertRaises(ValueError):
                  random.sample(self.seq, 20)
            for element in random.sample(self.seq, 5):
                  self.assertTrue(element in self.seq)

if __name__=="__main__":
    # unittest.main()
    suite = unittest.TestLoader().loadTestsFromTestCase(TestSeqFunctions)
    suite = unittest.TestSuite(suite)
    unittest.TextTestRunner(verbosity = 2).run(suite)

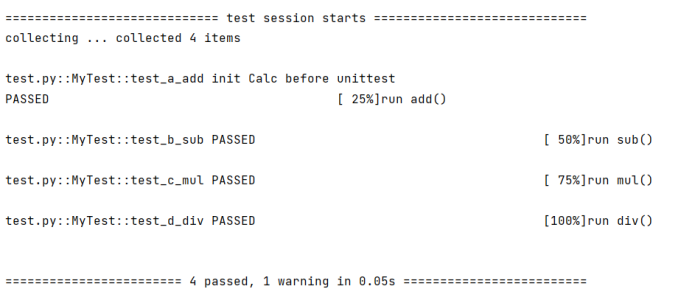

4.unittest Run test under numerical order or alpha order.



#encoding=utf-8

import unittest
from Calc import Calc

class MyTest(unittest.TestCase):
    @classmethod
    def setUpClass(self):
        print ("init Calc before unittest")
        self.c = Calc()
    def test_1_add(self):
        print ("run add()")
        self.assertEqual(self.c.add(1, 2, 12), 15, 'test add fail')

    def test_2_sub(self):
        print ("run sub()")
        self.assertEqual(self.c.sub(2, 1, 3), -2, 'test sub fail')

    def test_3_mul(self):
        print ("run mul()")
        self.assertEqual(Calc.mul(2, 3, 5), 30, 'test mul fail')

    def test_4_div(self):
        print ("run div()")
        self.assertEqual(Calc.div(8, 2, 4), 1, 'test div fail')

if __name__ == '__main__':
    unittest.main()




5. unittest Time Test

import time
import timeout_decorator

class timeoutTest(unittest.TestCase):

    # set a time decorator(annotation) which will be triggered after 5s’ running
    @timeout_decorator.timeout(5)
   def testtimeout(self):
      print "Start"
   for i in range(1,10):
      time.sleep(1)
      print "%d seconds have passed" % i

if __name__ == "__main__":
   unittest.main()
