[经验分享]ZeppOS不同设备分辨率状况

fwz233 2022-01-04 22:57:00
加精

 一个方形的UI,在gts3上

75:为了避开方形屏幕上的title

22.5:为了剧中显示

   const back = hmUI.createWidget(hmUI.widget.IMG)
    back.setProperty(hmUI.prop.MORE, {
       x: 22.5,
        y: 75,
        w: 345,
        h: 345,
      src:'image/logo.png'
    })

  一个方形的UI,在gtr3上

 const back = hmUI.createWidget(hmUI.widget.IMG)
    back.setProperty(hmUI.prop.MORE, {
       x: 54.5,
        y: 54.5,
        w: 345,
        h: 345,
      src:'image/logo.png'
    })

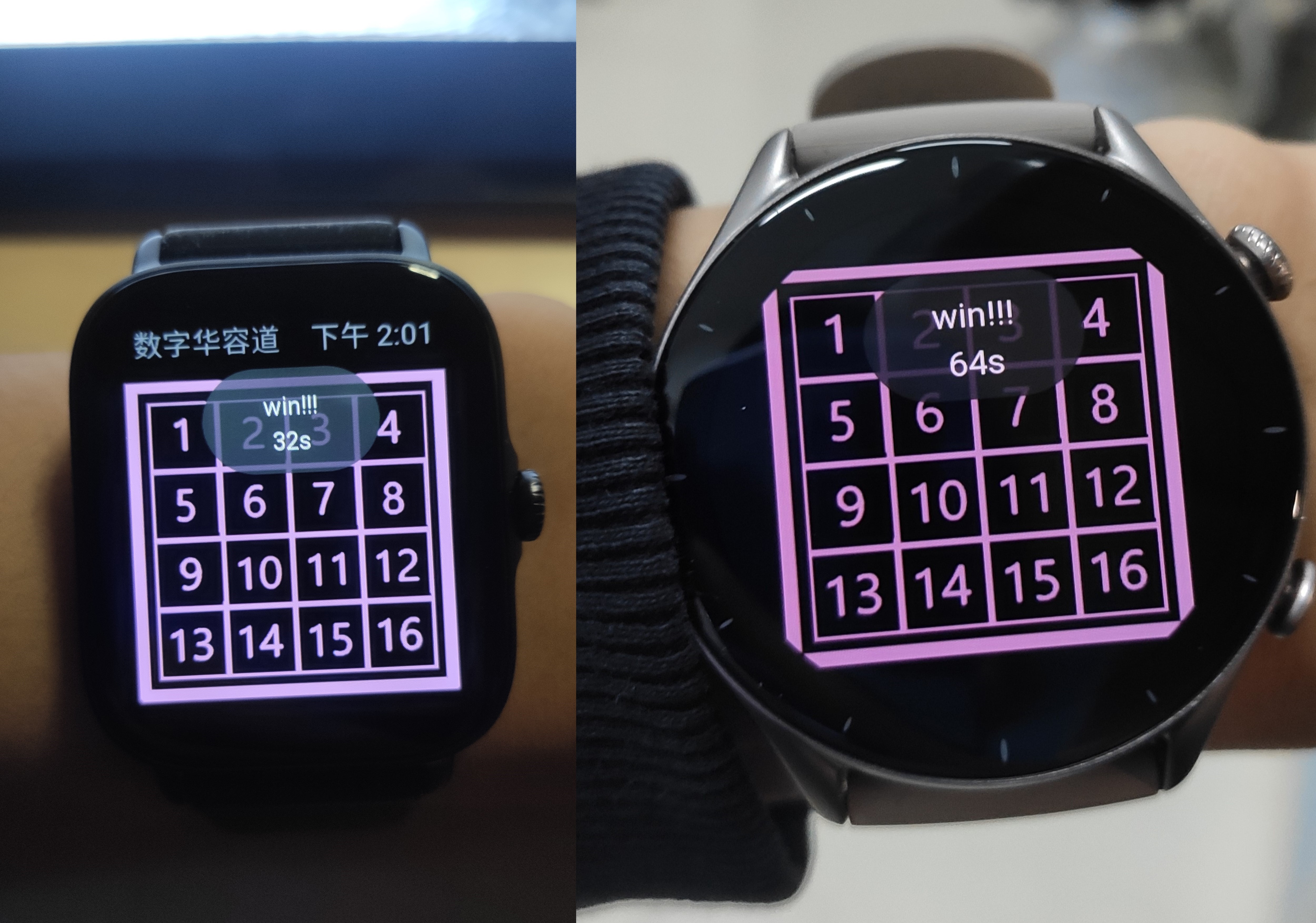

 最终结果

一个圆型UI

//gts3
var arcProgress = hmUI.createWidget(hmUI.widget.ARC_PROGRESS)
    arcProgress.setProperty(hmUI.prop.MORE, {
      center_x: 195,
      center_y: 256,
      radius: 171,
      start_angle: 0,
      end_angle: 360,
      color: 0xc08eaf,
      line_width: 45,
      level: progress
    })
//gts3

//gtr3
var arcProgress = hmUI.createWidget(hmUI.widget.ARC_PROGRESS)
    arcProgress.setProperty(hmUI.prop.MORE, {
      center_x: 227,
      center_y: 227,
      radius: 200,
      start_angle: 0,
      end_angle: 360,
      color: 0xc08eaf,
      line_width: 50,
      level: progress
    })
//gtr3

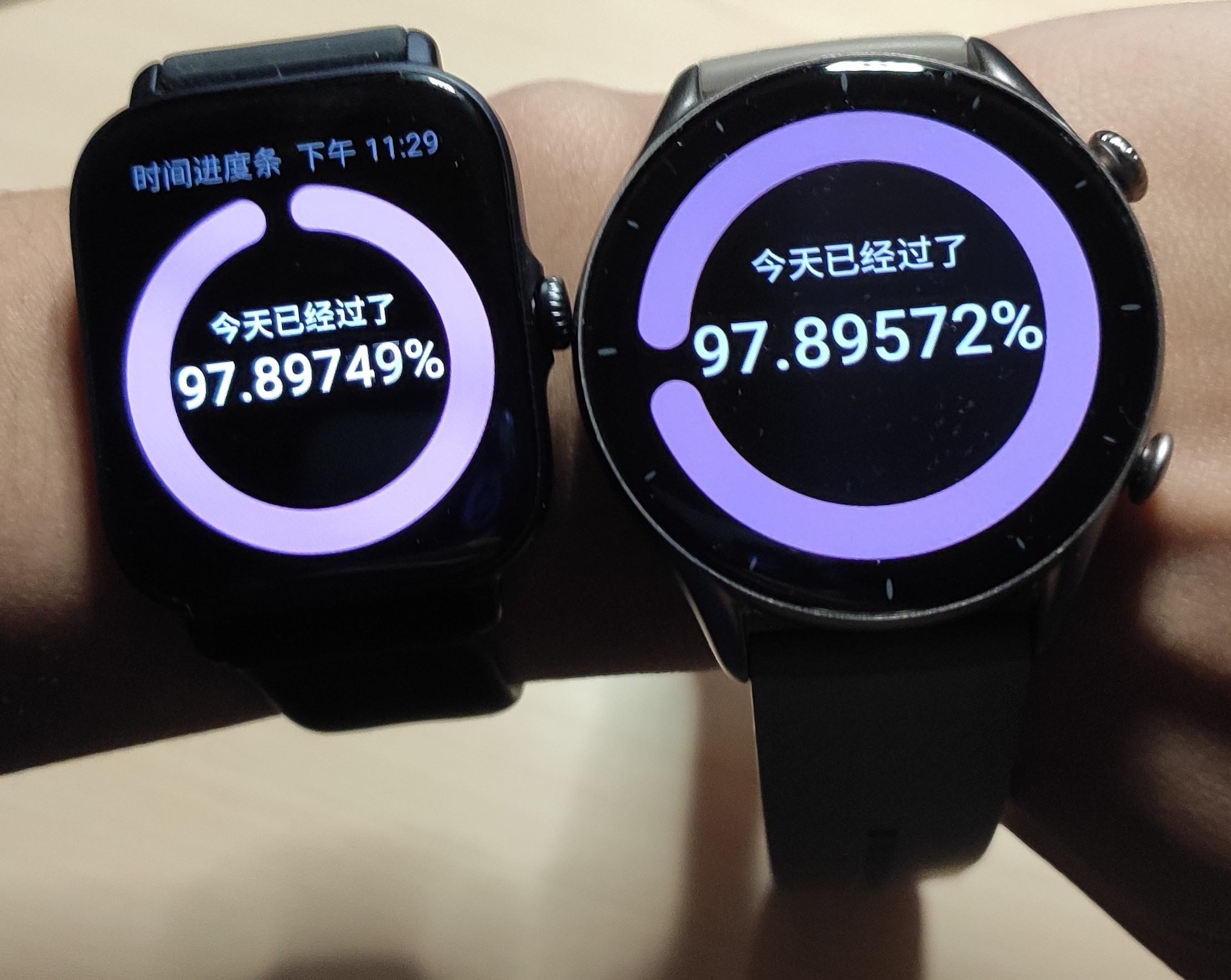

具体效果:

 以供参考
