基于Web的实时聊天室系统设计与实现

iMoLin 2022-01-18 18:37:00

需求分析

本次课程设计旨在开发一个依托于网页的的在线聊天室，且具备如下功能：

实时聊天
历史消息
身份保留
房间管理
房间在线人数统计

系统中用例如下图所示。

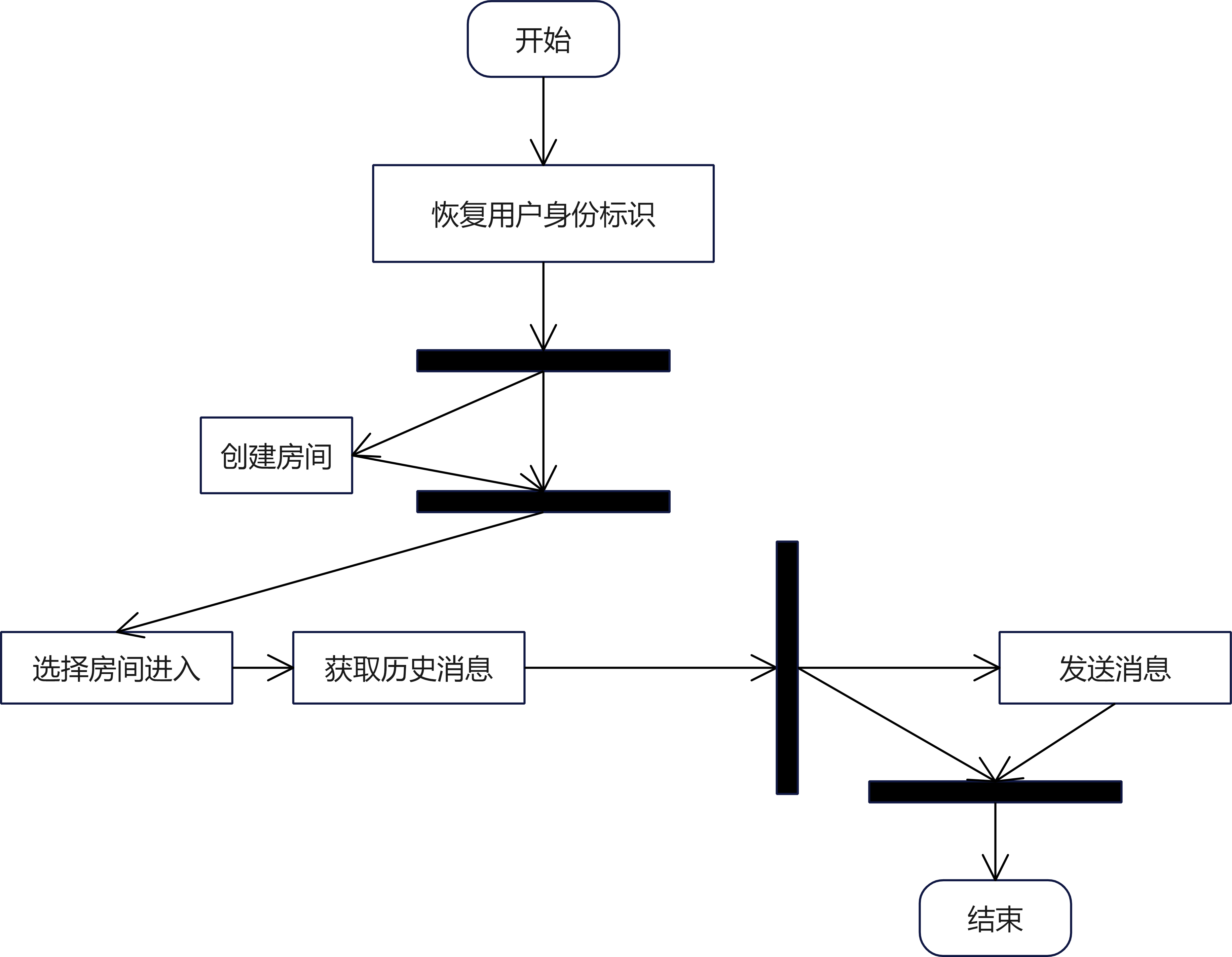

系统用户活动如下图所示。用户从已有房间列表中选择进入，或者自行创建新的房间。用户进入房间之后，获取当前房间的历史消息，可发送消息也可直接离开。

系统设计

本系统是一个集中式服务，所有用户的浏览器客户端都需要与服务器进行消息传递，通信形式上有单播和广播。

系统使用Websocket收发事件实现实时聊天，系统中事件主要有以下几种类型：

服务器接收的事件
事件名	事件类型	备注
创建房间	room:create	用户创建房间时触发，创建成功后向创建者发送完整的房间列表
加入房间	room:join	用户加入房间时触发，广播通知房间内其他用户，并下发当前房间在线人数
离开房间	room:leave	用户离开房间时触发，广播通知房间内的其他用户
追加消息	message:append	用户在房间中发送新消息时触发，广播通知房间内用户

客户端接收的事件
事件名	事件类型	备注
初始化	init	服务器在用户连接之后，向用户下发初始化数据，包括房间列表
房间新消息	message	当房间中产生新消息时，服务器向用户广播此事件
房间历史消息结果	message:fetch:result	用户进入房间后，向服务器查询历史消息，此事件返回历史消息结果
创建房间结果	room:create:result	用户向服务器发送创建房间消息，此事件返回包含新房间在内的完整房间列表

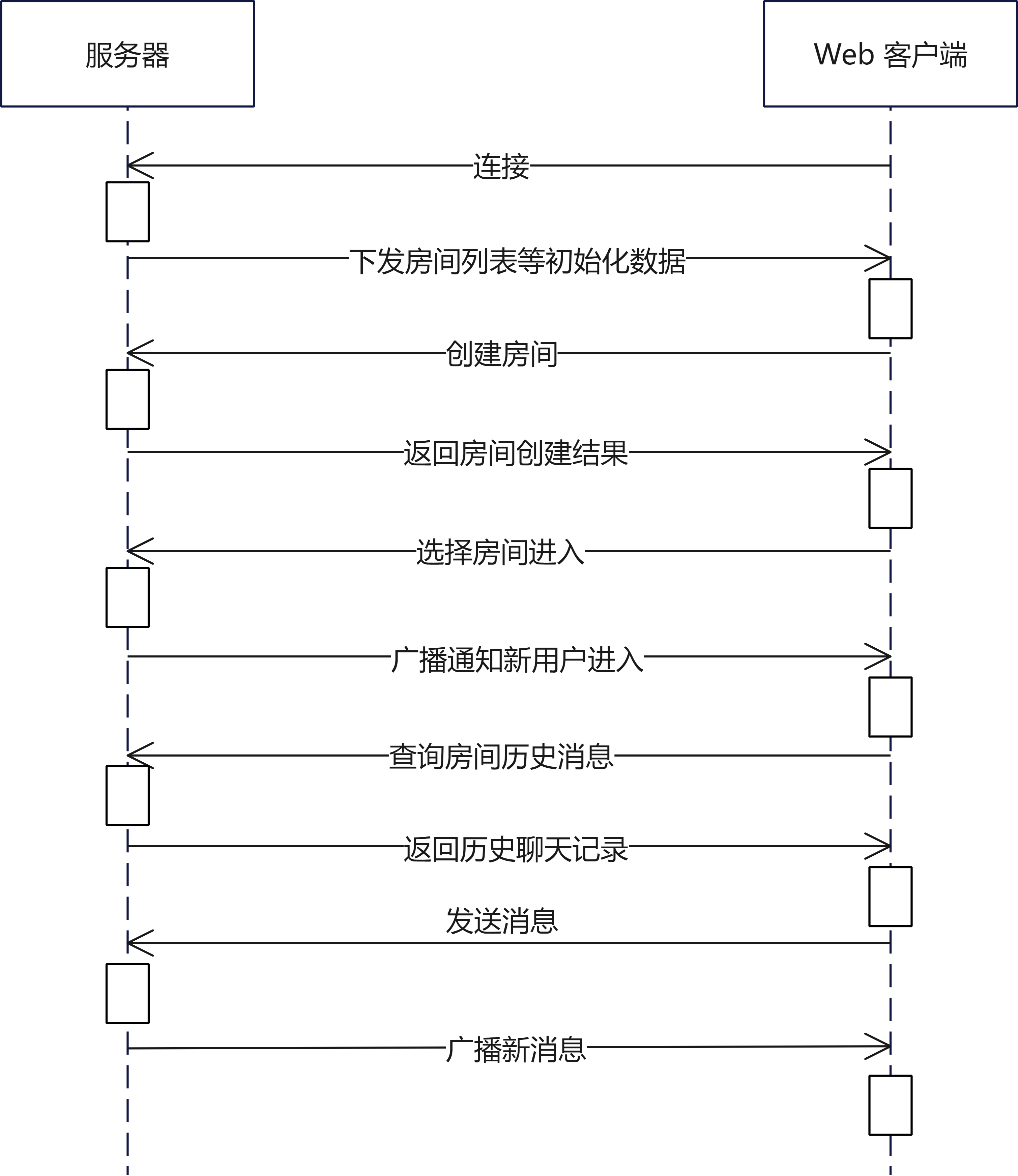

以用户从创建房间开始到发送消息为例，服务器与客户端之间时间交互时序如下图所示。

系统采用开发框架和主要依赖包为：

前端：Vue，scoket.io-client
服务端：Express, socket.io, mongoose
数据库：MongoDB

源码解析

服务端源码：

db.js

initDB() 建立与数据库之间的连接。

const mongoose = require('mongoose')

const initDb = async () => {
    const connection = await mongoose.connect(
        'mongodb://chatroom:chatwithus@xxx.com:port/chatroom', {
            useUnifiedTopology: true,
            useNewUrlParser: true
        })
    if (connection) {
        return connection.connection.db
    }
}

module.exports = initDb

model.js

创建数据库对象关系映射模型。message是用户发送的消息，room是创建的房间，message通过roomId关联房间。

const mongoose = require('mongoose');
const Schema = mongoose.Schema;

const message = new Schema({
    content: String,
    sender: String,
    sendAt: { type: Date, default: Date.now },
    roomId: {
        type: Schema.Types.ObjectId,
        ref: 'Room' // 关联 Room
    }
})

const room = new Schema({
    name: String,
    createAt: { type: Date, default: Date.now },
    activeAt: { type: Date, default: Date.now },
})

module.exports = {
    MessageModel: mongoose.model('Message', message),
    RoomModel: mongoose.model('Room', room),
}

middleware.js

查看每个websocket连接是否有sessionId，如果没有就随机生成一个，用于用户身份表示。

const crypto = require("crypto")

const randomId = () => crypto.randomBytes(8).toString("hex")

const SessionMiddleware = async (socket, next) => {
    const sessionId = socket.handshake.auth.sessionId
    if (sessionId) {
        socket.sessionId = sessionId
    } else {
        socket.sessionId = randomId()
    }
    next()
}

module.exports = {
    SessionMiddleware,
}

chat.event.js

onConnect是websocket连接事件处理方法，其中为聊天事件注册处理方法，并向客户端发送初始化消息。

onRoomCreate是当用户请求创建房间时，后端新建房间，写入数据库，向创建者发送成果结果。

onRoomJoin当用户进入房间时，向在房间内的用户广播一则提示消息，消息中携带了当前房间在线人数。

onRoomLeave当用户离开房间时，向在房间内的其他用户广播一则提示消息。

onDisconnect当用户断开websocket连接时，将用户从房间中移除。

onMessageAppend当用户发送来一则新消息，广播给房间内的其他用户。

onMessageFetch当用户请求拉取历史消息，从数据库中查找并发向该用户。

const crypto = require("crypto")
const randomId = () => crypto.randomBytes(32).toString("hex")

let socketIO

const { RoomModel, MessageModel } = require("./model")
const onConnect = io => async (socket) => {
    socketIO = io
    socket.on('room:create', onRoomCreate)
    socket.on('room:join', onRoomJoin)
    socket.on('room:leave', onRoomLeave)
    socket.on('message:append', onMessageAppend)
    socket.on('message:fetch', onMessageFetch)
    socket.on('disconnecting', onDisconnect)

    // 查询群聊
    const rooms = await RoomModel.find({})

    socket.emit('init', {
        sessionId: socket.sessionId,
        rooms,
    })
    //
    // socket.join(socket.sessionId)
}

const onRoomCreate = async function (payload) {
    const socket = this
    const { name } = payload
    if (name) {
        const room = new RoomModel({ name })
        await room.save()
        socket.emit('room:create:result', room)
    }
}

const onRoomJoin = async function (payload) {
    const socket = this
    const { roomId, sessionId } = payload
    if (roomId) {
        socket.join(roomId)
        const sockets = await socketIO.in(roomId).fetchSockets()

        // 使用 socketIO，消息的发送者也会收到此消息，使用 socket 则会排除发送者
        socketIO.to(roomId).emit('message', {
            type: 'join',
            content: `${sessionId} 进入了房间`,
            roomId,
            sender: sessionId,
            sendAt: Date.now(),
            _id: randomId(),
            onlineCount: sockets.length,
        })
    }
}

const onRoomLeave = async function (payload) {
    const socket = this
    const { roomId, sessionId } = payload
    if (roomId) {
        socket.leave(roomId)
        // 使用 socketIO，消息的发送者也会收到此消息，使用 socket 则会排除发送者
        socketIO.to(roomId).emit('message', {
            type: 'leave',
            content: `${sessionId} 离开了房间`,
            roomId,
            sender: sessionId,
            sendAt: Date.now(),
            _id: randomId(),
        })
    }
}

const onDisconnect = async function () {
    const socket = this
    socket.leave(socket.rooms)
}

const onMessageAppend = async function (payload) {
    const socket = this
    const { roomId, sessionId, content } = payload
    if (sessionId) {
        const message = new MessageModel({ content, sender: sessionId, roomId })
        await message.save()
        socketIO.to(roomId).emit('message', message)
    }
}

const onMessageFetch = async function (payload) {
    const socket = this
    const { roomId } = payload
    if (roomId) {
        const messages = await MessageModel.find({ roomId }).limit(200)
        socket.emit('message:fetch:result', {
            messages,
            roomId,
        })
    }
}

module.exports = {
    onConnect,
}

app.js

项目入口文件，整合以上所有模块，连接数据库，注册websocket事件处理方法，启动http服务器，设置跨域。

const express = require('express')
const cors = require('cors')
const { Server } = require("socket.io")
const { onConnect } = require("./chat.event")
const { SessionMiddleware } = require("./middleware")

const app = express()

const origin = [
    'http://127.0.0.1:3000',
    'https://npmdev.com',
]

app.use(cors({
    origin,
}))

const server = require('http').createServer(app)
const io = new Server(server, {
    path: '/socket.io/',
    cors: {
        origin,
    }
})


// 建立数据库连接
require('./db')()

io.use(SessionMiddleware)
io.on('connection', onConnect(io))

server.listen(4000, '0.0.0.0')

客户端源码：

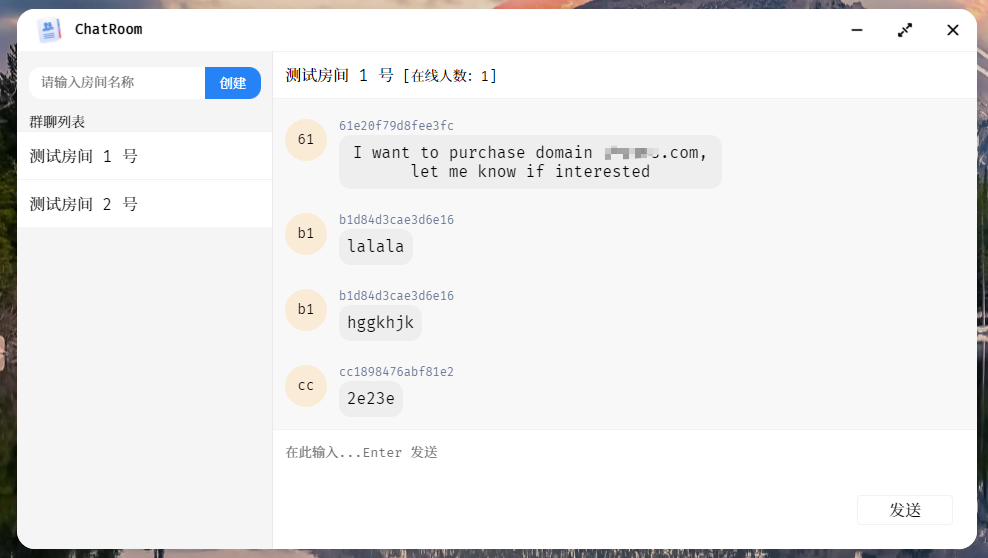

ChatRoom.vue

当聊天室组件挂载时，通过createScoket()建立websocket连接，并注册事件处理方法。

当组件卸载时，websocket断开连接。

onMounted(() => {
  socket = createSocket()
  socket.on('init', onSocketInit)
  socket.on('message', onSocketMessage)
  socket.on('message:fetch:result', onMessageFetchResult)
  socket.on('room:create:result', onRoomCreateResult)
})

onUnmounted(() => {
  if (socket) {
    socket.disconnect()
  }
})

使用 chatroomList 保存房间列表。

onSocketInit 处理连接上服务端后获得的初始化信息。

// 处理服务端向客户端发送的初始化信息
const onSocketInit = (payload) => {
  console.log(payload)
  // 设置为服务端返回的 sessionId 信息
  const { rooms, sessionId: id } = payload
  if (id) {
    localStorage.setItem(SESSION_ID_KEY, id)
    sessionId = id
  }
  if (rooms) {
    chatroomList.value = rooms
  }
}

inputRoomName 为创建房间时输入的用户名。

createRoom 向服务端发送创建房间消息，onRoomCreateResult 处理创建结果。

const chatroomList = ref([])
const inputRoomName = ref('')

// 创建房间
const createRoom = () => {
  if (inputRoomName.value !== '') {
    socket.emit('room:create', {
      name: inputRoomName.value,
    })
    inputRoomName.value = ''
  }
}

// 处理房间创建成功的消息
const onRoomCreateResult = (payload) => {
  chatroomList.value = [payload, ...chatroomList.value]
}

使用 chatMessages 保存群聊消息。

onRoomClicked 当用户在房间列表中点击房间时，进入房间，并向服务端发送拉取历史消息请求。

const chatMessages = ref([])

const onRoomClicked = room => {
  chatActive.value = true

  const { _id: roomId, name } = room
  if (currentRoom.id !== roomId) {
    // 离开原先房间
    if (currentRoom.id) {
      socket.emit('room:leave', {
        roomId: currentRoom.id,
        sessionId,
      })
    }

    // 切换到新的房间
    currentRoom.id = roomId
    currentRoom.name = name

    // 加入房间，服务端进行广播
    socket.emit('room:join', {
      roomId,
      sessionId,
    })

    // 拉取历史消息
    socket.emit('message:fetch', {
      roomId,
    })
  }
}

// 处理消息历史拉取结果
const onMessageFetchResult = (payload) => {
  const { roomId, messages } = payload
  console.log(payload)

  chatMessages.value = []
  if (roomId === currentRoom.id) {
    if (messages) {
      chatMessages.value = messages
    }
  }
}

onMessage 处理群聊消息，其中包括文字消息，还有成员加入退出的提示消息。

对 chatMessage 的变动进行监听，发生变化时（收到新消息），UI 方面自动跳转到消息末尾。

// 处理一般群聊消息
const onSocketMessage = (payload) => {
  console.log(payload)
  const { roomId, type, content, sender, sendAt, _id, onlineCount: count } = payload
  if (roomId === currentRoom.id) {
    chatMessages.value = [
      ...chatMessages.value,
      {
        type,
        content,
        sender,
        _id,
        sendAt,
      },
    ]

    // 当是成员加入消息时，服务端会返回当前房间在线人数
    if (type === 'join') {
      onlineCount.value = count
    } else if (type === 'leave') {
      // 成员离开
      onlineCount.value -= 1
    }
  }
}

// 监听消息列表，当有新消息时跳到末尾
watch(chatMessages, () => {
  setTimeout(() => {
    const container = document.querySelector('.chat-message')
    container.scrollTop = container.scrollHeight
  }, 200) // 延时不立即执行，待 DOM 更新之后
}, { immediate: false })

onBackClicked 当用户返回退出房间时，向服务端发送离开房间消息。

const onBackClicked = () => {
  chatActive.value = false
  // 离开房间
  if (currentRoom.id) {
    socket.emit('room:leave', {
      roomId: currentRoom.id,
      sessionId,
    })
  }
  currentRoom.id = null
  currentRoom.name = null
}

完整的 ChatRoom.vue 代码为如下，其中使用的其他 Vue 组件不再介绍。

<template>
  <Window :config="config">
    <div class="chatroom-body" :class="{'chat-content-active':chatActive}">
      <div class="group-contacts">
        <div class="create-group">
          <input v-model="inputRoomName" type="text" placeholder="请输入房间名称">
          <button @click="createRoom">
            创建
          </button>
        </div>
        <div class="group-list">
          <span class="group-list-tip">群聊列表</span>
          <div v-for="room in chatroomList" :key="room._id" class="group-item" @click="onRoomClicked(room)">
            <span class="group-name">{{ room.name }}</span>
          </div>
        </div>
      </div>
      <div v-show="currentRoom.id && chatActive" class="chat-content">
        <div class="chat-title">
          <li class="icon-button go-back-btn" @click="onBackClicked">
            <i class="iconfont icon-arrow-left"></i>
          </li>
          <div class="chat-info">
            <span class="room-name">{{ currentRoom.name }}</span>
            <span class="online-count">&nbsp;[在线人数：{{ onlineCount }}]</span>
          </div>
        </div>
        <div class="chat-message">
          <ChatMessage
            v-for="message in chatMessages" :key="message._id" :from="message.sender"
            :msg="message.content" :type="message.type || 'chat'" :left="sessionId!==message.sender"
          />
        </div>
        <div class="chat-editor">
          <textarea
            v-model="inputMsg" placeholder="在此输入...Enter 发送" aria-multiline="true"
            @keyup.enter="sendMsg"
          />
          <div class="send-btn" @click="sendMsg">
            发送
          </div>
        </div>
      </div>
    </div>
  </Window>
</template>

<script setup>
import Window from '../../components/Window.vue'
import ChatMessage from '../../components/ChatMessage.vue'
import { onMounted, onUnmounted, reactive, ref, watch } from 'vue'
import { createSocket, SESSION_ID_KEY } from '../../common/chatroom-socket'

defineProps({
  config: Object,
})

let socket = null
let sessionId = localStorage.getItem(SESSION_ID_KEY)
const chatActive = ref(false)
const chatroomList = ref([])
const chatMessages = ref([])
const inputMsg = ref('')
const inputRoomName = ref('')
const onlineCount = ref(0)

// 当前房间
const currentRoom = reactive({
  id: null,
  name: null,
})

const onRoomClicked = room => {
  chatActive.value = true

  const { _id: roomId, name } = room
  if (currentRoom.id !== roomId) {
    // 离开原先房间
    if (currentRoom.id) {
      socket.emit('room:leave', {
        roomId: currentRoom.id,
        sessionId,
      })
    }

    // 切换到新的房间
    currentRoom.id = roomId
    currentRoom.name = name

    // 加入房间，服务端进行广播
    socket.emit('room:join', {
      roomId,
      sessionId,
    })

    // 拉取历史消息
    socket.emit('message:fetch', {
      roomId,
    })
  }
}

const onBackClicked = () => {
  chatActive.value = false
  // 离开房间
  if (currentRoom.id) {
    socket.emit('room:leave', {
      roomId: currentRoom.id,
      sessionId,
    })
  }
  currentRoom.id = null
  currentRoom.name = null
}

// 处理服务端向客户端发送的初始化信息
const onSocketInit = (payload) => {
  console.log(payload)
  // 设置为服务端返回的 sessionId 信息
  const { rooms, sessionId: id } = payload
  if (id) {
    localStorage.setItem(SESSION_ID_KEY, id)
    sessionId = id
  }
  if (rooms) {
    chatroomList.value = rooms
  }
}

// 处理一般群聊消息
const onSocketMessage = (payload) => {
  console.log(payload)
  const { roomId, type, content, sender, sendAt, _id, onlineCount: count } = payload
  if (roomId === currentRoom.id) {
    chatMessages.value = [
      ...chatMessages.value,
      {
        type,
        content,
        sender,
        _id,
        sendAt,
      },
    ]

    // 当是成员加入消息时，服务端会返回当前房间在线人数
    if (type === 'join') {
      onlineCount.value = count
    } else if (type === 'leave') {
      // 成员离开
      onlineCount.value -= 1
    }
  }
}

// 处理消息历史拉取结果
const onMessageFetchResult = (payload) => {
  const { roomId, messages } = payload
  console.log(payload)

  chatMessages.value = []
  if (roomId === currentRoom.id) {
    if (messages) {
      chatMessages.value = messages
    }
  }
}

// 监听消息列表，当有新消息时跳到末尾
watch(chatMessages, () => {
  setTimeout(() => {
    const container = document.querySelector('.chat-message')
    container.scrollTop = container.scrollHeight
  }, 200) // 延时不立即执行，待 DOM 更新之后
}, { immediate: false })

// 发送群聊消息
const sendMsg = () => {
  if (inputMsg.value !== '') {
    socket.emit('message:append', {
      roomId: currentRoom.id,
      content: inputMsg.value,
      sessionId,
    })
    inputMsg.value = ''
  }
}

// 创建房间
const createRoom = () => {
  if (inputRoomName.value !== '') {
    socket.emit('room:create', {
      name: inputRoomName.value,
    })
    inputRoomName.value = ''
  }
}

// 处理房间创建成功的消息
const onRoomCreateResult = (payload) => {
  chatroomList.value = [payload, ...chatroomList.value]
}

onMounted(() => {
  socket = createSocket()
  socket.on('init', onSocketInit)
  socket.on('message', onSocketMessage)
  socket.on('message:fetch:result', onMessageFetchResult)
  socket.on('room:create:result', onRoomCreateResult)
})

onUnmounted(() => {
  if (socket) {
    socket.disconnect()
  }
})
</script>

<style scoped lang="scss">
@import "../../assets/style/mixin";

$border: 1px solid rgba(black, .05);

::v-deep(.window-body) {
  position: relative;
}

.group-item {
  width: 100%;
  height: 48px;
  padding: 12px;
  background-color: white;
  display: flex;
  flex-direction: row;
  align-items: center;
  justify-content: flex-start;
  border-top: $border;
  cursor: pointer;

  &:hover {
    background-color: whitesmoke;
  }
}

.chatroom-body {
  @include gen-absolute(0, 0, 0, 0);
  display: flex;
  flex-direction: row;
  align-items: stretch;

  .group-contacts {
    flex: 0 0 256px;
    background-color: whitesmoke;
    border-right: $border;


    .create-group {
      display: flex;
      flex-direction: row;
      justify-content: center;
      margin-top: 4px;
      padding: 12px;

      height: 56px;

      input {
        flex: 1;
        outline: none;
        border: none;
        border-bottom-left-radius: 12px;
        border-top-left-radius: 12px;
        text-indent: 12px;
      }

      button {
        flex: 0 0 56px;
        border: none;
        border-bottom-right-radius: 12px;
        border-top-right-radius: 12px;
        background-color: #2683F5;
        color: white;
      }
    }

    .group-list {
      overflow-y: scroll;

      &::-webkit-scrollbar {
        width: 0;
      }

      &-tip {
        padding: 0 12px;
        font-size: 14px;

      }
    }
  }

  .chat-content {
    flex: 1;
    display: flex;
    flex-direction: column;
    align-items: stretch;

    .chat-title {
      height: 48px;
      border-top: $border;
      border-bottom: $border;
      background-color: white;
      display: flex;
      flex-direction: row;
      justify-content: flex-start;
      align-items: center;
      padding: 0 12px;

      .go-back-btn {
        display: none;
      }
    }

    .online-count {
      font-size: 14px;
    }

    .chat-message {
      flex: 1;
      overflow-y: scroll;

      &::-webkit-scrollbar {
        width: 0;
      }
    }

    .chat-editor {
      flex: 0 0 120px;
      border-top: $border;
      background-color: white;
      position: relative;

      textarea {
        width: 100%;
        height: 100%;
        border: none;
        outline: none;
        padding: 12px;
      }

      .send-btn {
        position: absolute;
        right: 24px;
        bottom: 24px;

        width: 96px;
        height: 30px;
        border: $border;
        text-align: center;
        line-height: 30px;
        cursor: pointer;
        background-color: white;
        border-radius: 4px;

        &:hover {
          background-color: whitesmoke;
        }
      }
    }
  }
}

@include media('<desktop') {
  .chat-content-active {
    transform: translateX(-100%);
  }

  .chatroom-body {
    flex-wrap: nowrap;
    transition: all .2s ease-out;

    .group-contacts {
      flex: 0 0 100%;
      background-color: whitesmoke;
    }

    .chat-content {
      flex: 0 0 100%;

      .chat-title {
        padding: 0;

        .go-back-btn {
          display: inline-block !important;
        }
      }
    }
  }
}
</style>
