Ohos-MPChart——支持多种图表绘制的组件

OpenHarmony开发者 2022-09-30 11:52:31

 简介

Ohos-MPChart是OpenAtom OpenHarmony（简称“OpenHarmony”）系统显示各种图表视图的三方组件，用于声明式应用开发，提供了多种多样的图表视图，包括折线图、曲线图、柱形图、饼状图、K线图、雷达图、气泡图。适用于各种统计后的数据以视觉直观的方式呈现。



使用场景

Ohos-MPChart为广大OpenHarmony应用开发者在处理数据时，使数据显示更加直观。尤其现在的大数据时代面对愈加庞大的数据只需要导入Ohos-MPChart三方组件，然后调用相关的接口就能实现各种各样的图表以方便数据汇总。



效果展示



组件功能描述

Ohos-MPChart是一个强大的图表视图，主要提供多种多样的图表视图，包括折线图、曲线图、柱形图、饼状图、K线图等等，具体功能模块如下：



开发环境

安装IDE：支持DevEco Studio 3.0 Release(Build Version 3.0.0.993)版本。

安装SDK：支持OpenHarmony API version 8 及以上版本



使用方法

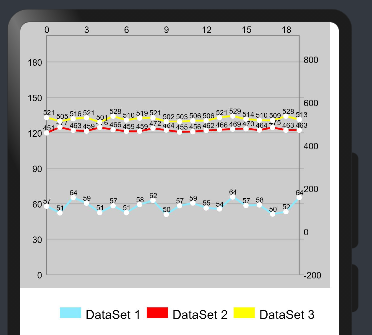

图表一：折线图

1.下载Ohos-MPChart组件并导入LineChart自定义组件：

//下载mpchart组件
 npm install @ohos/mpchart --save
import { LineChart } from '@ohos/ohos_mpchart'

OpenHarmony npm环境配置等更多内容，请参考安装教程

如何安装OpenHarmony npm包

https://gitee.com/openharmony-tpc/docs/blob/master/OpenHarmony_npm_usage.md



2.初始化数据

aboutToAppear() {
    this.lineData = this.initCurveData(45, 100);
    this.topAxis.setLabelCount(5, false);
    this.topAxis.setPosition(XAxisPosition.TOP);
    this.topAxis.setAxisMinimum(0);
    this.topAxis.setAxisMaximum(50);
    this.bottomAxis.setLabelCount(5, false);
this.bottomAxis.setPosition(XAxisPosition.BOTTOM);
    this.bottomAxis.setAxisMinimum(0);
    this.bottomAxis.setAxisMaximum(50);
    this.bottomAxis.setDrawAxisLine(false);
    this.bottomAxis.setDrawLabels(false)

    this.leftAxis = new YAxis(AxisDependency.LEFT);
    this.leftAxis.setLabelCount(7, false);
    this.leftAxis.setPosition(YAxisLabelPosition.OUTSIDE_CHART);
    this.leftAxis.setSpaceTop(15);
    this.leftAxis.setAxisMinimum(-50);
    this.leftAxis.setAxisMaximum(200);
    this.leftAxis.enableGridDashedLine(5,5,0)

    this.rightAxis = new YAxis(AxisDependency.RIGHT);
    this.rightAxis.setDrawGridLines(false);
    this.rightAxis.setLabelCount(7, false);
    this.rightAxis.setSpaceTop(11);
    this.rightAxis.setAxisMinimum(-50); // this replaces setStartAtZero(true)
    this.rightAxis.setAxisMaximum(200);
    this.rightAxis.setDrawAxisLine(false);

    var upperLimtLine:LimitLine= new LimitLine(150, "Upper Limit");
    upperLimtLine.setLineWidth(4);
    upperLimtLine.enableDashedLine(10, 10, 0);
    upperLimtLine.setLabelPosition(LimitLabelPosition.RIGHT_TOP);
    upperLimtLine.setTextSize(10);

    var lowerLimtLine:LimitLine= new LimitLine(-30, "Lower Limit");
    lowerLimtLine.setLineWidth(4);
    lowerLimtLine.enableDashedLine(5, 5, 0);
    lowerLimtLine.setLabelPosition(LimitLabelPosition.RIGHT_BOTTOM);
    lowerLimtLine.setTextSize(10);

    this.leftAxis.setDrawLimitLinesBehindData(true);
    this.leftAxis.addLimitLine(upperLimtLine);
    this.leftAxis.addLimitLine(lowerLimtLine);
  }
  private initCurveData(count: number, range: number): LineData {

    let values = new JArrayList<EntryOhos>();

    for (let i = 0; i < 50; i++) {
      let val: number = Math.random() * 180 - 30;
      values.add(new EntryOhos(i, val));
    }

    let gradientFillColor = new Array<ColorStop>();
    gradientFillColor.push(['#ffff0000', 0.1])
    gradientFillColor.push(['#00ff0000', 1.0])

    let dataSet = new JArrayList<ILineDataSet>();

    let set1 = new LineDataSet(values, "DataSet 1");
    set1.setDrawFilled(true);
    set1.enableDashedLine(10,5,0)
    set1.setMode(Mode.LINEAR);
    set1.setGradientFillColor(gradientFillColor)
    set1.setColorByColor(Color.Black);
    set1.setLineWidth(1)
    set1.setDrawCircles(true);
    set1.setCircleColor(Color.Black);
    set1.setCircleRadius(2);
    set1.setCircleHoleRadius(1)
    set1.setCircleHoleColor(Color.Green)
    set1.setDrawCircleHole(false)
    dataSet.add(set1);

    return new LineData(dataSet)
  }

3.添加数据到自定义曲线图表组件

build() {
    Stack({ alignContent: Alignment.TopStart }) {
       LineChart({
        topAxis: this.topAxis,
        bottomAxis: this.bottomAxis,
        width: this.width,
        height: this.height,
        minOffset: this.minOffset,
        leftAxis: this.leftAxis,
        rightAxis: this.rightAxis,
        lineData: this.lineData,
      })
    }
  }

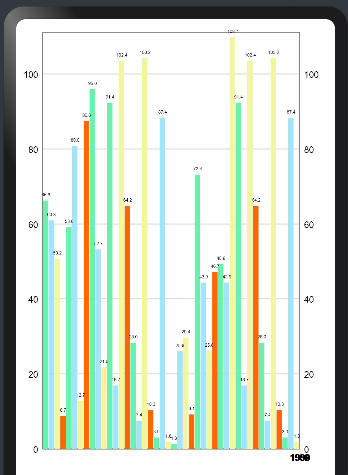

图表二：柱状图

1.导入BarChart自定义组件：

import{BarChart,BarChartModel} from '@ohos/ohos_mpchart'

2.初始化数据

@State model:BarChartModel = new BarChartModel();
  width: number = 350; //表的宽度
  height: number = 500; //表的高度
  minOffset: number = 15; //X轴线偏移量
  leftAxis: YAxis = null;
  rightAxis: YAxis = null;
  bottomAxis: XAxis = new XAxis();

  private aboutToAppear(){
    this.leftAxis = new YAxis(AxisDependency.LEFT);
    this.leftAxis.setLabelCount(6, false);
    this.leftAxis.setPosition(YAxisLabelPosition.OUTSIDE_CHART);
    this.leftAxis.setSpaceTop(15);
    this.leftAxis.setAxisMinimum(0);
    this.leftAxis.setAxisMaximum(110);
    this.leftAxis.enableGridDashedLine(10,10,0)

    this.rightAxis = new YAxis(AxisDependency.RIGHT);
    this.rightAxis.setDrawGridLines(false);
    this.rightAxis.setLabelCount(6, false);
    this.rightAxis.setSpaceTop(11);
    this.rightAxis.setAxisMinimum(0);
    this.rightAxis.setAxisMaximum(110);

    this.bottomAxis.setLabelCount(5, false);
    this.bottomAxis.setPosition(XAxisPosition.BOTTOM);
    this.bottomAxis.setAxisMinimum(0);
    this.bottomAxis.setAxisMaximum(10);

    this.setData(this.bottomAxis.getAxisMaximum(),this.leftAxis.getAxisMaximum())

    this.model.width = this.width;
    this.model.height = this.height;
    this.model.init();
    this.model.setDrawBarShadow(false);
    this.model.setDrawValueAboveBar(true);
    this.model.getDescription().setEnabled(false);
    this.model.setMaxVisibleValueCount(60);
    this.model.setLeftYAxis(this.leftAxis);
    this.model.setRightYAxis(this.rightAxis);
    this.model.setXAxis(this.bottomAxis)
    this.model.mRenderer.initBuffers();
    this.model.prepareMatrixValuePx();
  }
  private setData(count: number, range: number) {
    let groupSpace: number = 0.08;
    let barSpace: number = 0.03; // x4 DataSet
    let barWidth: number = 0.2; // x4 DataSet
    let groupCount: number = count + 1;
    let startYear: number = 1980;
    let endYear: number = startYear + groupCount;
    let values1:JArrayList<BarEntry> =
    new JArrayList<BarEntry>();
    let values2:JArrayList<BarEntry> =
    new JArrayList<BarEntry>();
    let values3:JArrayList<BarEntry> =
    new JArrayList<BarEntry>();
    let values4:JArrayList<BarEntry> =
    new JArrayList<BarEntry>();
    let randomMultiplier: number = range;
    for (let i = startYear; i < endYear; i++) {
      values1.add(new BarEntry(i,
      (Math.random() * randomMultiplier)))
      values2.add(new BarEntry(i,
      (Math.random() * randomMultiplier)))
      values3.add(new BarEntry(i,
      (Math.random() * randomMultiplier)))
      values4.add(new BarEntry(i,
      (Math.random() * randomMultiplier)))
    }
    let set1: BarDataSet,set2:
    BarDataSet,set3: BarDataSet,set4: BarDataSet;
    if (this.model.getBarData() != null &&
    this.model.getBarData().getDataSetCount() > 0) {
      set1 = this.model.getBarData().getDataSetByIndex(0) as BarDataSet;
      set2 = this.model.getBarData().getDataSetByIndex(1) as BarDataSet;
      set3 = this.model.getBarData().getDataSetByIndex(2) as BarDataSet;
      set4 = this.model.getBarData().getDataSetByIndex(3) as BarDataSet;
      set1.setValues(values1);
      set2.setValues(values2);
      set3.setValues(values3);
      set4.setValues(values4);
      this.model.getBarData().notifyDataChanged();
      this.model.notifyDataSetChanged();

    } else {
      let colors: number[] =
      [Color.rgb(104, 241, 175),Color.rgb(164, 228, 251),Color.rgb(242, 247, 158),Color.rgb(255, 102, 0)];
      set1 = new BarDataSet(values1, "Company A");
      set1.setColorsByArr(colors);
      set2 = new BarDataSet(values2, "Company B");
      set2.setColorsByArr(colors);
      set3 = new BarDataSet(values3, "Company C");
      set3.setColorsByArr(colors);
      set4 = new BarDataSet(values2, "Company D");
      set4.setColorsByArr(colors);

      let dataSets: JArrayList<IBarDataSet> =
      new JArrayList<IBarDataSet>();
      dataSets.add(set1);
      dataSets.add(set2);
      dataSets.add(set3);
      dataSets.add(set4);

      let data: BarData = new BarData(dataSets);
      this.model.setData(data);
    }
    this.model.getBarData().setBarWidth(barWidth);
    this.bottomAxis.setAxisMinimum(startYear);
    this.bottomAxis.setAxisMaximum(startYear + this.model.getBarData().getGroupWidth(groupSpace, barSpace) * groupCount);
    this.model.groupBars(startYear, groupSpace, barSpace);
  }

3.添加数据到自定义曲线图表组件

build() {
    Stack(){
      BarChart({model:this.model})
    }
  }

图表三：饼状图

1.导入PieChart自定义组件：

import { PieChart } from '@ohos/ohos_mpchart'

2.初始化数据

pieData: PieData = null;
  @State pieModel: PieChart.Model = new PieChart.Model()
  @State @Watch("seekBarXValueWatch")
  seekBarX: SeekBar.Model = new SeekBar.Model()
  @State @Watch("seekBarYValueWatch")
  seekBarY: SeekBar.Model = new SeekBar.Model()
  parties: string[] = [
    "Party A", "Party B", "Party C", "Party D", "Party E", "Party F", "Party G", "Party H",
    "Party I", "Party J", "Party K", "Party L", "Party M", "Party N", "Party O", "Party P",
    "Party Q", "Party R", "Party S", "Party T", "Party U", "Party V", "Party W", "Party X",
    "Party Y", "Party Z"]

  private aboutToAppear(): void {
    this.pieData = this.initPieData(4, 10);
    this.pieModel
      .setPieData(this.pieData)
      .setRadius(150)
      .setHoleRadius(0.5)
      .setOffset(new MPPointF(160,200))   // vp
  }
  private initPieData(count: number,
  range: number): PieData{
    let entries = new JArrayList<PieEntry>();
    for (var i = 0; i < count; i++) {
      entries.add(new PieEntry(((Math.random() * range) + range / 5), this.parties[i % this.parties.length]))
    }
    //        entries.add(new PieEntry(4,'Party A'))
    //        entries.add(new PieEntry(2,'Party B'))
    //        entries.add(new PieEntry(5,'Party C'))
    //        entries.add(new PieEntry(3,'Party D'))

    let dataSet: PieDataSet = new PieDataSet(entries,
     "Election Results");
    dataSet.setDrawIcons(false);
    dataSet.setSliceSpace(3);
    dataSet.setIconsOffset(new MPPointF(0, 40));
    dataSet.setSelectionShift(5);

    // add a lot of colors
    let colors: JArrayList<number> = new JArrayList();
    for (let index = 0;
    index < ColorTemplate.VORDIPLOM_COLORS.length; index++) {
      colors.add(ColorTemplate.VORDIPLOM_COLORS[index]);
    }

    for (let index = 0;
    index < ColorTemplate.JOYFUL_COLORS.length; index++) {
      colors.add(ColorTemplate.JOYFUL_COLORS[index]);
    }

    for (let index = 0;
    index < ColorTemplate.COLORFUL_COLORS.length; index++) {
      colors.add(ColorTemplate.COLORFUL_COLORS[index]);
    }
    for (let index = 0;
    index < ColorTemplate.LIBERTY_COLORS.length; index++) {
      colors.add(ColorTemplate.LIBERTY_COLORS[index]);
    }
    for (let index = 0;
    index < ColorTemplate.PASTEL_COLORS.length; index++) {
      colors.add(ColorTemplate.PASTEL_COLORS[index]);
    }
    colors.add(ColorTemplate.getHoloBlue());
    dataSet.setColorsByList(colors);
    return new PieData(dataSet)
  }

3.添加数据到自定义曲线图表组件

build() {
    Column() {
      PieChart({
        model: this.pieModel
      })
}

图表四：雷达图

1.导入RadarChart自定义组件：

import { RadarChart } from '@ohos/ohos_mpchart';

2.初始化数据

width: number = 300; //表的宽度
  height: number = 300 //表的高度
  minOffset: number = 5; //X轴线偏移量
  xAxis: XAxis = new XAxis(); //顶部X轴
  yAxis: YAxis = new YAxis();
  data:RadarData= new RadarData();
  @State
  radarChartMode:RadarChartMode=new RadarChartMode();
public aboutToAppear() {
    this.model.menuItemArr = this.menuItemArr
    this.model.title = this.title

    this.data=this.initRadarData( 5,50)
    this.xAxis.setTextSize(9);
    this.xAxis.setYOffset(0);
    this.xAxis.setXOffset(0);
    this.xAxis.setTextColor(Color.White);
    const mActivities:string[] = ["Burger", "Steak", "Salad", "Pasta", "Pizza"];
    this.xAxis.setValueFormatter(new
    class RadarAxisValueFormatter
    implements IAxisValueFormatter{
      public  getFormattedValue( value:number,
        axis:AxisBase):string {
        return mActivities[value % mActivities.length];
      }
    });
    this.xAxis.longest=mActivities[0];
    this.yAxis.setLabelCount(5, false);
    this.yAxis.setTextSize(9);
    this.yAxis.setAxisMinimum(0);
    this.yAxis.setAxisMaximum(80);
    this.yAxis.setDrawLabels(false);

    this.radarChartMode.mRotateEnabled=false
    this.radarChartMode.setYExtraOffset(this.model.height)
    this.radarChartMode.setXAxis(this.xAxis)
    this.radarChartMode.setYAxis(this.yAxis)
    this.radarChartMode.setWidth(this.width)
    this.radarChartMode.setHeight(this.height)
    this.radarChartMode.setMinOffset(this.minOffset)
    this.radarChartMode.setData(this.data)
    this.radarChartMode.setPaddingLeft(30)
    this.radarChartMode.setPaddingTop(100)
    this.radarChartMode.init();
    //this.animate('Animate XY')
  }

  private initRadarData(count: number,
  range: number): RadarData {
    let mul:number = 80;
    let min:number = 20;
    let cnt:number = 5;
    let entries1 = new JArrayList <RadarEntry>();
    let entries2 = new JArrayList <RadarEntry>();

    // NOTE: The order of the entries when being added to the entries array determines their position around the center of
    // the chart.
    for (let i = 0; i < cnt; i++) {
      let val1:number = Math.random() * mul + min;
      entries1.add(new RadarEntry(val1));

      let val2:number = Math.random() * mul + min;
      entries2.add(new RadarEntry(val2));
    }
    let set1:RadarDataSet = new RadarDataSet(entries1,
     "Last Week");
    set1.setColorByColor(0xb4676e81);
    set1.setFillColor(0xb4676e81);
    set1.setDrawFilled(true);
    set1.setFillAlpha(180);
    set1.setLineWidth(2);
    set1.setDrawHighlightCircleEnabled(true);
    set1.setDrawHighlightIndicators(false);
    set1.setHighlightCircleStrokeColor(0xffffffff);
    set1.setHighlightCircleFillColor(0xb4676e81)
    set1.setDrawValues(true)
    set1.setIconsOffset(new MPPointF(0, px2vp(0)));

    let set2:RadarDataSet = new RadarDataSet(entries2, "This Week");
    set2.setColorByColor(0xb479a2af);
    set2.setFillColor(0xb479a2af);
    set2.setDrawFilled(true);
    set2.setFillAlpha(180);
    set2.setLineWidth(2);
    set2.setDrawHighlightCircleEnabled(true);
    set2.setDrawHighlightIndicators(false);
    set2.setHighlightCircleStrokeColor(0xffffffff);
    set2.setHighlightCircleFillColor(0xb479a2af)
    set2.setDrawValues(true)
    set2.setIconsOffset(new MPPointF(0, px2vp(0)));

    let sets = new JArrayList<IRadarDataSet>();
    sets.add(set1);
    sets.add(set2);
    //
    let data:RadarData = new RadarData(sets);
    data.setValueTextSize(8);
    data.setDrawValues(this.isDrawValuesEnable);
    data.setValueTextColor(Color.White);
    return data
  }
  public getFormattedValue(value: number): string {
    var str = String(value.toFixed(1)).split(".");
    if(str[1] == "0"){
      return str[0];
    }else{
      return String(value.toFixed(1))
    }
  }

3.添加数据到自定义曲线图表组件

build() {
    Column() {
      Stack({ alignContent: Alignment.TopStart }) {
        RadarChart({
          radarChartMode:this.radarChartMode,
        })
      }
    }
  }

其他图表使用方式与以上图表使用方法基本一致



...全文
284 回复 打赏 收藏 转发到动态 举报
写回复
用AI写文章
回复
切换为时间正序
请发表友善的回复…
发表回复
数据可视化图表--制作精美图表大全
数据可视化图表--制作精美图表大全、offset做动态图表、VBA动态图、倒序棱锥图表、堆积图（完成度）、分段图表、实时数据点突出图表、组合图表、涨跌柱图表、折线动态图表、正负分界图表
鸿蒙HarmonyOS-图表应用
而MPChart就是这样一款图表库，它为开发者提供了丰富的功能和灵活性，使得创建各种类型的图表变得轻而易举。这不仅提升了用户体验，也使得数据的变化更加直观。在此阶段，顶部和底部 X 轴的相关参数被配置，包括标签个数、位置、最小值和最大值等。配置左边和右边 Y 轴的相关参数，包括标签个数、位置、顶部距离、最小值和最大值等。将上方和下方的限制线添加到左边的 Y 轴上，以完善图表的辅助线设置。配置图表的宽度、高度和 X 轴线的偏移量，以适应特定的显示需求。包括图表的x轴，y轴，宽高，偏移量，数据、model类。
《Excel 数据之美--科学图表与商业图表的绘制》
《Excel 数据之美--科学图表与商业图表的绘制》内容简介 引入R ggplot2, Python Seaborn, Tableau, D3.js, Matlab 2015, Origin等绘图软件的图表风格与配色方案； 对比并总结了《华尔街日报》、《商业周刊》、《经济学人》等商业经典杂志的图表风格； 配套开发了一款Excel 插件EasyCharts，可以实现颜色拾取、数据拾取、图像截取、图表风格美化、新型图表绘制、数据分析等功能。
MPchart使用详解及详细属性（一）
项目源代码：https://github.com/libin7278/MpChart 第一步 添加依赖或导入Library dependencies { compile fileTree(dir: 'libs', include: ['*.jar']) compile 'com.android.support:appcompat-v7:23.2.0' c
小程序-小程序图表库（F2图表库）
小程序图表库 f2 F2 的支付宝小程序版本（待支付宝支持自定义组件后，会基于此库提供一个支付宝小程序的组件）。 github：https://github.com/antvis/my-f2 mini-chart 支付宝小程序图表库mini-chart 和上面小程序版本不同之处在于，my-f2是用f2的方式较为自定义底层地绘制，而mini-chart是封装成了自定义组件的形式，在使用上要简单些。 github：https://github.com/ant-mini-program/mini-char
OpenHarmony开发者社区

496

社区成员

1,829

社区内容

发帖
与我相关
我的任务
社区描述
OpenHarmony开发者社区
其他 企业社区
社区管理员
  • csdnsqst0025
  • shewaliujingli
  • BaoWei
加入社区
  • 近7日
  • 近30日
  • 至今

加载中

查看更多榜单

试试用AI创作助手写篇文章吧

+ 用AI写文章
