EE308_LAB1-2

ways of solving a problem

First of all, the general reading topic is divided into two parts. The first part is to identify the statistical keywords, and the second part is to identify the statistical code structure.
The first part is the first part. For the extraction of code keywords and statistics I think usinghash tables will be very easy to complete this part of the work.The specific idea is to retrieve the keywords in the hash table, and then add the counter if present. 1. Add a new key value pair if not present.
The second part is the structure identification specifically divided into three structures of the identification.
However, the identification idea of several structures is roughly the same.
Ststack the keywords and "{" and "}". Clear when the "}" heap goes into the stack, clear to the previous "{", and heap the cleared portion into the buffer.
The structure is analyzed into multi-level conditions, and the subsequent conditions will start to verify when the preconditions are completed.

1.switch case

Here the switch case structure is set to a two-level condition, with a precondition of switch stacking into the stack..
Turn on the switch when the precondition is reached, and count when the case enters the stack. And turn off the switch when the switch enters the buffer.
prefix condition : switch
decide condition : case

2.if else

The structure takes if as a precondition and counts and switches off when the else enters the stack.
prefix condition : if
decide condition : else

3.if else if else

This part will switch to the second structure, which I analyze as a three-level condition.
first condition ： if else
second condition ： else if
third condition ：else
The first condition will use the judgment of the ifelse structure. Switch 1 will open as the counter of the ifelse increases.
The second switch tube will be open in the else if {} in the buffer.
The decision criteria will verify that the next entry keyword is else when the second switch is on.

The above is through the analysis after reading the problem.

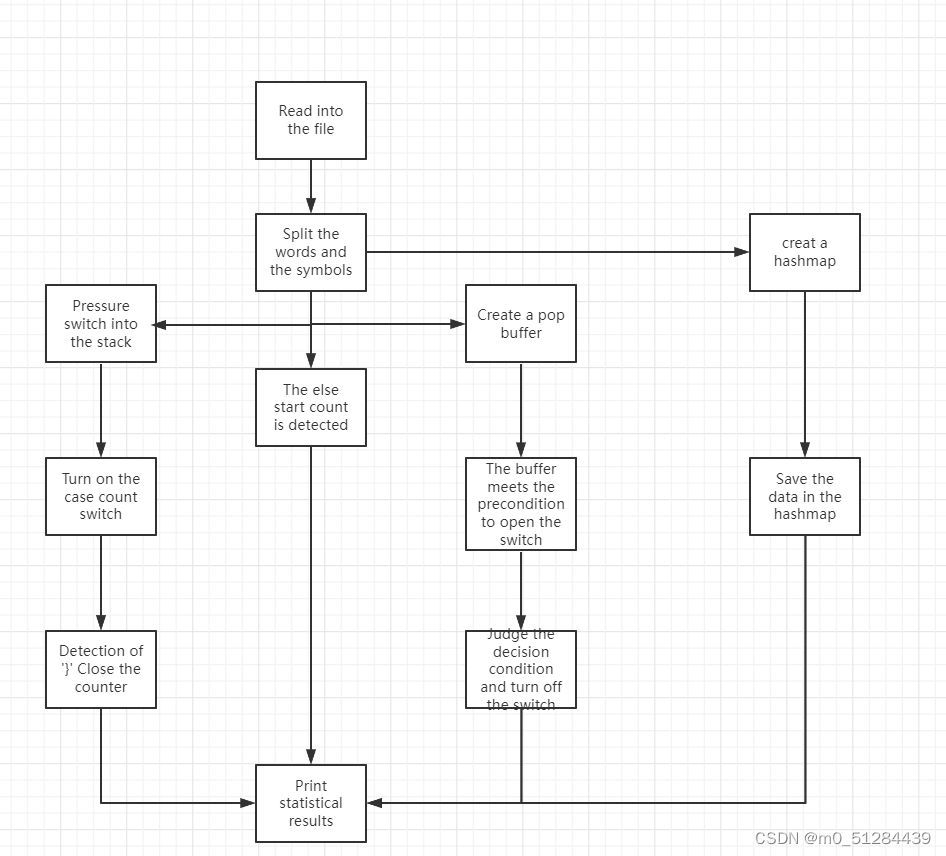

the flow chart of the key functions

Code descriptionHashMap<String, Integer> map = new HashMap<String,Integer>();

    for (String li : lists) {
        if(li.length()<=1) continue;
        if(!map.containsKey(li)) {//Detects if it is already in the table
            map.put(li, 1);
        }else {
            Integer count = map.get(li);
            map.put(li, ++count);
        }
    }



//type1 switch case
                //Open the switch after switch enters the stack
                if(i==0) {
                  sw1=true;
                  sw++;
                }
                if(sw1==true&&i==1) ca++;//Start the case counting after the switch is on
                //Turn off the switch after "}" enters the stack and return to the zero counter
                if(sw1==true&&i==5) {
                    System.out.println("number of switch"+sw+" case = "+ca);
                    ca=0;
                    sw1=false;
                }



//type2 if else
                //The if else only has an else decision condition, so it does not set up a switch
                if(i==3) type2++;


//type3 if, else if, else
                //Determine the precondition and complete the precondition and close the switch
                if(sw2==true) {
                    if(i==3) type3++;
                    sw2=false;
                }


if(li.equals(table[5])) {
            //type3 if, else if, else
             List<String> buffer = new ArrayList<String>();//Create the buffer judgment preconditions
            sw2=true;
            //Eliminate after the "}" goes into the stack
            while(true) {
                if(!st.empty()&&!st.peek().equals(table[4])) {
                    buffer.add(st.peek());
                    st.pop();
                }else break;
            }
            if(!st.empty()) {
                buffer.add(st.peek());
                st.pop();
            }
            while(true) {
                if(!st.empty()&&!st.peek().equals(table[4])) {
                    buffer.add(st.peek());
                    st.pop();
                }else break;
            }
            //Judge the preconditions, the condition of the switch on
            if(buffer.size()==4) {
            for(int i=0;i<buffer.size();i++) {
                if(!buffer.get(i).equals(type3buffer[i])) {
                    sw2=false;
                    break;
                }
            }
            }else sw2=false;
        }

     }

psp

psp	time
Planning	10
Estimate	60
Development	50
Analysis	30
Design Spec	20
Design Review	20
Coding Standard	10
Design	20
Coding	20
Code Review	40
Test	10
Reporting	50
Test Report	30
Size Measurement	10
Postmortem & Process Improvement Plan	10
	390

The Link Your Class
The Link of Requirement of This Assignment	https://github.com/if-ish/EE308FZ-Lab1-2-Individual-programing-work
The Aim of This Assignment	Keyword statistics and structure identification
MU STU ID and FZU STU ID	<20124635_832002210>
