EE308Lab1-2

[un火]

The Link Your Class	https://bbs.csdn.net/forums/MUEE308FZU202201
The Link of Requirement of This Assignment	https://bbs.csdn.net/topics/608734907
The Aim of This Assignment	Slove the problem of Lab1-2
MU STU ID and FZU STU ID	20123311 832002216

github address
https://github.com/HaooLi/EE308-LAB1-2

1.Give the PSP form for this work.

Framework activities:	what I did	ESTIMATE TIME（MINUTE)
Plan	Understand the meaning of the problem, think of a rough solution process	40
design	Program the idea and write a rough outline	150
Code Review	Check for compliance with programming specifications and check for syntax errors	25
Test	Import different data for detection	20
Postmortem & Process Improvement Plan	Do an overall review to make sure the program works	10

2.Description of problem-solving ideas. This is the process of how to think and how to find information after getting the title at the beginning.

1. Find the method to read the c file
2. Put all keyword lists into string groups
3. Find out the key words one by one and compare them

3.Design and implementation process. The design includes how the code is organized and the flow chart of the key functions.

1. Read the file and combine it as a string
2. Put the keyword table into the array
3. Match all keywords according to the regular expression and count them
4. The cases of Switch, case, if-else, and if-elseif-else are solved respectively

4.Code description. Show the key code of the project and explain the idea.

• level 1:

String keywords="abstract、assert、boolean、break、byte、case、"
            + "catch、char、class、continue、default、do、double、else、"
            + "enum、extends、final、finally、float、for、if、implements、"
            + "import、int、interface、instanceof、long、native、new、"
            + "package、private、protected、public、return、short、static、"
            + "strictfp、super、switch、synchronized、this、throw、throws、"
            + "transient、try、void、volatile、while";
String []keyArr=keywords.split("、");

  public static void findKey(String[] keyArr,String c){
      int key_num = 0;
      for(int i = 0; i<keyArr.length; i++) {
          Pattern p=Pattern.compile("[^a-z]"+keyArr[i]+"[^a-z]");
          Matcher matcher=p.matcher(c);
          while(matcher.find()) {
              key_num++;
          }
      }
      System.out.println("key num is "+key_num);
  }

level 2: find the switch and output the number of "case" corresponding to each group

public static void findSwitch(String c){
        //check switch
        Pattern p=Pattern.compile("switch");
        Matcher matcher=p.matcher(c);
        while(matcher.find()) {
            switch_num++;
        }

        //find the number of case
        p=Pattern.compile("switch.*?}");
        matcher=p.matcher(c);
        List case_num=new ArrayList();
        while(matcher.find()) {
            String tempText=matcher.toString();//get one switch section
            Pattern temp_p=Pattern.compile("case");
            Matcher temp_matcher=temp_p.matcher(tempText);
            int temp_case_num=0;
            while(temp_matcher.find()) {
                temp_case_num++;
            }
            case_num.add(temp_case_num);
        }
        System.out.println("switch num is "+switch_num);
        System.out.print("case num are ");
        for(int i=0;i<case_num.size();i++) {
            System.out.print(case_num.get(i)+" ");
        }
        System.out.println();
    }

level 3 and 4: find else if and if-else if -else

public static void processElse(String c) {
        Pattern p = Pattern.compile("else\\s*if|else|if");
        Matcher matcher=p.matcher(c);
        Stack<String> s = new Stack();
        while(matcher.find()) {
            String temp=c.substring(matcher.start(),matcher.end());
            s.push(temp);
        }
        Stack<String> res = new Stack<String>();
        boolean flag = false;
        while (!s.isEmpty()) {
            String temp = s.pop();
            if (temp.equals("else")) {
                res.push(temp);
            } else if (temp.equals("else if")) {
                res.push(temp);

            } else {

                while (res.peek().equals("else if")) {
                    res.pop();
                    // make a little notation that its from else if, not else
                    flag = true;
                }
                if (res.peek().equals("else")) {
                    res.pop();
                }
                //if it's elseif ,add to ifElseIfNum
                if (flag) {
                    ifElseIfNum++;
                    flag = false;
                } else {
                    ifElseNum++;
                }
            }
        }
        System.out.println("if-else num: " + ifElseNum);
        System.out.println("if-elseif-else: " + ifElseIfNum);
    }

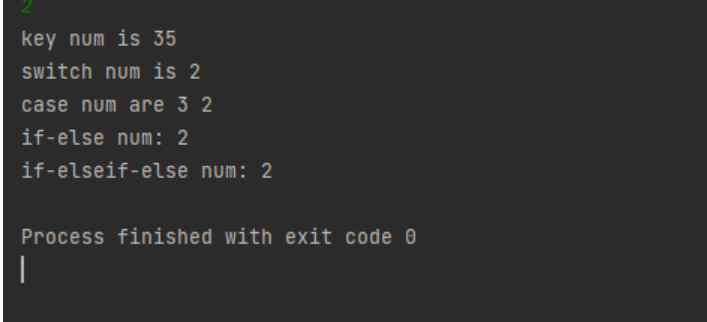

5.Unit test screenshots and description.

6.Unit test coverage optimization and performance testing, performance optimization screenshots and descriptions.

In the process of adding all the keywords and counting the numbers, I chose to use RE and stack for the statistics. This greatly reduces the amount of code and is easy to understand.

7.Summarize this assignment.

Through this experiment, I understand that if a project wants to be completed quickly and better, first of all we need to make a preliminary plan, and we need to have a full understanding and analysis of the subject. Draw the flowchart of the program to facilitate us to complete the implementation of the code.
