EE308 Lab 1-2

[Double__Q]

1. PSP form

Personal Software Process Stages	Estimated Time/minutes	Completed Time/minutes
Analysis and Planing	20	25
Program Development	35	35
Program Review	10	15
Performance Test	10	10
Blog Writing	30	35
Github Preparation	15	20
Total	120	140

2. Idea to solve the problems

After downloading the problems, I'm trying to understanding what's the main task. It gives me a finished code and requires me to count keyword and analyse the code's structure. This is a simple but cumbersome programming tasks. It needs patience to deal with all the detail point. The toughest part in this task is to spilt the characters in the paragraph.

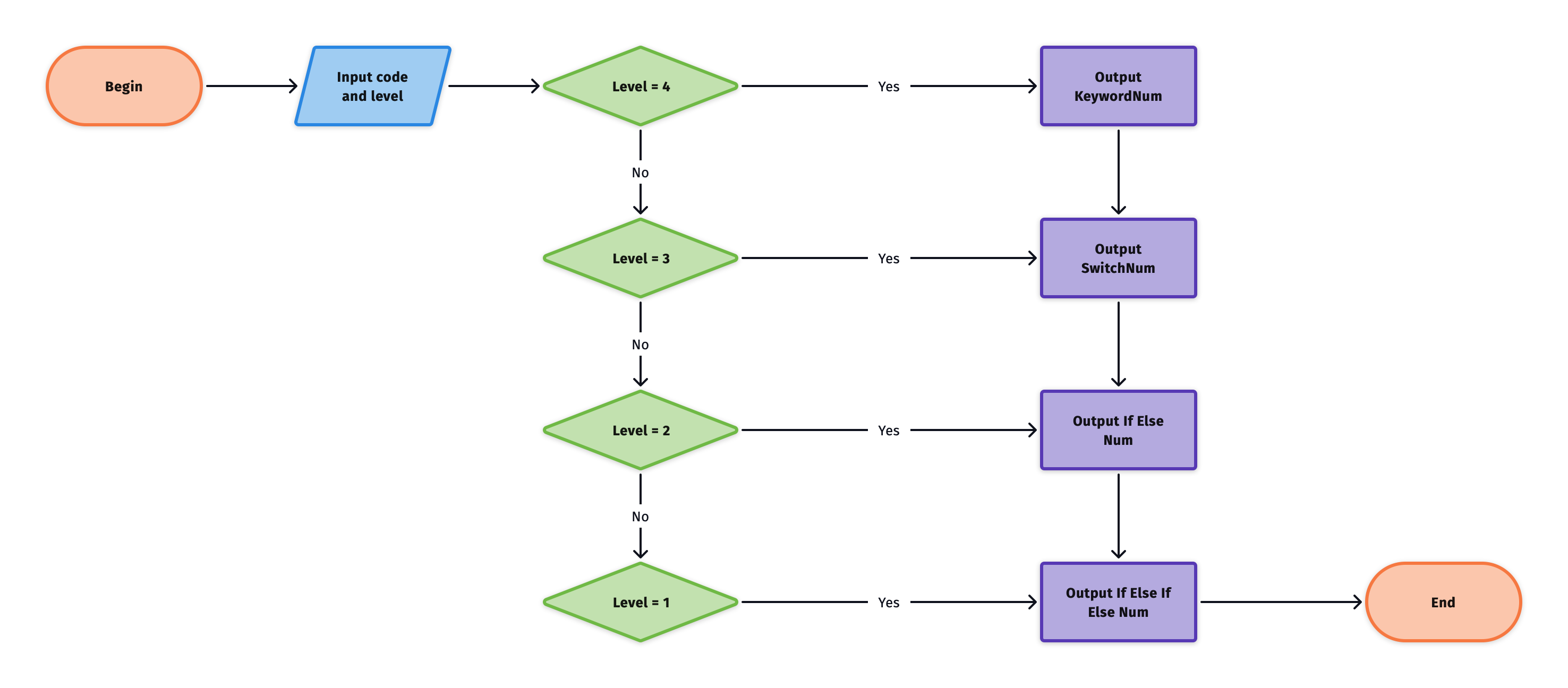

3. Pseudo code and flow chart

getKeywordNum()
    cnt ← 0
    for i in code
        if substr(code, i, length(keyword)) = keyword then
            cnt ← cnt + 1

getSwitchNum()
    cntSwitch ← 0
    cntCase ← 0
    for i in code
        if substr(code, i, length('switch')) = switch then
            getCaseNum
    return cntSwitch, cntCase

getIfElseNum()
    cntIfElse ← 0
    cntIfElseIfElse ← 0
    for i in code
        if substr(code, i, length('if')) = if then
            if else_if next to if then
                cntIfElse ← cntIfElse + 1
            else then
                cntIfElseIfElse ← CntIfElseIfElse + 1
    return cntIfElse, cntIfElseIfElse

main()
    input code, level
    if level >= 1 then getKeywordNum()
    if level >= 2 then getSwitchNum()
    if level >= 3 then getIfElseNum() and print cntIfElse
    if level >= 4 then getIfElseNum and print cntIfElseIfElse

4. Code description

Get keyword's number

string keyword[] = {"asm", "do","if","return","typedef","autohttps://img-community.csdnimg.cn/images/72dec4246a964445bfd2b3e1b9cefd23.png "#left")
","double","inline","short","typeid","bool","dynamic_cast","int","signed","typename","break","else","long","sizeof","union","case","enum","mutable","static","unsigned","catch","explicit","namespace","static_cast","using","char","export","new","struct","virtual","class","extern","operator","switch","void","const","false","private","template","volatile","const_cast","float","protected","this","wchar_t","continue","for","public","throw","while","default","friend","register","true", "delete","goto","reinterpret_cast","try"};

int cnt = 0;
    for (int i = 0; i < 63; i++) {
        int len = keyword[i].length();
        for (int j = 0; j < input.length(); j++) {
            if (input.substr(j, len) == keyword[i]) {
                cnt++;
                if (input.substr(j, len) == "do") {
                    if (input.substr(j, 6) == "double") {
                        cnt--;
                    }
                }

            }
        }
    }

Get switch number

void get_switch(int& st, int id) {
    sw.emplace_back(0);
    int cnt = 0;
    for (int i = st; i < input.length(); i++) {
        if (input[i] == '{') {
            cnt++;
        } else if (input[i] == '}') {
            cnt--;
            if (!cnt) {
                st = i;
                return;
            }
        }

        if (input.substr(i, 4) == "case") {
            sw[id]++;
        }
    }
}

Get if else number

void get_if(int& st) {
    bool is_else_if = 0;
    bool flag = 0;
    int cnt = 0;
    for (int i = st + 2; i < input.length(); i++) {
        if (flag == 1) {
            if (input[i] == '{') {
                cnt++;
            }
            if (input[i] == '}') {
                cnt--;
                if (!cnt) {
                    st = i + 1;
                    return;
                }
            }
        }

        if (input.substr(i, 2) == "if") {
            get_if(i);
        }
        if (input.substr(i, 7) == "else if") {
            if (!is_else_if) {
                is_else_if = 1;
                cnt_else_if++;
            }
            i += 7;
        } else if (input.substr(i, 4) == "else") {
            if (!is_else_if) {
                cnt_else++;
            }
            flag = 1;
            i += 4;
        }
    }
}

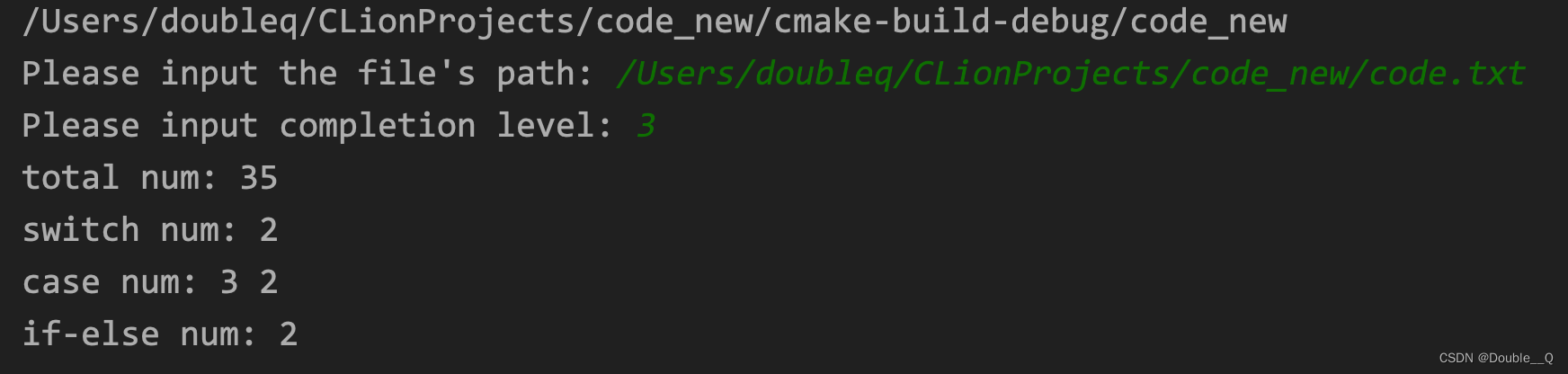

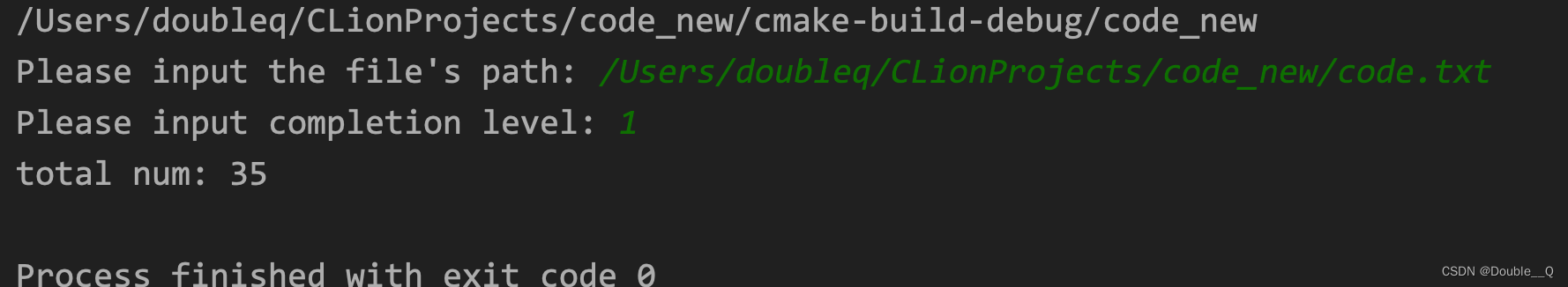

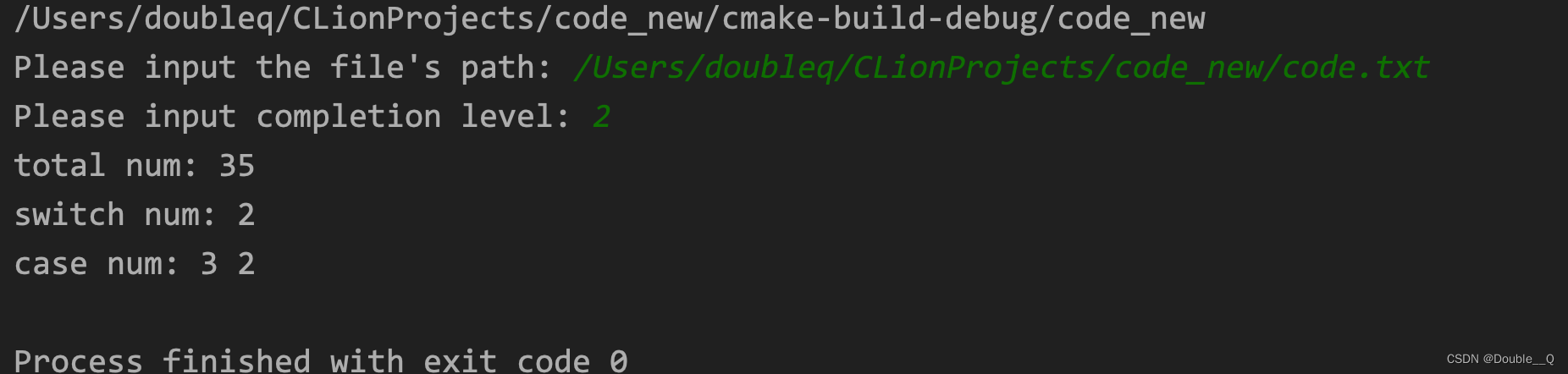

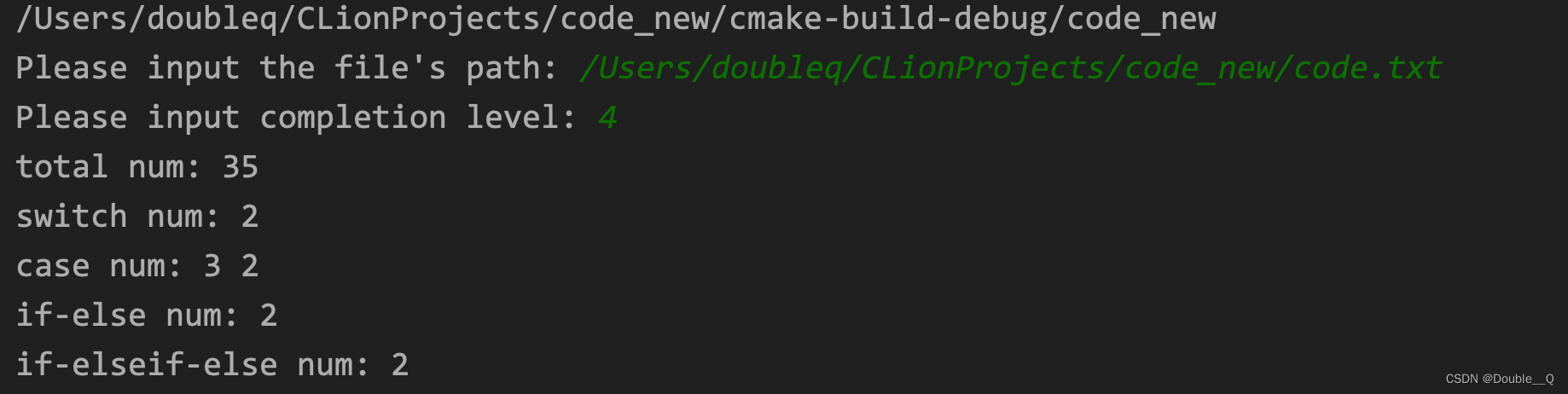

5. Unit test

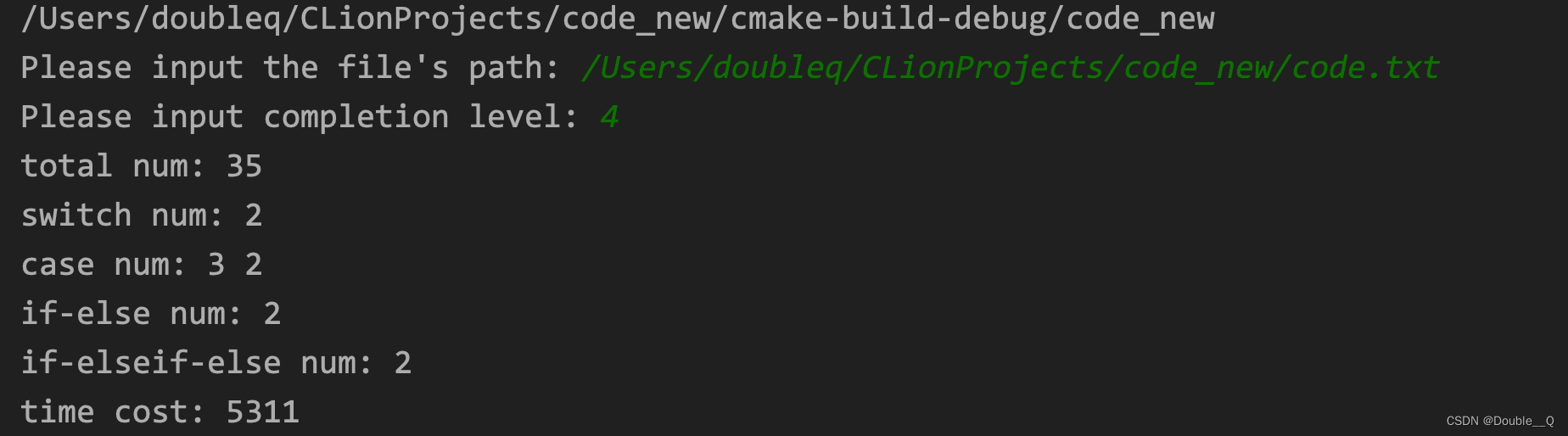

6. Perfomance analyse

We can take advantage of clock() function to analyze the running time.
We can just add 3 lines in the code.

int main() {
    string path;
    cout << "Please input the file's path: ";
    cin >> path;
    cout << "Please input completion level: ";
    int level;
    cin >> level;

    double st = clock();
    ...
    double end = clock();
    cout << "time cost: " << end - st << endl;
    return 0;
}

7. Summarize

In this lab, I've learnt how to commit files and push that to GitHub.
Here is my Github link:https://github.com/DoubleQ666/EE308_Lab1
