观海微GH8555BL+Boe6.98(GV070HDU-N1)搭配原理及代码

Lornell 2022-11-23 15:25:26

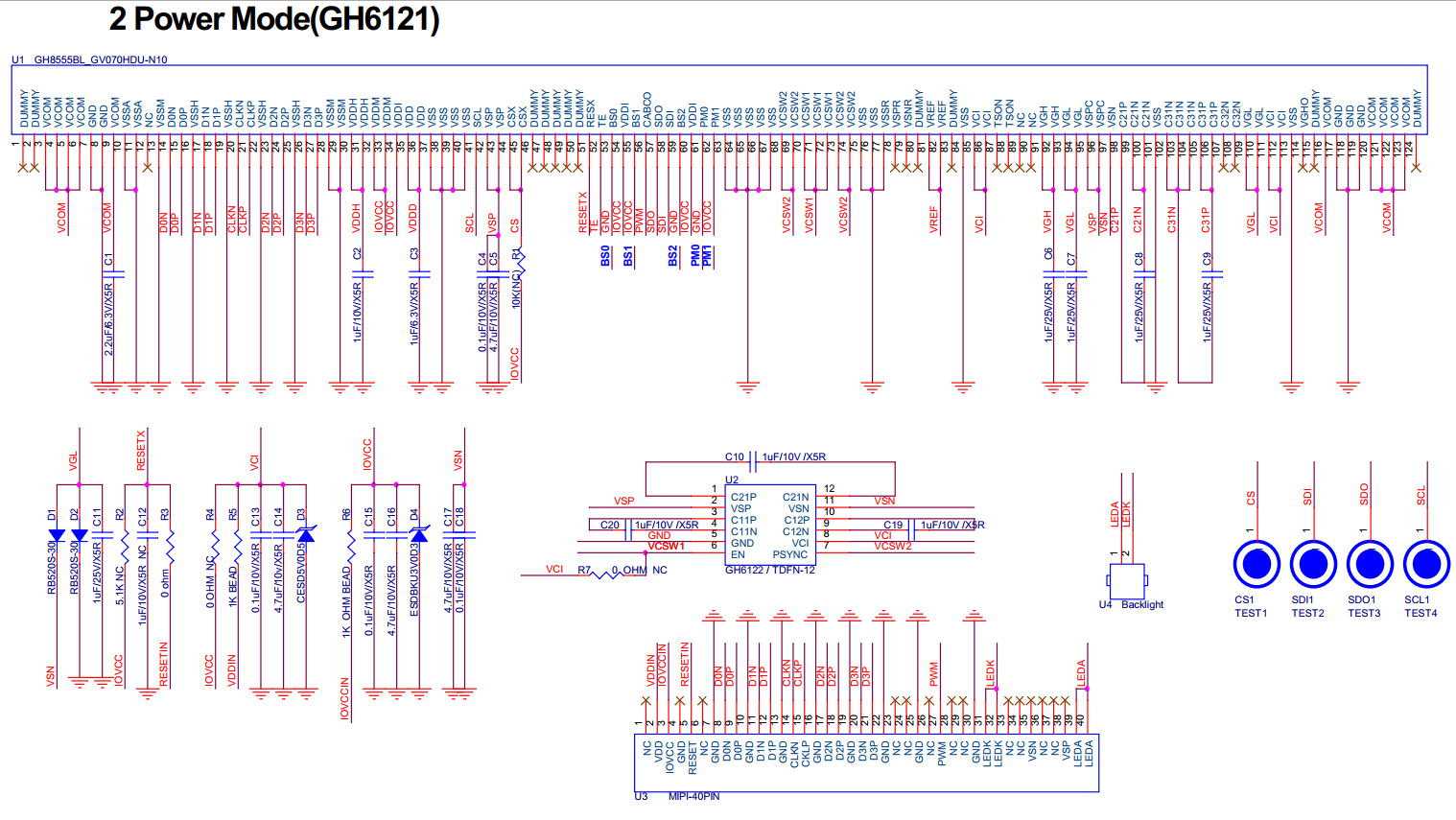

观海微GH8555BL+Boe6.98(GV070HDU-N1)搭配原理请参考如下AN：

观海微GH8555BL+Boe6.98(GV070HDU-N1)搭配代码参考如下：

   Generic_Short_Write_1P(0xee,0x50);       // ENTER PAGE1
   Generic_Long_Write_2P(0xea,0x85,0x55); // write enable
   Generic_Short_Write_1P(0x30,0x00); // bist=1
   Generic_Short_Write_1P(0x31,0x00); // bist=1
    Generic_Long_Write_2P(0x90,0x50,0x05); // ss_tp location
   Generic_Short_Write_1P(0x24,0x20); // mirror te
   Generic_Short_Write_1P(0x99,0x00); // ss_tp de ndg
   Generic_Short_Write_1P(0x79,0x08); // zigzag
   Generic_Short_Write_1P(0x95,0x74); // column invertion
    Generic_Short_Write_1P(0x7a,0x20); //
   Generic_Short_Write_1P(0x93,0x67);
   Generic_Short_Write_1P(0x97,0x08);
   Generic_Short_Write_1P(0x7d,0x08);
   Generic_Short_Write_1P(0x56,0x83);

   //enter page2
   Generic_Short_Write_1P(0xee,0x60); // enter page2
   Generic_Short_Write_1P(0x21,0x01); // OSC
   Generic_Short_Write_1P(0x27,0x22);   //vddd
   Generic_Short_Write_1P(0x29,0x8f);//iset
   Generic_Short_Write_1P(0x2a,0x26);//s-trim
   Generic_Short_Write_1P(0x30,0x01); // 4 LANE
   Generic_Short_Write_1P(0x34,0x2f);   //dsi_ihrs<1:0>
   Generic_Short_Write_1P(0x3c,0x40);   //VCOM SET
   Generic_Short_Write_1P(0x3b,0x00);
   Generic_Short_Write_1P(0x3d,0x11);   //vgl
   Generic_Short_Write_1P(0x3e,0x93); //vgh
   Generic_Short_Write_1P(0x42,0x79);   //vspr
   Generic_Short_Write_1P(0x43,0x79);   //vsnr
   Generic_Short_Write_1P(0x86,0x20); //
   Generic_Short_Write_1P(0x89,0x00); // blkh,1
   Generic_Short_Write_1P(0x8b,0x90); // blkh,1
   Generic_Short_Write_1P(0x8d,0x45); //
   //Generic_Short_Write_1P(0x90,0x01); // pm10
   Generic_Short_Write_1P(0x91,0x11); // frq_vgh_clk frq_vgl_clk/
   Generic_Short_Write_1P(0x92,0x11);   //   frq_cp1_clk[2:0]
   Generic_Short_Write_1P(0x93,0x9f);   // fp7721 power

Generic_Short_Write_1P(0x9a,0x05); // s_out=720
Generic_Short_Write_1P(0x9c,0x80); // vlength=1280

   // gamma 2.2 2020/09/14
   /*
    Generic_Long_Write_5P(0x5a,0x12,0x30,0x3e,0x45,0x3f); //gamma n 0.4.8.12.20
Generic_Long_Write_5P(0x47,0x12,0x30,0x3e,0x45,0x3f); ///gamma P0.4.8.12.20

Generic_Long_Write_5P(0x4c,0x45,0x3e,0x49,0x24,0x20); //28.44.64.96.128.
Generic_Long_Write_5P(0x5f,0x45,0x3e,0x49,0x24,0x20); //28.44.64.96.128.

Generic_Long_Write_5P(0x64,0x1f,0x03,0x17,0x11,0x23);//159.191.211.227.235
Generic_Long_Write_5P(0x51,0x1f,0x03,0x17,0x11,0x23); //159.191.211.227.235

   Generic_Long_Write_4P(0x69,0x26,0x36,0x45,0x7f); //243.247.251.255
Generic_Long_Write_4P(0x56,0x26,0x36,0x45,0x7f); //243.247.251.255
   */
   // gamma 2.5 2020/09/28
    Generic_Long_Write_5P(0x5a,0x12,0x30,0x3e,0x43,0x3f); //gamma n 0.4.8.12.20
Generic_Long_Write_5P(0x47,0x12,0x30,0x3e,0x43,0x3f); ///gamma P0.4.8.12.20

Generic_Long_Write_5P(0x4c,0x45,0x37,0x46,0x24,0x22); //28.44.64.96.128.
Generic_Long_Write_5P(0x5f,0x45,0x37,0x46,0x24,0x22); //28.44.64.96.128.

Generic_Long_Write_5P(0x64,0x21,0x06,0x1a,0x14,0x22);//159.191.211.227.235
Generic_Long_Write_5P(0x51,0x21,0x06,0x1a,0x14,0x22); //159.191.211.227.235

Generic_Long_Write_4P(0x69,0x27,0x33,0x45,0x7f); //243.247.251.255
Generic_Long_Write_4P(0x56,0x27,0x33,0x45,0x7f); //243.247.251.255

   Generic_Short_Write_1P(0xee,0x70);
// STV0
   Generic_Long_Write_5P(0x00,0x07,0x0a,0x00,0x01,0x09); //
   Generic_Long_Write_5P(0x05,0x0c,0x55,0x01,0x00,0x00); //
    Generic_Long_Write_2P(0x0C,0x05,0x5d);
// CYC0
   Generic_Long_Write_5P(0x10,0x08,0x09,0x00,0x00,0x09);
    Generic_Long_Write_5P(0x15,0x0c,0x07,0x0d,0x08,0x00);
   Generic_Long_Write_2P(0x29,0x05,0x5d);

    //gip0-gip21=gipL1-gipL22 (UPscan)
   Generic_Long_Write_5P(0x80,0x12,0x12,0x10,0x10,0x16);
    Generic_Long_Write_5P(0x85,0x16,0x14,0x14,0x00,0x3c);
   Generic_Long_Write_5P(0x8a,0x3c,0x3c,0x3c,0x3c,0x3c);
   Generic_Long_Write_5P(0x8f,0x02,0x3c,0x3c,0x3C,0x3C);
   Generic_Long_Write_2P(0x94,0x3C,0x3c);

   //gip22-gip43=gipR1-gipR22 (UPscan)
   Generic_Long_Write_5P(0x60,0x13,0x13,0x11,0x11,0x17);
    Generic_Long_Write_5P(0x65,0x17,0x15,0x15,0x01,0x3c);
   Generic_Long_Write_5P(0x6a,0x3c,0x3c,0x3c,0x3c,0x3c);
   Generic_Long_Write_5P(0x6f,0x04,0x3c,0x3c,0x3C,0x3C);
   Generic_Long_Write_2P(0x74,0x3C,0x3c);

/*
   //gip0-gip21=gipL1-gipL22 (downscan)
   Generic_Long_Write_5P(0x60,0x15,0x15,0x17,0x17,0x11);
    Generic_Long_Write_5P(0x65,0x11,0x13,0x13,0x03,0x3c);
   Generic_Long_Write_5P(0x6a,0x3c,0x3c,0x3c,0x3c,0x3c);
   Generic_Long_Write_5P(0x6f,0x01,0x3c,0x3c,0x3C,0x3C);
   Generic_Long_Write_2P(0x74,0x3C,0x3c);

   //gip22-gip43=gipR1-gipR22 (downscan)
   Generic_Long_Write_5P(0x80,0x14,0x14,0x16,0x16,0x10);
    Generic_Long_Write_5P(0x85,0x10,0x12,0x12,0x02,0x3c);
   Generic_Long_Write_5P(0x8a,0x3c,0x3c,0x3c,0x3c,0x3c);
   Generic_Long_Write_5P(0x8f,0x00,0x3c,0x3c,0x3C,0x3C);
   Generic_Long_Write_2P(0x94,0x3C,0x3c);

   Generic_Long_Write_2P(0xea,0x00,0x00);
   Generic_Short_Write_1P(0xee,0x00);

   DCS_Short_Write_NP(0x11); // sleep out
   Delay (120);
   DCS_Short_Write_NP(0x29); // display on
   Delay (10);
