kubernetes 部署 Loki

[Jay_Fred]

一、架构组件

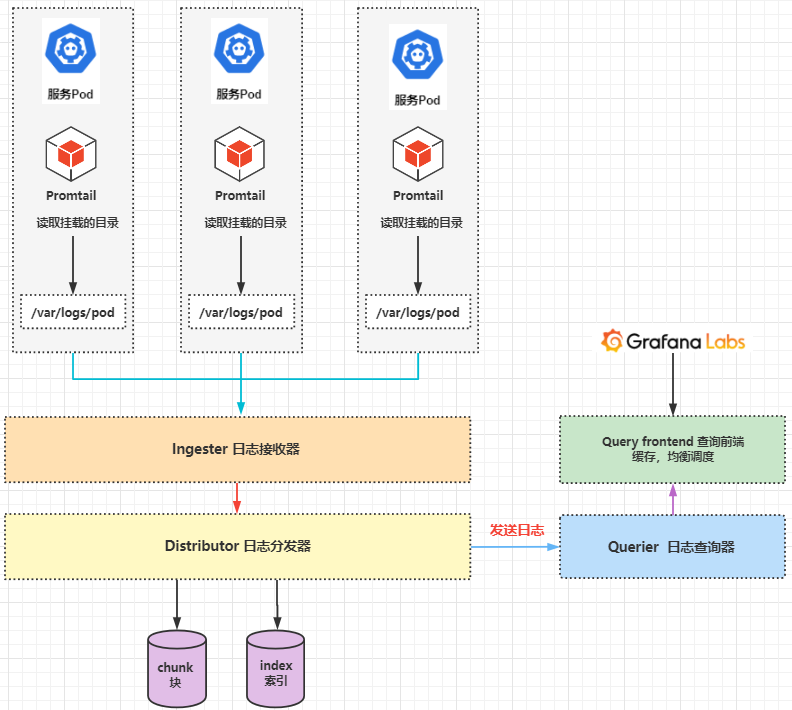

Loki 是受 Prometheus 启发的水平可扩展、高可用、多租户日志聚合系统。非常适合采集 Kubernetes Pod 的日志，关键 Loki 还易于操作且更加轻量级（相比 ELK/EFK/EFLK ）。     • Loki：相当于 EFK 中的 ElasticSearch ，用于存储日志和处理查询。     • Promtail：相当于 EFK 中的 Filebeat/Fluentd ，用于采集日志并将其发送给 Loki 。     • Distributor 分发器：日志数据传输的“第一站”，Distributor 分发器接收到日志数据后，根据元数据和 hash 算法，将日志分批并行地发送到多个 Ingester 接收器上     • Ingester 接收器：接收器是一个有状态的组件，在日志进入时对其进行 gzip 压缩操作，并负责构建和刷新 chunck 块，当 chunk 块达到一定的数量或者时间后，就会刷新 chunk 块和对应的 Index 索引存储到数据库中     • Querier 查询器：给定一个时间范围和标签选择器，Querier 查询器可以从数据库中查看 Index 索引以确定哪些 chunck 块匹配，并通过 greps 将结果显示出来，它还会直接从 Ingester 接收器获取尚未刷新的最新数据     • Query frontend 查询前端：查询前端是一个可选的组件，运行在 Querier 查询器之前，起到缓存，均衡调度的功能，用于加速日志查询



二、部署

1、创建 loki-rbac

# vim loki-rbac.yaml             apiVersion: v1             kind: ServiceAccount             metadata:               name: loki               namespace: monitor             ---             apiVersion: rbac.authorization.k8s.io/v1             kind: Role             metadata:               name: loki               namespace: monitor             rules:             - apiGroups:               - extensions               resourceNames:               - loki               resources:               - podsecuritypolicies               verbs:               - use             ---             apiVersion: rbac.authorization.k8s.io/v1             kind: RoleBinding             metadata:               name: loki               namespace: monitor             roleRef:               apiGroup: rbac.authorization.k8s.io               kind: Role               name: loki             subjects:             - kind: ServiceAccount               name: loki

2、创建 loki-configmap.yaml

# vim loki-configmap.yaml             apiVersion: v1             kind: ConfigMap             metadata:               name: loki               namespace: monitor               labels:                 app: loki             data:               loki.yaml: |                 auth_enabled: false                 ingester:                   chunk_idle_period: 3m         # 如果块没有达到最大的块大小，那么在刷新之前，块应该在内存中不更新多长时间                   chunk_block_size: 262144                   chunk_retain_period: 1m       # 块刷新后应该在内存中保留多长时间                   max_transfer_retries: 0                   lifecycler:                   # 配置ingester的生命周期，以及在哪里注册以进行发现                     ring:                       kvstore:                         store: inmemory         # 用于ring的后端存储，支持consul、etcd、inmemory                       replication_factor: 1     # 写入和读取的ingesters数量，至少为1（为了冗余和弹性，默认情况下为3）                 limits_config:                   retention_period: 240h        # 多久过期                   enforce_metric_name: false                   reject_old_samples: true      # 旧日志是否会被拒绝                   reject_old_samples_max_age: 168h    # 拒绝旧日志的最大时限                 schema_config:                        # 配置从特定时间段开始应该使用哪些索引模式                   configs:                   - from: 2020-10-24              # 创建索引的日期。如果这是唯一的schema_config，则使用过去的日期，否则使用希望切换模式时的日期                     store: boltdb-shipper         # 索引使用哪个存储，如：cassandra, bigtable, dynamodb，或boltdb                     object_store: filesystem      # 用于块的存储，如：gcs, s3， inmemory, filesystem, cassandra，如果省略，默认值与store相同                     schema: v11                     index:                # 配置如何更新和存储索引                       prefix: index_      # 所有周期表的前缀                       period: 24h         # 每张表的时间范围6天                 server:                   http_listen_port: 3100                 storage_config:           # 为索引和块配置一个或多个存储                   boltdb_shipper:                     active_index_directory: /data/loki/boltdb-shipper-active                     cache_location: /data/loki/boltdb-shipper-cache                     cache_ttl: 24h                     shared_store: filesystem                   filesystem:                     directory: /data/loki/chunks                 chunk_store_config:               # 配置如何缓存块，以及在将它们保存到存储之前等待多长时间                   max_look_back_period: 0s        # 限制查询数据的时间，默认是禁用的，这个值应该小于或等于table_manager.retention_period中的值                 table_manager:                   retention_deletes_enabled: true   # 日志保留周期开关，用于表保留删除                   retention_period: 48h             # 日志保留周期，保留期必须是索引/块的倍数                 compactor:                   working_directory: /data/loki/boltdb-shipper-compactor                   shared_store: filesystem                   compaction_interval: 10m                 # 压缩间隔                   retention_enabled: true                  # 持久化开启                   retention_delete_delay: 5m               # 过期后多久删除                   retention_delete_worker_count: 150       # 过期删除协程数目                 ruler:                   alertmanager_refresh_interval: 1m                   disable_rule_group_label: false                   evaluation_interval: 1m0s                   for_grace_period: 20m0s                   for_outage_tolerance: 1h0s                   notification_queue_capacity: 10000                   notification_timeout: 4s                   poll_interval: 10m0s                   query_stats_enabled: true                   remote_write:                     config_refresh_period: 10s                     enabled: false                   resend_delay: 2m0s                   search_pending_for: 5m0s                   sharding_strategy: default                   storage:                     type: local                     local:                       directory: /data/rules               # ruler 告警文件目录                   rule_path: /data/rules-temp              # ruler 临时目录                   alertmanager_url: http://alertmanager:9093                   enable_alertmanager_v2: true                   enable_api: true                   enable_sharding: true                   wal_cleaner:                     period:  240h                     min_age: 12h0m0s                   wal:                     dir: /data/loki/ruler_wal                     max_age: 4h0m0s                     min_age: 5m0s                     truncate_frequency: 1h0m0s                        ring:                     kvstore:                       store: inmemory                   flush_period: 1m               ruler.yaml: |                 groups:                   - name: test-prod-log                     rules:                       - alert: export-server-Error-Log                         expr: |                             sum(rate({job="kube-system/kube-apiserver",namespace="kube-system",pod="kube-apiserver-master"}|~ "passthrough"[5m])) > 0                         for: 10m                         labels:                             severity: log                         annotations:                             description: "Error log \r\n  >Message: {{ $labels.message }} \r\n >App: {{ $labels.app }} \r\n >Job: {{ $labels.job }}"

3、创建loki

# vim loki.yaml             apiVersion: v1             kind: Service             metadata:               name: loki               namespace: monitor               labels:                 app: loki             spec:               type: ClusterIP               ports:                 - port: 3100                   protocol: TCP                   name: http-metrics                   targetPort: http-metrics               selector:                 app: loki             ---             apiVersion: v1             kind: Service             metadata:               name: loki-outer               namespace: monitor               labels:                 app: loki             spec:               type: NodePort               ports:                 - port: 3100                   protocol: TCP                   name: http-metrics                   targetPort: http-metrics                   nodePort: 32537               selector:                 app: loki             ---             apiVersion: apps/v1             kind: StatefulSet             metadata:               name: loki               namespace: monitor               labels:                 app: loki             spec:               podManagementPolicy: OrderedReady               replicas: 1               selector:                 matchLabels:                   app: loki               serviceName: loki               updateStrategy:                 type: RollingUpdate               template:                 metadata:                   labels:                     app: loki                 spec:                   serviceAccountName: loki                   initContainers: []                   containers:                     - name: loki                       image: grafana/loki:2.3.0                       imagePullPolicy: IfNotPresent                       args:                         - -config.file=/etc/loki/loki.yaml                       volumeMounts:                         - name: loki-config                           mountPath: /etc/loki                         - name: loki-ruler                           mountPath: /data/rules/rule-temp                         - name: storage                           mountPath: /data                       ports:                         - name: http-metrics                           containerPort: 3100                           protocol: TCP                       livenessProbe:                         httpGet:                           path: /ready                           port: http-metrics                           scheme: HTTP                         initialDelaySeconds: 45                         timeoutSeconds: 1                         periodSeconds: 10                         successThreshold: 1                         failureThreshold: 3                       readinessProbe:                         httpGet:                           path: /ready                           port: http-metrics                           scheme: HTTP                         initialDelaySeconds: 45                         timeoutSeconds: 1                         periodSeconds: 10                         successThreshold: 1                         failureThreshold: 3                       securityContext:                         readOnlyRootFilesystem: true                   terminationGracePeriodSeconds: 4800                   volumes:                     - name: loki-ruler                       configMap:                         defaultMode: 420                         name: loki                         items:                           - key: ruler.yaml                             path: ruler.yaml                     - name: loki-config                       configMap:                         defaultMode: 420                         name: loki                         items:                           - key: loki.yaml                             path: loki.yaml               volumeClaimTemplates:                 - metadata:                     name: storage                   spec:                     storageClassName: managed-nfs-storage                     accessModes:                       - ReadWriteMany                     resources:                       requests:                         storage: 1Gi

4、创建promtail-rbac.yaml

# vim promtail-rbac.yaml             apiVersion: v1             kind: ServiceAccount             metadata:               name: loki-promtail               labels:                 app: promtail               namespace: monitor             ---             kind: ClusterRole             apiVersion: rbac.authorization.k8s.io/v1             metadata:               labels:                 app: promtail               name: promtail-clusterrole               namespace: monitor             rules:             - apiGroups: [""]               resources:               - nodes               - nodes/proxy               - services               - endpoints               - pods               verbs: ["get", "watch", "list"]             ---             kind: ClusterRoleBinding             apiVersion: rbac.authorization.k8s.io/v1             metadata:               name: promtail-clusterrolebinding               labels:                 app: promtail               namespace: monitor             subjects:               - kind: ServiceAccount                 name: loki-promtail                 namespace: monitor             roleRef:               kind: ClusterRole               name: promtail-clusterrole               apiGroup: rbac.authorization.k8s.io

5、创建promtail-cm.yaml

# vim promtail-cm.yaml             apiVersion: v1             kind: ConfigMap             metadata:               name: loki-promtail               namespace: monitor               labels:                 app: promtail             data:               promtail.yaml: |                 client:                  # 配置Promtail如何连接到Loki的实例                   backoff_config:        # 配置当请求失败时如何重试请求给Loki                     max_period: 5m                     max_retries: 10                     min_period: 500ms                   batchsize: 1048576      # 发送给Loki的最大批次大小(以字节为单位)                   batchwait: 1s           # 发送批处理前等待的最大时间（即使批次大小未达到最大值）                   external_labels: {}     # 所有发送给Loki的日志添加静态标签                   timeout: 10s            # 等待服务器响应请求的最大时间                 positions:                   filename: /run/promtail/positions.yaml                 server:                   http_listen_port: 3101                 target_config:                   sync_period: 10s                 scrape_configs:                 - job_name: system                   pipeline_stages:                   static_configs:                   - targets:                      - localhost                     labels:                      job: varlogs                      __path__: /var/log/*.log                 - job_name: kubernetes-pods-name                   pipeline_stages:                     - docker: {}                   kubernetes_sd_configs:                   - role: pod                   relabel_configs:                   - source_labels:                     - __meta_kubernetes_pod_label_name                     target_label: __service__                   - source_labels:                     - __meta_kubernetes_pod_node_name                     target_label: __host__                   - action: drop                     regex: ''                     source_labels:                     - __service__                   - action: labelmap                     regex: __meta_kubernetes_pod_label_(.+)                   - action: replace                     replacement: $1                     separator: /                     source_labels:                     - __meta_kubernetes_namespace                     - __service__                     target_label: job                   - action: replace                     source_labels:                     - __meta_kubernetes_namespace                     target_label: namespace                   - action: replace                     source_labels:                     - __meta_kubernetes_pod_name                     target_label: pod                   - action: replace                     source_labels:                     - __meta_kubernetes_pod_container_name                     target_label: container                   - replacement: /var/log/pods/*$1/*.log                     separator: /                     source_labels:                     - __meta_kubernetes_pod_uid                     - __meta_kubernetes_pod_container_name                     target_label: __path__                 - job_name: kubernetes-pods-app                   pipeline_stages:                     - docker: {}                   kubernetes_sd_configs:                   - role: pod                   relabel_configs:                   - action: drop                     regex: .+                     source_labels:                     - __meta_kubernetes_pod_label_name                   - source_labels:                     - __meta_kubernetes_pod_label_app                     target_label: __service__                   - source_labels:                     - __meta_kubernetes_pod_node_name                     target_label: __host__                   - action: drop                     regex: ''                     source_labels:                     - __service__                   - action: labelmap                     regex: __meta_kubernetes_pod_label_(.+)                   - action: replace                     replacement: $1                     separator: /                     source_labels:                     - __meta_kubernetes_namespace                     - __service__                     target_label: job                   - action: replace                     source_labels:                     - __meta_kubernetes_namespace                     target_label: namespace                   - action: replace                     source_labels:                     - __meta_kubernetes_pod_name                     target_label: pod                   - action: replace                     source_labels:                     - __meta_kubernetes_pod_container_name                     target_label: container                   - replacement: /var/log/pods/*$1/*.log                     separator: /                     source_labels:                     - __meta_kubernetes_pod_uid                     - __meta_kubernetes_pod_container_name                     target_label: __path__                 - job_name: kubernetes-pods-direct-controllers                   pipeline_stages:                     - docker: {}                   kubernetes_sd_configs:                   - role: pod                   relabel_configs:                   - action: drop                     regex: .+                     separator: ''                     source_labels:                     - __meta_kubernetes_pod_label_name                     - __meta_kubernetes_pod_label_app                   - action: drop                     regex: '[0-9a-z-.]+-[0-9a-f]{8,10}'                     source_labels:                     - __meta_kubernetes_pod_controller_name                   - source_labels:                     - __meta_kubernetes_pod_controller_name                     target_label: __service__                   - source_labels:                     - __meta_kubernetes_pod_node_name                     target_label: __host__                   - action: drop                     regex: ''                     source_labels:                     - __service__                   - action: labelmap                     regex: __meta_kubernetes_pod_label_(.+)                   - action: replace                     replacement: $1                     separator: /                     source_labels:                     - __meta_kubernetes_namespace                     - __service__                     target_label: job                   - action: replace                     source_labels:                     - __meta_kubernetes_namespace                     target_label: namespace                   - action: replace                     source_labels:                     - __meta_kubernetes_pod_name                     target_label: pod                   - action: replace                     source_labels:                     - __meta_kubernetes_pod_container_name                     target_label: container                   - replacement: /var/log/pods/*$1/*.log                     separator: /                     source_labels:                     - __meta_kubernetes_pod_uid                     - __meta_kubernetes_pod_container_name                     target_label: __path__                 - job_name: kubernetes-pods-indirect-controller                   pipeline_stages:                     - docker: {}                   kubernetes_sd_configs:                   - role: pod                   relabel_configs:                   - action: drop                     regex: .+                     separator: ''                     source_labels:                     - __meta_kubernetes_pod_label_name                     - __meta_kubernetes_pod_label_app                   - action: keep                     regex: '[0-9a-z-.]+-[0-9a-f]{8,10}'                     source_labels:                     - __meta_kubernetes_pod_controller_name                   - action: replace                     regex: '([0-9a-z-.]+)-[0-9a-f]{8,10}'                     source_labels:                     - __meta_kubernetes_pod_controller_name                     target_label: __service__                   - source_labels:                     - __meta_kubernetes_pod_node_name                     target_label: __host__                   - action: drop                     regex: ''                     source_labels:                     - __service__                   - action: labelmap                     regex: __meta_kubernetes_pod_label_(.+)                   - action: replace                     replacement: $1                     separator: /                     source_labels:                     - __meta_kubernetes_namespace                     - __service__                     target_label: job                   - action: replace                     source_labels:                     - __meta_kubernetes_namespace                     target_label: namespace                   - action: replace                     source_labels:                     - __meta_kubernetes_pod_name                     target_label: pod                   - action: replace                     source_labels:                     - __meta_kubernetes_pod_container_name                     target_label: container                   - replacement: /var/log/pods/*$1/*.log                     separator: /                     source_labels:                     - __meta_kubernetes_pod_uid                     - __meta_kubernetes_pod_container_name                     target_label: __path__                 - job_name: kubernetes-pods-static                   pipeline_stages:                     - docker: {}                   kubernetes_sd_configs:                   - role: pod                   relabel_configs:                   - action: drop                     regex: ''                     source_labels:                     - __meta_kubernetes_pod_annotation_kubernetes_io_config_mirror                   - action: replace                     source_labels:                     - __meta_kubernetes_pod_label_component                     target_label: __service__                   - source_labels:                     - __meta_kubernetes_pod_node_name                     target_label: __host__                   - action: drop                     regex: ''                     source_labels:                     - __service__                   - action: labelmap                     regex: __meta_kubernetes_pod_label_(.+)                   - action: replace                     replacement: $1                     separator: /                     source_labels:                     - __meta_kubernetes_namespace                     - __service__                     target_label: job                   - action: replace                     source_labels:                     - __meta_kubernetes_namespace                     target_label: namespace                   - action: replace                     source_labels:                     - __meta_kubernetes_pod_name                     target_label: pod                   - action: replace                     source_labels:                     - __meta_kubernetes_pod_container_name                     target_label: container                   - replacement: /var/log/pods/*$1/*.log                     separator: /                     source_labels:                     - __meta_kubernetes_pod_annotation_kubernetes_io_config_mirror                     - __meta_kubernetes_pod_container_name                     target_label: __path__

6、创建promtail-ds.yaml

# vim promtail-ds.yaml             apiVersion: apps/v1             kind: DaemonSet             metadata:               name: loki-promtail               namespace: monitor               labels:                 app: promtail             spec:               selector:                 matchLabels:                   app: promtail               updateStrategy:                 rollingUpdate:                   maxUnavailable: 1                 type: RollingUpdate               template:                 metadata:                   labels:                     app: promtail                 spec:                   serviceAccountName: loki-promtail                   containers:                     - name: promtail                       image: grafana/promtail:2.3.0                       imagePullPolicy: IfNotPresent                       args:                       - -config.file=/etc/promtail/promtail.yaml                       - -client.url=http://loki:3100/loki/api/v1/push                       env:                       - name: HOSTNAME                         valueFrom:                           fieldRef:                             apiVersion: v1                             fieldPath: spec.nodeName                       volumeMounts:                       - mountPath: /etc/promtail                         name: config                       - mountPath: /run/promtail                         name: run                       - mountPath: /var/lib/docker/containers                         name: docker                         readOnly: true                       - mountPath: /var/log/pods                         name: pods                         readOnly: true                       ports:                       - containerPort: 3101                         name: http-metrics                         protocol: TCP                       securityContext:                         readOnlyRootFilesystem: true                         runAsGroup: 0                         runAsUser: 0                       readinessProbe:                         failureThreshold: 5                         httpGet:                           path: /ready                           port: http-metrics                           scheme: HTTP                         initialDelaySeconds: 10                         periodSeconds: 10                         successThreshold: 1                         timeoutSeconds: 1                   volumes:                     - name: config                       configMap:                         defaultMode: 420                         name: loki-promtail                     - name: run                       hostPath:                         path: /run/promtail                         type: ""                     - name: docker                       hostPath:                         path: /var/lib/docker/containers                     - name: pods                       hostPath:                         path: /var/log/pods
