观海微GH8555BL-04+BOE10.1(TV101WXU-T85)原理代码介绍

Lornell 2023-08-13 08:45:48







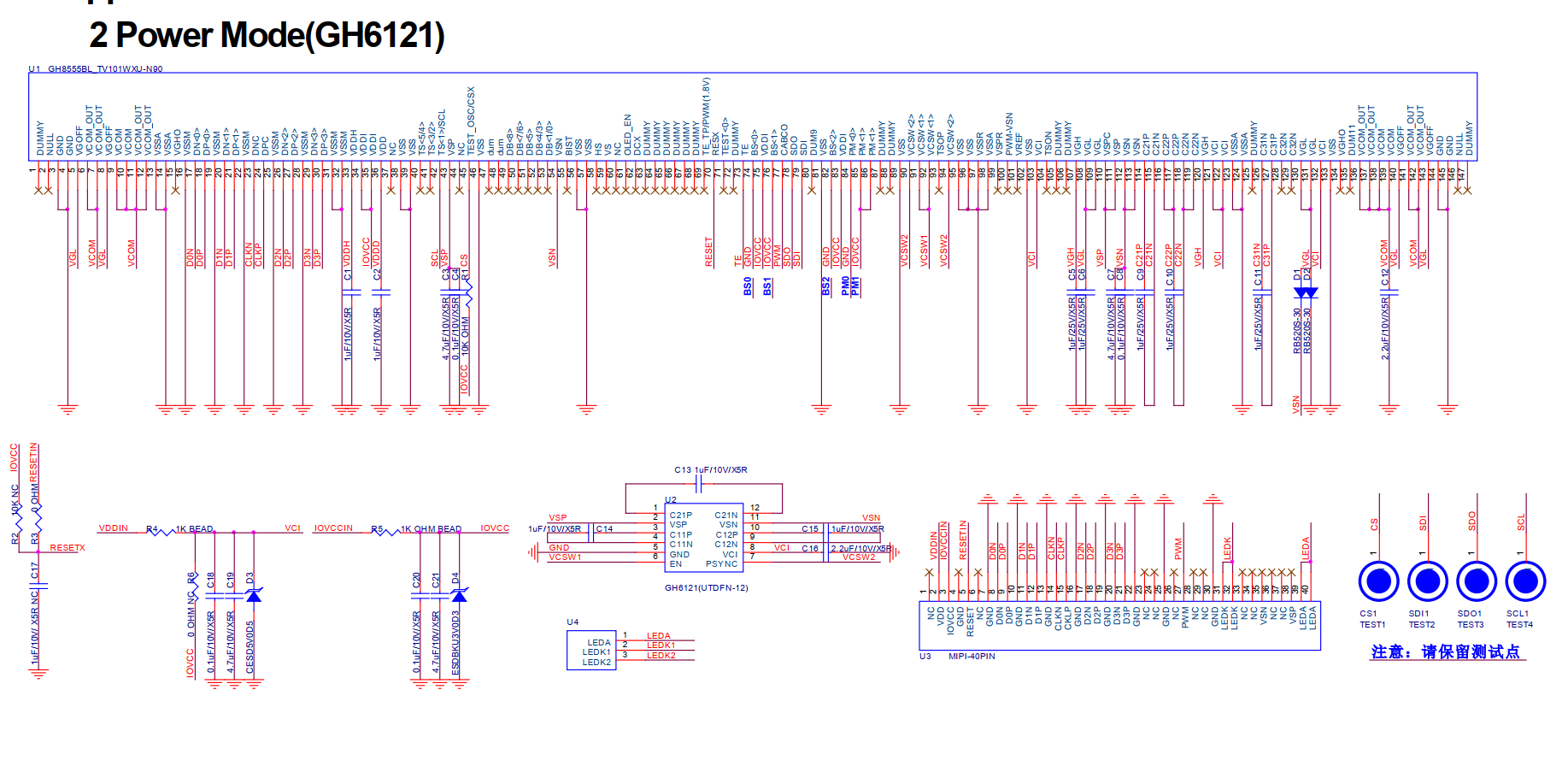

观海微GH8555BL+BOE10.1(TV101WXU-T85)原理如下:











观海微GH8555BL+BOE10.1(TV101WXU-T85)代码如下:



//---------------------------------------------------------------------------
//
//        Model  - TV101WXU-T85
//        IC     - GH8555BL-04
//        Width  - 800
//        Height - 1280
//
//        ver    - V01
//       DATA    - 2023-07-26
//        vsync:4
//        vbp:8
//        vfp:12
//        hsync:20
//        hbp:20
//        hfp:40


    Generic_Short_Write_1P(0xee,0x50);                //
    Generic_Long_Write_2P(0xea,0x85,0x55);    // write enable
    Generic_Short_Write_1P(0x20,0x00);
    Generic_Short_Write_1P(0x24,0x20);        //    mirror off
    Generic_Short_Write_1P(0x30,0x00);      // bist=1
    Generic_Long_Write_3P(0x39,0x02,0x07,0x10); // vsa vbp vfp
    //Generic_Short_Write_1P(0x56,0x83);      //      auto
    Generic_Short_Write_1P(0x7a,0x20);        //
    Generic_Short_Write_1P(0x7d,0x00);
    Generic_Long_Write_2P(0x90,0x10,0x60);   // ss_tp
    Generic_Short_Write_1P(0x93,0xf8);        //
    Generic_Short_Write_1P(0x95,0x74);        //
    Generic_Short_Write_1P(0x97,0x07);
    Generic_Short_Write_1P(0x99,0x10);        // ss_tp de ndg

    //enter page2
    Generic_Short_Write_1P(0xee,0x60);     // enter page2
    Generic_Short_Write_1P(0x21,0x01);        // OSC
    //Generic_Short_Write_1P(0x25,0x71);       //vref_apf1[2:0]
    Generic_Short_Write_1P(0x27,0x62);       //vddd
    //Generic_Short_Write_1P(0x29,0x89);       //Sd_i_set<3:0>
    //Generic_Short_Write_1P(0x2a,0x26);       //Sd_trim<2:0>
    Generic_Short_Write_1P(0x30,0x01);       // 4 LANE
    Generic_Short_Write_1P(0x31,0x0f);
    Generic_Short_Write_1P(0x32,0xda);
    Generic_Short_Write_1P(0x33,0x3f);
    Generic_Short_Write_1P(0x34,0xef);       //dsi_ihrs<1:0>
    Generic_Short_Write_1P(0x3a,0x24);       //gas off
    Generic_Short_Write_1P(0x3b,0x00);
    Generic_Short_Write_1P(0x3c,0x1d);
    Generic_Short_Write_1P(0x3d,0x02);
    Generic_Short_Write_1P(0x3e,0xa3);
    Generic_Short_Write_1P(0x42,0x4b);
    Generic_Short_Write_1P(0x43,0x4b);       //vsnr
    Generic_Short_Write_1P(0x44,0x08);
    Generic_Short_Write_1P(0x46,0xd9);
    Generic_Short_Write_1P(0x86,0x20);        //
    //Generic_Short_Write_1P(0x89,0x00);
    Generic_Short_Write_1P(0x8a,0xaa);
    Generic_Short_Write_1P(0x8b,0x11);        //
    Generic_Short_Write_1P(0x8d,0x05);
    Generic_Short_Write_1P(0x91,0x44);        //
    Generic_Short_Write_1P(0x92,0x22);    //
    Generic_Short_Write_1P(0x93,0x9f);    //
    Generic_Short_Write_1P(0x9a,0x00);           //
    Generic_Short_Write_1P(0x9c,0x80);           //

    //gamma  2.2  2023/03/04
    Generic_Long_Write_5P(0x47,0x00,0x26,0x38,0x45,0x4f);   //gamma P0.4.8.12.2
    Generic_Long_Write_5P(0x5a,0x00,0x26,0x38,0x45,0x4f);   //gamma n 0.4.8.12.20

    Generic_Long_Write_5P(0x4c,0x53,0x52,0x61,0x42,0x42);   //28.44.64.96.128.
    Generic_Long_Write_5P(0x5f,0x53,0x52,0x61,0x42,0x42);   //28.44.64.96.128.

    Generic_Long_Write_5P(0x51,0x43,0x29,0x3e,0x3a,0x49);   //159.191.211.227.235
    Generic_Long_Write_5P(0x64,0x43,0x29,0x3e,0x3a,0x49);   //159.191.211.227.235

    Generic_Long_Write_4P(0x56,0x4d,0x5c,0x67,0x7f);        //243.247.251.255
    Generic_Long_Write_4P(0x69,0x4d,0x5c,0x67,0x7f);        //243.247.251.255

/*
    //gamma  2.5  2023/03/04
    Generic_Long_Write_5P(0x47,0x00,0x23,0x33,0x40,0x4a);   //gamma P0.4.8.12.2
    Generic_Long_Write_5P(0x5a,0x00,0x23,0x33,0x40,0x4a);   //gamma n 0.4.8.12.20

    Generic_Long_Write_5P(0x4c,0x56,0x4d,0x5d,0x3d,0x3b);   //28.44.64.96.128.
    Generic_Long_Write_5P(0x5f,0x56,0x4d,0x5d,0x3d,0x3b);   //28.44.64.96.128.

    Generic_Long_Write_5P(0x51,0x3c,0x22,0x37,0x33,0x42);   //159.191.211.227.235
    Generic_Long_Write_5P(0x64,0x3c,0x22,0x37,0x33,0x42);   //159.191.211.227.235

    Generic_Long_Write_4P(0x56,0x46,0x54,0x62,0x7f);        //243.247.251.255
    Generic_Long_Write_4P(0x69,0x46,0x54,0x62,0x7f);        //243.247.251.255
*/

    Generic_Short_Write_1P(0xee,0x70);
    //STV0
    Generic_Long_Write_5P(0x00,0x00,0x04,0x00,0x01,0x00);
    Generic_Long_Write_5P(0x05,0x00,0x04,0x00,0x00,0x16);   //
    Generic_Long_Write_2P(0x0C,0x05,0x05);

    //CYC0
    Generic_Long_Write_5P(0x10,0x01,0x04,0x00,0x00,0x00);
    Generic_Long_Write_5P(0x15,0x00,0x0b,0x0D,0x08,0x00);
    Generic_Long_Write_2P(0x29,0x05,0x05);

    //gip0-gip21=gipL1-gipL22 (downscan)
    Generic_Long_Write_5P(0x60,0x3f,0x3f,0x01,0x01,0x03);
    Generic_Long_Write_5P(0x65,0x03,0x3c,0x3c,0x3c,0x3c);
    Generic_Long_Write_5P(0x6a,0x3f,0x3f,0x3c,0x13,0x13);
    Generic_Long_Write_5P(0x6f,0x11,0x11,0x17,0x17,0x15);
    Generic_Long_Write_2P(0x74,0x15,0x3c);

    //gip22-gip43=gipR1-gipR22 (downscan)
    Generic_Long_Write_5P(0x80,0x3f,0x3f,0x00,0x00,0x01);
    Generic_Long_Write_5P(0x85,0x01,0x3c,0x3c,0x3c,0x3c);
    Generic_Long_Write_5P(0x8a,0x3f,0x3f,0x3c,0x12,0x12);
    Generic_Long_Write_5P(0x8f,0x10,0x10,0x16,0x16,0x14);
    Generic_Long_Write_2P(0x94,0x14,0x3c);

    Generic_Long_Write_2P(0xea,0x00,0x00);    // write enable
    Generic_Short_Write_1P(0xee,0x00);        // ENTER PAGE0

    DCS_Short_Write_NP(0x11);       // sleep out
    Delay (120);
    DCS_Short_Write_NP(0x29);      // display on
    Delay (10);
