观海微GH1001-F+Boe5.13 (B1 ) 原理及代码介绍

[Lornell]

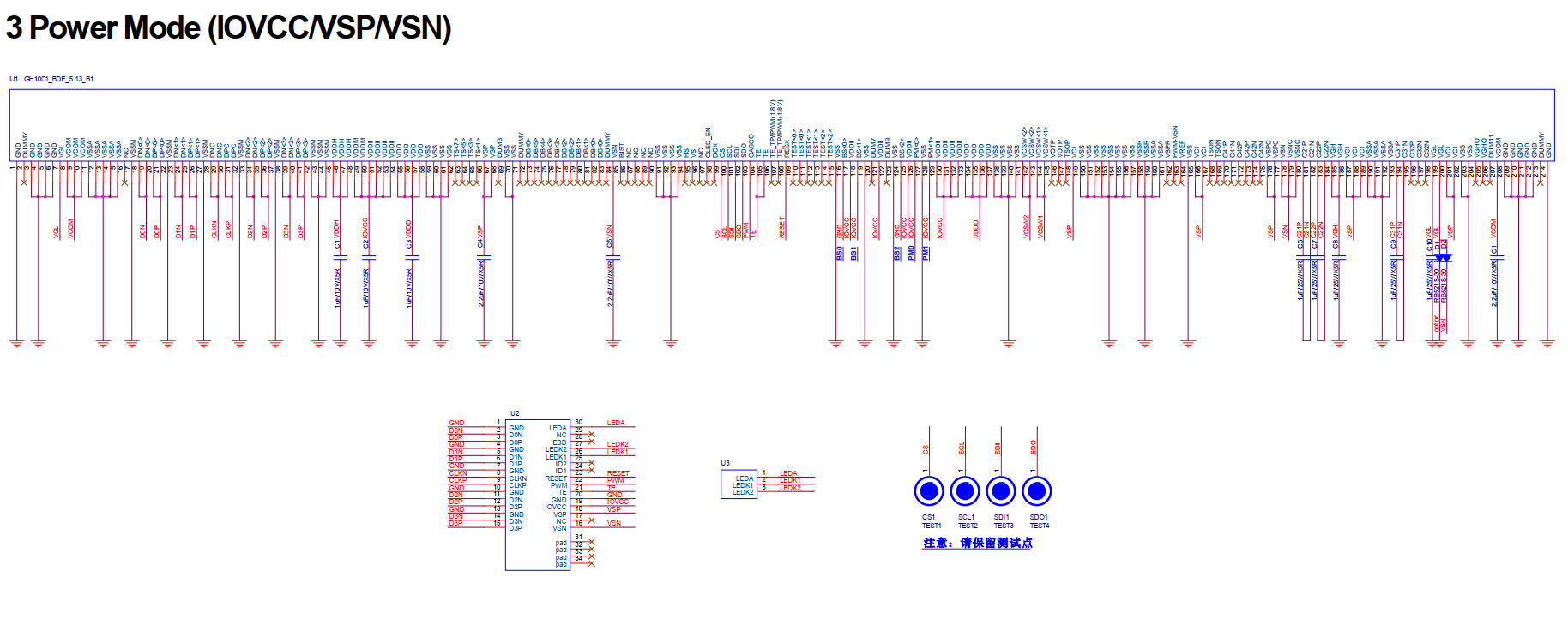

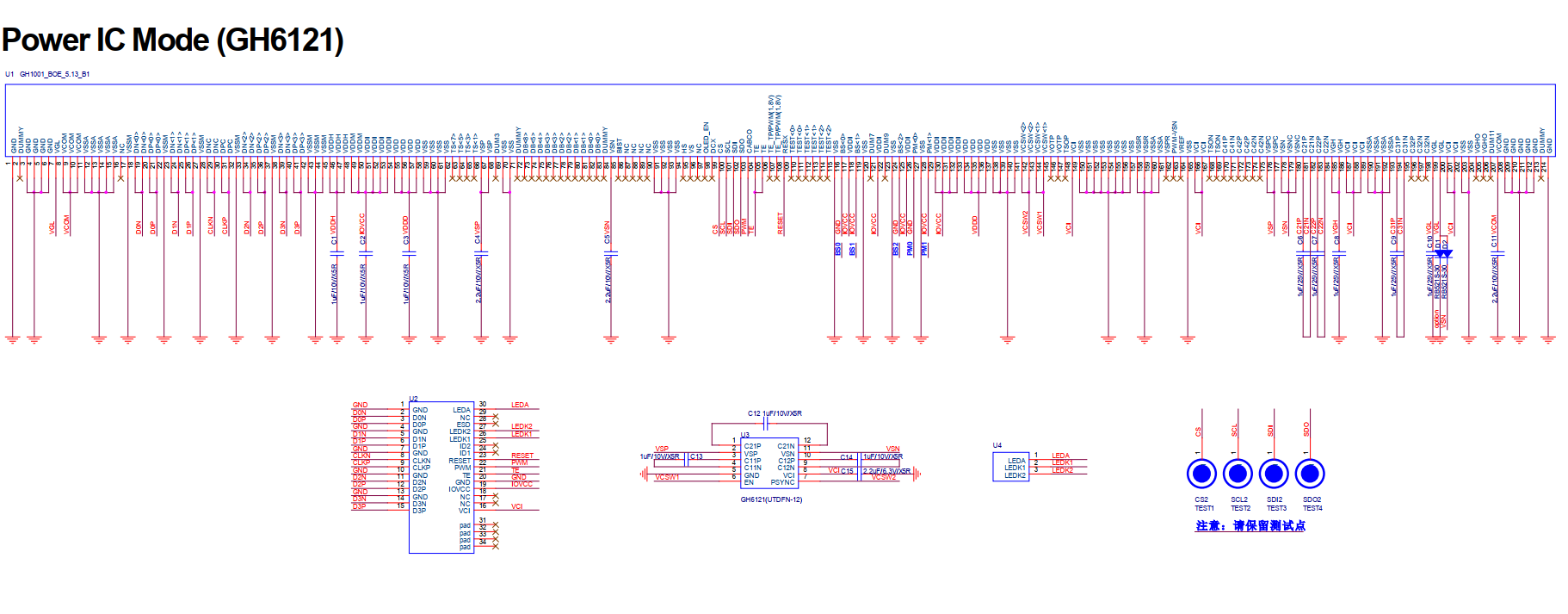

观海微GH1001-F+Boe5.13 (B1 ) 原理如下：









观海微GH1001-F+Boe5.13 (B1 ) 代码如下：



//  Width  - 720
//  Height - 1280
// PHONE   -
// VER:    - V01
// Data    - 2021/06/17
//Vsync:16
//Vbp:18
//Vfp:16
//Hsync:20
//Hbp:20
//Hfp:80

Delay(200);
Generic_Short_Write_1P(0xee,0x50);        // page 1
Generic_Long_Write_2P(0xea,0x85,0x55);    //
Generic_Short_Write_1P(0x24,0x20);
Generic_Short_Write_1P(0x30,0x00);        // bist
Generic_Short_Write_1P(0x7a,0x20);
Generic_Short_Write_1P(0x7d,0x00);
Generic_Long_Write_2P(0x90,0x50,0x00);
Generic_Short_Write_1P(0x95,0x74);
Generic_Short_Write_1P(0x97,0x08);
Generic_Short_Write_1P(0x99,0x00);

Generic_Short_Write_1P(0xee,0x60);
Generic_Short_Write_1P(0x27,0x62);
Generic_Short_Write_1P(0x2c,0xf9);
Generic_Short_Write_1P(0x30,0x01);
Generic_Short_Write_1P(0x32,0xd9); //vrs_tldo
Generic_Short_Write_1P(0x33,0xc3);
Generic_Short_Write_1P(0x34,0x3f);
Generic_Short_Write_1P(0x3a,0x24);
Generic_Short_Write_1P(0x3b,0x00); //c8->00
Generic_Short_Write_1P(0x3c,0x45); // vcom   -1.335V
Generic_Long_Write_2P(0x3d,0x02,0x82);  //VGH VGL
Generic_Long_Write_2P(0x42,0x50,0x50);     //  vspr vsnr //+-4.6V
Generic_Short_Write_1P(0x44,0x05);  //VGH 12V    11.8
Generic_Short_Write_1P(0x46,0x1e);  //VGL -12V  -11.5
Generic_Short_Write_1P(0x86,0x20);
Generic_Long_Write_3P(0x91,0x22,0x22,0x9f);
Generic_Short_Write_1P(0x9a,0x05);
Generic_Long_Write_2P(0x9b,0x02,0x80);
//// gamma 2.2  20210617
Generic_Long_Write_5P(0x47,0x10,0x20,0x2f,0x3b,0x41);  ///gamma P
Generic_Long_Write_5P(0x5A,0x10,0x20,0x2f,0x3b,0x41);    //gamma n 0.4.8.12.20
Generic_Long_Write_5P(0x4C,0x4d,0x46,0x57,0x38,0x37);
Generic_Long_Write_5P(0x5F,0x4d,0x46,0x57,0x38,0x37);  //28.44.64.96.128.
Generic_Long_Write_5P(0x51,0x37,0x1c,0x31,0x27,0x38);
Generic_Long_Write_5P(0x64,0x37,0x1c,0x31,0x27,0x38);//159.191.211.227.235
Generic_Long_Write_4P(0x56,0x3a,0x47,0x58,0x7f);
Generic_Long_Write_4P(0x69,0x3a,0x47,0x58,0x7f);  //243.247.251.255

Generic_Short_Write_1P(0xee,0x70);
Generic_Long_Write_4P(0x00,0x00,0x03,0x00,0x01);  //
Generic_Long_Write_4P(0x04,0x1a,0x1d,0x55,0x01);  //
Generic_Long_Write_4P(0x08,0x1d,0x1f,0x55,0x01);  //
Generic_Long_Write_2P(0x0c,0x05,0x55);
// CYC0
Generic_Long_Write_5P(0x10,0x01,0x04,0x00,0x01,0x00);
Generic_Long_Write_5P(0x15,0x00,0x0f,0x0d,0x08,0x00);
Generic_Long_Write_2P(0x29,0x05,0x55);
//gip22-gip43=gipL1-gipL22 forward scan
Generic_Long_Write_5P(0x80,0x3c,0x3f,0x08,0x04,0x14);
Generic_Long_Write_5P(0x85,0x16,0x10,0x12,0x3c,0x48);//20 60
Generic_Long_Write_5P(0x8a,0x00,0x02,0x3c,0x3c,0x3c);
Generic_Long_Write_5P(0x8F,0x3c,0x3c,0x3c,0x3c,0x3c);
Generic_Long_Write_2P(0x94,0x3c,0x3c);
//gip0-gip21=gipR1-gipR22
Generic_Long_Write_5P(0x60,0x3c,0x3f,0x08,0x04,0x15);
Generic_Long_Write_5P(0x65,0x17,0x11,0x13,0x3c,0x48);//20 60
Generic_Long_Write_5P(0x6a,0x01,0x03,0x3c,0x3c,0x3c);
Generic_Long_Write_5P(0x6f,0x3c,0x3c,0x3c,0x3c,0x3c);
Generic_Long_Write_2P(0x74,0x3c,0x3c);
Generic_Long_Write_2P(0xea,0x00,0x00);
Generic_Short_Write_1P(0xee,0x00);        // ENTER PAGE0

DCS_Short_Write_NP(0x11);       // sleep out
Delay (120);
DCS_Short_Write_NP(0x29);      // display on
Delay (10);
