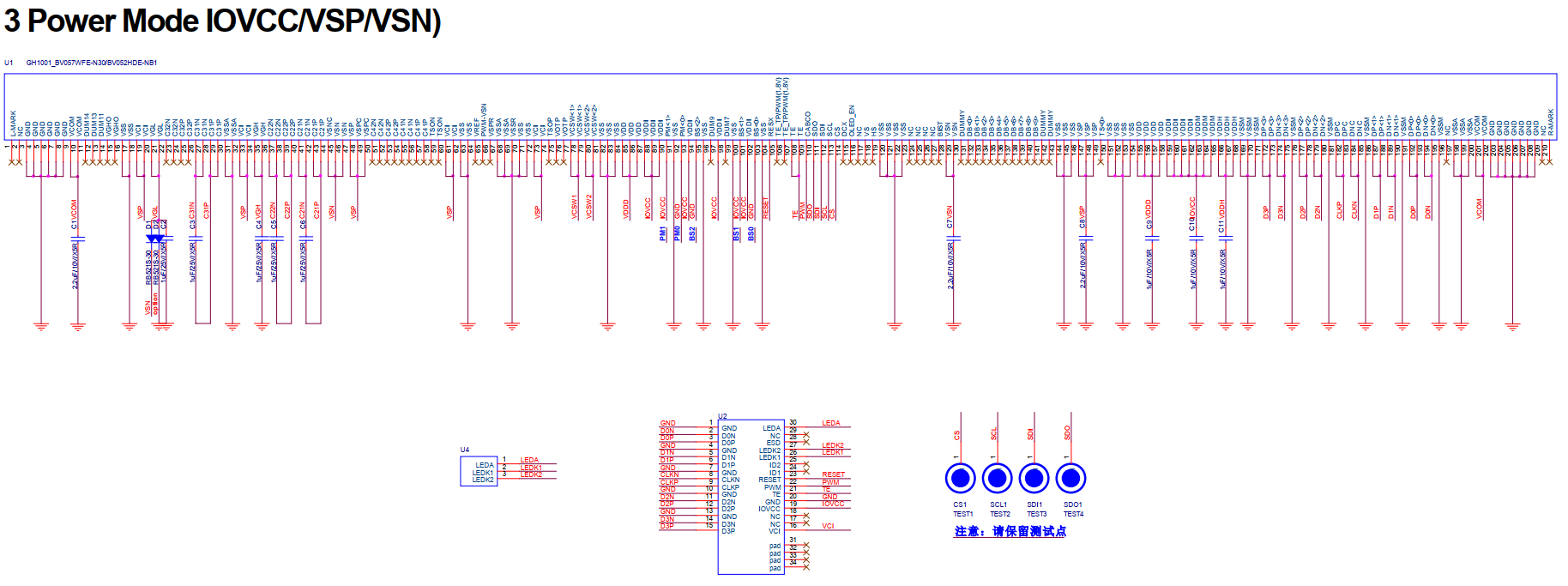

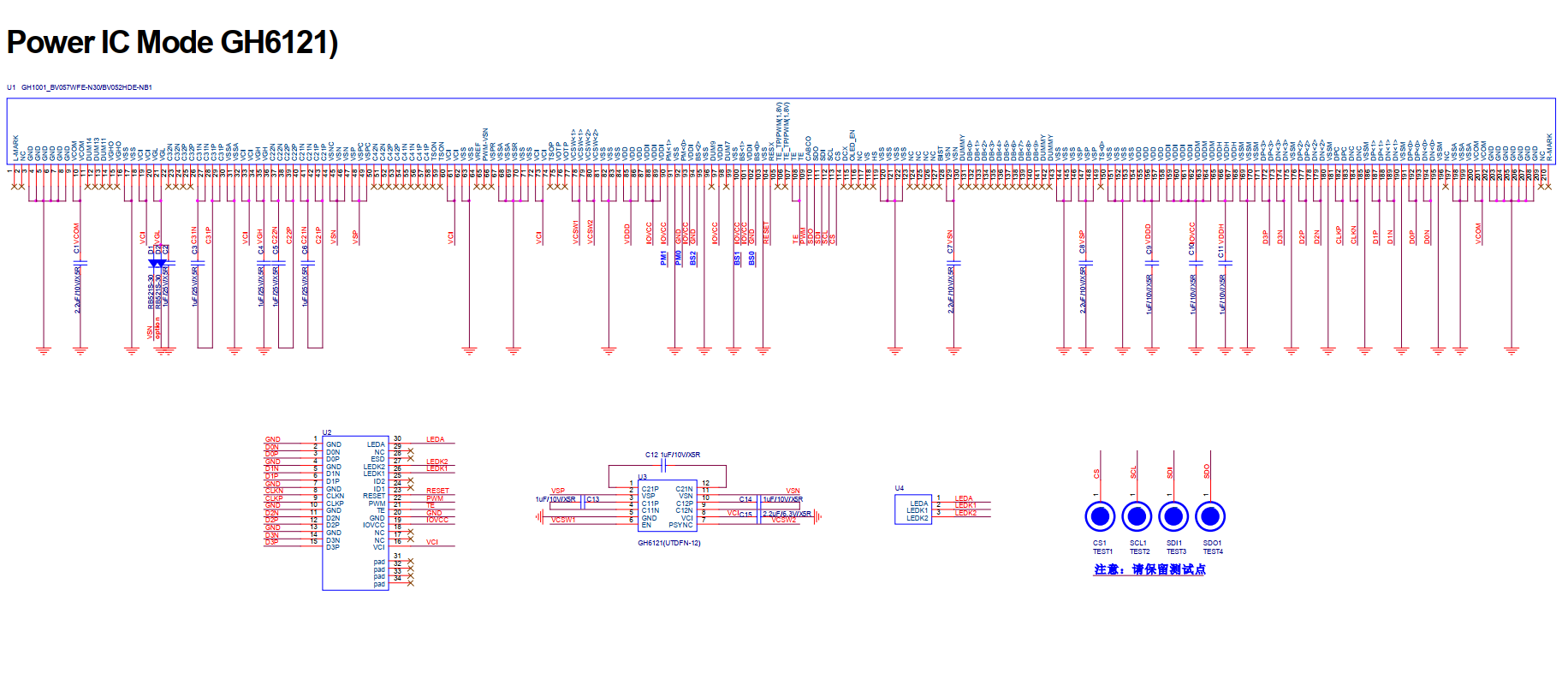

观海微GH1001-F+BOE B3（BV060Y9L-N30-3Q00）/ （BV060Y9L-N30-3Q03）原理如下：

观海微GH1001-F+BOE B3（BV060Y9L-N30-3Q00）代码如下：

//---------------------------------------------------------------------------
// Example:
// Model - B3 BV060Y9L-N30-3Q00
// IC - GH1001-F
// Width - 720
// Height - 1440
// PHONE -
// VER: - V0.1
// Data - 2022/06/20
//"Vfp" value="16" />
//
//"Vbp" value="8" />
//
//"Vsync" value="8" />
//
//"Hfp" value="80" />
//
//"Hbp" value="30" />
//
//"Hsync" value="10" />
//vsp =5.7V vsn =-5.7V vspr 5.3 OK max 6ma

   Delay(200);
   Generic_Short_Write_1P(0xee,0x50);           // page 1
   Generic_Long_Write_2P(0xea,0x85,0x55);
   Generic_Short_Write_1P(0x24,0xa0);
   Generic_Short_Write_1P(0x30,0x00);           // bist
   Generic_Short_Write_1P(0x31,0x60);
   Generic_Short_Write_1P(0x56,0x83);
   Generic_Short_Write_1P(0x7a,0x20);
   Generic_Short_Write_1P(0x7d,0x00);
   Generic_Short_Write_1P(0x80,0x10);
   Generic_Long_Write_2P(0x90,0x50,0x20);
   Generic_Short_Write_1P(0x95,0x74);
   Generic_Short_Write_1P(0x97,0x37);
   Generic_Short_Write_1P(0x99,0x00);

   Generic_Short_Write_1P(0xee,0x60);           // page 2
   Generic_Short_Write_1P(0x27,0x62);
   Generic_Short_Write_1P(0x2c,0xf9);
   Generic_Short_Write_1P(0x30,0x01);
   Generic_Short_Write_1P(0x32,0xd9);           // vrs_tldo da
   Generic_Short_Write_1P(0x33,0xc3);           // dsi_rts<1:0>=10
   Generic_Short_Write_1P(0x34,0x3f);
   Generic_Short_Write_1P(0x3a,0x24);           // gas open a4
   Generic_Short_Write_1P(0x3b,0x00);           // c8->00
   Generic_Short_Write_1P(0x3c,0x46);           // vcom
   Generic_Long_Write_2P(0x3d,0x02,0x82);       // VGH VGL
   Generic_Long_Write_2P(0x42,0x45,0x45);       // vspr vsnr
   Generic_Short_Write_1P(0x44,0x05);           // VGH
   Generic_Short_Write_1P(0x46,0x28);           // VGL
   Generic_Short_Write_1P(0x86,0x20);
   Generic_Short_Write_1P(0x91,0x44);
   Generic_Short_Write_1P(0x92,0x33);
   Generic_Short_Write_1P(0x93,0x9f);
   Generic_Short_Write_1P(0x9a,0x05);
   Generic_Long_Write_2P(0x9b,0x02,0xD0);

Generic_Long_Write_5P(0x47,0x00,0x2e,0x32,0x3b,0x41); //gamma p 0.4.8.12.20
Generic_Long_Write_5P(0x5a,0x00,0x2e,0x32,0x3b,0x41); //gamma n 0.4.8.12.20

Generic_Long_Write_5P(0x4c,0x50,0x4a,0x5e,0x47,0x4c); //28.44.64.96.128.
Generic_Long_Write_5P(0x5f,0x50,0x4a,0x5e,0x47,0x4c); //28.44.64.96.128.

Generic_Long_Write_5P(0x51,0x51,0x39,0x4f,0x4b,0x5a); //159.191.211.227.235
Generic_Long_Write_5P(0x64,0x51,0x39,0x4f,0x4b,0x5a); //159.191.211.227.235

Generic_Long_Write_4P(0x56,0x5a,0x65,0x6f,0x7f); //243. 247. 251. 255
Generic_Long_Write_4P(0x69,0x5a,0x65,0x6f,0x7f); //243. 247. 251. 255

   Generic_Short_Write_1P(0xee,0x70);
   Generic_Long_Write_3P(0x00,0x00,0x04,0x00); //
   Generic_Long_Write_2P(0x0c,0x05,0x05);
   // CYC0
   Generic_Long_Write_5P(0x10,0x00,0x04,0x00,0x00,0x00);
   Generic_Long_Write_5P(0x15,0x00,0xc0,0x0d,0x08,0x00);
   Generic_Long_Write_2P(0x29,0x35,0x35);

   //gip22-gip43=gipR1-gipR22 forward scan
   Generic_Long_Write_5P(0x60,0x3c,0x3c,0x3c,0x3c,0x3c);
   Generic_Long_Write_5P(0x65,0x00,0x02,0x3f,0x3c,0x3c);
   Generic_Long_Write_5P(0x6a,0x3c,0x3c,0x3c,0x3c,0x3c);
   Generic_Long_Write_5P(0x6F,0x3c,0x3c,0x3f,0x14,0x16);
   Generic_Long_Write_2P(0x74,0x10,0x12);

   //gip0-gip21=gipL1-gipL22
   Generic_Long_Write_5P(0x80,0x3c,0x3c,0x3c,0x3c,0x3c);
   Generic_Long_Write_5P(0x85,0x01,0x03,0x3f,0x3c,0x3c);
   Generic_Long_Write_5P(0x8a,0x3c,0x3c,0x3c,0x3c,0x3c);
   Generic_Long_Write_5P(0x8f,0x3c,0x3c,0x3f,0x15,0x17);
   Generic_Long_Write_2P(0x94,0x11,0x13);

   Generic_Long_Write_2P(0xea,0x00,0x00);
   Generic_Short_Write_1P(0xee,0x00);       // ENTER PAGE0
   DCS_Short_Write_NP(0x11);
   Delay(120);
   DCS_Short_Write_NP(0x29);
   Delay(10);
