Visual Calculator on account of python

[832101317林伟祥]

1.introduction

This blog is a graphical visualization calculator with addition, subtraction, multiplication, division, backspace, zero and other common functions



The Link Your Class	https://bbs.csdn.net/forums/ssynkqtd-04
The Link of Requirement of This Assignment	https://bbs.csdn.net/topics/617332156
The Aim of This Assignment	Visual Calculator
MU STU ID and FZU STU ID	21125945（MU）/832101317(FZU)

Link to the finished project code： cleartears/web_calculator_python: a web calculator. (github.com)

2.Project Work

PSP Form

Personal Software Process Stages	Estimated Time（minutes）	Actual Time（minutes）
Planning	45	60
• Estimate	50	60
Development	325	385
• Analysis	30	30
• Design Spec	20	15
• Design Review	8	17
• Coding Standard	12	8
• Design	60	72
• Coding	100	107
• Code Review	60	75
• Test	40	50
Reporting	100	115
• Test Report	62	63
• Size Measurement	13	10
• Postmortem & Process Improvement Plan	27	59
Sum	477	566

3.Description of problem-solving ideas

In this project, the basic goal is to complete the functions including input numbers and addition, subtraction, multiplication, division, subtraction, and then implement the functions including trigonometric functions and power functions.

Find information

After looking up the relevant information on CSDN, Bilibili, Github, I found that tkinter is very good for building visual interfaces

Design and Implementation process

1.Determine the needs: clarify the basic functions and characteristics of the calculator, such as the types of mathematical operations supported (addition, subtraction, multiplication and division, square roots, etc.), the display format of the display screen (decimal places, scientific counting, etc.), whether continuous calculation is supported.

2.Interface layout: The calculator interface is divided into different areas, such as the number button area, the operator button area, and the display area. Determine the location and size of each area so that components can be added later.

3.Add components: Add components, such as buttons and text boxes, to each area one by one based on the interface layout. You can use the layout manager to better control the arrangement and placement of components.

4.Display processing: The user's input data is displayed on the display of the calculator, and the calculation results are updated to the display. Need to consider the formatting of the data display, such as decimal places, scientific notation, etc.

Code section

"""
实现带界面的计算器

"""

from tkinter import *
import tkinter.font
from functools import partial


def get_input(entry, argu):
    entry.insert(END, argu)


def backspace(entry):
    input_len = len(entry.get())
    entry.delete(input_len - 1)


def clear(entry):
    entry.delete(0, END)


def calc(entry):
    input = entry.get()
    output = str(eval(input.strip()))
    clear(entry)
    entry.insert(END, output)


def cal():
    root = Tk()
    root.title("Calc")
    root.resizable(0, 0)

    entry_font = tkinter.font.Font(size=12)
    entry = Entry(root, justify="right", font=entry_font)
    entry.grid(row=0, column=0, columnspan=4, sticky=N+W+S+E, padx=5,  pady=5)

    button_font = tkinter.font.Font(size=10, weight=tkinter.font.BOLD)
    button_bg = '#D5E0EE'
    button_active_bg = '#E5E35B'

    myButton = partial(Button, root, bg=button_bg, padx=10, pady=3, activebackground = button_active_bg)

    button7 = myButton(text='7', command=lambda: get_input(entry, '7'))
    button7.grid(row=1, column=0, pady=5)

    button8 = myButton(text='8', command=lambda: get_input(entry, '8'))
    button8.grid(row=1, column=1, pady=5)

    button9 = myButton(text='9', command=lambda: get_input(entry, '9'))
    button9.grid(row=1, column=2, pady=5)

    button10 = myButton(text='+', command=lambda: get_input(entry, '+'))
    button10.grid(row=1, column=3, pady=5)

    button4 = myButton(text='4', command=lambda: get_input(entry, '4'))
    button4.grid(row=2, column=0, pady=5)

    button5 = myButton(text='5', command=lambda: get_input(entry, '5'))
    button5.grid(row=2, column=1, pady=5)

    button6 = myButton(text='6', command=lambda: get_input(entry, '6'))
    button6.grid(row=2, column=2, pady=5)

    button11 = myButton(text='-', command=lambda: get_input(entry, '-'))
    button11.grid(row=2, column=3, pady=5)

    button1 = myButton(text='1', command=lambda: get_input(entry, '1'))
    button1.grid(row=3, column=0, pady=5)

    button2 = myButton(text='2', command=lambda: get_input(entry, '2'))
    button2.grid(row=3, column=1, pady=5)

    button3 = myButton(text='3', command=lambda: get_input(entry, '3'))
    button3.grid(row=3, column=2, pady=5)

    button12 = myButton(text='*', command=lambda: get_input(entry, '*'))
    button12.grid(row=3, column=3, pady=5)

    button0 = myButton(text='0', command=lambda: get_input(entry, '0'))
    button0.grid(row=4, column=0, columnspan=2, padx=3, pady=5, sticky=N+S+E+W)

    button13 = myButton(text='.', command=lambda: get_input(entry, '.'))
    button13.grid(row=4, column=2, pady=5)

    button14 = Button(root, text='/', bg=button_bg, padx=10, pady=3,
                      command=lambda: get_input(entry, '/'))
    button14.grid(row=4, column=3, pady=5)

    button15 = Button(root, text='<-', bg=button_bg, padx=10, pady=3,
                      command=lambda: backspace(entry), activebackground=button_active_bg)
    button15.grid(row=5, column=0, pady=5)

    button16 = Button(root, text='C', bg=button_bg, padx=10, pady=3,
                      command=lambda : clear(entry), activebackground=button_active_bg)
    button16.grid(row=5, column=1, pady=5)

    button17 = Button(root, text='=', bg=button_bg, padx=10, pady=3,
                      command=lambda: calc(entry), activebackground=button_active_bg)
    button17.grid(row=5, column=2, columnspan=2, padx=3, pady=5, sticky=N+S+E+W)

    root.mainloop()


if __name__ == '__main__':
    cal()

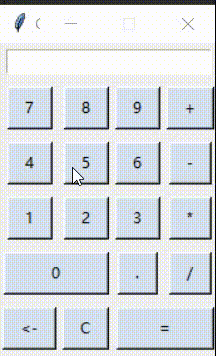

results display



4.Summary

This calculator project enabled me to learn a lot about project implementation, including pre-project task analysis, functional planning, development, testing, optimization and modification, and improved my ability to collect information and independent learning, as well as how to optimize the product and consider user habits. At the same time, I have learned a lot of programming knowledge about visualization, and also learned to use GitHub for code version control and development. I will continue to learn about software engineering and hope to make progress.
