在线急等 winfrom chart控件显示问题

[65度]

如下图所示，这个右上角很大一片空白，如果右上角的Legends去掉，又是好的，怎么把这个空白处填满，急等

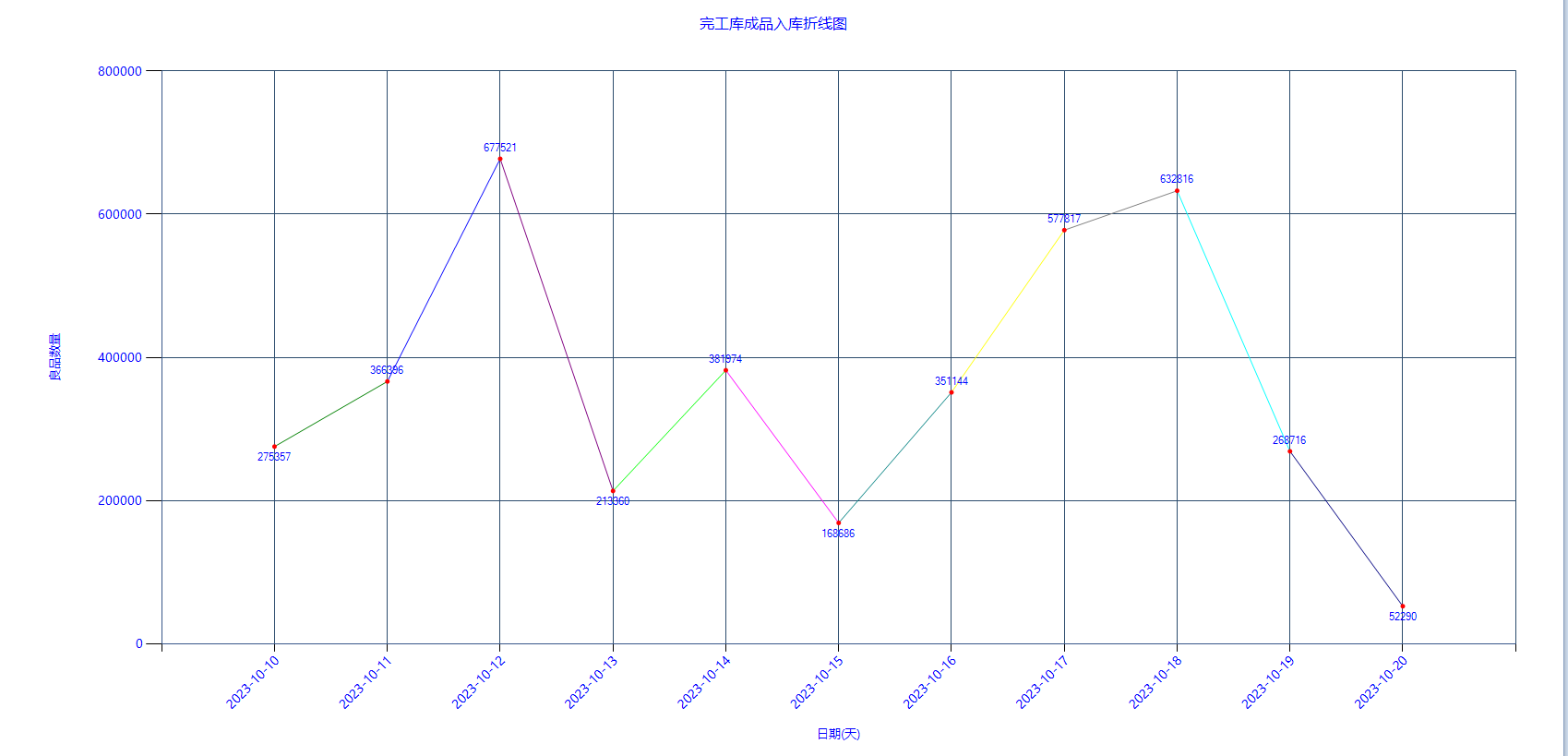

下面是去掉Legends的



后台 代码如下：

                    chart1.Series.Clear();
                    chart1.Legends.Clear();
                    int i = 0;
                    foreach (DataRow drW in _dtWh.Rows)
                    {
                        List<string> slistX = new List<string>();
                        List<float> slistY = new List<float>();
                        foreach (DataRow dr in drs)
                        {

                        }
                        string[] x = slistX.ToArray();
                        float[] y = slistY.ToArray();

                        //设置每条线的说明
                        chart1.Legends.Add(new Legend());
                        chart1.Legends[i].Name = drW["cWhName"].ToString();
                        chart1.Legends[i].Docking = Docking.Right;
                        chart1.Legends[i].Alignment = StringAlignment.Near;
                        chart1.Legends[i].LegendStyle = LegendStyle.Column;
                        //chart1.Legends[i].MaximumAutoSize = 10;

                        chart1.Series.Add(new Series());
                        chart1.Series[i].Name = drW["cWhName"].ToString();
                        chart1.Series[i].Label = "#VAL";
                        chart1.Series[i].ToolTip = "#VALX\r#VAL";
                        chart1.Series[i].ChartArea = chart1.ChartAreas[0].Name;
                        chart1.Series[i].ChartType = SeriesChartType.Line;
                        chart1.Series[i].Points.DataBindXY(x, y);
                        //Random rd = new Random();
                        //chart1.Series[i].MarkerBorderColor = Color.FromArgb(rd.Next(255), rd.Next(255), rd.Next(255));
                        if (i == 0)
                            chart1.Series[i].Points[0].Color = Color.Red;
                        else if (i == 1)
                            chart1.Series[i].Points[0].Color = Color.Blue;
                        else if (i == 2)
                            chart1.Series[i].Points[0].Color = Color.Yellow;
                        else if (i == 3)
                            chart1.Series[i].Points[0].Color = Color.Orange;
                        else if (i == 4)
                            chart1.Series[i].Points[0].Color = Color.Violet;
                        else if (i == 5)
                            chart1.Series[i].Points[0].Color = Color.Green;
                        else if (i == 6)
                            chart1.Series[i].Points[0].Color = Color.Pink;
                        else if (i == 7)
                            chart1.Series[i].Points[0].Color = Color.Gold;
                        chart1.Series[i].BorderWidth = 3;
                        chart1.Series[i].MarkerBorderColor = chart1.Series[i].Points[0].Color;
                        chart1.Series[i].MarkerBorderWidth = 3;
                        chart1.Series[i].MarkerColor = Color.Red;
                        chart1.Series[i].MarkerSize = 5;
                        chart1.Series[i].MarkerStyle = MarkerStyle.Circle;



[Stealingcoins]

啥都不用改啊

[CSDN-Ada助手]

您的问题已经帮您同步至问答, 链接: https://ask.csdn.net/questions/8015388, 请您保持关注, 如果回答有帮助解决此问题, 麻烦您动动小手给相关的回答点赞, Ada会在评论区为您更新结题状态
