FocusFlow α Sprint Blog Series (Part 1) - Login and Personal Center Module Report

[FOCUS_2025_SE]

目录

• Project Overview
• 1. Sprint Burndown Chart
• 2. Function realization demonstration
• 2.1 User Login Module
• 2.2 Personal Center Module
• 3. Code Check-in Records (GitHub Commits)
• 4. Core code analysis
• 4.1 Login Verification Logic (app.py)
• 4.2 Personal Information Update Logic (app.py)
• 5. Sprint Summary
• Completed tasks:
• Problems Encountered and Solutions:
• Problems:
• Solution:

Project Overview

Course	2501_MU_SE_FZU
Assignment Requirement	Fifth Assignment - Alpha Sprint
Team Name	Focus_2025
Goal of this assignment	Clarify Code Standards, Sprint Tasks, and Plans for the team Alpha Sprint
Other references	IEEE Std 830-1998, GB/T 8567-2006

Author: He Jiazhuo
Completion Date: December 13, 2025

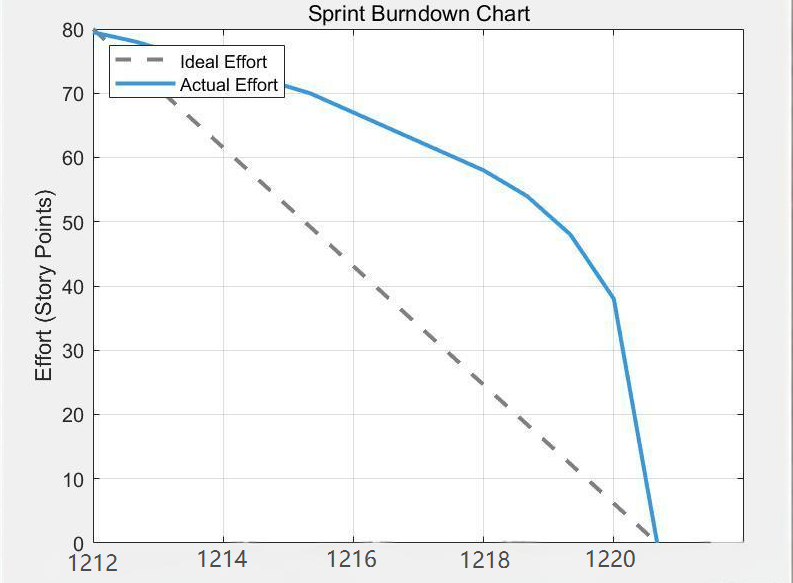

1. Sprint Burndown Chart

2. Function realization demonstration

This sprint, I was mainly responsible for implementing the two core modules: user login and personal center. Below are screenshots showing the operation of the functions.

2.1 User Login Module

This module implements the identity verification process based on mobile phone number, password and dynamic verification code.

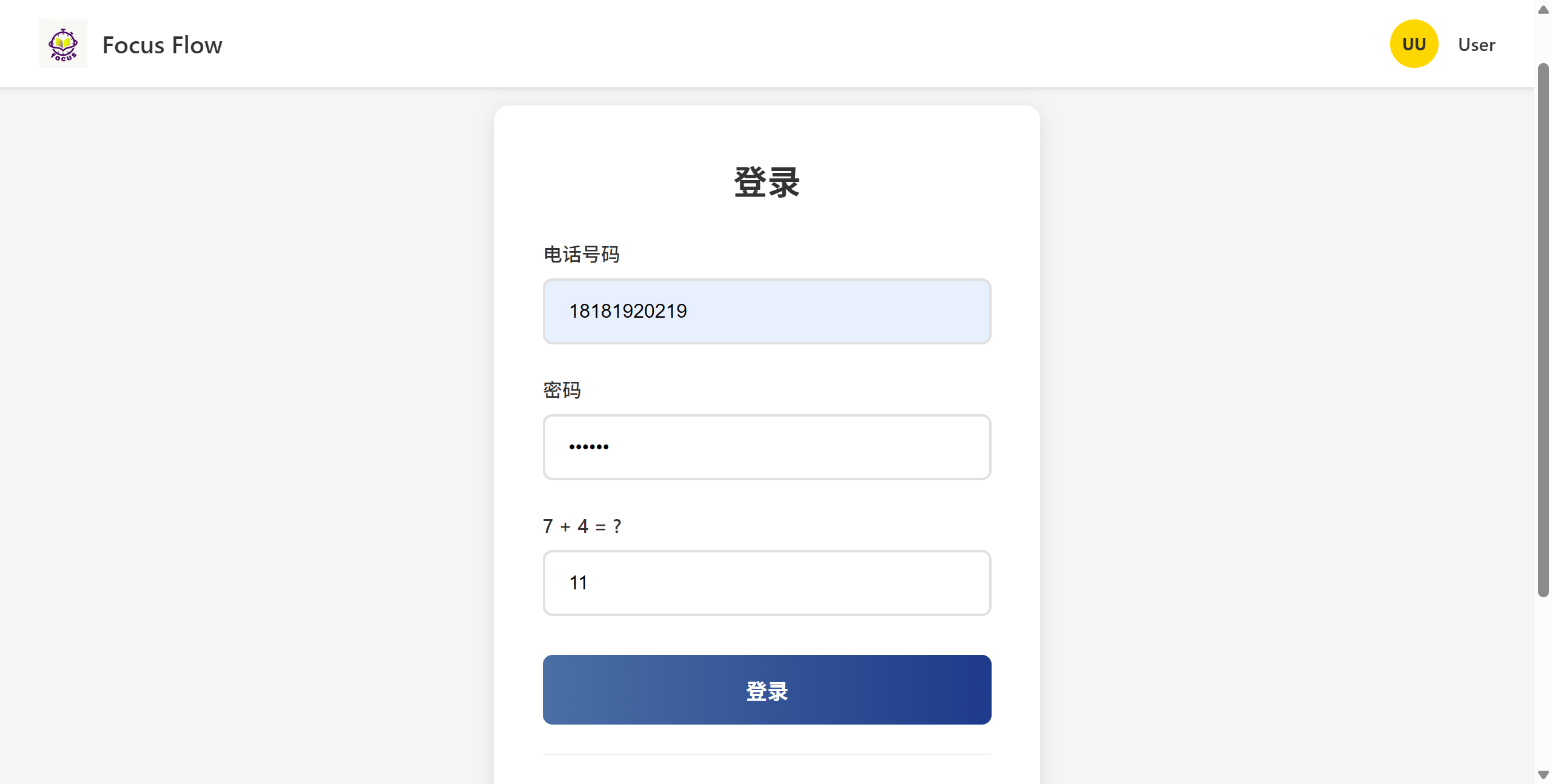

login interface

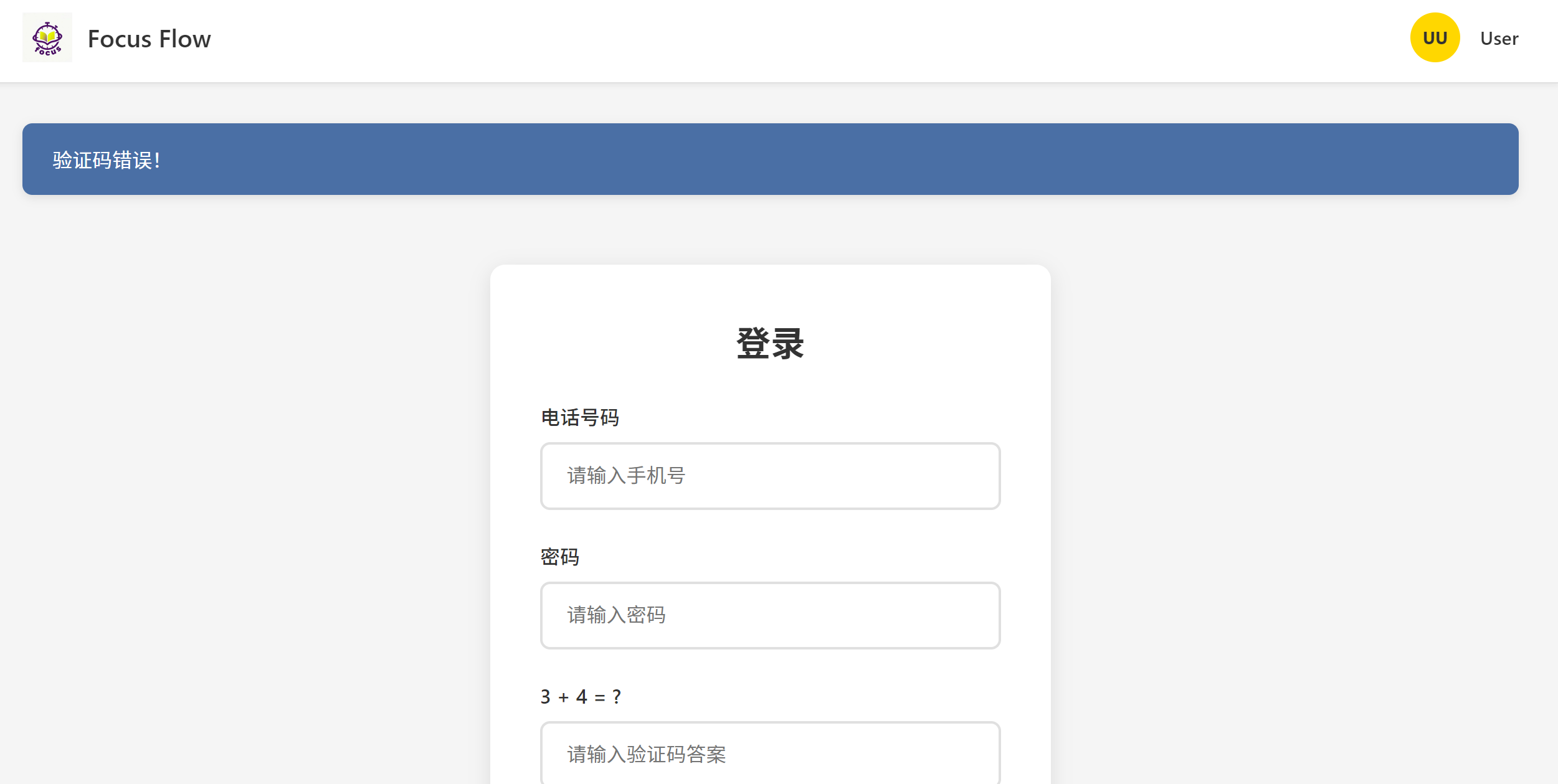

Login success/failure prompt:

2.2 Personal Center Module

This module offers users the core functions of information viewing and management, including personal information modification and account security settings.

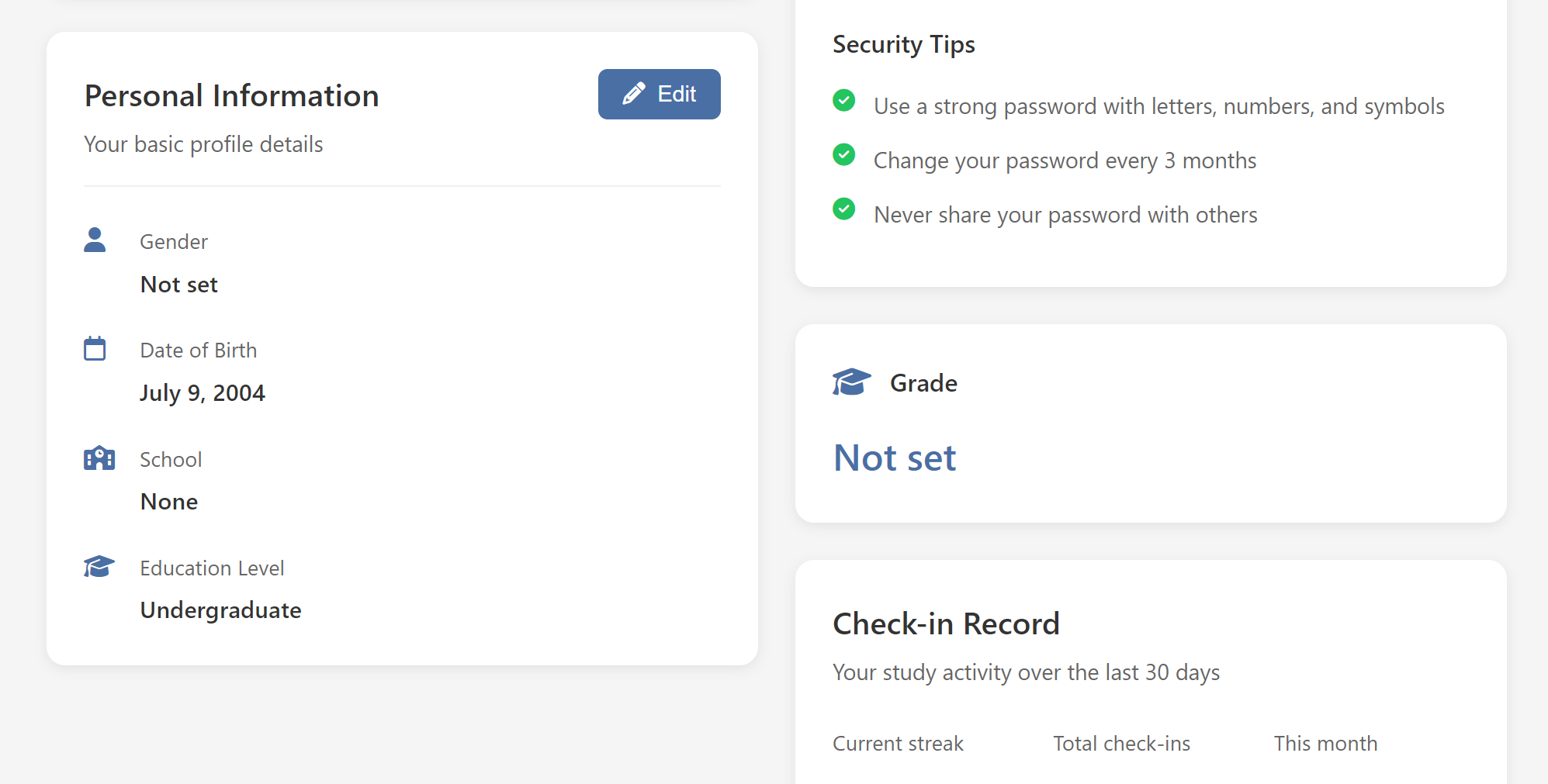

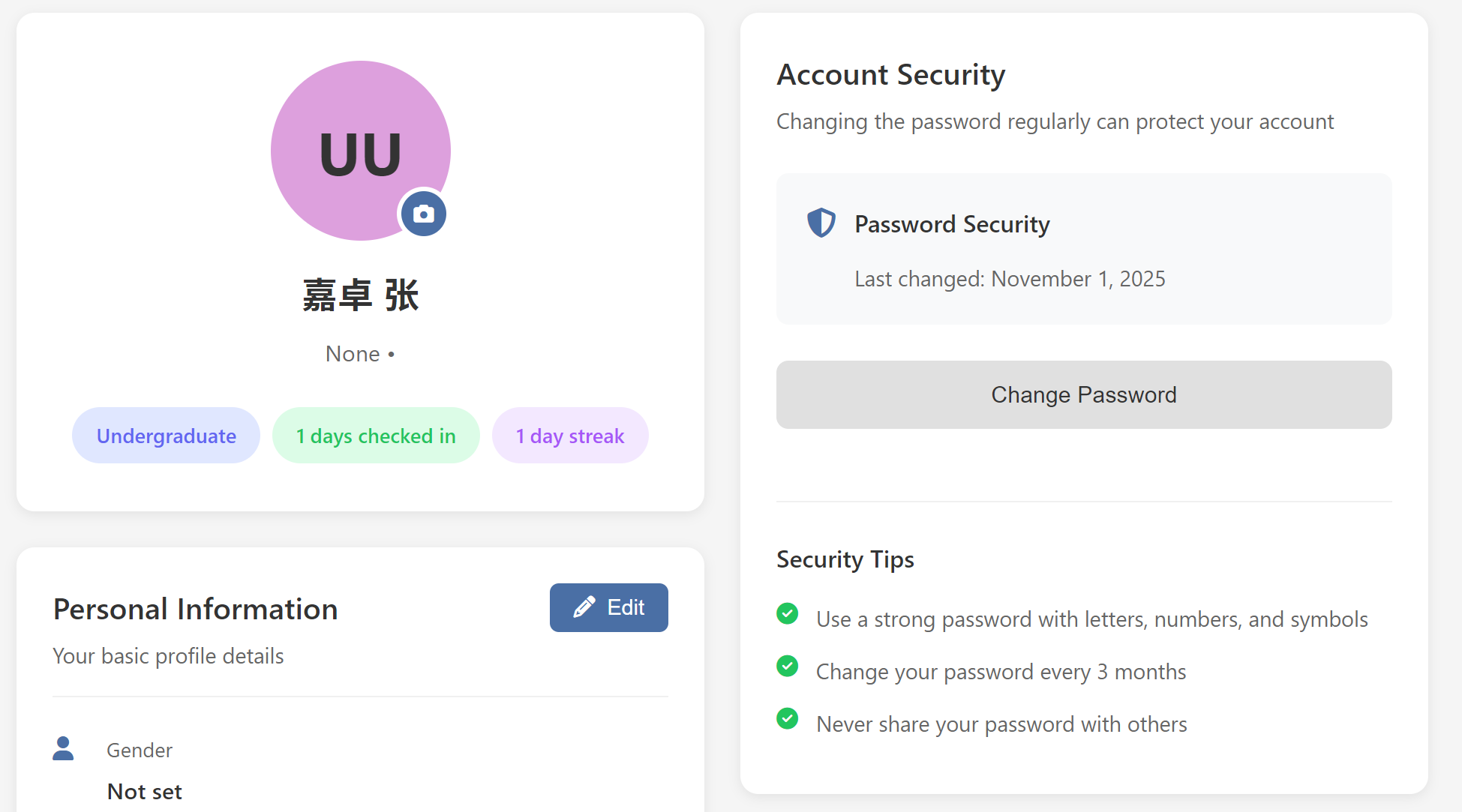

·Personal Center Homepage：

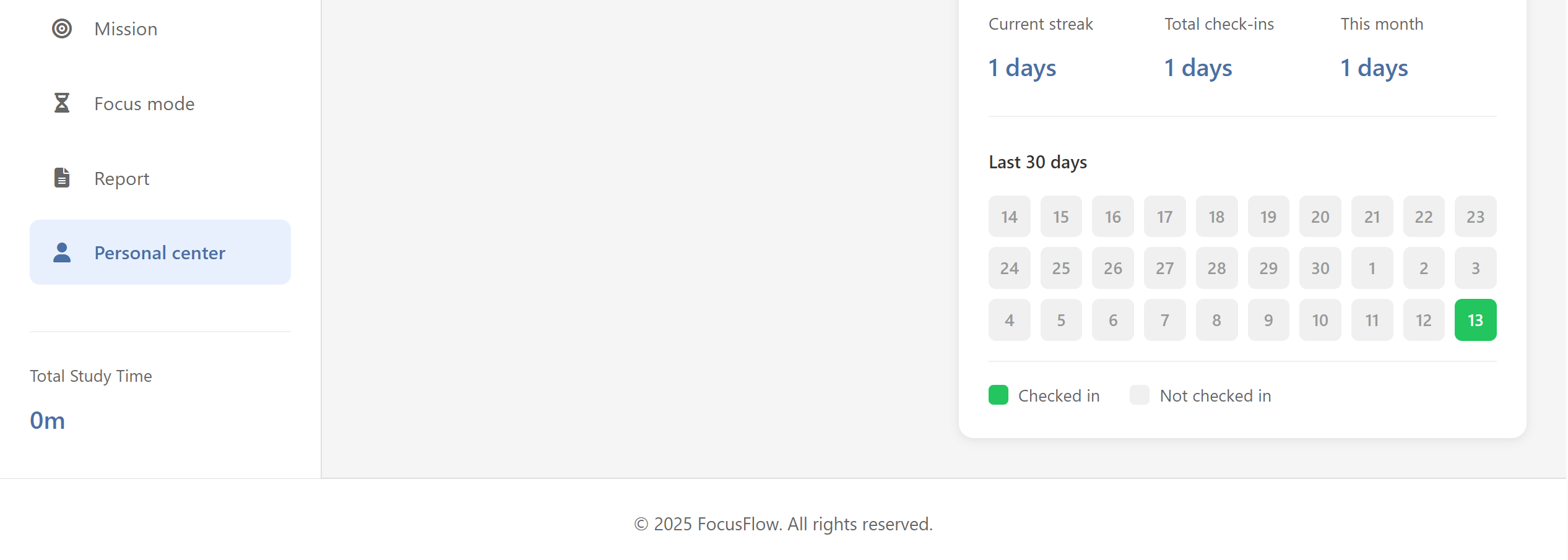

Explanation: The page clearly displays the user's profile picture (generated dynamically from the initial letter of the name), basic information, educational background, this month's check-in data, and the check-in calendar for the past 30 days.

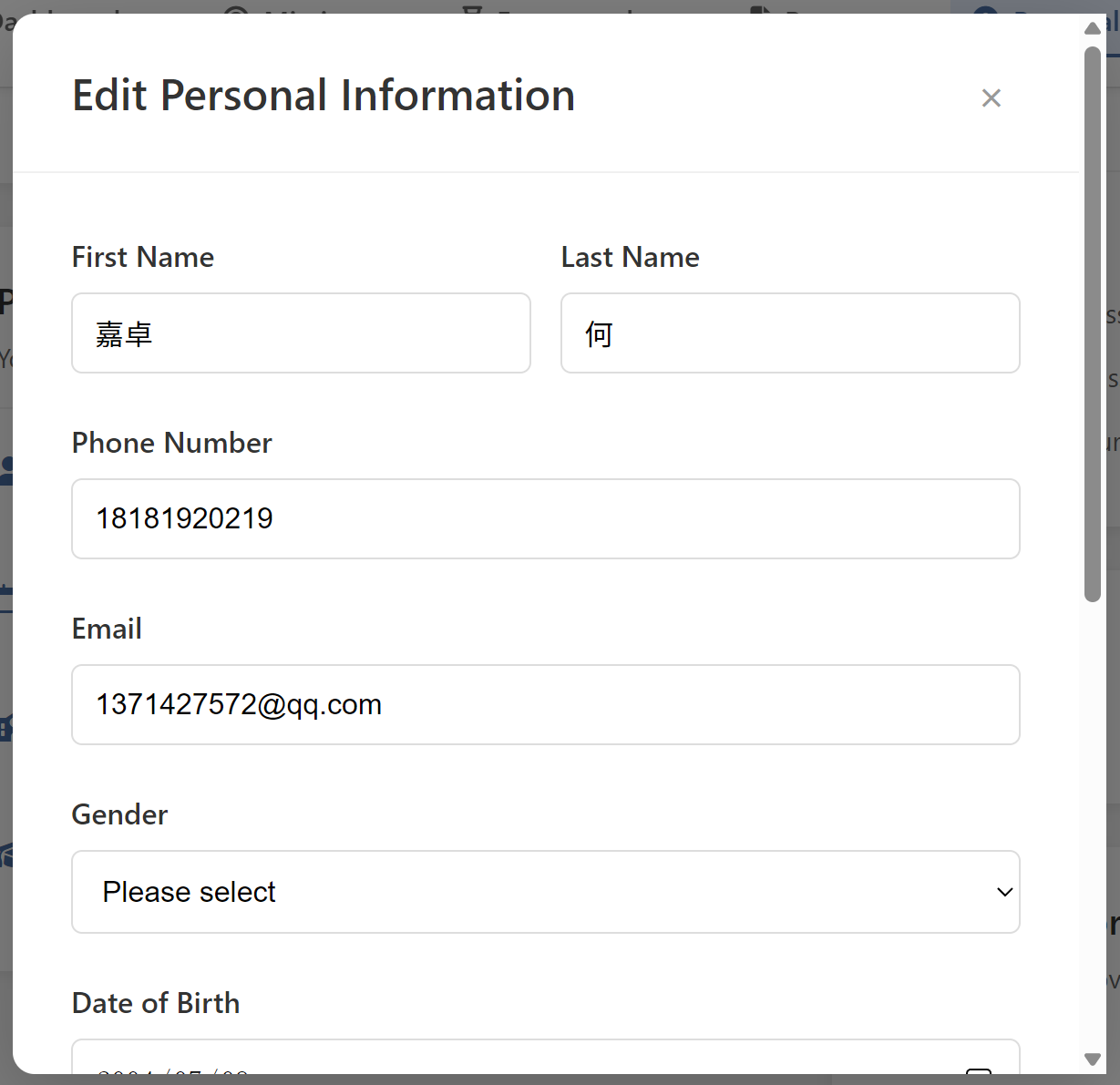

·Modify personal information：

Explanation: Clicking the "Edit" button will open a modal box, allowing users to modify information such as name, phone number, email, gender, birthday, school, educational level and grade. The username/login name (mobile phone number) is the key credential and cannot be directly modified here.

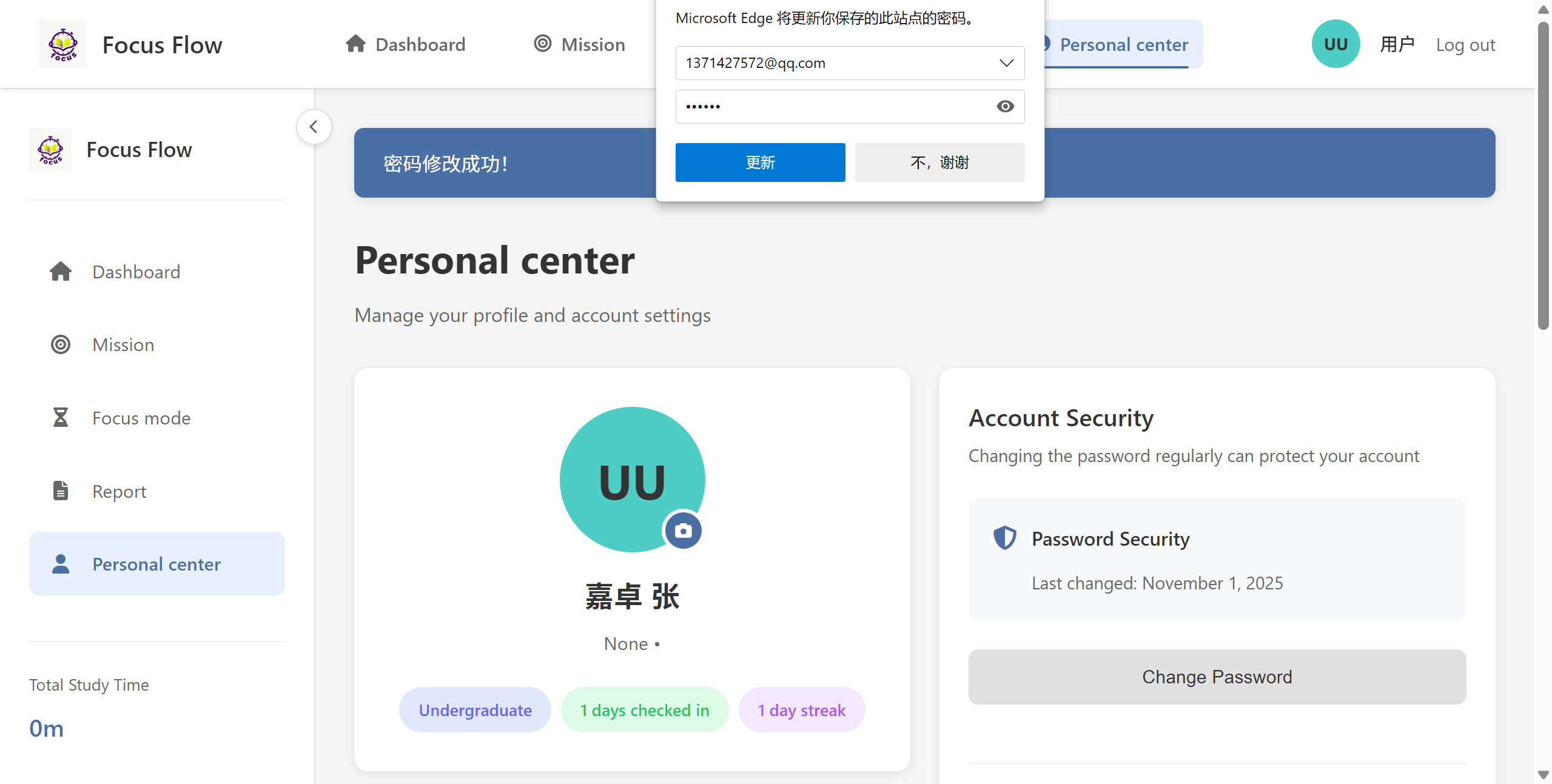

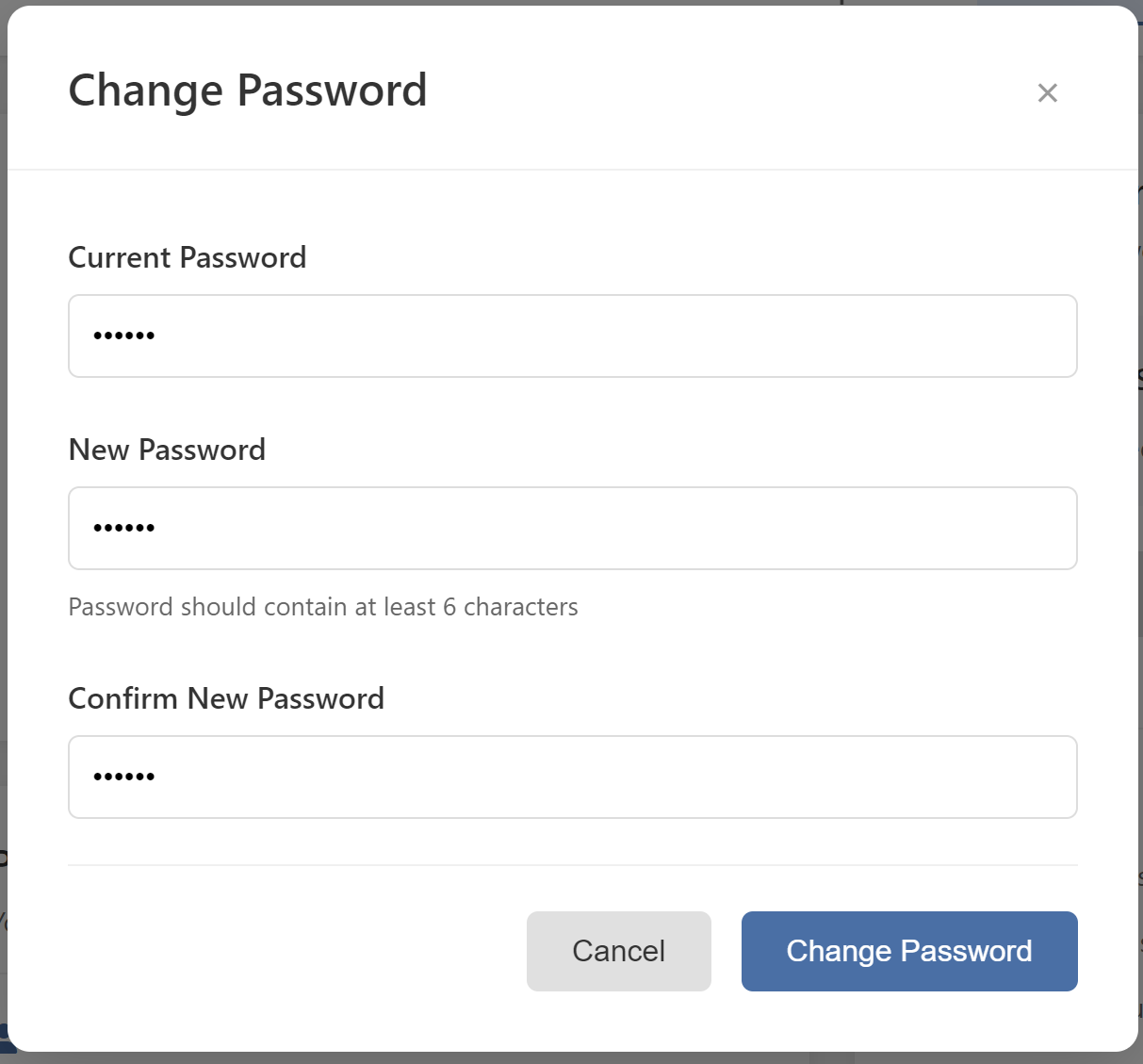

·Password modification functionInstruction:

Click the "Change Password" button to open the password modification panel. To ensure security, the new password must be verified against the current password, and it is also required that the new password be the same as the confirmed password.

3. Code Check-in Records (GitHub Commits)

Explanation: As the person in charge of the "Login and Personal Center" module, I completed the entire development of this module from the front-end interface to the back-end logic. The main code changes were concentrated in the following files, and these changes have been integrated into the main branch of the project.
Core backend logic (app.py): It implements core routing functions such as login(), profile(), update_profile(), and change_password().
Front-end page templates (templates/login.html, templates/profile.html): These templates have constructed the user interaction interface.
Database and Models (models.py, database.py): Supports the storage and validation of user data.
Due to the reasons of the development process and local environment configuration, the detailed commit hashes could not be listed one by one in this report. All the code contributions for this sprint can be viewed and traced through the Commits history page of the project repository.

4. Core code analysis

4.1 Login Verification Logic (app.py)

@app.route('/login', methods=['GET', 'POST'])
def login():
    if request.method == 'POST':
        phone = request.form.get('phone')
        password = request.form.get('password')
        user_captcha = request.form.get('captcha')
        correct_answer = session.get('captcha_answer', '')

        # 1. 验证码校验
        if user_captcha != correct_answer:
            flash(‘Captcha answer WRONG!’)
            return render_template(‘login.html’, ...)

        conn = get_db_connection()
        user = conn.execute(‘SELECT * FROM users WHERE phone = ?’, (phone,)).fetchone()

        # 2. 用户存在性及密码校验 (使用flask_bcrypt)
        if user and bcrypt.check_password_hash(user[‘password’], password):
            session[‘user_id’] = user[‘id’]  # 设置会话
            flash(‘Login SUCCESS!’)
            return redirect(url_for(‘dashboard’))
        else:
            flash(‘User NOT FOUND or Password WRONG!’)
        conn.close()

4.2 Personal Information Update Logic (app.py)

# 示例代码摘录自 app.py 的 update_profile() 路由函数
@app.route(‘/update_profile‘, methods=[’POST‘])
@login_required
def update_profile():
    user_id = session[’user_id‘]
    # 从表单安全获取数据
    first_name = request.form.get(’first_name‘)
    last_name = request.form.get(’last_name‘)
    email = request.form.get(’email‘)
    # ... 获取其他字段

    conn = get_db_connection()
    # 执行数据库更新
    conn.execute(’’‘
        UPDATE users
        SET first_name=?, last_name=?, email=?, ...
        WHERE id=?
    ’’’, (first_name, last_name, email, ..., user_id))
    conn.commit()
    conn.close()
    flash(‘Profile updated successfully!’)
    return redirect(url_for(’profile‘))

5. Sprint Summary

Completed tasks:

Login module: Completed the entire login process both on the front end and the back end, including forms with verification codes, secure password verification (using Bcrypt hashing), session management, and friendly prompts. Personal Center Module: It has realized a complete set of functions including displaying personal homepage information, visualizing the sign-in calendar, editing personal information, and modifying the password (requiring verification of the original password). Issue Resolution: The problem of ModuleNotFoundError that occurred during project startup due to the absence of the utils.helpers module has been resolved. A temporary solution was implemented to ensure the project's operability, facilitating team testing.

Problems Encountered and Solutions:

Problems:

1. During the initial startup, the errors "ModuleNotFoundError: No module named 'flask_bcrypt'" and "ModuleNotFoundError: No module named 'utils.helpers'" occurred.

Solution:

1. Install the missing dependency package by using the command "pip install flask-bcrypt bcrypt".
2. Upon inspection, it was found that the project code was incomplete, lacking the utils/helpers.py file. To avoid disrupting the development process, the relevant import lines were temporarily commented out in app.py, and the avatar generation logic was hardcoded to ensure that the core functions (login, personal center) could be demonstrated and tested. This issue has been reported to the team and will be supplemented with the complete file in the future.
