First Assignment: xxr Calculator — A Front-End and Back-End Separation Calculator System

Item	Description
Course	Software Engineering
Assignment	Front-End and Back-End Separation Calculator System
Objective	Build a calculator with HTTP APIs, secure server-side calculation, and persistent history storage
Assignment reference	First Assignment — Front-End and Back-End Separation Calculator System

Table of Contents

• GitHub Repositories and Code Standards
• PSP Table
• Assignment Description and Requirement Analysis
• Finished Product and Test Evidence
• Design and Implementation Process
• Key Code Explanation
• Personal Journey and Learnings

GitHub Repositories and Code Standards

• Front-end repository: xxr-calculator-frontend
• Back-end repository: xxr-calculator-backend
• Front-end code standard: frontend/codestyle.md
• Back-end code standard: backend/codestyle.md

The front end uses plain HTML, CSS, and JavaScript. Its coding style is based on the Google JavaScript Style Guide. The back end uses Python and follows PEP 8. Both repositories contain a README.md and a codestyle.md file.

PSP Table

PSP Stage	Estimated Time (minutes)	Actual Time (minutes)
Reading the assignment and requirement analysis	45	40
Architecture, API, and database design	60	60
Front-end refactoring	120	80
Back-end calculator module	150	120
SQLite history module	60	80
Front-end and back-end integration	90	90
Testing and bug fixing	90	70
Deployment	60	50
Blog writing and screenshot preparation	120	110
Total	875	700

Assignment Description and Requirement Analysis

This assignment requires a calculator system based on a front-end and back-end separation architecture. The front end is responsible for user input, button interaction, result display, and history display. The back end is responsible for expression validation, expression parsing, calculation, exception handling, and database operations. The two parts communicate through HTTP JSON APIs.

I reused the visual identity of my previous xxr Calculator, including its star-character theme, and refactored the required core features into a separated architecture. The browser sends the original expression to the server. The server calculates the result, stores the expression, result, and creation time in SQLite, and returns a JSON response. Therefore, the browser cannot generate a new valid calculation result when the back-end service is unavailable.

The required functions implemented in this project are:

1. Addition, subtraction, multiplication, and division.
2. Compound expressions with operator precedence, parentheses, decimal numbers, and unary plus or minus.
3. Error feedback for invalid expressions and division by zero.
4. Persistent calculation history in a back-end SQLite database.
5. History retrieval from the back end.
6. Deletion of one selected history record by ID.

The star-character theme is an interface enhancement inherited from xxr Calculator. It improves recognition and does not replace the required back-end implementation.

Finished Product and Test Evidence

Front-end deployment URL: https://2310209788-del.github.io/xxr-calculator-frontend/

Back-end deployment URL: https://shixunguo.pythonanywhere.com/api/history

The following screenshots must be captured from the final deployed version. Upload each image through the CSDN editor, replace IMAGE_URL with the inserted image URL, and retain the caption in the alt text. This set provides 12 pieces of evidence, exceeding the assignment minimum of 10.

Test Cases and Results

Test ID	Input or Operation	Expected Result	Actual Result
T01	12 + 8	20	Passed
T02	1 + 2 * 3	7	Passed
T03	(1 + 2) * 3	9	Passed
T04	-5 + 8	3	Passed
T05	10 / 4	2.5	Passed
T06	1 / 0	A division-by-zero error message	Passed
T07	1 +	An invalid-expression error message	Passed
T08	Refresh the history page	Records are loaded from the back-end database	Passed
T09	Delete one selected record	Only the selected record is deleted	Passed

Problems and Solutions

The first challenge was ensuring that the browser did not calculate the final result. I solved this by sending the original expression to POST /api/calculate and displaying only the JSON result returned by the server.

The second challenge was evaluating expressions safely. Instead of using eval, the back end uses a recursive-descent parser. This supports operator precedence, parentheses, decimal numbers, unary signs, and error handling without executing user input as code.

The third challenge was deployment. The front end was deployed on GitHub Pages, while the Python API was deployed on PythonAnywhere with a WSGI entry point. Cross-origin requests are supported through CORS response headers.

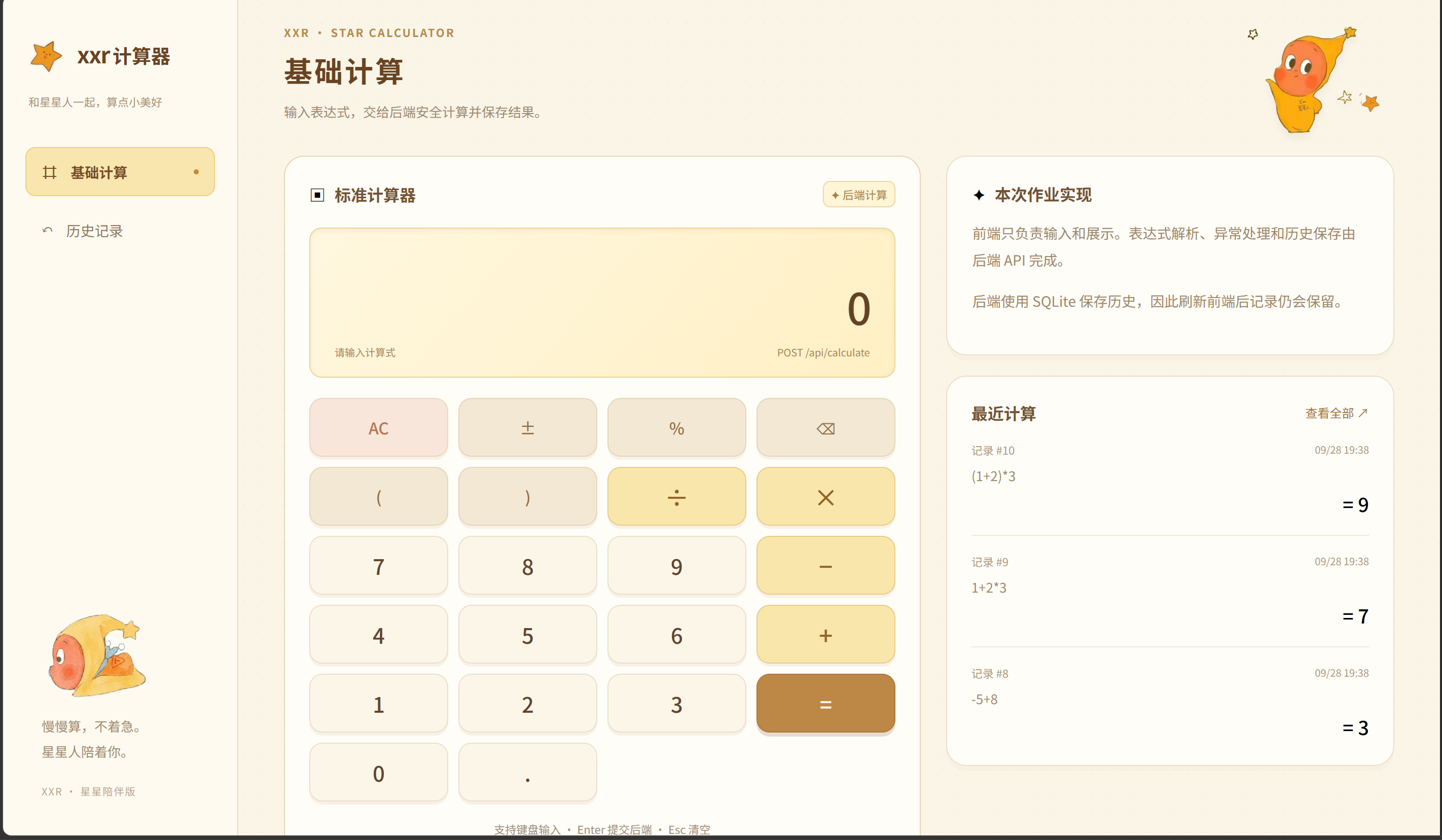

Figure 1 — Home page

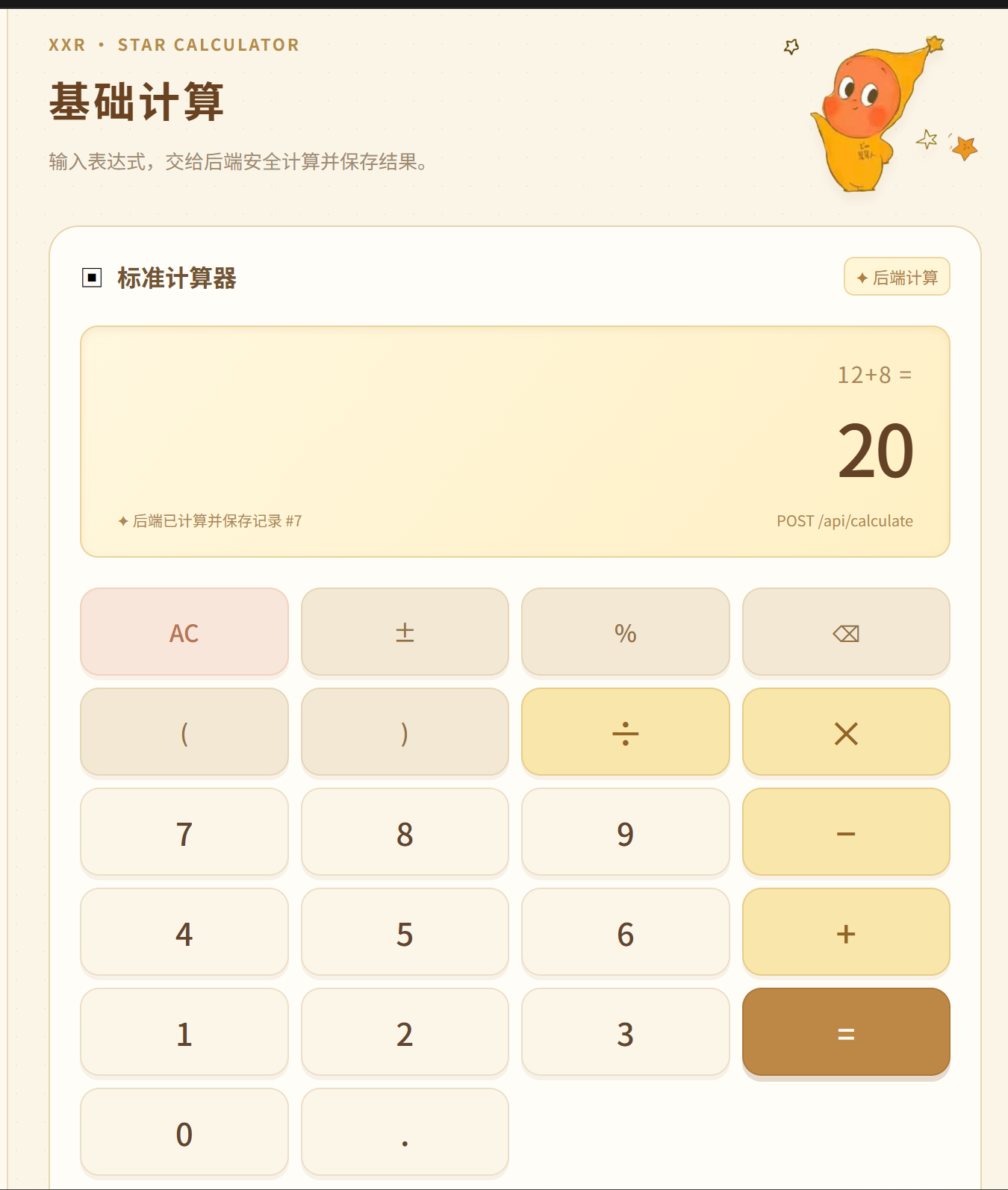

Figure 2 — Addition

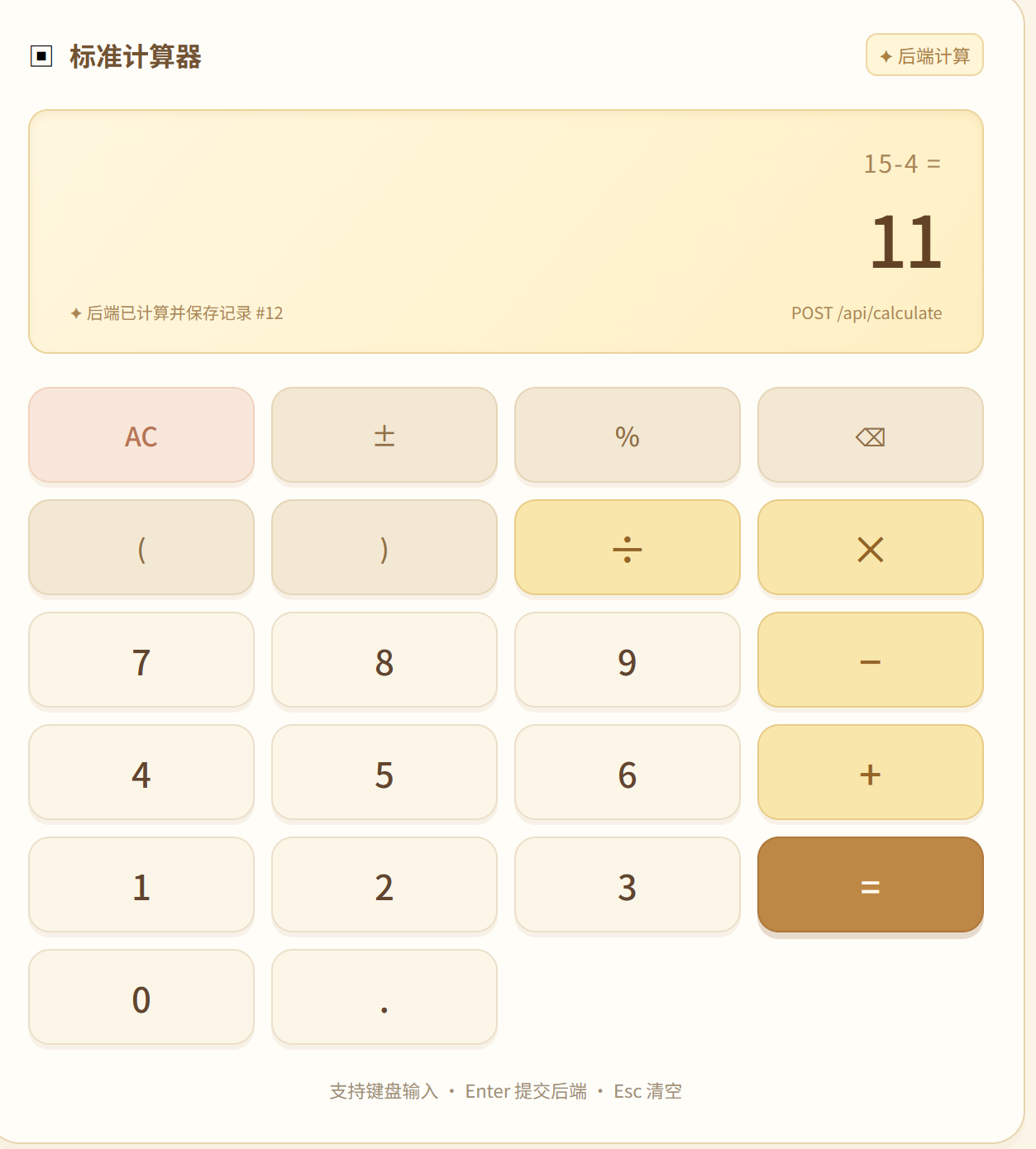

Figure 3 — Subtraction

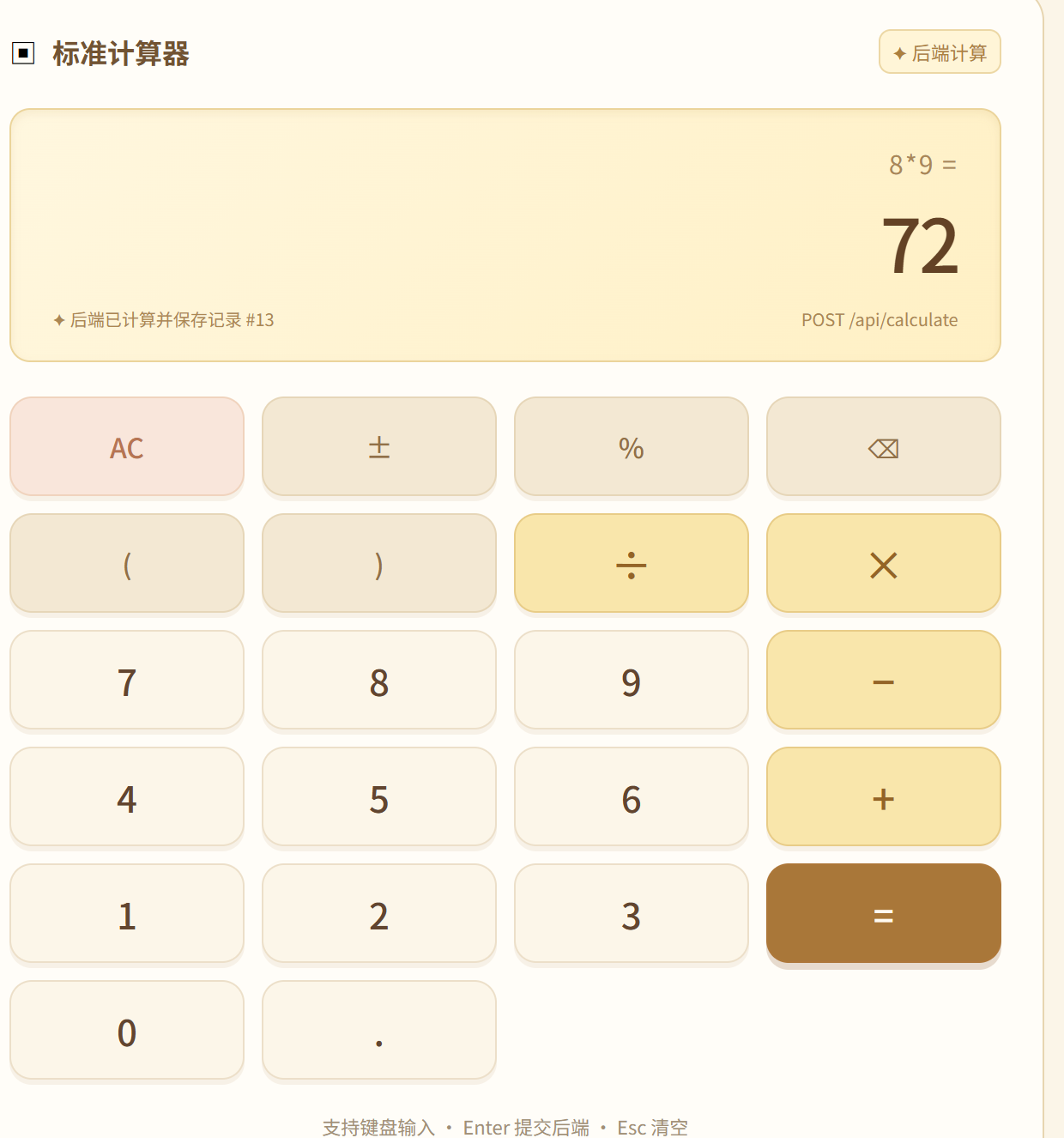

Figure 4 — Multiplication

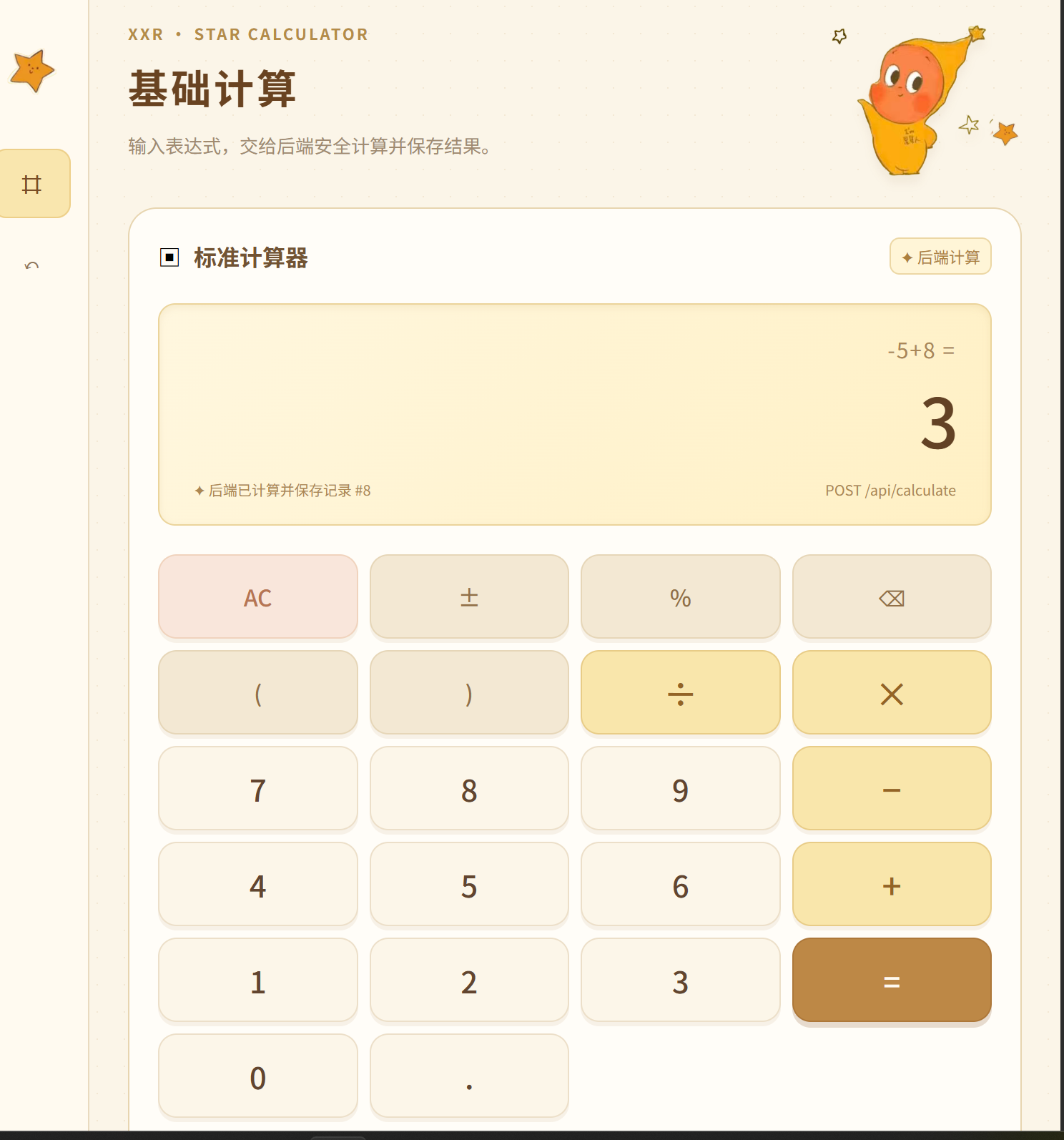

Figure 5 — Unary sign

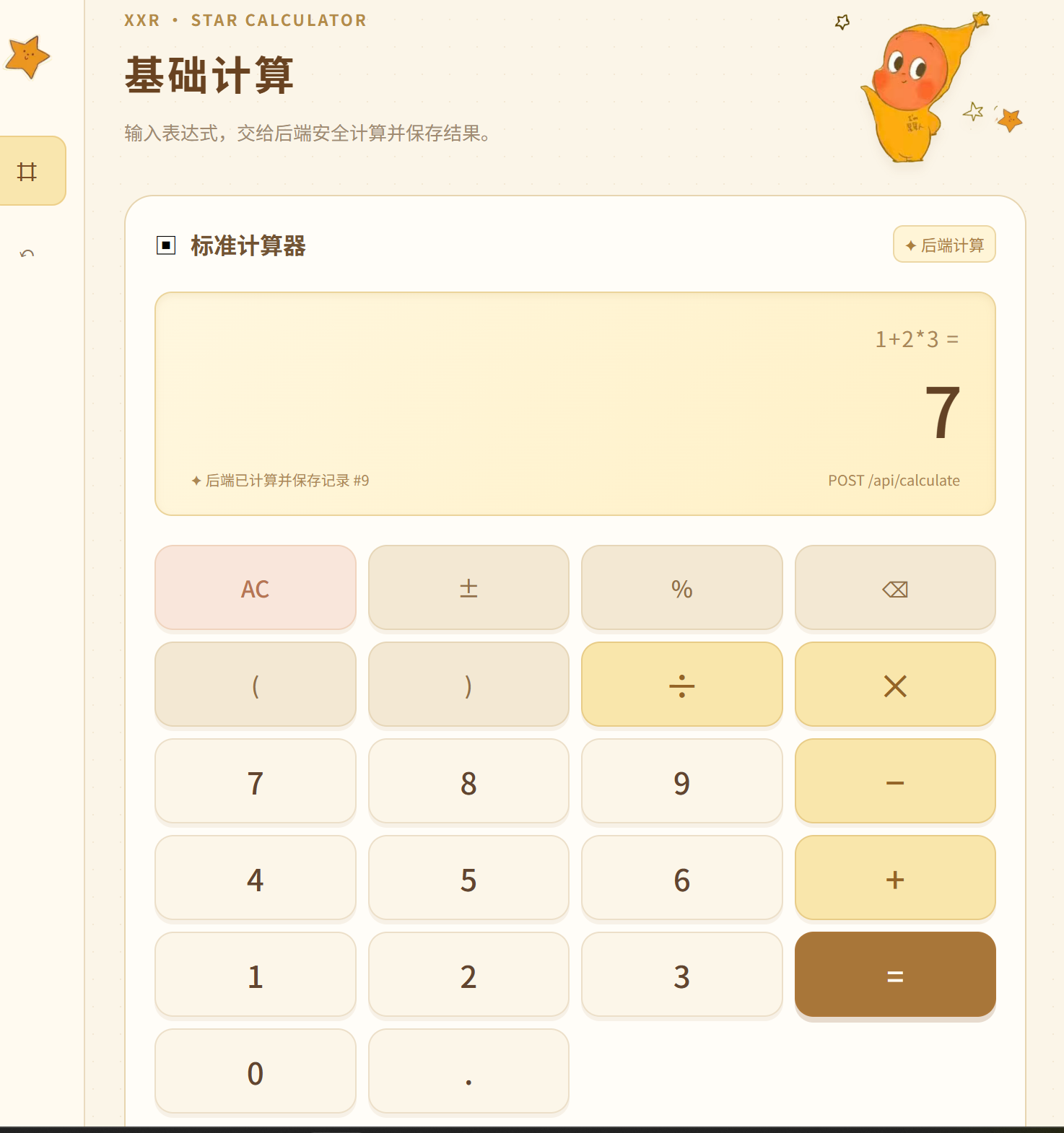

Figure 6 — Operator precedence

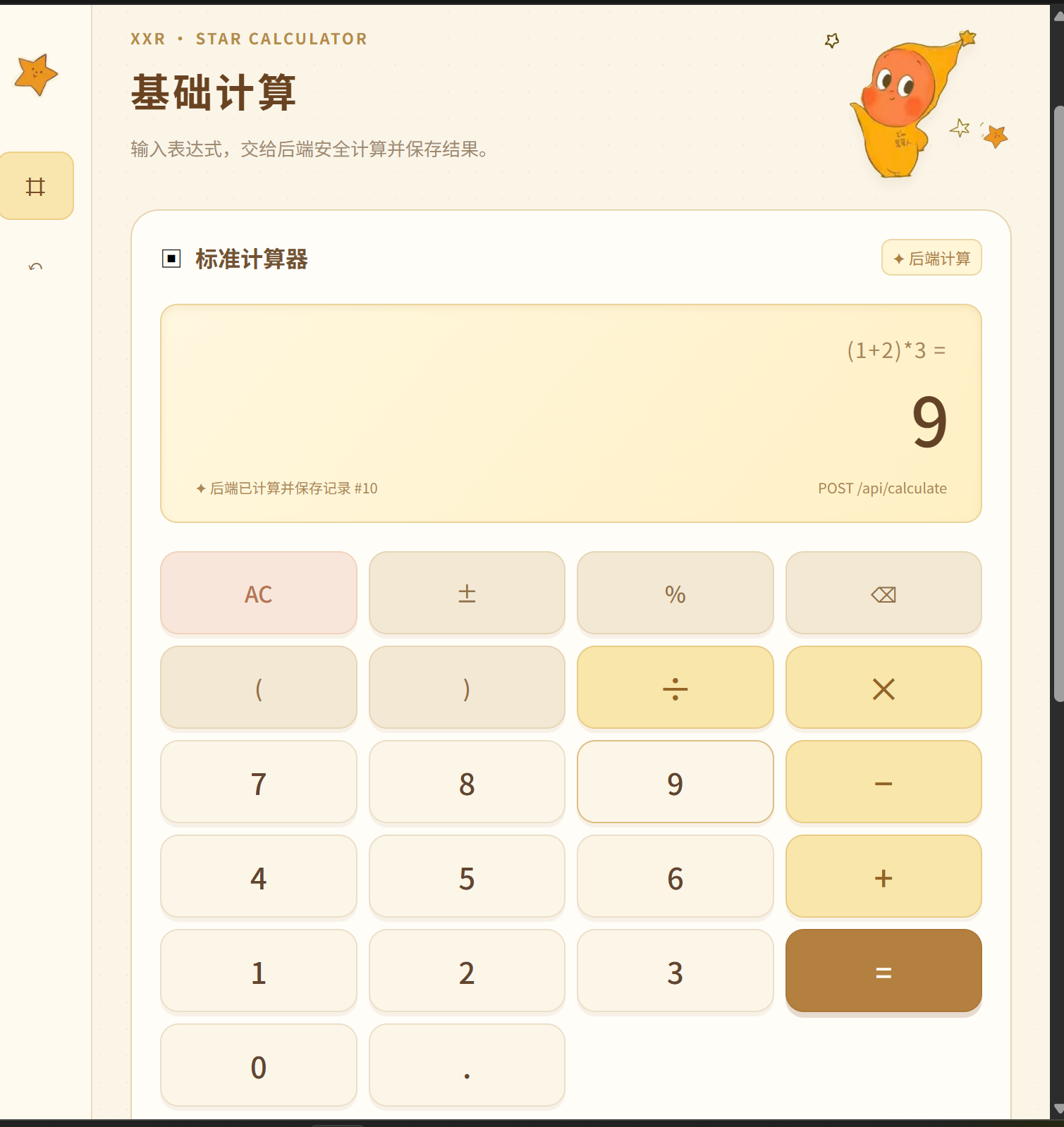

Figure 7 — Parentheses

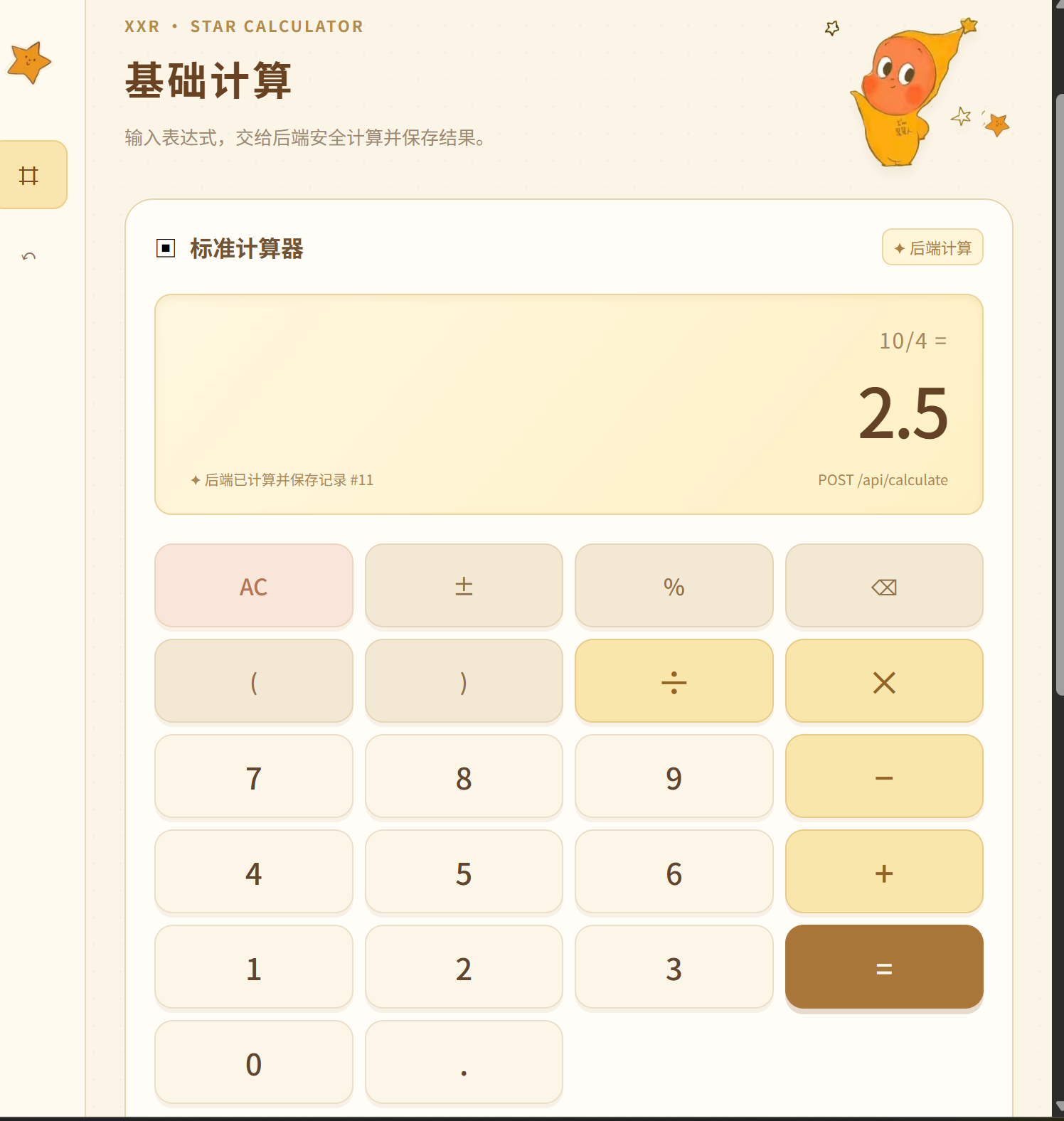

Figure 8 — Decimal division

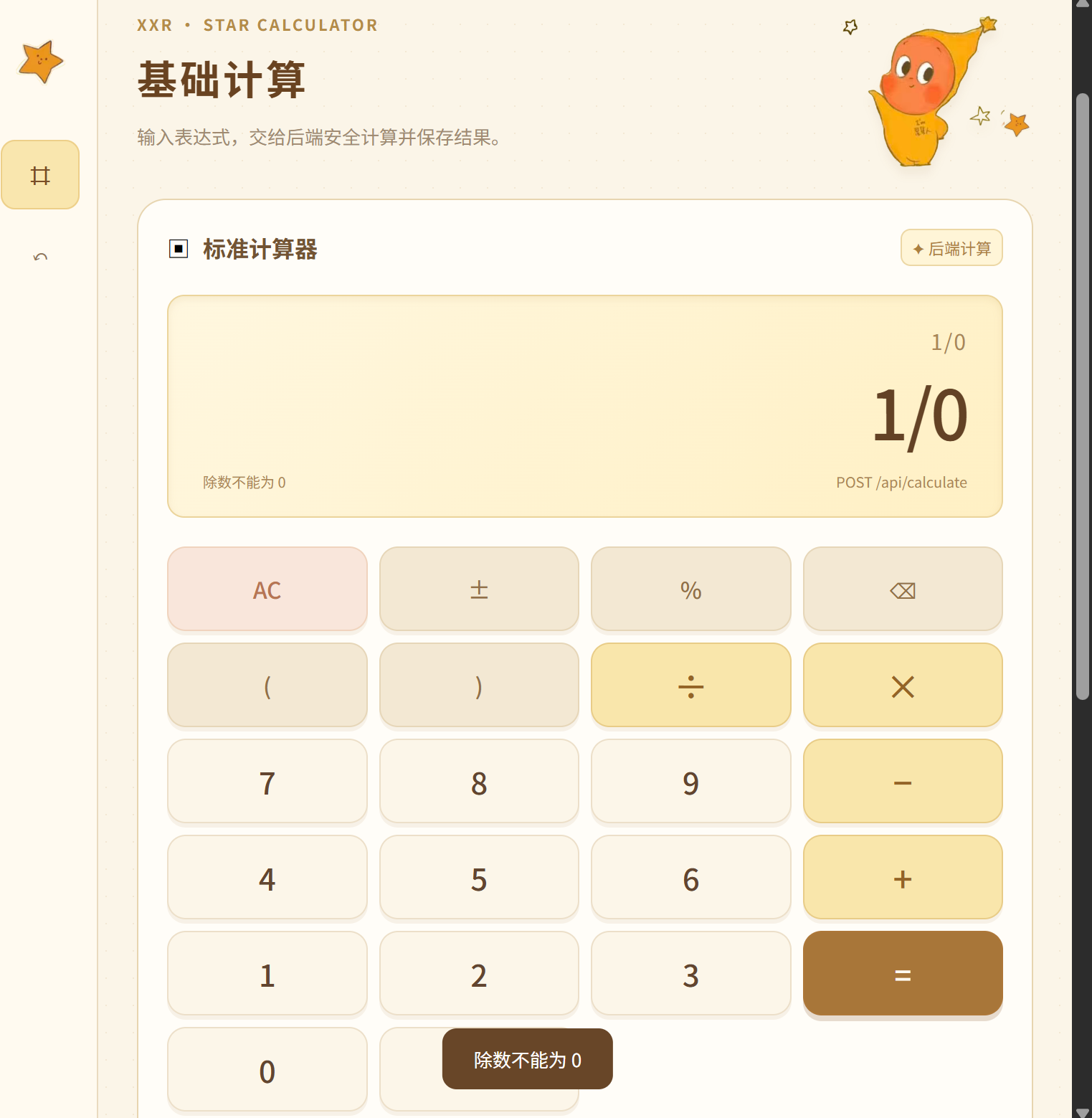

Figure 9 — Division-by-zero validation

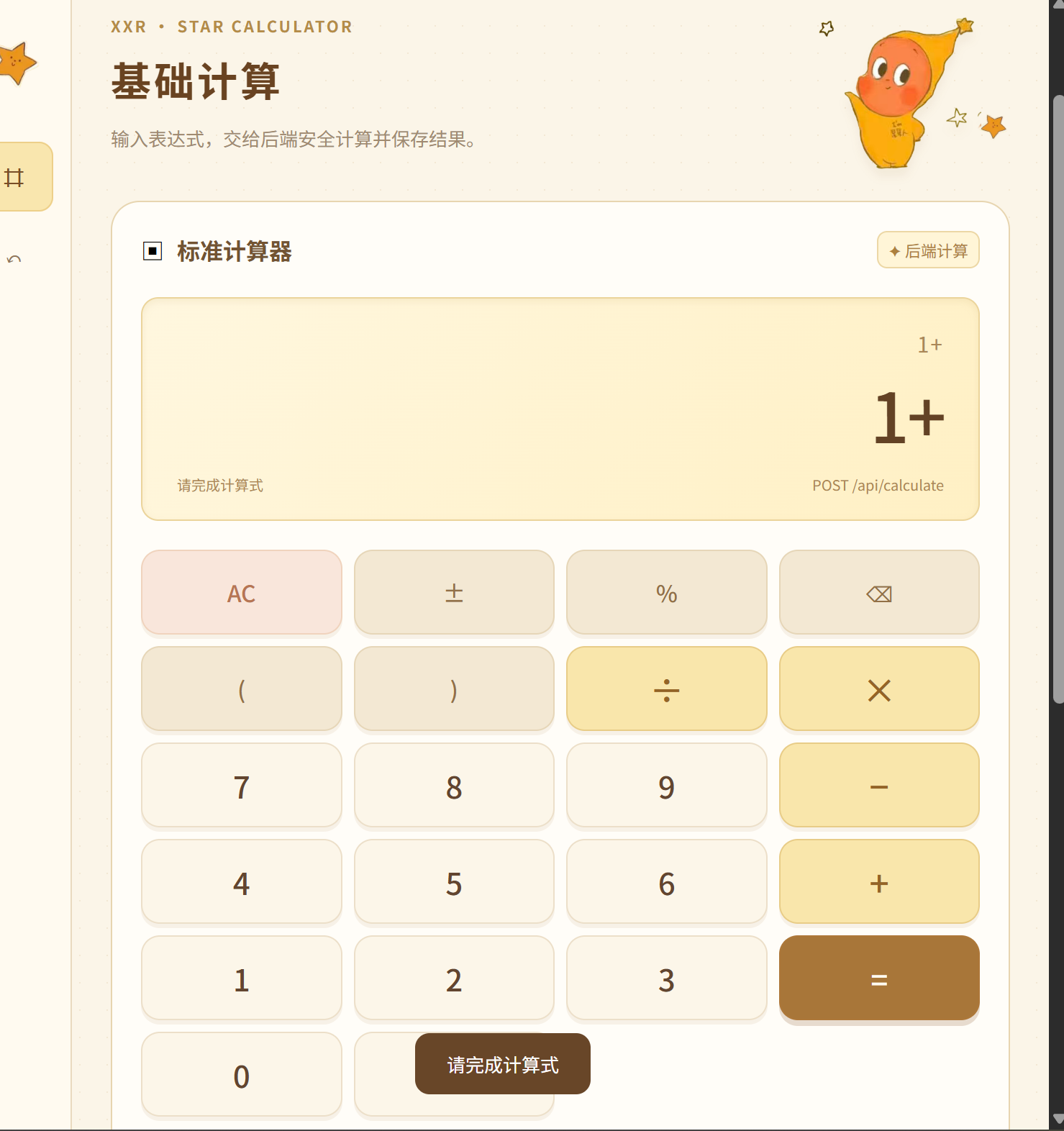

Figure 10 — Invalid-expression validation

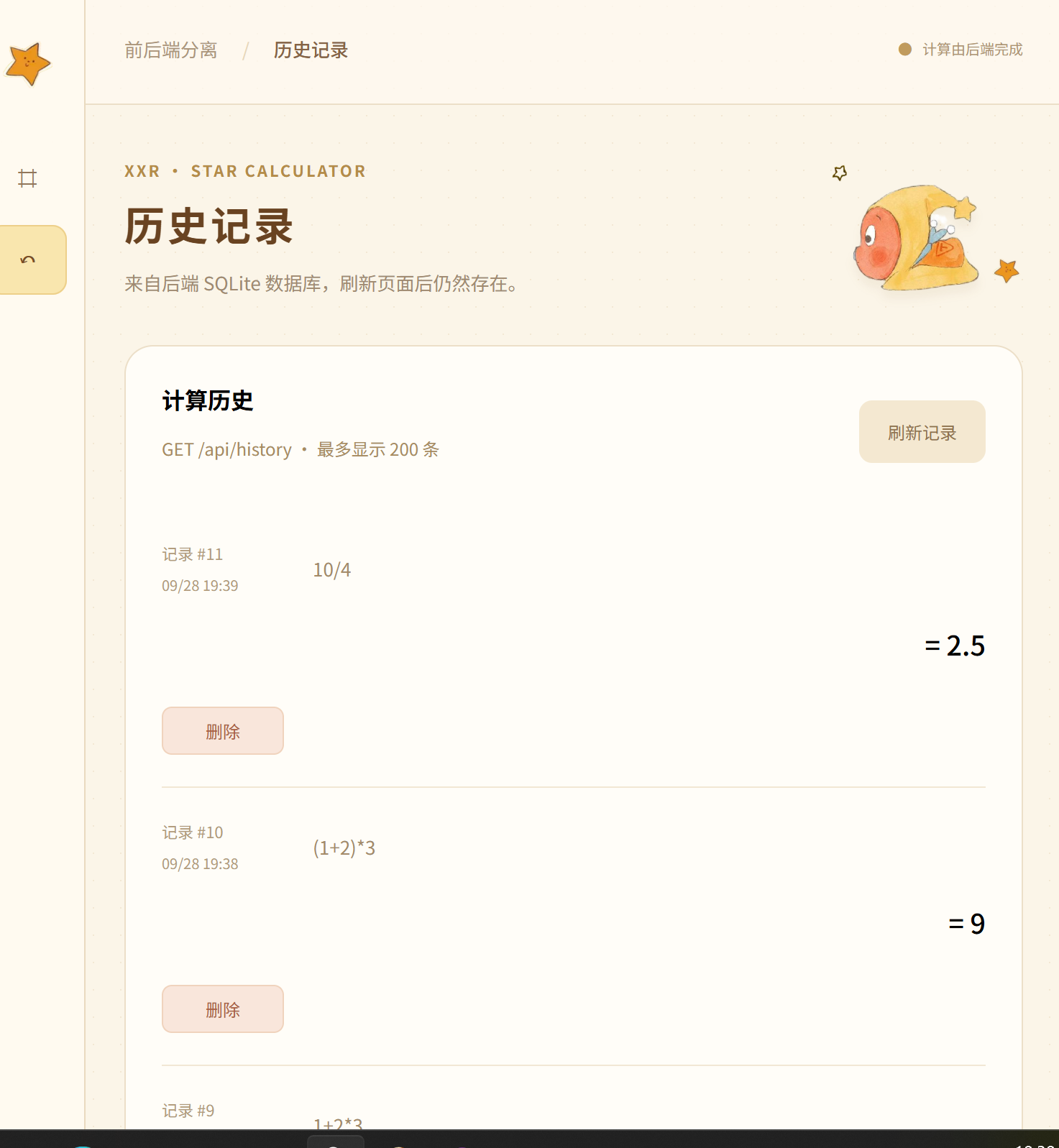

Figure 11 — Database-backed history

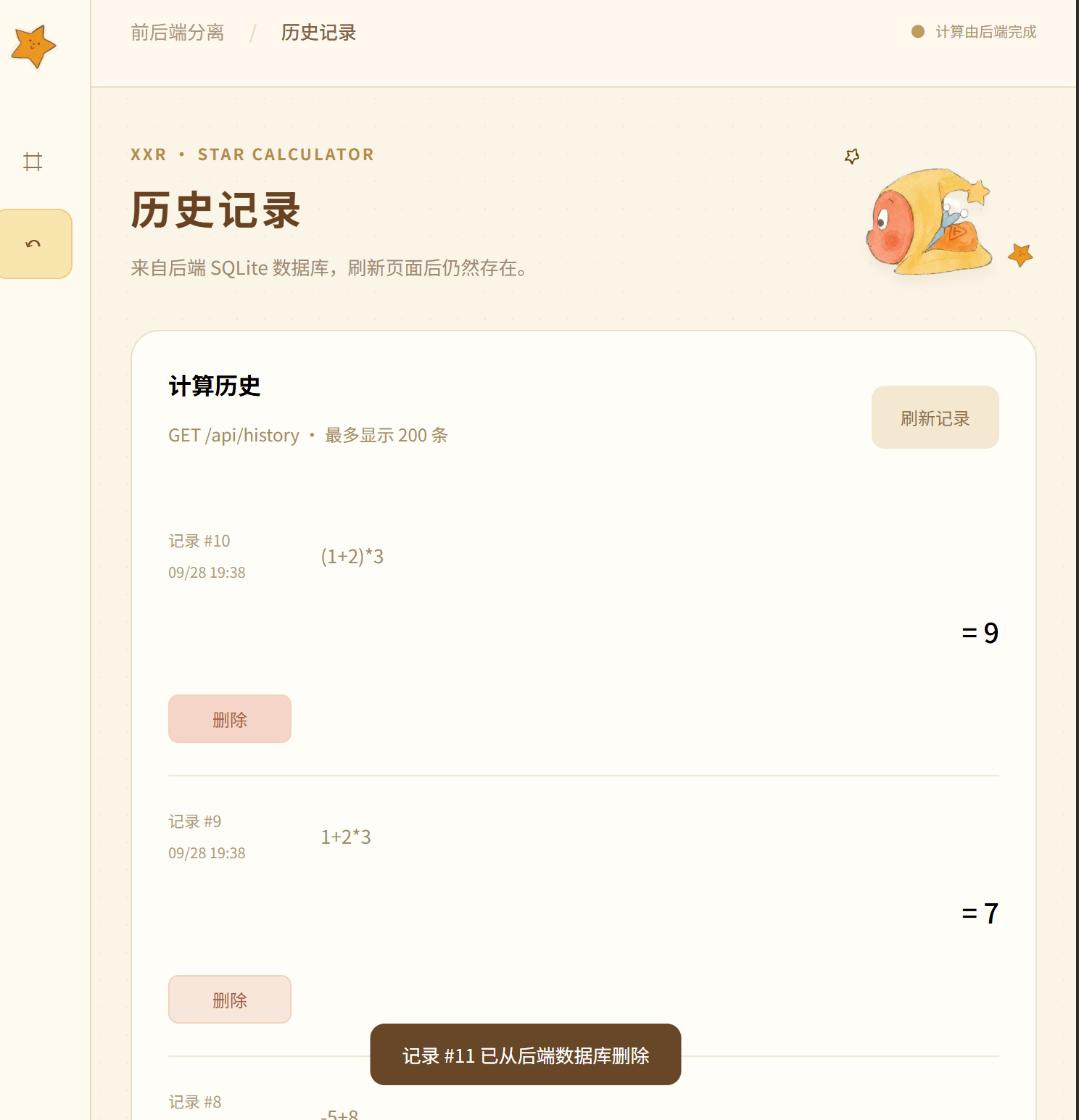

Figure 12 — Delete a specified history record

Figure 13 — Persistence after restart

Figure 14 — HTTP JSON evidence

The browser accesses:

https://shixunguo.pythonanywhere.com/

Figure 14 is particularly important: it directly supports the claim that the browser requests a server-side calculation instead of calculating the final result itself.

Design and Implementation Process

Overall Architecture

xxr Calculator Front End
  ├─ Expression input and button interaction
  ├─ fetch requests and result display
  └─ History page
          │ HTTP / JSON
          ▼
Python Back-End API
  ├─ Input validation
  ├─ Recursive-descent expression parser
  ├─ Error handling
  └─ SQLite read and write operations
          │
          ▼
calculation_history table

Functional Structure

xxr Calculator
├─ Basic Calculation
│  ├─ Expression Input
│  ├─ Server-Side Calculation
│  ├─ Operator Precedence and Parentheses
│  └─ Error Messages
├─ Calculation History
│  ├─ Database Persistence
│  ├─ History Query
│  └─ Delete One Record
└─ Star-Character Theme

Front-End Design

The front end consists of index.html, style.css, and app.js. It does not evaluate mathematical expressions locally. When the user presses the equals button, the browser sends the original expression to the API. It only displays the result returned by the server.

The request function centralizes HTTP requests and handles network failures, invalid JSON, and server-side error responses. The history page loads data from the back end rather than browser cache or localStorage.

Back-End and API Design

Method	Path	Request or Response	Responsibility
POST	/api/calculate	{ "expression": "(1+2)*3" }	Calculate and save a history record
GET	/api/history	Returns an items array	Retrieve the latest 200 records
DELETE	/api/history/{id}	204 No Content	Delete one record by ID

Successful calculation response:

{
  "success": true,
  "id": 12,
  "expression": "(1+2)*3",
  "result": "9",
  "createdAt": "2026-10-01T10:20:00+08:00"
}

Invalid input response:

{
  "success": false,
  "message": "Division by zero is not allowed"
}

Database Design

The SQLite table is named calculation_history.

Field	Type	Description
id	INTEGER	Auto-increment primary key used for deleting one record
expression	TEXT	The original expression entered by the user
result	TEXT	The result calculated by the back end
created_at	TEXT	Creation time in ISO 8601 format

The database file is initialized automatically when the back end starts for the first time. The database file is excluded from Git because it contains local test data, not source code.

Expression Parsing and Error Handling

The back end does not use eval, exec, or any mechanism that executes user input as code. Instead, it uses a recursive-descent parser. The parser separates the grammar into three levels:

• sum handles addition and subtraction.
• product handles multiplication and division, so it has higher precedence than addition and subtraction.
• primary handles numbers, parentheses, and unary plus or minus.

The parser accepts only numbers, + - * /, parentheses, decimal points, and scientific notation. It rejects unsupported characters. It also returns an HTTP 400 response for division by zero, mismatched parentheses, incomplete expressions, and non-finite results.

Front-End and Back-End Interaction Flow

1. The user enters (1+2)*3 and presses the equals button.
2. The front end sends POST /api/calculate.
3. The back end validates and parses the expression, then calculates 9.
4. The back end inserts the expression, result, and time into SQLite.
5. The back end returns a JSON response.
6. The front end displays the returned result and refreshes the recent history area.
7. The history page uses GET /api/history. Deleting a record uses DELETE /api/history/{id}, followed by a new history request.

Deployment Instructions

The front end is deployed with GitHub Pages from the main branch and the repository root. Its public URL is https://2310209788-del.github.io/xxr-calculator-frontend/.

The back end is deployed on PythonAnywhere. The project was cloned with the following command in a Bash console:

git clone https://github.com/2310209788-del/xxr-calculator-backend.git

The PythonAnywhere WSGI configuration imports application from wsgi.py, and the service is reloaded after each code update. Its history API is publicly available at https://shixunguo.pythonanywhere.com/api/history.

The front-end config.js sets window.XXR_API_BASE_URL to https://shixunguo.pythonanywhere.com, so all calculations and history requests use the public back-end API.

Key Code Explanation

The Front End Sends the Expression

const data = await request('/api/calculate', {
  method: 'POST',
  body: JSON.stringify({ expression: original }),
});
expression = data.result;

The front end sends original, which is the expression entered by the user, rather than a locally calculated result. It updates the display only with data.result returned by the back end.

Safe Server-Side Parsing

result = format_number(ExpressionParser(expression).parse())

ExpressionParser processes the expression according to the defined grammar instead of sending the string to the Python interpreter. This design satisfies both the precedence requirement and the security requirement.

Parameterized Database Insertion

connection.execute(
    "INSERT INTO calculation_history(expression, result, created_at) VALUES (?, ?, ?)",
    (expression, result, created_at),
)

Parameterized SQL prevents user input from being concatenated into SQL statements directly.

Deleting One History Record

cursor = connection.execute(
    "DELETE FROM calculation_history WHERE id = ?", (history_id,)
)

The front end sends the selected record ID. The back end deletes the database row and the front end reloads the current history list. Therefore, the displayed state always follows the database state.

Personal Journey and Learnings

This assignment helped me understand that front-end and back-end separation is more than placing browser code and server code in different folders. The business boundary must also be clear: the front end manages interaction, while the back end performs trusted calculation and stores persistent data. If the browser calculates a result before sending it to the server, the project does not satisfy the core requirement of this assignment.

The most important technical challenge was safe expression parsing. I chose a recursive-descent parser instead of eval, so the system can handle precedence, parentheses, unary signs, and division-by-zero errors without executing arbitrary user input. I also learned the difference between browser storage and database persistence. localStorage may be useful for user interface preferences, but it cannot replace a back-end database for calculation history.

In the future, I plan to migrate the unit conversion, BMI calculation, base conversion, and exchange-rate functions from the original xxr Calculator into back-end APIs. I would also add pagination, search, and individual user histories while keeping the same separation between presentation and core business logic.
