分享delphi 网络摄像机--问题
var
error:integer;
deviceinfo:H264_DVR_DEVICEINFO;
begin
loginID :=
H264_DVR_Login('192.168.1.10',34567,'admin','',deviceinfo,@error,TCPSOCKET);
if (LoginID <> 0) Then
begin
ShowMessage('Login Succes loginID = ' + inttostr(LoginID));
end
else
begin
ShowMessage('Login Fail errorcode = ' + inttostr(error));
end;
其中：
H264_DVR_DEVICEINFO = record
sSoftWareVersion:array[0..63] of Char;
sHardWareVersion:array[0..63] of Char;
sEncryptVersion:array[0..63] of Char;
SDK_SYSTEM_TIME:SDK_SYSTEM_TIME;
sSerialNumber:array[0..63] of Char;
byChanNum,
iVideoOutChannel,
byAlarmInPortNum,
byAlarmOutPortNum,iTalkInChannel,
iTalkOutChannel,iExtraChannel,
iAudioInChannel,iCombineSwitch,
iDigChannel:Integer;
uiDeviceRunTime:Word;
deviceTye:SDK_DeviceType;
sHardWare:array[0..63] of Char;
end;
登录函数 H264_DVR_Login返回的值不对，请各位大侠指教，谢谢！
error:integer;
deviceinfo:H264_DVR_DEVICEINFO;
begin
loginID :=
H264_DVR_Login('192.168.1.10',34567,'admin','',deviceinfo,@error,TCPSOCKET);
if (LoginID <> 0) Then
begin
ShowMessage('Login Succes loginID = ' + inttostr(LoginID));
end
else
begin
ShowMessage('Login Fail errorcode = ' + inttostr(error));
end;
其中：
H264_DVR_DEVICEINFO = record
sSoftWareVersion:array[0..63] of Char;
sHardWareVersion:array[0..63] of Char;
sEncryptVersion:array[0..63] of Char;
SDK_SYSTEM_TIME:SDK_SYSTEM_TIME;
sSerialNumber:array[0..63] of Char;
byChanNum,
iVideoOutChannel,
byAlarmInPortNum,
byAlarmOutPortNum,iTalkInChannel,
iTalkOutChannel,iExtraChannel,
iAudioInChannel,iCombineSwitch,
iDigChannel:Integer;
uiDeviceRunTime:Word;
deviceTye:SDK_DeviceType;
sHardWare:array[0..63] of Char;
end;
登录函数 H264_DVR_Login返回的值不对，请各位大侠指教，谢谢！
...全文
请发表友善的回复…
发表回复
果然厉害 2013-10-23
- 打赏
- 举报
播放不出来我曾经遇到过一次，自己犯了一个低级错误，没把264的库放进去。你把所有库都放到程序目录下看看行不行。
yunankuangke 2013-10-02
- 打赏
- 举报
哥们，我想要的是，登录、播放以及抓图部分的C++转DELPHI代码。
我的邮箱是：yunankuangke@163.com
老冯 2013-09-30
- 打赏
- 举报
刚刚做完2个项目 设备是拓普威视的 流程和上面几位说的一样 DEMO也是C++的 没有DELPHI 我自己转换过来 注意两点 1、回调函数 2、设置一个时钟（或子线程）调用心跳函数 具体代码如下：
库函数（由C++转换）
unit NetPlay.System.NetPlayLibrary;
interface
const
PROTOCOL_TCP = 1;
PROTOCOL_UDP = 2;
PLAY_NETSTREAM_TYPE = 2; //网络实时流
type
Tmsg_time_t = RECORD
YEAR: INTEGER;
MONTH: INTEGER;
DAY: INTEGER;
HOUR: INTEGER;
MINUTE: INTEGER;
SECOND: INTEGER;
END;
pTmsg_time_t = ^Tmsg_time_t;
TCHANNEL_STREAM_CALLBACK = function(pserver_ip: pchar; channel: longint; buf: pointer; len: longint; pcontext: pointer): longint;
function Net_setSystemTime(user_id: longint; tm: Tmsg_time_t): longint; stdcall;
far;external 'NetSdk.dll' name 'Net_setSystemTime';
function Net_initClientNetLib: longint; stdcall;
far;external 'NetSdk.dll' name 'Net_initClientNetLib';
function Net_deinitClientNetLib: longint; stdcall;
far;external 'NetSdk.dll' name 'Net_deinitClientNetLib';
function Net_initServerInfo(ip_addr: string; port: Integer; user_name: string; user_pwd: string):longint; stdcall;
far;external 'NetSdk.dll' name 'Net_initServerInfo';
function Net_deinitServerInfo(user_id: longint): longint; stdcall;
far;external 'NetSdk.dll' name 'Net_deinitServerInfo';
function Net_openChannelStream(user_id: longint; channel: longint; protocol_type: longint; rt: longint): longint; stdcall;
far;external 'NetSdk.dll' name 'Net_openChannelStream';
function Net_startChannelStream(user_id: longint; channel: longint; stream_type: longint): longint; stdcall;
far;external 'NetSdk.dll' name 'Net_startChannelStream';
function Net_userLogin(user_id: longint): longint; stdcall;
far;external 'NetSdk.dll' name 'Net_userLogin';
function Net_getHeartbeatStatus(user_id: longint): longint; stdcall;
far;external 'NetSdk.dll' name 'Net_getHeartbeatStatus';
function Net_registerChannelStreamCallback(user_id: longint; channel: longint; callback: TCHANNEL_STREAM_CALLBACK; handle: pointer): longint; stdcall;
far;external 'NetSdk.dll' name 'Net_registerChannelStreamCallback';
function Player_createPlayInstance(play_type: longint): longint; stdcall;
far;external 'playerSDK.dll' name 'Player_createPlayInstance';
function Player_setPlayWnd(play_id: longint; Handle: longint): longint; stdcall;
far;external 'playerSDK.dll' name 'Player_setPlayWnd';
function Player_startPlay(play_id: longint): longint; stdcall;
far;external 'playerSDK.dll' name 'Player_startPlay';
function Player_openSound(play_id: longint): longint; stdcall;
far;external 'playerSDK.dll' name 'Player_openSound';
function Player_inputNetFrame(play_id: longint; buf: pointer; size: longint): longint; stdcall;
far;external 'playerSDK.dll' name 'Player_inputNetFrame';
function Player_capturePicture(play_id: longint; filename: pchar): longint; stdcall;
far;external 'playerSDK.dll' name 'Player_capturePicture';
implementation
end.
应用代码
unit NetPlay.View.RealCaptureView;
interface
uses
Windows, Messages, SysUtils, Variants, Classes, Graphics, Controls, Forms,
Dialogs, RzButton, ExtCtrls, NetPlay.System.NetPlayLibrary;
type
TRealCaptureView = class(TForm)
PnlStreamPlay: TPanel;
ButtonCapture: TRzButton;
TimerHeartBeat: TTimer;
procedure TimerHeartBeatTimer(Sender: TObject);
procedure ButtonCaptureClick(Sender: TObject);
private
User_ID: LongInt;
Play_ID: LongInt;
Channel: LongInt;
FState: Integer;
procedure NetStreamPlay;
public
property State: Integer read FState write FState;
procedure SetNetPlayTime;
procedure AfterConstruction; override;
end;
function Data_CallBack(PServer_IP: PChar; Channel: Integer; Buf: Pointer; Len: longint; PContext: Pointer): LongInt; stdcall;
var
RealCaptureView: TRealCaptureView;
CallBack: TCHANNEL_STREAM_CALLBACK;
implementation
uses ....;//无参考价值
{$R *.dfm}
{ TRealCaptureView }
function Data_CallBack(PServer_IP: PChar; Channel: Integer; Buf: pointer; Len: longint; PContext: pointer): LongInt; stdcall;
begin
Player_inputNetFrame(RealCaptureView.Play_ID, PChar(Buf), Len);
Result := 0;
end;
procedure TRealCaptureView.AfterConstruction;
begin
inherited;
Channel := 0;
@CallBack := @Data_CallBack;
NetStreamPlay;
end;
procedure TRealCaptureView.NetStreamPlay;
var
Return: Integer;
begin
User_ID := Net_initServerInfo(GetServerIP, GetServerPort, GetServerUser, GetServerPassword);
if User_ID = 0 then
begin
MainView.StatusNetPlayConnect.Caption := '网络视频初始化失败';
end else
begin
MainView.StatusNetPlayConnect.Caption := '网络视频初始化成功';
end;
Return := Net_userLogin(User_ID);
if Return <> 0 then
begin
MainView.StatusNetPlayConnect.Caption := '网络视频登录失败';
end else
begin
MainView.StatusNetPlayConnect.Caption := '网络视频登录成功';
end;
--心跳时钟
TimerHeartBeat.Enabled := True;
--流程1
Play_ID := Player_createPlayInstance(PLAY_NETSTREAM_TYPE);
Player_setPlayWnd(Play_ID, PnlStreamPlay.Handle);
Player_startPlay(Play_ID);
--流程2
Net_openChannelStream(User_ID, Channel, PROTOCOL_TCP, 0);
Net_startChannelStream(User_ID, Channel, 0);
--流程3
Net_registerChannelStreamCallback(User_ID, Channel, CallBack, nil);
end;
procedure TRealCaptureView.SetNetPlayTime;
var
rtime: tmsg_time_t;
begin
rtime.YEAR := YearOf(Now);
rtime.MONTH := MonthOf(Now);
rtime.DAY := DayOf(Now);
rtime.HOUR := HourOf(Now);
rtime.MINUTE := MinuteOf(Now);
rtime.SECOND := SecondOf(Now);
if User_ID > 0 then
begin
Net_setSystemTime(user_id, rtime);
end;
end;
procedure TRealCaptureView.ButtonCaptureClick(Sender: TObject);
begin
//抓拍图片代码 无参考价值
end;
procedure TRealCaptureView.TimerHeartBeatTimer(Sender: TObject);
begin
Net_getHeartbeatStatus(User_ID);
end;
end.
孤独de猫 2013-09-26
- 打赏
- 举报
你用的Delphi是什么版本？注意C++的类型 与Delphi的类型有所不同，具体请参考“万一博客”的类型表。你用的是哪家的设备？海康？大华？还是其他？登录函数，返回的值，可以参考SDK，一般情况下是按照1，2，3，4这样的顺序。若有其他问题，可以给我发电邮:ch2001023@sina.com
浩南_哥 2013-09-25
- 打赏
- 举报
应该是对的
不行的话，你可以调用一下H264_DVR_GetDevConfig获取下设备的参数，如果成功了，loginID就是对的。
yunankuangke 2013-09-25
- 打赏
- 举报
代码跟踪了，能正确获取 设备信息。但是登录函数 返回值是一个很大的随机数。应该是登录成功了。
此外，视频监控这块
realplayhandle := H264_DVR_RealPlay(LoginID,lpClientInfo);调用完后，界面不显示图像
楼上说的流程，我看了厂家VC++写的DEMO实例里没看到。
请楼上的 把您的源码给我发一份，我的邮箱是：yunankuangke@163.com，在此十分感谢！
此外，视频监控这块
realplayhandle := H264_DVR_RealPlay(LoginID,lpClientInfo);调用完后，界面不显示图像
楼上说的流程，我看了厂家VC++写的DEMO实例里没看到。
请楼上的 把您的源码给我发一份，我的邮箱是：yunankuangke@163.com，在此十分感谢！
yunankuangke 2013-09-24
- 打赏
- 举报
function H264_DVR_Login(strDVRIP: Pchar; wDVRPort: WORD; strUserName: Pchar; strPassword: Pchar; aDeviceInfo: LPH264_DVR_DEVICEINFO; error:Pinteger;Style:SocketStyle=TCPSOCKET):LongInt;stdcall; External ALS_NET_SDK;
调用时 loginID :=
H264_DVR_Login('192.168.1.10',34567,'admin','',@deviceinfo,@error,TCPSOCKET);
这个编译通过。但是 返回的 loginID 是一个很大的随机数。不知道是否正确？
yunankuangke 2013-09-24
- 打赏
- 举报
H264_DVR_DEVICEINFO = record
...
end;
LPH264_DVR_DEVICEINFO = ^H264_DVR_DEVICEINFO;
deviceinfo:LPH264_DVR_DEVICEINFO;
function H264_DVR_Login(strDVRIP: Pchar; wDVRPort: WORD; strUserName: Pchar; strPassword: Pchar; var aDeviceInfo: H264_DVR_DEVICEINFO; error:Pinteger;Style:SocketStyle=TCPSOCKET):LongInt;stdcall; External ALS_NET_SDK;
调用时候：loginID :=
H264_DVR_Login('192.168.1.10',34567,'admin','',@deviceinfo,@error,TCPSOCKET);
或loginID :=
H264_DVR_Login('192.168.1.10',34567,'admin','',deviceinfo,@error,TCPSOCKET);
均编译不通过啊？请大侠帮看看，谢谢
...
end;
LPH264_DVR_DEVICEINFO = ^H264_DVR_DEVICEINFO;
deviceinfo:LPH264_DVR_DEVICEINFO;
function H264_DVR_Login(strDVRIP: Pchar; wDVRPort: WORD; strUserName: Pchar; strPassword: Pchar; var aDeviceInfo: H264_DVR_DEVICEINFO; error:Pinteger;Style:SocketStyle=TCPSOCKET):LongInt;stdcall; External ALS_NET_SDK;
调用时候：loginID :=
H264_DVR_Login('192.168.1.10',34567,'admin','',@deviceinfo,@error,TCPSOCKET);
或loginID :=
H264_DVR_Login('192.168.1.10',34567,'admin','',deviceinfo,@error,TCPSOCKET);
均编译不通过啊？请大侠帮看看，谢谢
浩南_哥 2013-09-24
- 打赏
- 举报
我这只有官方给的Demo，没有Delphi的。
你的流程不对，只调用H264_DVR_RealPlay是不行的。
应该是网络库和播放库一起用的。大致流程如下：
1、H264_DVR_Login
2、H264_DVR_RealPlay
（1）返回成功时需要设置视频帧回调：H264_DVR_SetRealDataCallBack_V2
3、H264_PLAY_OpenStream 开启流模式
4、H264_PLAY_Play
5、在H264_DVR_SetRealDataCallBack_V2函数设置的回调函数里面将网络过来的视频帧
放入播放库中。H264_PLAY_InputData
PS:H264_DVR_RealPlay第二个参数是指针，你应该取lpClientInfo的地址，在传入。或者是
将lpClientInfo声明成LPH264_DVR_CLIENTINFO
yunankuangke 2013-09-24
- 打赏
- 举报
有demo是VC++的，楼上的哥们有 DELPHI的DEMO吗？有的话，给我传分，我给你积分，十分感谢！
var
lpClientInfo:H264_DVR_CLIENTINFO;
begin
lpClientInfo.nChannel := VideoWin.Selected;
lpClientInfo.nStream := 0;
lpClientInfo.nMode := 0;
//lpClientInfo.hWnd := 这个没赋值
realplayhandle := H264_DVR_RealPlay(LoginID,lpClientInfo);
end;
还有realplayhandle := H264_DVR_RealPlay(LoginID,lpClientInfo);调用完后，界面不显示图像
浩南_哥 2013-09-24
- 打赏
- 举报
long H264_DVR_RealPlay(long lLoginID, LPH264_DVR_CLIENTINFO lpClientInfo);
首先这个函数是两个参数，不知道你为什么要给他三个参数。
其次第二个参数是指针，你传个0进去，不崩溃才怪
yunankuangke 2013-09-24
- 打赏
- 举报
H264_DVR_RealPlay C++代码为：
long H264_DVR_RealPlay(long lLoginID, LPH264_DVR_CLIENTINFO lpClientInfo);
变成delphi 代码为
function H264_DVR_RealPlay(aLoginID: LongInt; aChannelID: Integer;aWnd: HWND): LongInt; stdcall external ALS_NET_SDK;
不知道是否有问题？

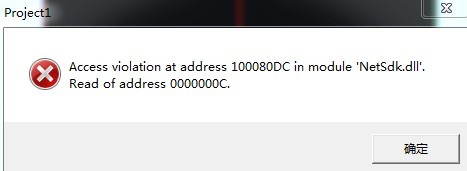

在调用处：realplayhandle := H264_DVR_RealPlay(LoginID,0,VideoWin.Handle);
报错，如右图所示：
，请大侠们指教。谢谢
，请大侠们指教。谢谢浩南_哥 2013-09-24
- 打赏
- 举报
应该有Demo的，Demo能登录上吗？
yunankuangke 2013-09-24
- 打赏
- 举报
H264_DVR_GetLastError 返回值为 0
浩南_哥 2013-09-24
- 打赏
- 举报
H264_DVR_GetLastError 看下返回值
