EE308 LAB3

[小怂饼干]

The Link Your Class	https://bbs.csdn.net/forums/MUEE308FZ
The Link of Requirement of This Assignment	https://bbs.csdn.net/topics/600914861
The Aim of This Assignment	To design a software prototype for Bobing
MU STU ID and FZU STU ID	19104260_831901111
MU STU ID and FZU STU ID（partner）	19105789_831901108
The Link Of Teammate’s Blog	https://bbs.csdn.net/topics/601211100

Contents

1. PSP Table

2. Demand Analysis (NABCD)

3. Design details

4. Summary

---

1. PSP Table

Personal Software Process Stages	Estimated Time/minutes	Completed Time/minutes
Planning	25	25
Estimate	15	10
Development	20	20
Analysis	20	20
Design Spec	100	100
Design Review	25	30
Coding Standard	--	--
Design	200	200
Coding	--	--
Code ReviewPlanning	--	--
Test	30	20
Reporting	60	50
Test Report	30	35
Size Measurement	20	25
Postmortem&Process Improvement	30	25
total	555	540

---

2. Demand Analysis (NABCD)

a. Needs

    In southern Fujian province, Bobing is a traditional and important entertainment activity on Mid-Autumn Festival. However, due to the Covid-19, friends and relatives cannot conduct Bobing activities face to face, and sometimes it is not convenient to buy the materials required by Bobing, so an online Bobing software is needed to meet people's entertainment needs at any time. The following are the software design requirements:

• Having an interface, six dice, shake randomly to produce results.
• Allowing multiple people to participate, and can automatically determine the results, it can be a stand-alone version or a network format.
• The interface style is lively and generous in response to the scene, and lays the foundation for the second implementation of pair coding.

b. Approaches

    Using Wechat mini program platform, design a simple Bobing small program, including login, view rules, select modes, select rooms, roll dices and automatically record the Bobing results. In further design, it can also be associated with rewards.

c. Benefits

    The Bobing software helps to satisfy the needs of family and friends who want to have Bobing activities together when they cannot get together during the Mid-Autumn Festival due to Covid-19, satisfying people's psychological needs and entertainment needs. Online Bobing is convenient, can be carried out at any time, and it’s very entertaining. If a business company uses this software, it can properly combine the results of Bobing with the reward system, and can launch some activities to profit from it..

d. Competitors

    The Bobing mini program takes up little space, and easy to use, if you want to design such a software is not difficult. But exquisite degree of the page, as well as the complete degree of function, can be as the same type of competition standard. For example, how to set up the reward system to attract more players and get the mutual benefit of players and businesses, which are all competitive criteria.

e. Delivery

    The software we designed is only used for entertainment between friends or relatives at present. If it needs to be promoted in the future, it can be promoted on the user's face through popular science blogs or advertising in people's moments in Wechat.

---

3. Design details

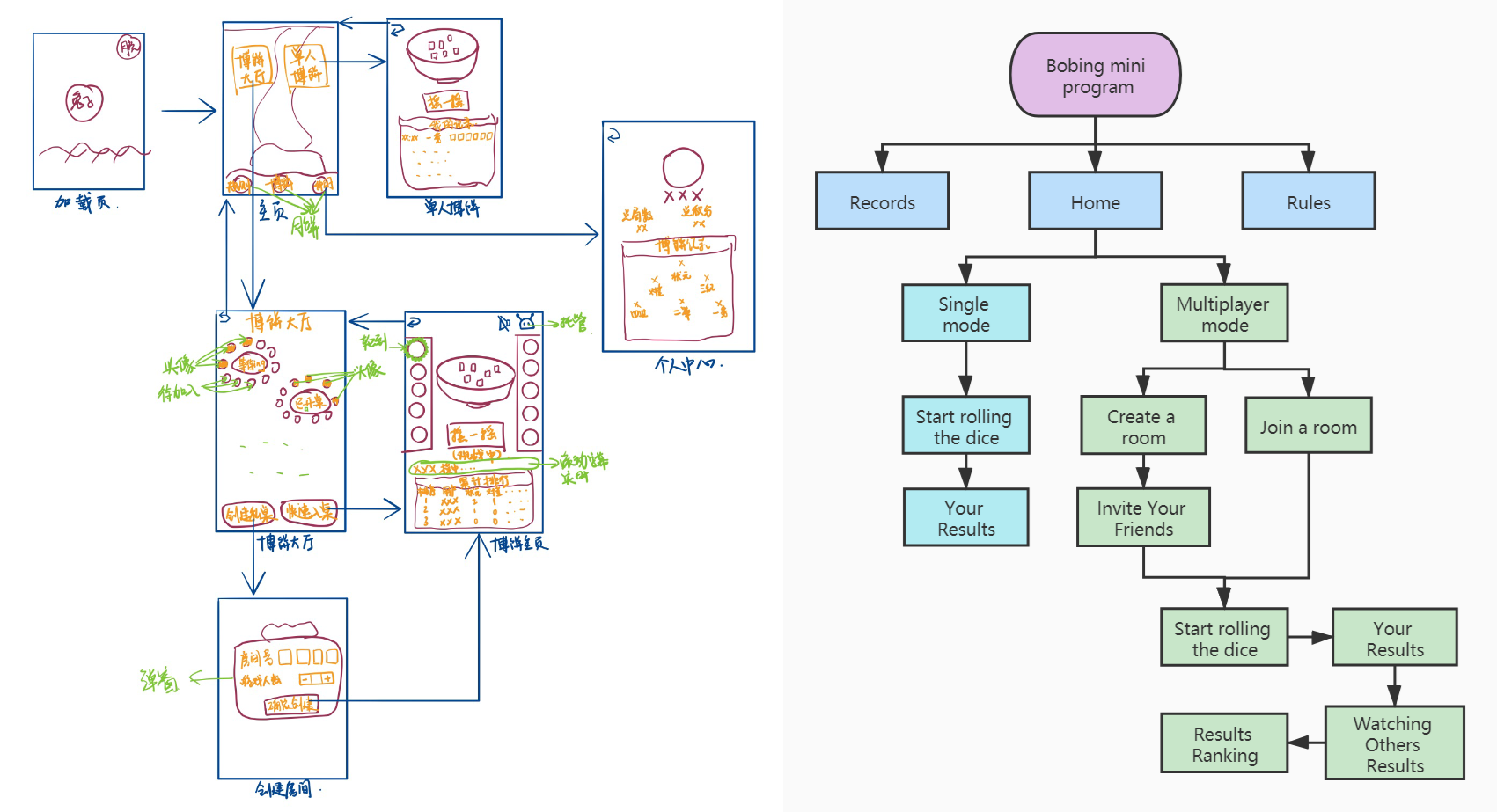

a. Design ideas

b. Design process

c. Prototype display online link

The Link Of Modao: https://modao.cc/app/6dfa57aaede5d5695ecfc166df8e5c8d9a3f507d

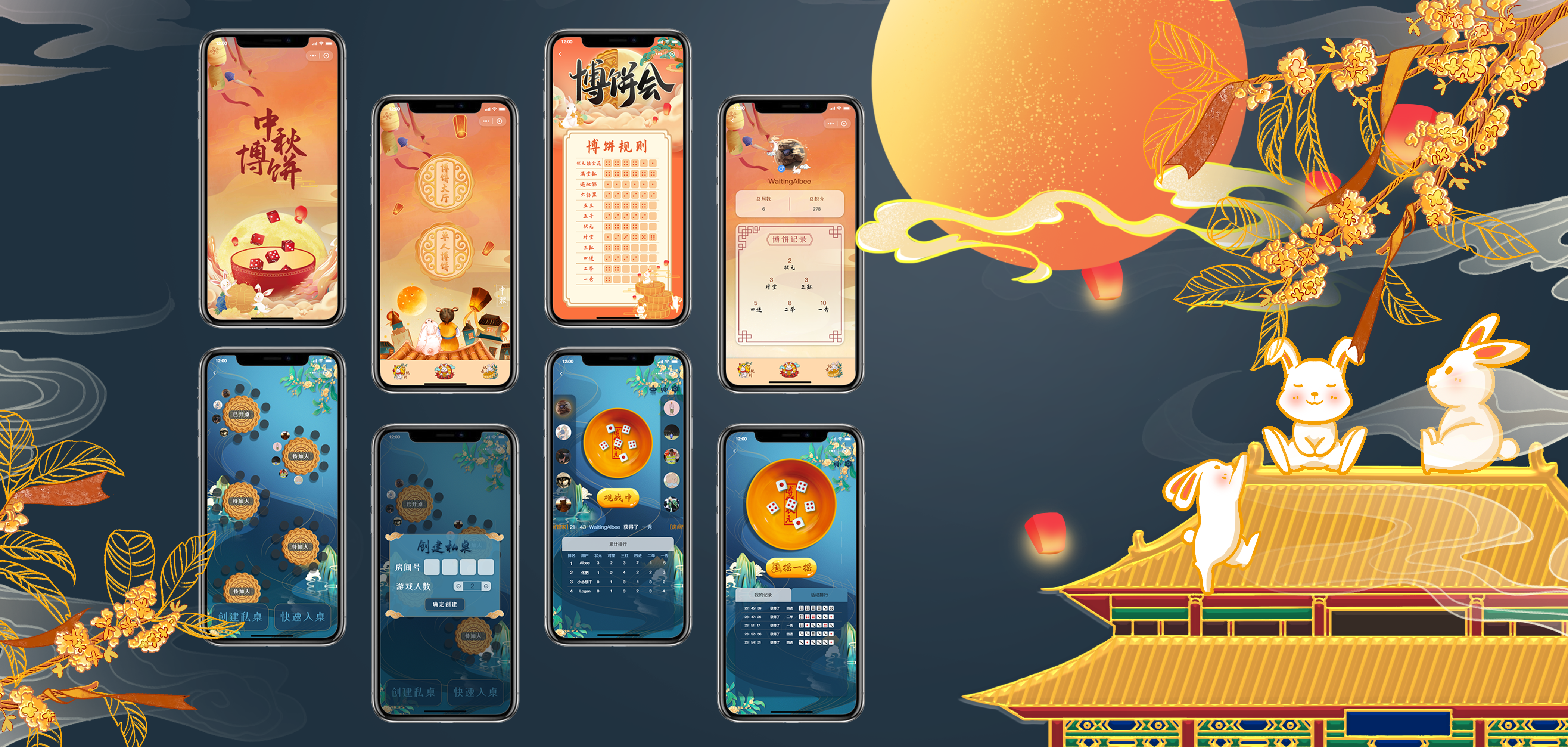

d. Pages display

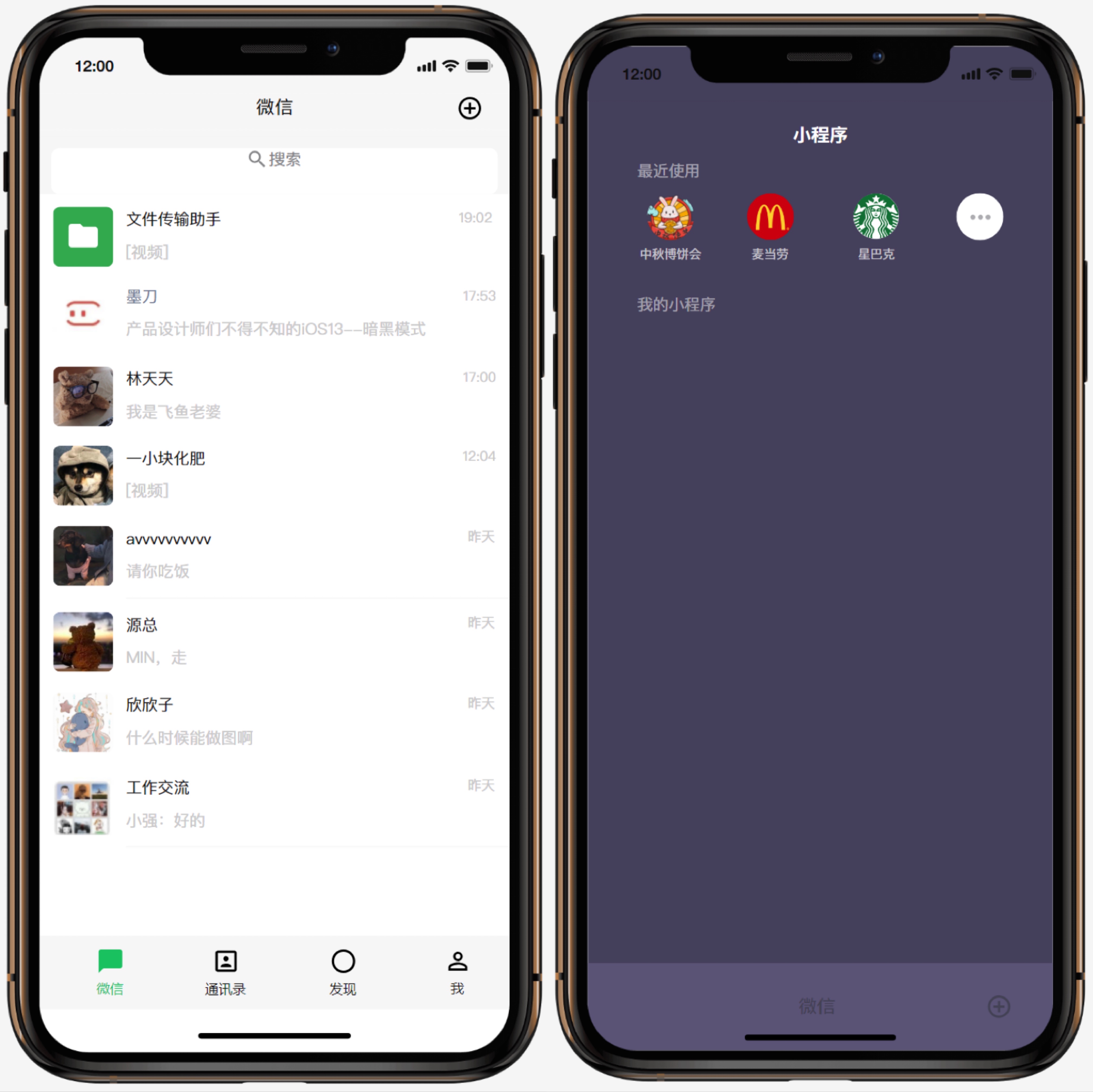

• Wechat main interface, and pull down to bring up the applet interface

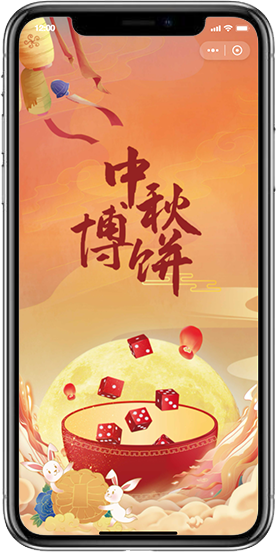

• Loading page

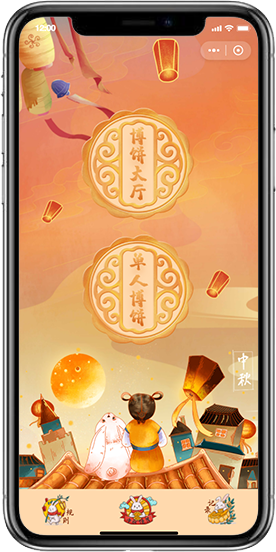

• Main interface

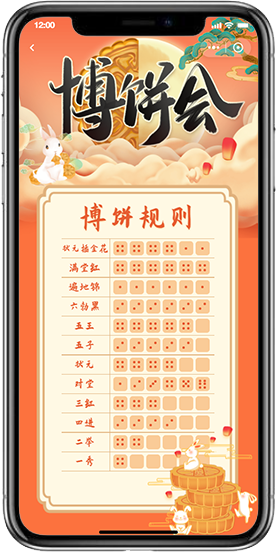

• Rules page

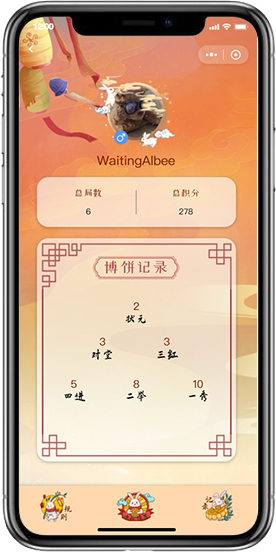

• Personal center

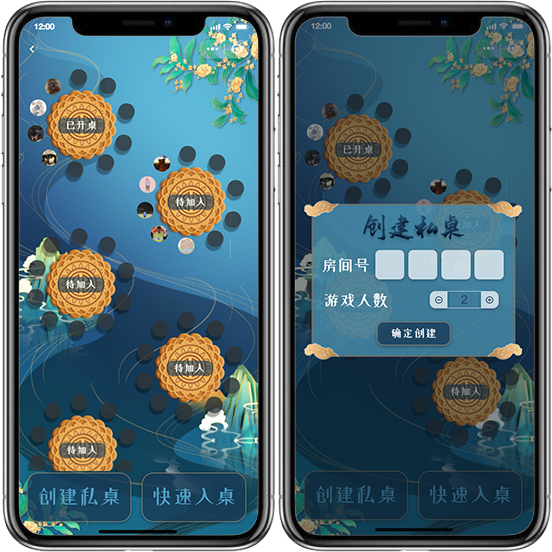

• Bobing hall



•

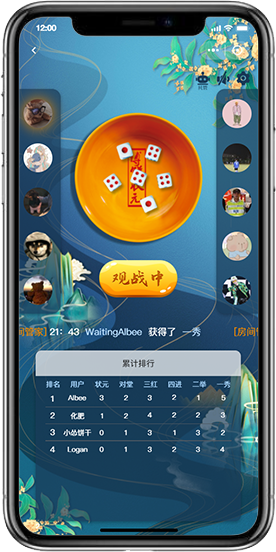

  Multiplayer Bobing

​

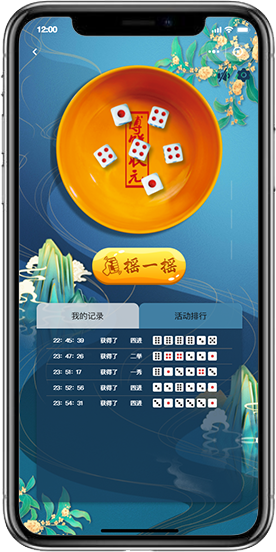

• Single Bobing

​

---

4. Summary

    Through this experiment, we understand how to design UI prototype. And we split the work into two parts, one student was dedicated to UI prototyping and the other to blogging. Through division of labor and cooperation, work efficiency is greatly improved. Although there are still some shortcomings in the web prototype design this time, we will make improvements in the future.
