EE308_LAB3

目录

1. PSP Table

2. Demand Analysis

3.Design details

4. Summary

1. PSP Table

2. Demand Analysis

a. Needs

  In southern Fujian province, Bobing is a traditional and important entertainment activity on Mid-Autumn Festival. However, due to the Covid-19, friends and relatives cannot conduct Bobing activities face to face, and sometimes it is not convenient to buy the materials required by Bobing, so an online Bobing software is needed to meet people's entertainment needs at any time. The following are the software design requirements:

• Having an interface, six dice, shake randomly to produce results.
• Allowing multiple people to participate, and can automatically determine the results, it can be a stand-alone version or a network format.
• The interface style is lively and generous in response to the scene, and lays the foundation for the second implementation of pair coding.

b. Approaches

  Using Wechat small program platform, design a simple Bobing small program, including login, view rules, select modes, select rooms, roll dices and automatically record the Bobing results. In further design, it can also be associated with rewards.

c. Benefits

  The Bobing software helps to satisfy the needs of family and friends who want to have Bobing activities together when they cannot get together during the Mid-Autumn Festival due to Covid-19, satisfying people's psychological needs and entertainment needs. Online Bobing is convenient, can be carried out at any time, and it’s very entertaining. If a business company uses this software, it can properly combine the results of Bobing with the reward system, and can launch some activities to profit from it..

d. Competitors

  The Bobing small program takes up little space, and easy to use, if you want to design such a software is not difficult. But exquisite degree of the page, as well as the complete degree of function, can be as the same type of competition standard. For example, how to set up the reward system to attract more players and get the mutual benefit of players and businesses, which are all competitive criteria.

e. Delivery

  The software we designed is only used for entertainment between friends or relatives at present. If it needs to be promoted in the future, it can be promoted on the user's face through popular science blogs or advertising in people's moments in Wechat.

3.Design details

a. Design ideas

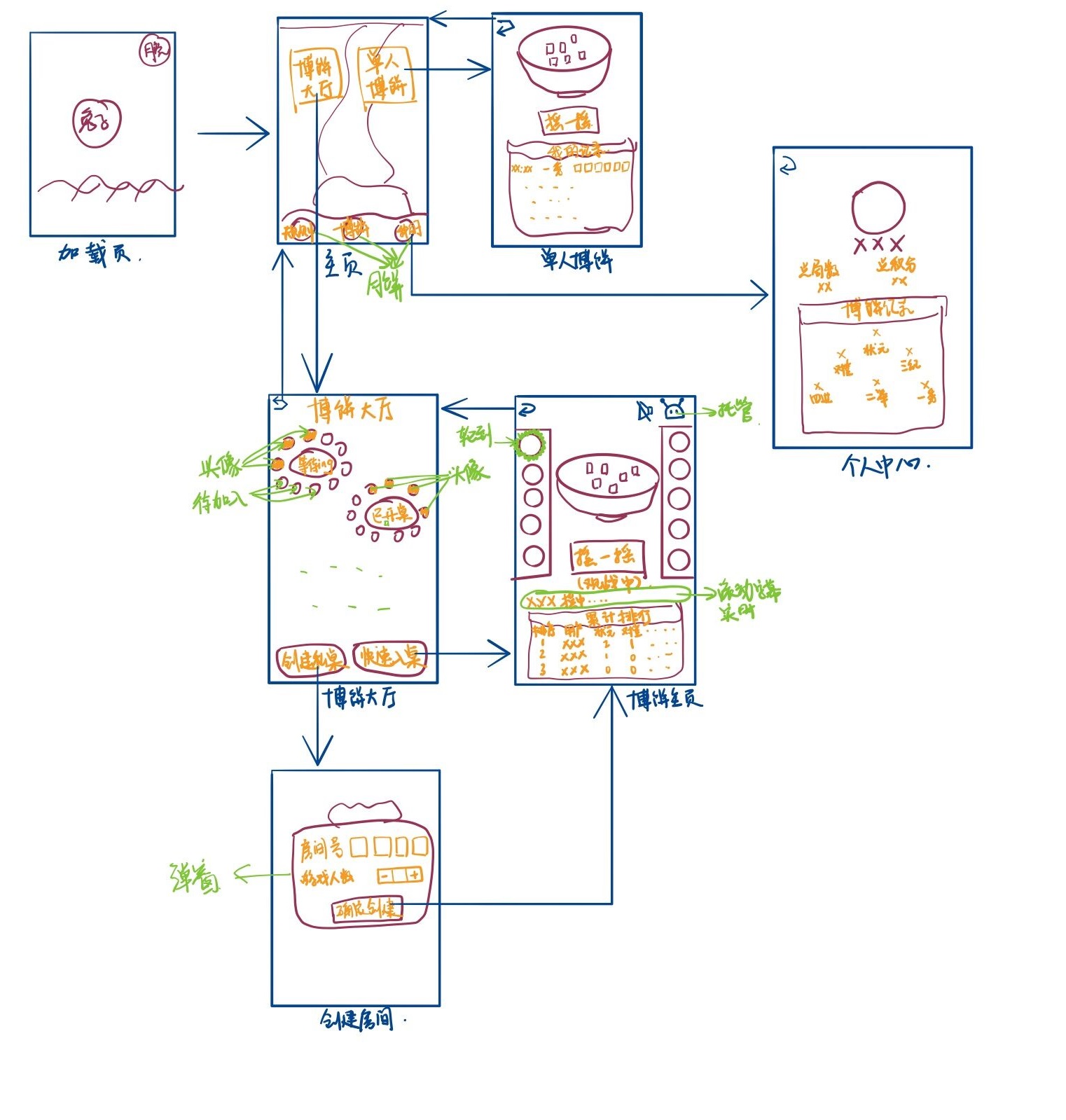

b.Design process

c.Prototype display online link

The Link Of Modao: https://modao.cc/app/6dfa57aaede5d5695ecfc166df8e5c8d9a3f507d

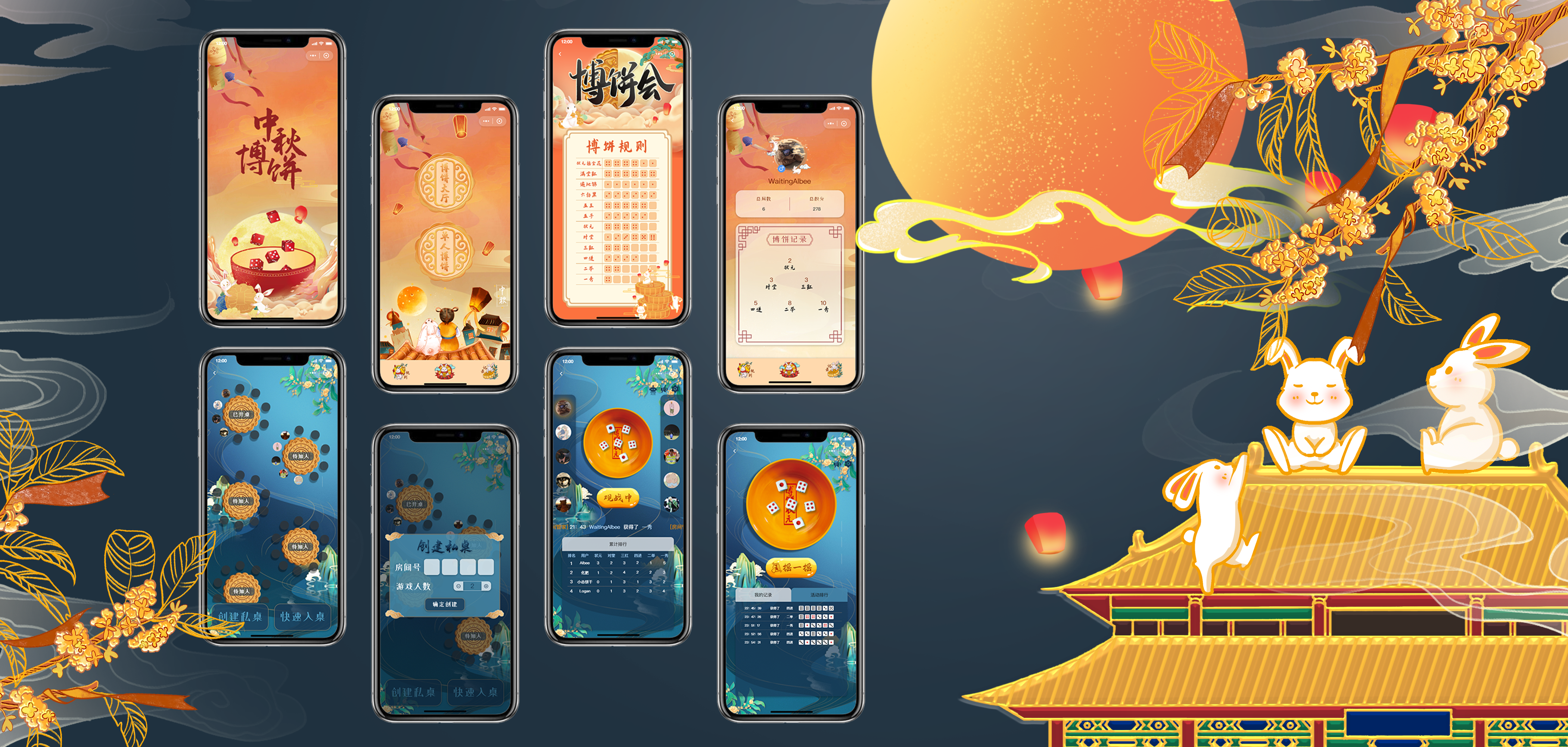

d.Pages display

• Wechat main interface, and pull down to bring up the applet interface

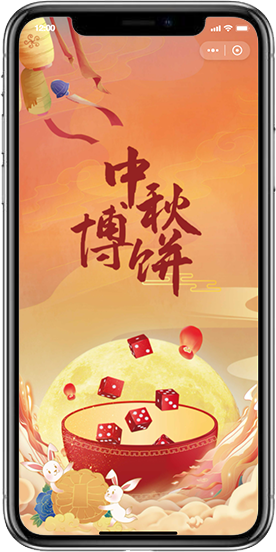

• Loading page

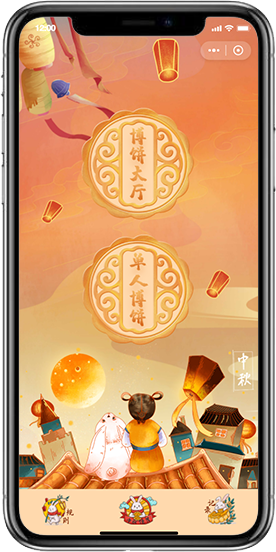

• Main interface

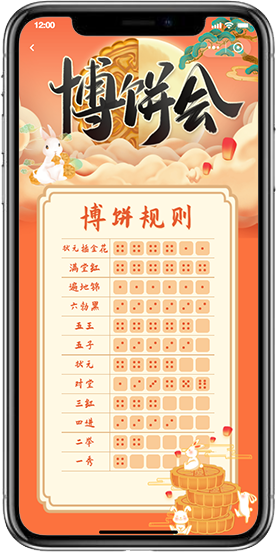

• Rules page

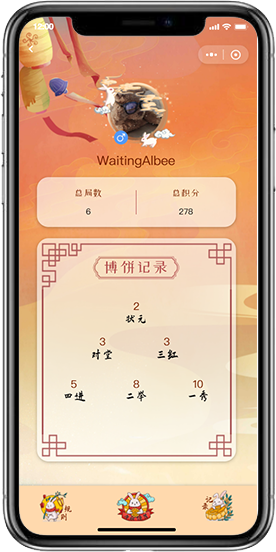

• Personal center

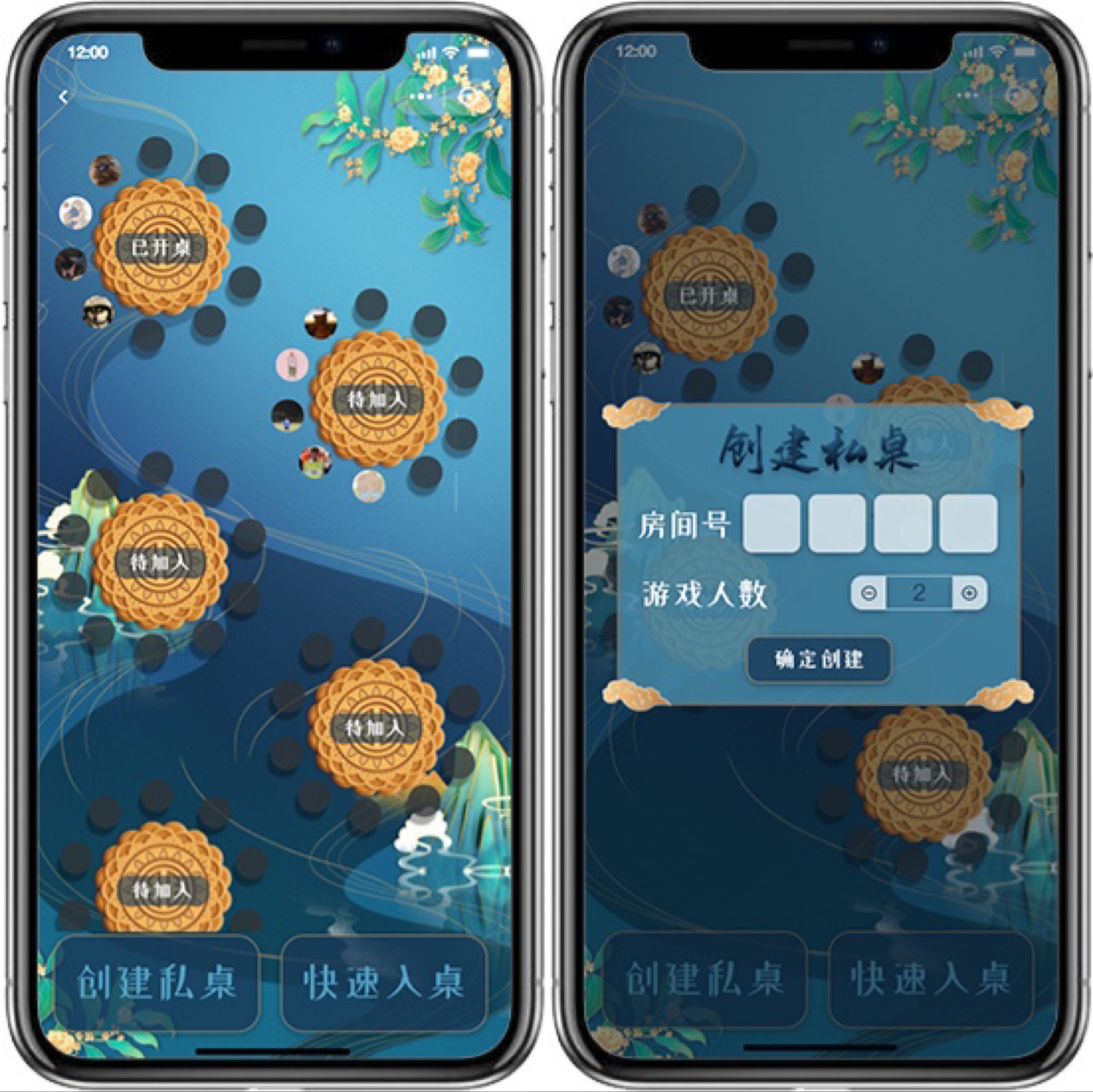

• Bobing hall

• Multiplayer Bobing (The dices will later be animated and rolled directly in the bowl, the prototype is not easy to show)

• Single Bobing (The dices will later be animated and rolled directly in the bowl, the prototype is not easy to show)

4. Summary

 Through this experiment, we understand how to design UI prototype. And we split the work into two parts, one student was dedicated to UI prototyping and the other to blogging. Through division of labor and cooperation, work efficiency is greatly improved. Although there are still some shortcomings in the web prototype design this time, we will make improvements in the future.
