EE308FZ_Lab2-2_832001321_20122292

[qq_54104904]



The Link Your Class	https://bbs.csdn.net/forums/MUEE308FZU202201
The Link of Requirement of This Assignment	https://bbs.csdn.net/topics/608859318
MU STU ID and FZU STU ID	FZU ID : 832001321    MU ID : 20122292
Teammate's MU STU ID and FZU STU ID	MU ID ： 20124732  20123108      FZU ID ：832001124  832001302
Teammate's blog Link
GitHub Link	https://github.com/5811LINMINGRUI/EE308FZ_Software-Engineering_Code
Video demo Link	https://www.bilibili.com/video/BV1gd4y1b7Hq
Online Game Link	http://47.122.44.9:5678/





Content

                Part 1  :  PSP Table

                Part 2  :  Key Function and Program Thinking

                Part 3  :  Thing Take Long Time to Finish

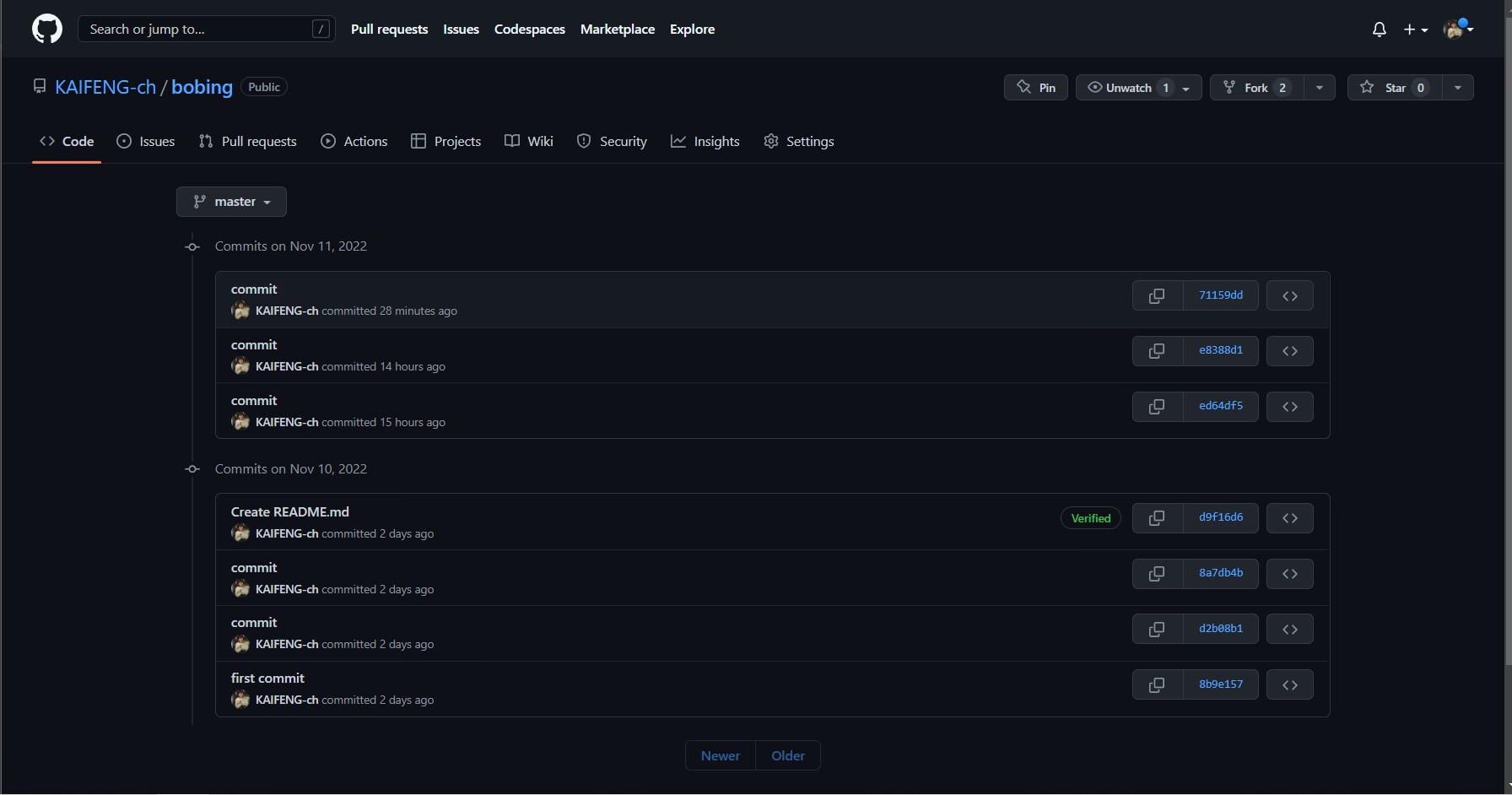

                Part 4  :  GitHub Link and Commit Record

                Part 5  :  Video Demonstration of Software Running

                Part 6  :  Paired Work Photo

                Part 7  :  Program Experience and Great Gain

PSP Table

PSP	ESTIMATE TIME（MINUTE）	ESTIMATE TIME（MINUTE）
Planning	45	30
Estimate	5	5
Development	30	50
Analysis	60	70
Design Spec	10	10
Design Review	0	0
Coding Standard	20	15
Design	40	60
Coding	240	300
Code Review	10	15
Test	60	80
Reporting	\	\
Test Report	10	20
Size Measurement	10	10
Postmortem & Process Improvement Plan	20	50
Total	560	715



Key Function and Program Thinking

the back-end programs used to judge logins and calculate scores

      This part is about how to use python flask to reach the register and login function, we need to insert the user message to the database, and need to encrypt the password. And when user login, the hashed password need to be compared with the input password. Then we make session to record the user message.

from werkzeug.security import generate_password_hash, check_password_hash
from flask import request, url_for, render_template, redirect, Flask, session,
flash
from flask_wtf import FlaskForm
from flask_login import LoginManager, login_user, login_required, current_user
from wtforms import StringField, PasswordField, SubmitField
from wtforms.validators import DataRequired, Length, EqualTo, Regexp
from datetime import timedelta
import logging
import conf
from basic_user import get_user, create_user
from user_info import User
app = Flask(__name__, template_folder='./templates', static_folder='')
login_manager = LoginManager()
login_manager.init_app(app)
login_manager.login_view = 'login'
cursor = conf.db.cursor()
app.secret_key = 'kaifeng'
app.config['PERMANENT_SESSION_LIFETIME'] = timedelta(days=1)
class LoginForm(FlaskForm):
"""登录表单类"""
username = StringField('Username', validators=[DataRequired()])
password = PasswordField('Password', validators=[DataRequired()])
class RegisterForm(FlaskForm):
email = StringField("Email", validators=[DataRequired(), Length(1, 64)])
username = StringField(
"Username",
validators=[
DataRequired(),
Length(1, 64),
Regexp(
"^[A-Za-z][A-Za-z0-9_.]*$",
0,
"Usernames must have only letters, " "numbers, dots or
underscores",
),
],
)
password = PasswordField(
"Password",
validators=[
DataRequired(),
EqualTo("password_confirmation", message="Passwords must match."),
],
)
password_confirmation = PasswordField("Confirm password", validators=
[DataRequired()])
submit = SubmitField(label="Register")
@login_manager.user_loader # 定义获取登录用户的方法
def load_user(user_id):
return User.get(user_id)
@app.route('/login', methods=['GET', 'POST']) # 登录
def login():
form = LoginForm()
if request.method == 'GET':
return render_template('login.html', form=form)
emsg = None
user_name = form.username.data
password = form.password.data
user_info = get_user(user_name) # 从用户数据中查找用户记录
if user_info is None:
emsg = "please enter username or password"
return render_template('login.html', err=emsg)
else:
user = User(user_info[0]) # 创建用户实体
if check_password_hash(user.password_hash, password): # 校验密码
login_user(user)
return redirect(url_for('index'))
else:
emsg = "username or password error!"
return render_template('login.html', err=emsg)
@app.route("/register", methods=["GET", "POST"])
def register():
if request.method == 'GET':
return render_template('register.html')
form = RegisterForm()
if not form.username.data or not form.password.data or not form.email.data:
emsg = "please enter the message"
return render_template('register.html', err=emsg)
sql = "insert into users(username, password, email, money) " \
"VALUES ('%s', '%s', '%s', '%d')" % \
(form.username.data, generate_password_hash(form.password.data),
form.email.data, 0)
try:
cursor.execute(sql)
conf.db.commit()
except AttributeError:
conf.e()
logging.error(AttributeError)
return redirect(url_for('login'))
@app.route('/')
@login_required
def index():
return render_template('index.html')
@app.route('/rules', methods=['GET'])
@login_required
def rules():
return render_template('rules.html')
@app.route('/multiplate', methods=['GET'])
@login_required
def mutiplater():
return render_template('multiplater.html')
@app.route('/individual', methods=['GET'])
@login_required
def individual():
get_point = request.args.get('point')
sql = f"select money from users where username = '{current_user.username}'"
try:
cursor.execute(sql)
conf.db.commit()
result = cursor.fetchall()
if result:
plus = result[0][0] + int(get_point)
sql_update = f"update users set money = '{plus}' where username =
'{current_user.username}'"
cursor.execute(sql_update)
conf.db.commit()
except Exception as e:
conf.e()
logging.error(e)
return render_template('individual.html')
@app.route('/multi', methods=['GET'])
@login_required
def multi():
2.2 The method of judging one - person bobing
In this part we designed an algorithm based on the rules to calculate the player's score and used
ajax to dynamically send the data from the front end to the back end.
return render_template('Muliti_Mode.html')
@app.route('/triple', methods=['GET'])
@login_required
def triple():
return render_template('triple.html')
@app.route('/ranking', methods=['GET'])
@login_required
def ranking():
sql = "select username, money from users order by money desc limit 5"
try:
cursor.execute(sql)
conf.db.commit()
result = cursor.fetchall()
except Exception as e:
conf.e()
logging.error(e)
return render_template('test.html')
return render_template('ranking.html',
u1=result[0][0], m1=result[0][1],
u2=result[1][0], m2=result[1][1],
u3=result[2][0], m3=result[2][1],
u4=result[3][0], m4=result[3][1],
u5=result[4][0], m5=result[4][1]
)
if __name__ == '__main__':
app.run(host='0.0.0.0', port=5678, debug=True)



The method of judging one - person bobing

In this part we designed an algorithm based on the rules to calculate the player's score and used ajax to dynamically send the data from the front end to the back end.

function rollTheDice() {
setTimeout(function () {
if (document.getElementById("b1").innerText === "Open") {
document.getElementById("b1").innerText = "Stop"
for (var m=1; m<=6; m++) {
document.querySelector(".img"+m).setAttribute("src",
"../static/png/tzz.gif")
}
} else {
document.getElementById("b1").innerText = "Open"
var randomNumber1 = Math.floor(Math.random() * 6) + 1;
var randomNumber2 = Math.floor(Math.random() * 6) + 1;
var randomNumber3 = Math.floor(Math.random() * 6) + 1;
var randomNumber4 = Math.floor(Math.random() * 6) + 1;
var randomNumber5 = Math.floor(Math.random() * 6) + 1;
var randomNumber6 = Math.floor(Math.random() * 6) + 1;
document.querySelector(".img1").setAttribute("src",
"../static/png/dice" + randomNumber1 + ".png");
document.querySelector(".img2").setAttribute("src",
"../static/png/dice" + randomNumber2 + ".png");
document.querySelector(".img3").setAttribute("src",
"../static/png/dice" + randomNumber3 + ".png");
document.querySelector(".img4").setAttribute("src",
"../static/png/dice" + randomNumber4 + ".png");
document.querySelector(".img5").setAttribute("src",
"../static/png/dice" + randomNumber5 + ".png");
document.querySelector(".img6").setAttribute("src",
"../static/png/dice" + randomNumber6 + ".png");
var result = [randomNumber1, randomNumber2, randomNumber3,
randomNumber4, randomNumber5, randomNumber6]
var count = [0, 0, 0, 0, 0, 0]
var point = 0
for (var i in result) {
count[result[i] - 1]++
}
console.log(result)
console.log(count)
if (count[3] === 4 && count[0] === 2) {
document.querySelector("h1").innerHTML = "Chajinhua!"
point = 12
}
if (count[3] === 6) {
document.querySelector("h1").innerHTML =
"Zhuanyuan(Liubeihong)!"
point = 11
} else if (count[0] === 6) {
document.querySelector("h1").innerHTML = "Zhuanyuan(Biandijin)!"
point = 10
} else if (count[1] === 6) {
document.querySelector("h1").innerHTML = "Zhuanyuan(Heiliubo)!"
point = 9
} else if (count[3] === 5 && count[0] === 1) {
document.querySelector("h1").innerHTML = "Zhuanyuan(Wuhong)!"
point = 8
} else if (count[1] === 5) {
document.querySelector("h1").innerHTML =
"Zhuanyuan(Wuzidengke)!"
point = 7
} else if (count[3] === 4) {
document.querySelector("h1").innerHTML =
"Zhuanyuan(Sidianhong)!"
point = 6
}
else if (count[0] === 1 && count[1] === 1 && count[2] === 1 &&
count[3] === 1 && count[4] === 1 && count[5] === 1) {
document.querySelector("h1").innerHTML = "Duitang(Bangyang)!"
2.3 Judging function for double bobing
In two-player mode, we use a specific algorithm to judge the outcome of the user's game and
select a winner.
point = 5
}
else if (count[3] === 3) {
document.querySelector("h1").innerHTML = "Sanhong(Tanhua)!"
point = 4
}
else if (count[1] === 4) {
document.querySelector("h1").innerHTML = "Sijing(Jinshi)!"
point = 3
}
else if (count[3] === 2) {
document.querySelector("h1").innerHTML = "Erju(Juren)!"
point = 2
}
else if (count[3] === 1) {
document.querySelector("h1").innerHTML = "Yixiu(Xiucai)!"
point = 1
} else {
document.querySelector("h1").innerHTML = "Thanks for
participation!"
}
var data = {
point: point
}
function sendData() {
$.ajax({
type: 'GET',
url: '/individual',
data: data,
dataType: 'json',
success: function (data) {},
error: function (xhr, type) {}
})
}
sendData()
}
}, 1000)
}

Judging function for double bobing In two-player mode

  We use a specific algorithm to judge the outcome of the user's game and select a winner.

function open() {
for (var m=1; m<=6; m++) {
document.getElementById("b1").innerText = "Stop"
document.querySelector(".img"+m).setAttribute("src",
"../static/png/tzz.gif")
}
}
function clear() {
document.getElementById("b1").innerText = "Open"
}
function stop(i) {
var randomNumber1 = Math.floor(Math.random() * 6) + 1;
var randomNumber2 = Math.floor(Math.random() * 6) + 1;
var randomNumber3 = Math.floor(Math.random() * 6) + 1;
var randomNumber4 = Math.floor(Math.random() * 6) + 1;
var randomNumber5 = Math.floor(Math.random() * 6) + 1;
var randomNumber6 = Math.floor(Math.random() * 6) + 1;
document.querySelector(".img1").setAttribute("src", "../static/png/dice"
+ randomNumber1 + ".png");
document.querySelector(".img2").setAttribute("src", "../static/png/dice"
+ randomNumber2 + ".png");
document.querySelector(".img3").setAttribute("src", "../static/png/dice"
+ randomNumber3 + ".png");
document.querySelector(".img4").setAttribute("src", "../static/png/dice"
+ randomNumber4 + ".png");
document.querySelector(".img5").setAttribute("src", "../static/png/dice"
+ randomNumber5 + ".png");
document.querySelector(".img6").setAttribute("src", "../static/png/dice"
+ randomNumber6 + ".png");
var result = [randomNumber1, randomNumber2, randomNumber3, randomNumber4,
randomNumber5, randomNumber6]
var count = [0, 0, 0, 0, 0, 0]
for (var j in result) {
count[result[j] - 1]++
}
console.log(result)
console.log(count)
if (count[3] === 4 && count[0] === 2) {
document.querySelector("h" + (i + 1)).innerHTML = "Chajinhua!"
points[i] = 12
}
if (count[3] === 6) {
document.querySelector("h" + (i+1)).innerHTML =
"Zhuanyuan(Liubeihong)!"
points[i] = 11
} else if (count[0] === 6) {
document.querySelector("h" + (i+1)).innerHTML =
"Zhuanyuan(Biandijin)!"
points[i] = 10
} else if (count[1] === 6) {
document.querySelector("h" + (i+1)).innerHTML =
"Zhuanyuan(Heiliubo)!"
points[i] = 9
} else if (count[3] === 5 && count[0] === 1) {
document.querySelector("h" + (i+1)).innerHTML = "Zhuanyuan(Wuhong)!"
points[i]=8
} else if (count[1] === 5) {
document.querySelector("h" + (i+1)).innerHTML =
"Zhuanyuan(Wuzidengke)!"
points[i] = 7
} else if (count[3] === 4) {
document.querySelector("h" + (i+1)).innerHTML =
"Zhuanyuan(Sidianhong)!"
points[i] = 6
}
else if (count[0] === 1 && count[1] === 1 && count[2] === 1 && count[3]
=== 1 && count[4] === 1 && count[5] === 1) {
document.querySelector("h" + (i+1)).innerHTML = "Duitang(Bangyang)!"
points[i] = 5
}
else if (count[3] === 3) {
document.querySelector("h" + (i+1)).innerHTML = "Sanhong(Tanhua)!"
points[i] = 4
}
else if (count[1] === 4) {
document.querySelector("h" + (i+1)).innerHTML = "Sijing(Jinshi)!"
points[i] = 3
}
else if (count[3] === 2) {
document.querySelector("h" + (i+1)).innerHTML = "Erju(Juren)!"
points[i] = 2
}
else if (count[3] === 1) {
document.querySelector("h" + (i+1)).innerHTML = "Yixiu(Xiucai)!"
points[i] = 1
} else {
document.querySelector("h" + (i+1)).innerHTML = "Thanks for
participation!"
points[i] = 0
}
}
// 掷骰子的功能
function rollTheDice() {
setTimeout(function () {
if (document.getElementById("b1").innerText === "Open") {
open()
} else {
for (var i=0; i<2; i++) {
if (points[i] === -1) {
clear()
stop(i)
break
}
}
if (points[points.length-1] !== -1) {
if (points[0]===points[1]) {
document.querySelector("h3").innerHTML = "draw!"
} else {
points[0] > points[1] ?
document.querySelector("h3").innerHTML = "player 1 win!" :
document.querySelector("h3").innerHTML = "player 2 win!"
        }
        points=[-1,-1]}
      }
   },1000)
}

Thing Take Long Time to Finish

1. We spent a lot of time learning about the front end and back end knowledge

          As the saying goes: All things are difficult before they are easy. Since we had never come into contact with HTML, CSS, Javascript and other technologies, and also forgot the python we learned in the freshman year, we spent a lot of time at the beginning watching relevant videos on platforms like Bilibili and CSDN, reading related blog materials, mastering some basic knowledge and having a general understanding of the technology. And then learn other advanced knowledge as needed during the implementation of the function.

2. We ran into a lot of difficulties in programming the logic

         In the process of software practice, especially the setting of the logic of the game is relatively difficult. Sometimes there are some errors that need to be modified, and sometimes it takes a lot of time to find the errors.

3. Encountered many difficulties while debugging the server

         We used a server we had before, but we didn't know why it couldn't access the IP. We searched a lot of information and made a lot of attempts but couldn't access the IP. Then we bought a new server and still didn't solve the problem.

4. Constantly optimizing software takes time

          When we finish a version, we find problems that need to be fixed, and then we make suggestions to improve the game interface and the game experience, which sometimes requires rework and takes a lot of time.

 GitHub Link and Commit Record

Paired Work Photo

 Program Experience and Great Gain

    In this experiment, I reviewed the use of python back-end flask framework and learned the use of HTML, css, and JavaScript, which made me realize that it was not an easy thing to use the front end. During the debugging of the front end, the dislocation of images and text often occurred, which caused me a headache. Back-end development often suffers from various errors, such as disconnection from database, failure to query results and throwing exceptions, etc.

    Through this experiment, my full-stack programming ability has been improved, and I also try to do different work in a team to improve my comprehensive strength.
