Group 02 - sprint log 1 (12.06)

[qq_52981234]

The Link Your Class	https://bbs.csdn.net/forums/MUEE308FZU202201
The Link of Requirement of This Assignment	https://bbs.csdn.net/topics/610142480
Group number and Group name	Group 2 _ 一站式开源硬件交流社区——ELECO（电子）
The Aim of This Assignment	Report project progress and plan the next stage in order to better complete the project

Contents

• 1 Progress of each members
• 2 Record of the Stand-up Meeting
• 3 Development Process (screenshots of the operation)
• 3.1 Front End
• 3.2 Back End
• 3.3 Test
• 4 UML design
• 4.2 Back-end
• 5 Progress Burndown Chart
• 6 Team Member Contribution Table

1 Progress of each members

Division of Labor	Team Members	Completed Task	Duration of the Task	Problems Encountered	Solution	Plan of Next Stage
Front End	She Zixiang, Zheng Zheyi,Xu Xin	1. Realize user registration and login function, use Vue-cookie plug-in and the browser's built-in "localStorage" to store user information and prevent vuex plug-in after the page update data clearing problem; 2. Realize the initial construction of each interface component, using sass and css custom variables to adjust the size of web elements in a proportional way; 3. Use apifox to generate mock data: Get your own defined data by calling the fake interface, so that you can still get the data used for the display of the page when the interface is not developed on the back end. This allows us to develop in parallel with the back end and shorten the schedule.	8h	1. Previously written code is too coupled to be reused well; 2. The data returned when the API document was previously defined was too cumbersome, and there was not much need to save all the returned data.	1. Split and reassemble old code to reduce coupling (which may take a long time); 2. Redefine the API documentation to reduce the amount of data returned.	Implementing user page interaction functions
Back End	Zhao Rui, Chen Kaifeng, Zhu Liao, Wang Weiqin	Complete the writing of user class and the realization of login registration, complete the database table	7h	1. How to properly plan tables in the database 2. How do I return data in json format 3. How do I mask passwords when returning data	1. Table construction through discussion to get a reasonable table construction scheme 2. The returned JSON data is defined through the tool class 3. Hide passwords by adding the @JSONIgnore annotation to prevent leaks	Inject virtual post data to achieve user post pulling and following functions.Train hardware recognition dataset
Test	Lin Mingrui, Ou Zhenhui, Wang Enyi	1. On the front end, the return data test is completed 2. On the back end, debug user registration, login interface 3. Search for recognition hardware images	4h	We are not very familiar with the test method, and the code is relatively complicated in the test process, and there are many testing situations, so the test is difficult	Through learning to master the test method, to a certain extent understand the front and back end of the code, well completed the test	Debug the post pull function module. Assist in training hardware recognition dataset

2 Record of the Stand-up Meeting

3 Development Process (screenshots of the operation)

3.1 Front End

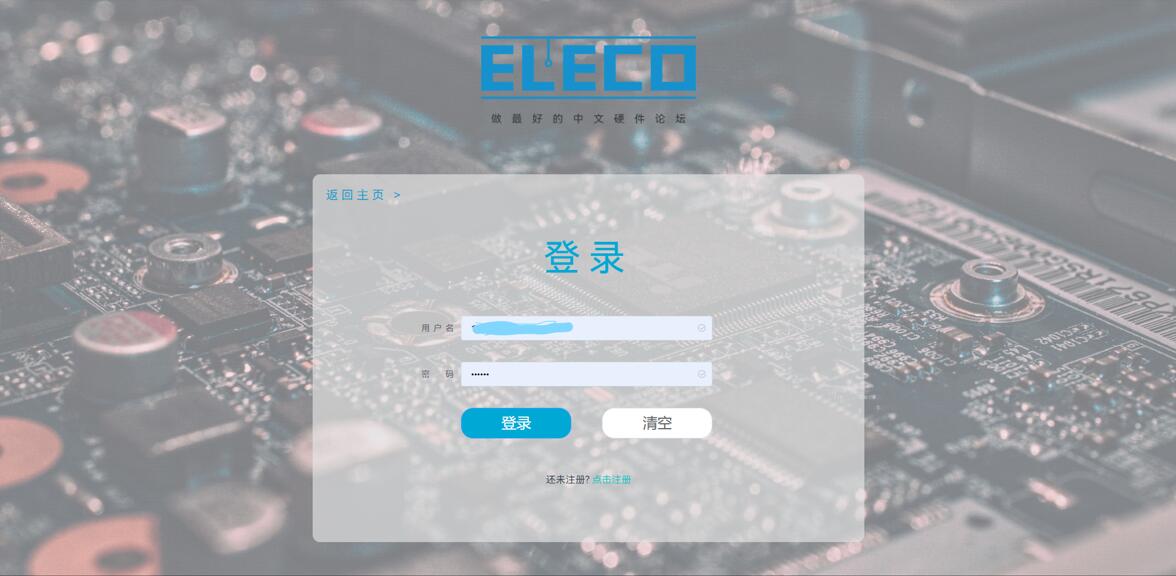

Login interface:

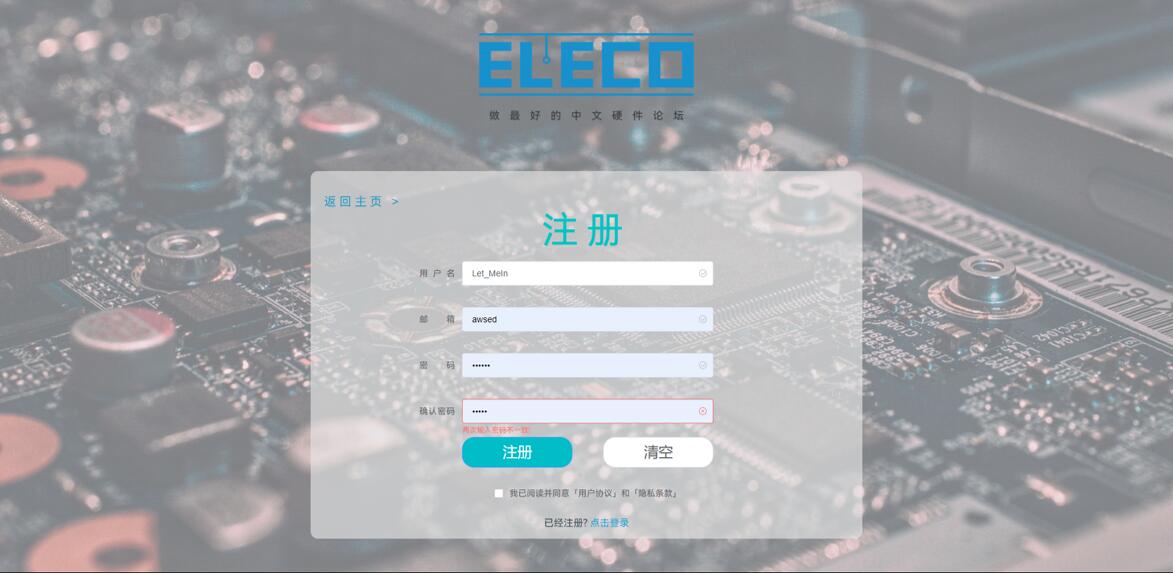

Registration interface:

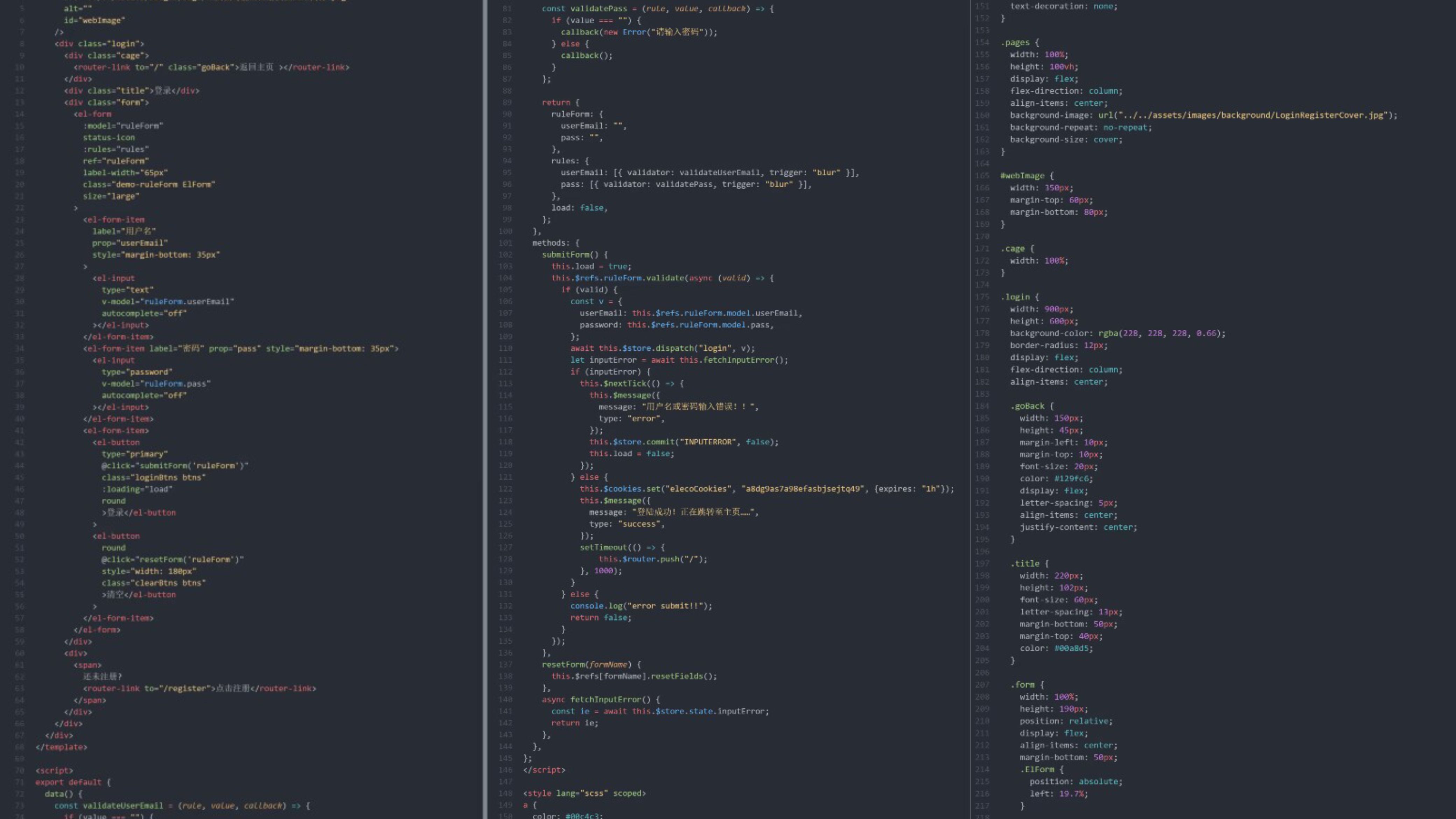

Page Effect

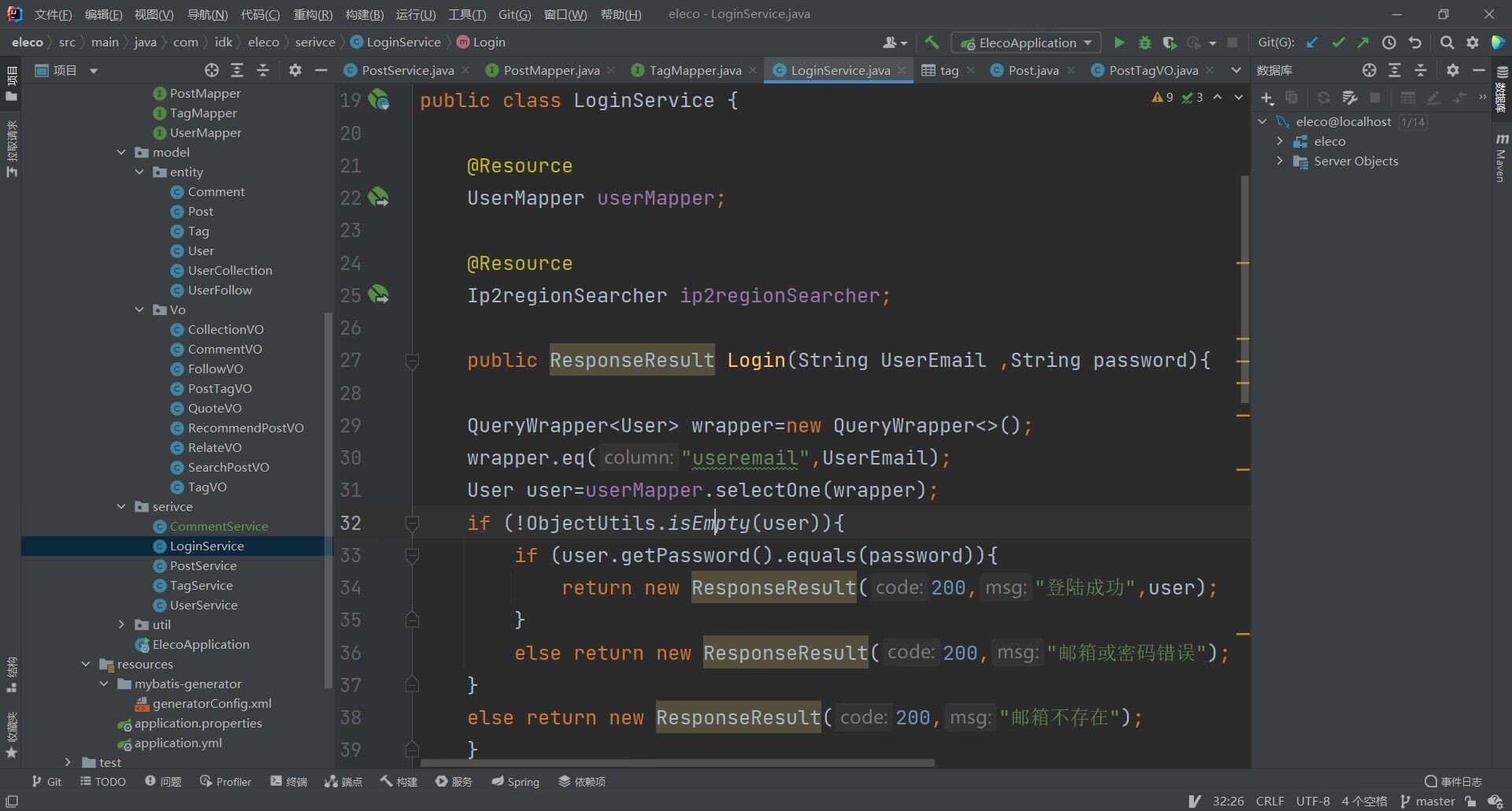

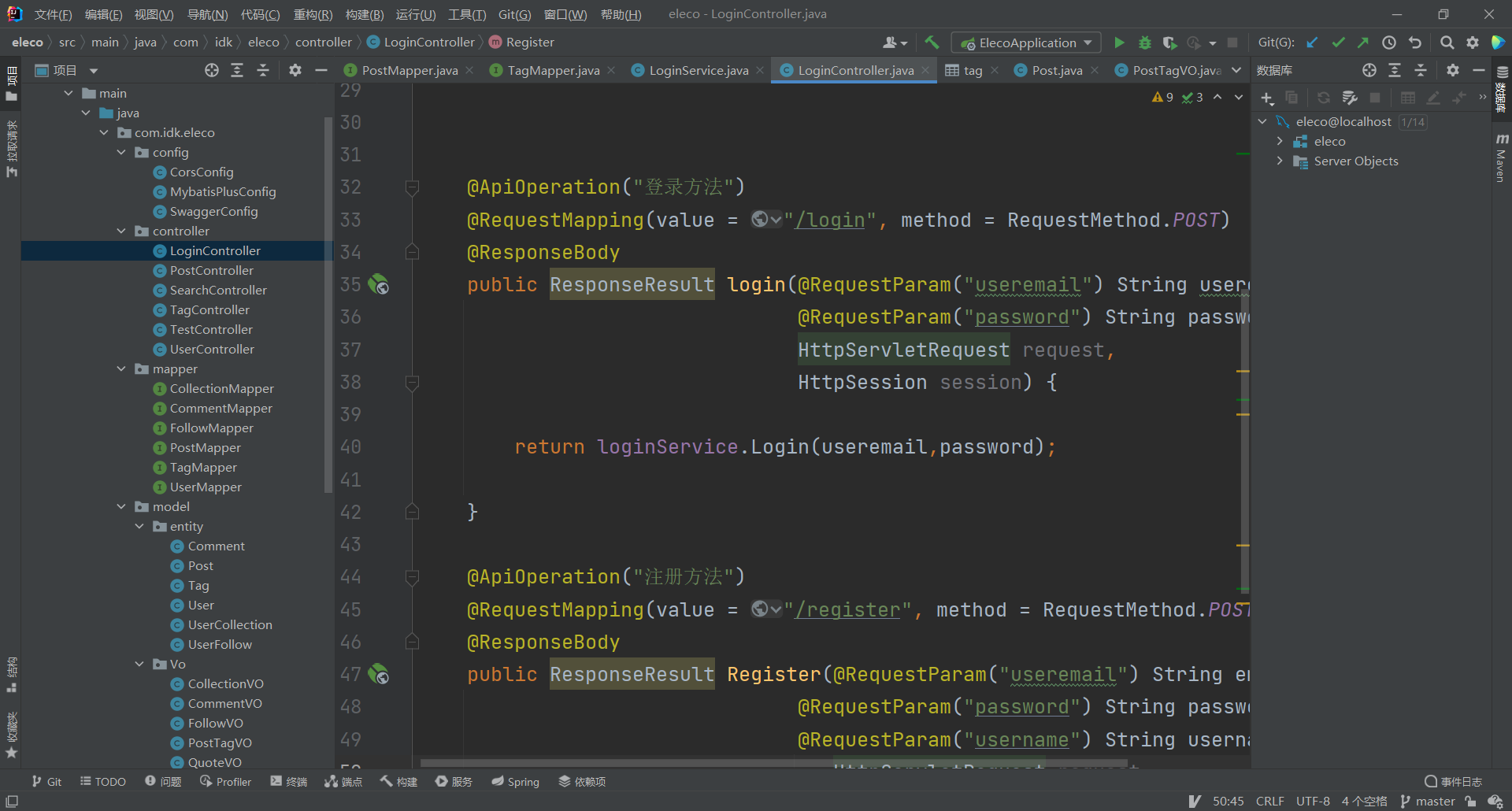

3.2 Back End

3.3 Test

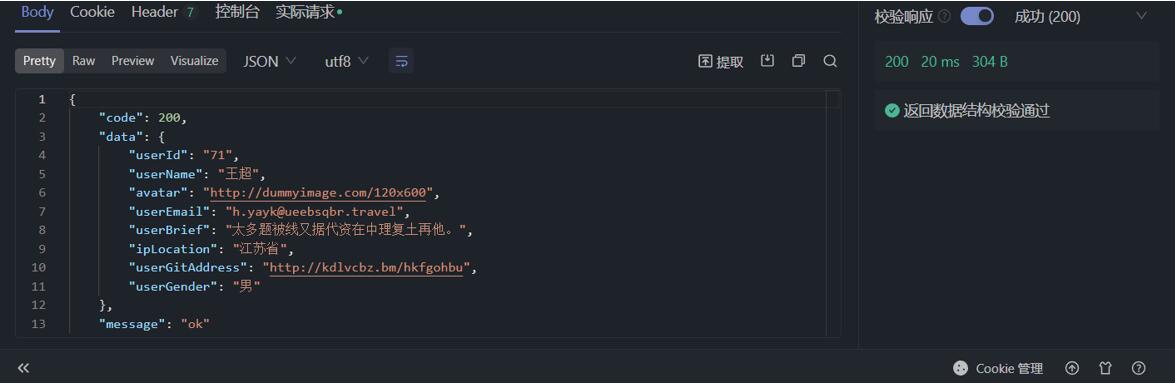

Front End Test

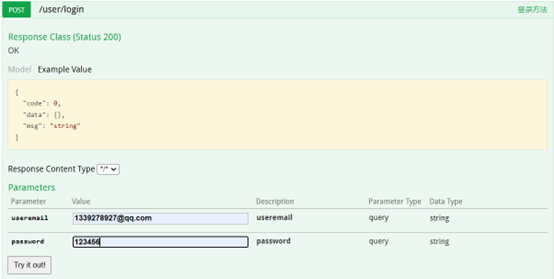

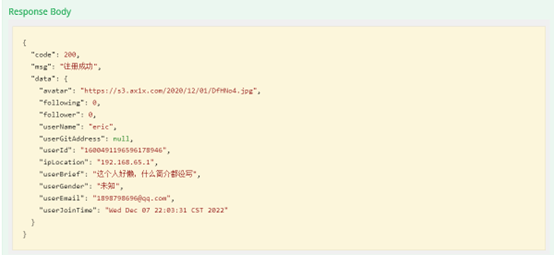

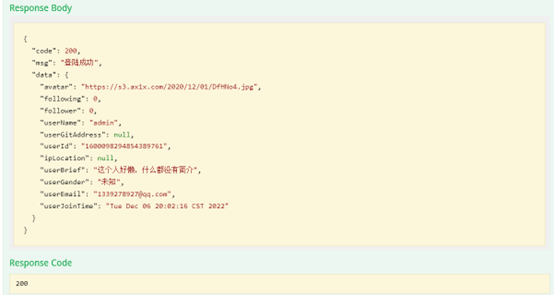

Login test

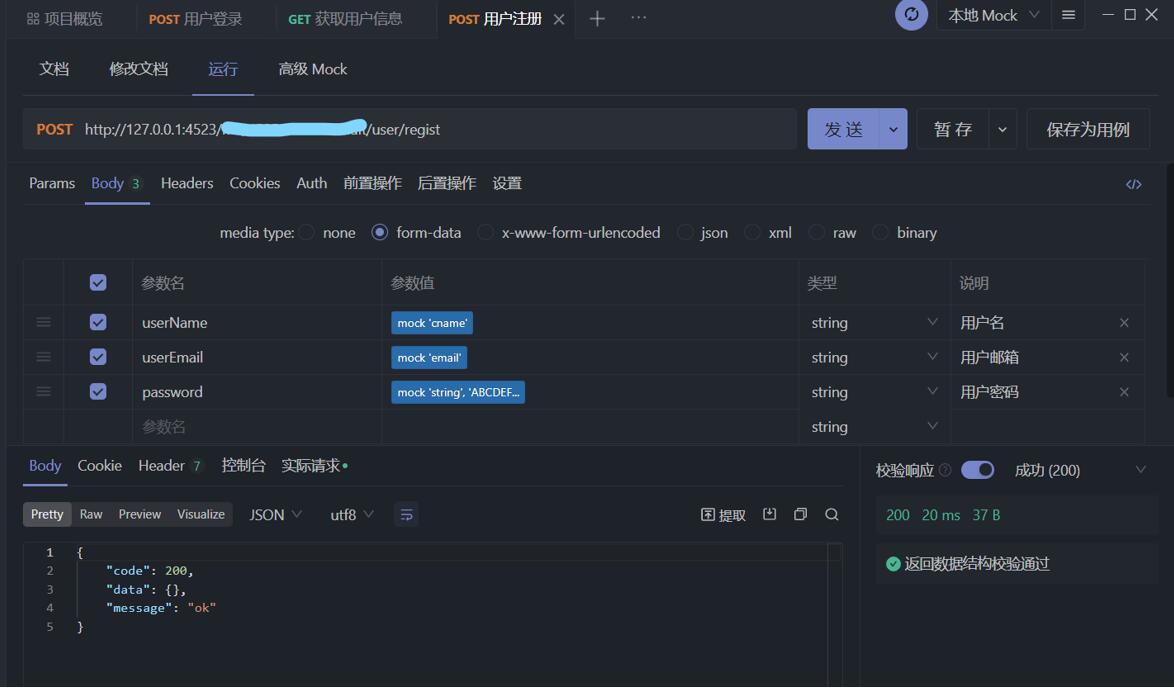

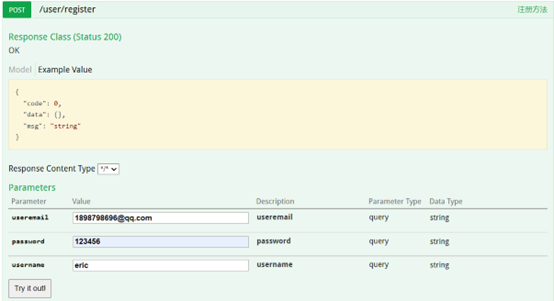

Registration test

4 UML design

###4.1 Front-end

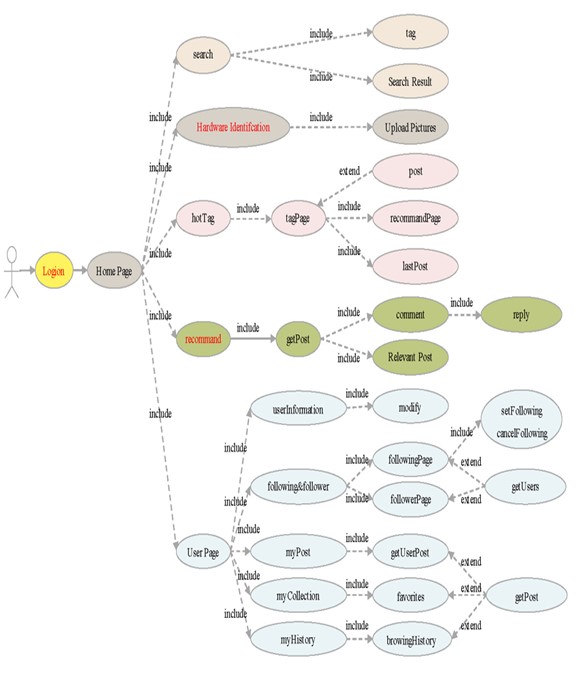

Use case diagram (Home page):

Use case diagram (User page):

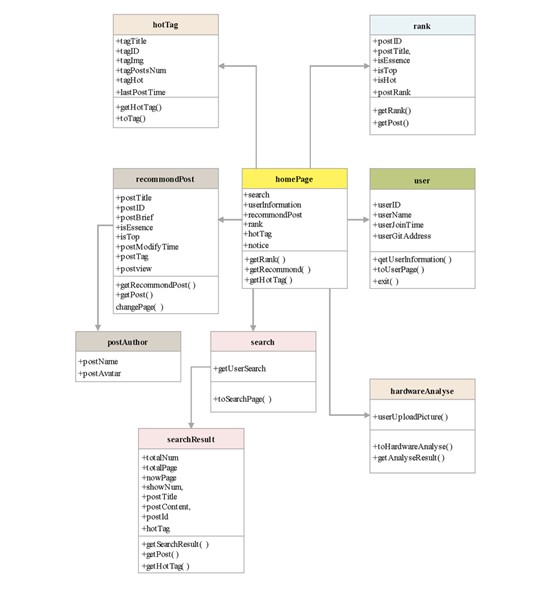

Class diagram (Home page):

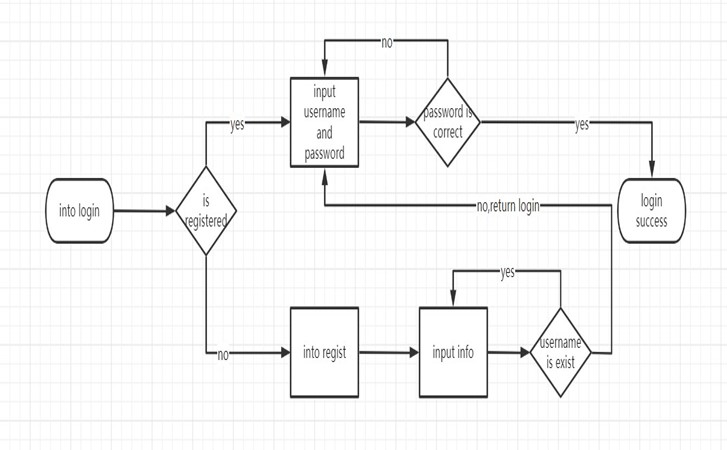

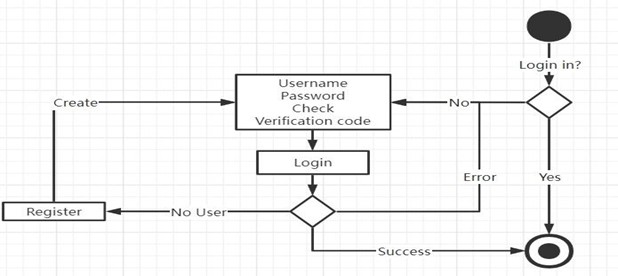

Activity diagram:

4.2 Back-end

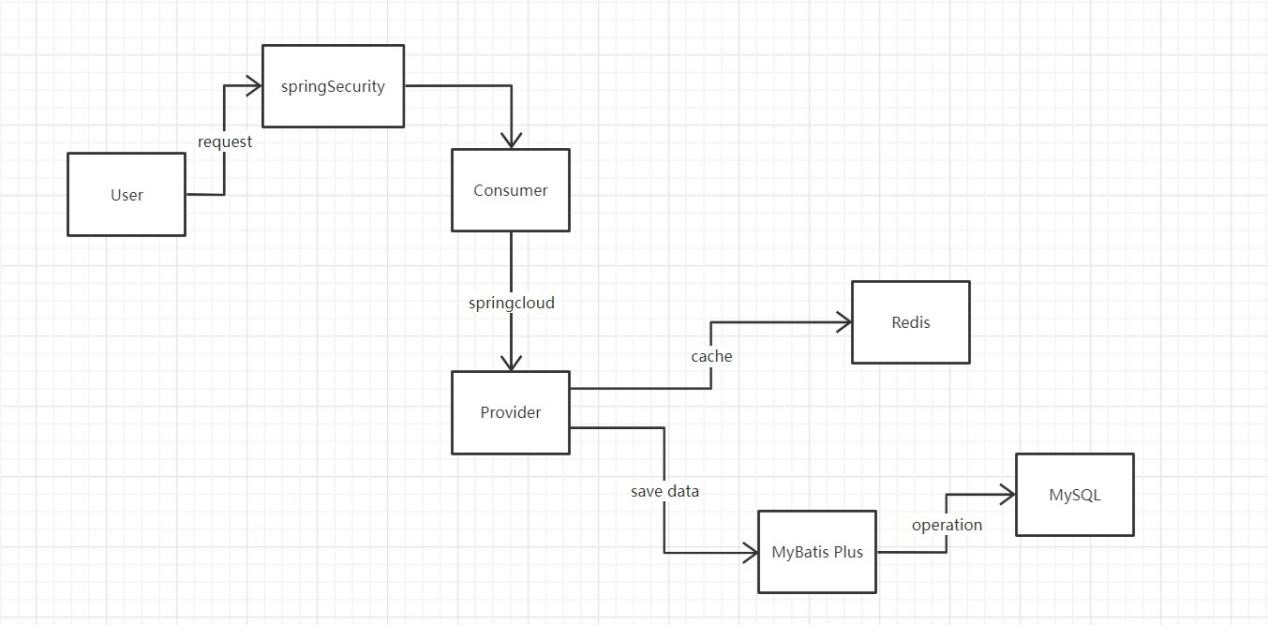

Deployment diagram:

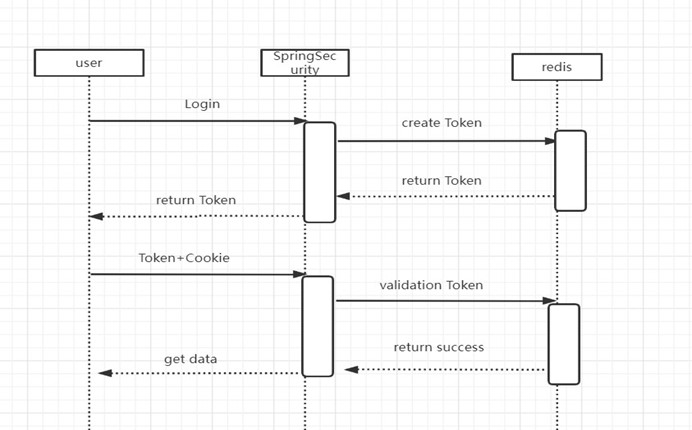

Sequence diagram:

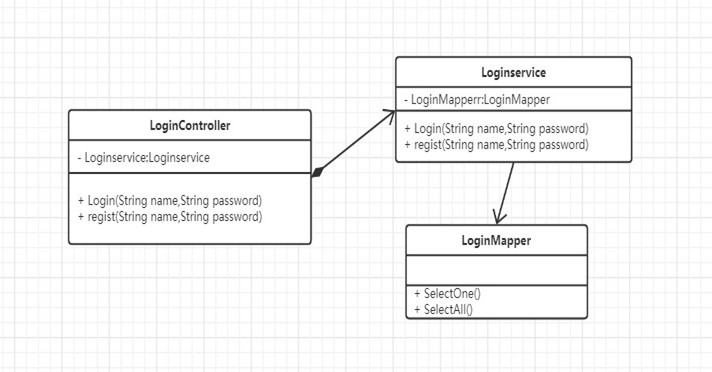

Class diagram:

Activity diagram:

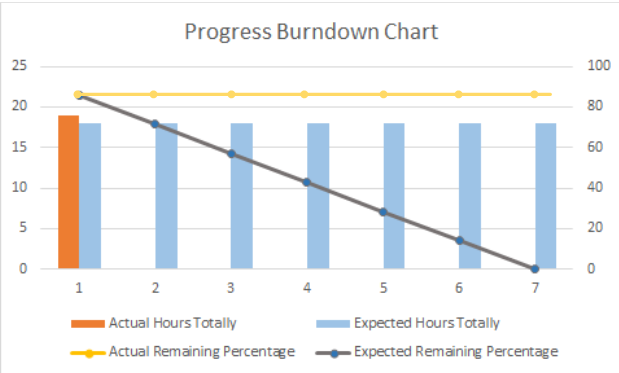

5 Progress Burndown Chart

6 Team Member Contribution Table

Member	Contribution Percentage
She Zixiang	10%
Zheng Zheyi	10%
Zhao Rui	10%
Chen Kaifeng	10%
Zhu Liao	10%
Xu Xin	10%
Wang Weiqin	10%
Lin Mingrui	10%
Ou Zhenhui	10%
Wang Enyi	10%
