软件工程实践第二次作业——个人实战

222100310许家榕 2024-02-26 11:57:22

软件工程实践第二次作业——个人实战

这个作业属于哪个课程	软件工程实践-2023学年-W班
这个作业要求在哪里	软件工程实践第二次作业——个人实战
这个作业的目标	完成对世界游泳锦标赛跳水项目相关数据的收集，并实现一个能够对赛事数据进行统计的控制台程序
其他参考文献	《构建之法》《源代码管理》

软件工程实践第二次作业——个人实战
Gitcode项目地址
PSP表格
解题思路描述
对于数据的获取
开始时想到了三个方法：
Json的解析
对input.txt文件的读取
接口设计和实现过程
接口设计
接口实现
关键代码展示
性能改进
单元测试
异常处理
心得体会

Gitcode项目地址

https://gitcode.net/xjr16/project-java

PSP表格

软工开发阶段	预估耗时（分钟）	实际耗时（分钟）
计划	10	20
开发	420	600
需求分析 (包括学习新技术）	30	60
生成设计文档	15	30
设计复审	15	15
代码规范 (为目前的开发制定合适的规范)	5	5
具体设计	40	40
具体编码	300	520
代码复审	60	180
测试（自我测试，修改代码，提交修改）	60	30
报告	30	30
测试报告	30	30
计算工作量	10	10
事后总结, 并提出过程改进计划	60	30
合计	1110	1800

解题思路描述

对于数据的获取

开始时想到了三个方法：

通过爬虫软件获取网页资源获取信息
通过获取网站api获取json信息进行解析
通过获取网站api获取json信息进行解析后，将其转为csv文件进行储存，通过代码调取csv文件进行信息获取
最后选择了第三点

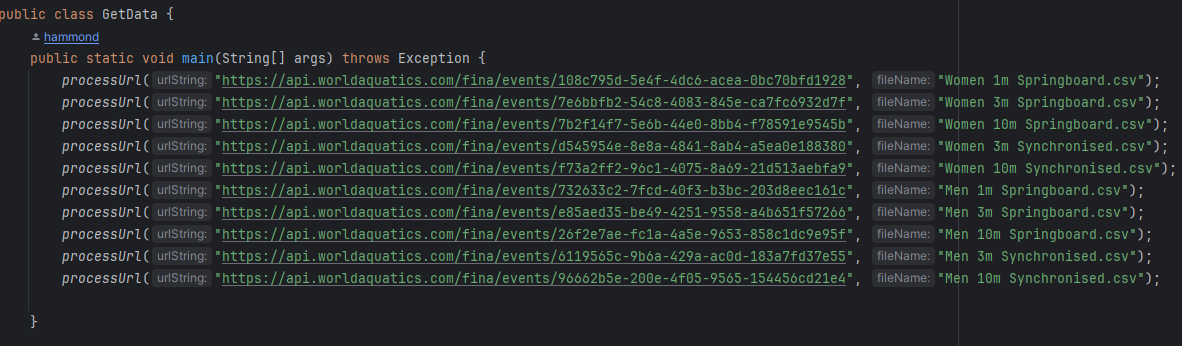

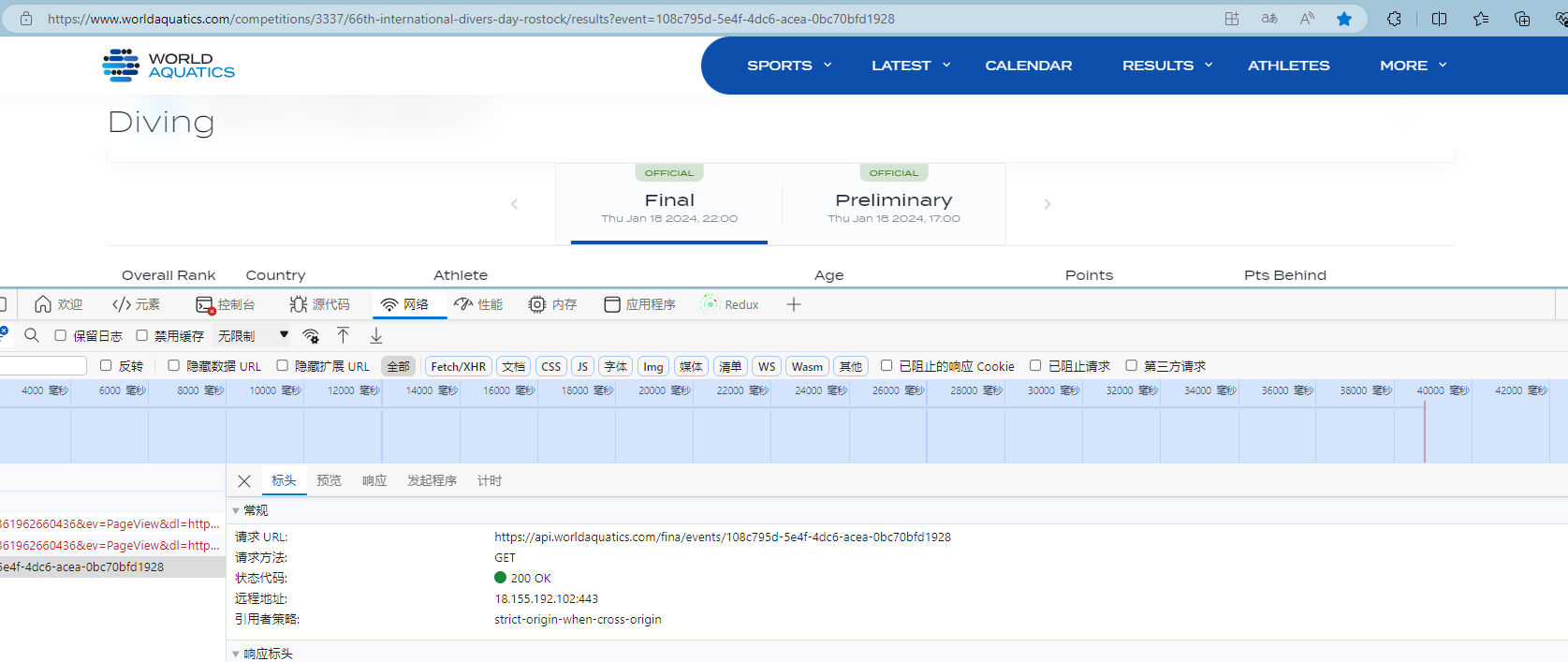

获取api

解析api并转换成csv

Json的解析

学习maven管理资源包的办法
导入json包进行解析
在getdata中成功获取到信息
对input.txt文件的读取
scanner.nextLine().trim()的读取获取input.txt里面的内容再调用函数对output.txt进行输出

接口设计和实现过程

接口设计

通过在抽象类中定义构造函数，并在子类中使用super关键字调用父类的构造函数，可以实现在新类中直接获取不同功能所需的信息
子类再通过获取的信息，完成具体的函数实现其功能
接口实现

通过运行getData获取csv数据表格
CompletionResult，CompletionResultDetail，Player都继承与AbstractPlayers，分别处理不同指令

关键代码展示

基础功能

  public Player(String fullName, String gender, String country) {
      this.fullName = fullName;
      this.gender = gender;
      this.country = country;
  }

  @Override
  public String toString() {
      return "Full Name:" + fullName + "\nGender:" + gender + "\nCountry:" + countryName(country) + "\n-----\n";
  }
  public static void printPlayers(List<Player> players, PrintWriter writer) {
      for (Player player : players) {
          writer.print(player);
      }
  }

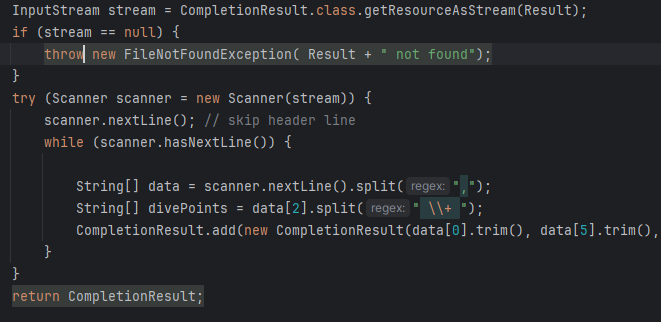

  public static List<CompletionResult> readCompletionResult(String Result) throws FileNotFoundException {
      List<CompletionResult> CompletionResult = new ArrayList<>();
      InputStream stream = CompletionResult.class.getResourceAsStream(Result);
      if (stream == null) {
          throw new FileNotFoundException( Result + " not found");
      }
      try (Scanner scanner = new Scanner(stream)) {
          scanner.nextLine(); // skip header line
          while (scanner.hasNextLine()) {
              String[] data = scanner.nextLine().split(",");
              String[] divePoints = data[2].split(" \\+ ");
              CompletionResult.add(new CompletionResult(data[0].trim(), data[5].trim(), divePoints, data[3].trim(), data[4].trim(), data[6].trim(), data[1].trim()));
          }
      }
      return CompletionResult;
  }

  public static void printCompletionResult(List<CompletionResult> CompletionResult, PrintWriter writer) {
      for (CompletionResult player : CompletionResult) {
          writer.println("Full Name:" + player.getName());
          writer.println("Rank:" + player.getRank());

          //去除null值
          String scores = Arrays.stream(player.getDivePoints())
                  .filter(Objects::nonNull)
                  .collect(Collectors.joining(" + "));

          writer.println("Score:" + scores + " = " + player.getTotalPoints());
          writer.println("-----");
      }
  }

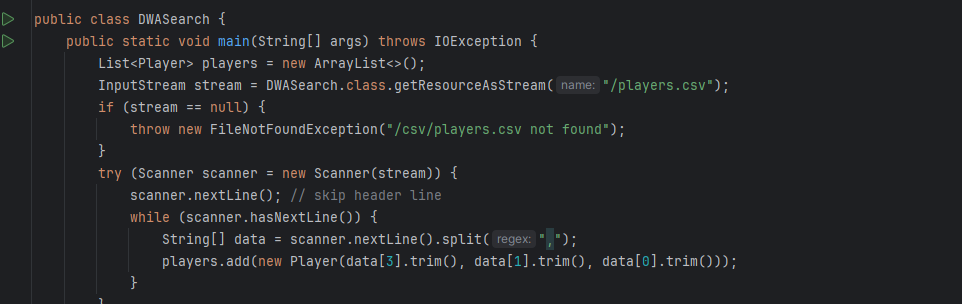

主类

public class DWASearch {
  public static void main(String[] args) throws IOException {
      List<Player> players = new ArrayList<>();
      InputStream stream = DWASearch.class.getResourceAsStream("/players.csv");
      if (stream == null) {
          throw new FileNotFoundException("/csv/players.csv not found");
      }
      try (Scanner scanner = new Scanner(stream)) {
          scanner.nextLine(); // skip header line
          while (scanner.hasNextLine()) {
              String[] data = scanner.nextLine().split(",");
              players.add(new Player(data[3].trim(), data[1].trim(), data[0].trim()));
          }
      }

      try (Scanner scanner = new Scanner(new File("input.txt"));
           PrintWriter writer = new PrintWriter(("output.txt"))) {
          while (scanner.hasNextLine()) {
              String command = scanner.nextLine().trim();
              if (command.isEmpty()) {
                  continue; // skip empty lines
              }
              if ("players".equals(command)) {
                  printPlayers(players, writer);
              } else if (command.startsWith("result ")) {
                  String condition = command.substring(7); // 获取后面的值
                  boolean hasDetail = condition.endsWith(" detail");
                  condition = hasDetail ? condition.substring(0, condition.length() - 7) : condition; // 判断条件后的detail
                  switch (condition) {
                      case "women 1m springboard":
                          if (hasDetail) {
                              printDetailedCompletionResult(readCompletionResult("/Women 1m Springboard.csv"), writer);// 这里是当指令包含detail时执行的代码
                          }
                          else
                              CompletionResult.printCompletionResult(CompletionResult.readCompletionResult("/Women 1m Springboard.csv"), writer);
                          break;
                          //...
                      default:
                          writer.println("N/A");
                          writer.println("-----");
                          break;

                  }
              }
              else {
                  writer.println("Error");
                  writer.println("-----");
              }
          }
      }
  }

datil功能实现

public static Map<String, CompletionResultDetail> readCompletionResult(String Result) throws FileNotFoundException {
      Map<String, CompletionResultDetail> playerScoresMap = new HashMap<>();
      try (Scanner scanner = new Scanner(Objects.requireNonNull(CompletionResultDetail.class.getResourceAsStream(Result)))) {
          scanner.nextLine(); // skip header line
          while (scanner.hasNextLine()) {
              String[] data = scanner.nextLine().split(",");
              String[] divePoints = data[2].split(" \\+ ");
              String fullName = data[0].trim();
              String phaseName = data[6].trim();
              String scores = Arrays.stream(divePoints)
                      .filter(Objects::nonNull)
                      .collect(Collectors.joining(" + "));
              CompletionResultDetail completionResultDetail = playerScoresMap.computeIfAbsent(fullName, k -> new CompletionResultDetail(fullName, data[1].trim(), data[5].trim()));
              completionResultDetail.addScore(phaseName, scores);
              completionResultDetail.addRank(phaseName, data[4].trim()); // 添加排名
              completionResultDetail.setTotalPoints(data[3].trim()); // 读取总分
          }
      }
      return playerScoresMap;
  }

  public static void printDetailedCompletionResult(Map<String, CompletionResultDetail> playerScoresMap, PrintWriter writer) {
      for (Map.Entry<String, CompletionResultDetail> entry : playerScoresMap.entrySet()) {
          writer.println("Full Name:" + entry.getKey());
          writer.println("Rank:" + entry.getValue().getRank("Preliminaries") + " | " + entry.getValue().getRank("Semifinals") + " | " + entry.getValue().getRank("Finals")); // 打印排名
          writer.println("Preliminary Score:" + entry.getValue().getScore("Preliminaries") + " = " + entry.getValue().getTotalPoints());
          writer.println("Semifinal Score:" + entry.getValue().getScore("Semifinals") + " = " + entry.getValue().getTotalPoints());
          writer.println("Final Score:" + entry.getValue().getScore("Finals") + " = " + entry.getValue().getTotalPoints());
          writer.println("-----");
      }
  }
