Project Overview
| Course | 2501_MU_SE_FZU |
|---|---|
| Assignment Requirement | Teamwork—beta Spring |
| Team name | FocusFlow |
| Author | Hongzhi He(FZU:832302220 MU:23125390 |
| Goal of this Assignment | Clarify Code Standards, Sprint Tasks, and Plans for the team Beta Sprint |
| Other References | IEEE Std 830-1998, GB/T 8567-2006 |

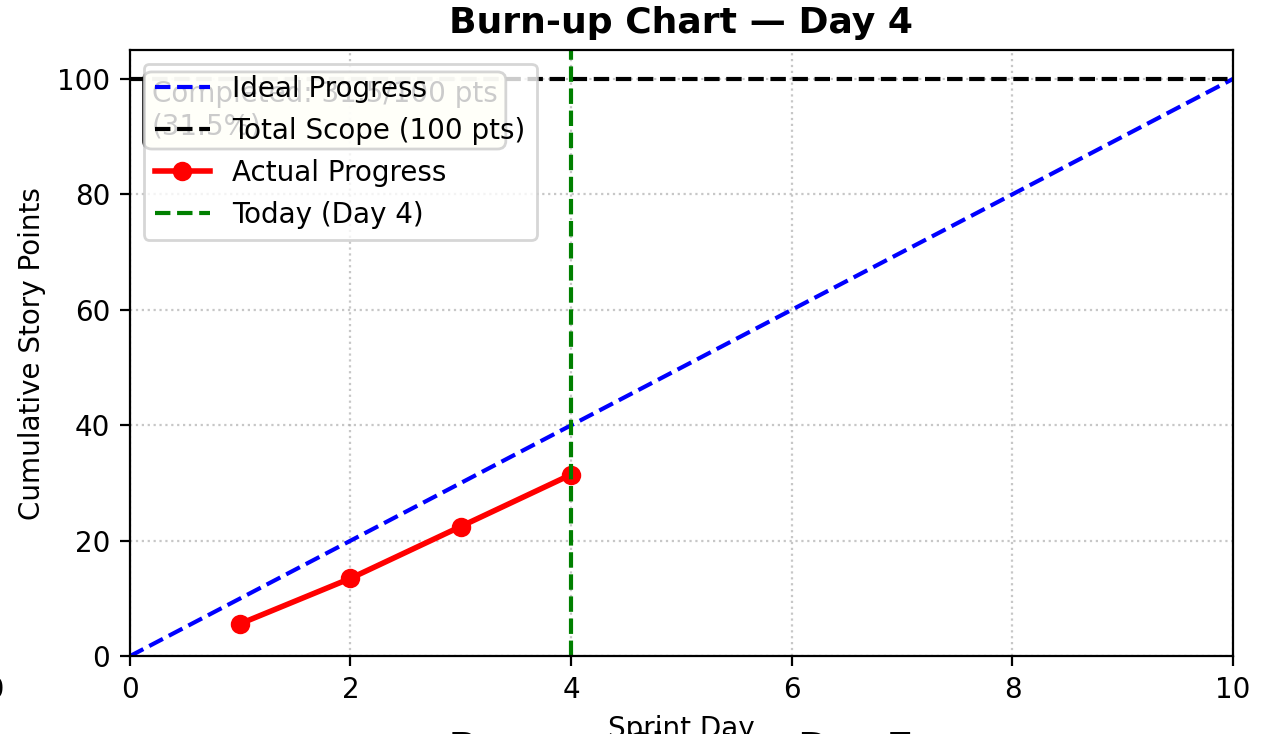

Sprint Burnup Chart
We tracked our progress meticulously throughout the sprint. The chart below illustrates our team's velocity in completing the task management user stories against our estimated timeline.

SCRUM Table
Here is the updated progress table with the project manager's role added to the first row:
| Member | ID | Role | Completed Tasks | Time Spent | Remaining Time Estimate | Issues / Difficulties | Plans Until Tomorrow's Stand-up |
|---|---|---|---|---|---|---|---|
| Jiayao Hu | 832301310 | Project Manager (Responsible for overall project planning, progress tracking, and risk management. Leads requirements gathering and analysis meetings. Coordinates work across all teams. Chairs the final review and integration of the SRS document.) | 1. Coordinated UI optimization sprint planning 2. Tracked frontend animation implementation progress 3. Organized cross-team synchronization for UX improvements | 4.5 hours | 1.5 hours (sprint review preparation) | Animation performance metrics collection needs standardization across teams | 1. Finalize UI optimization success metrics 2. Coordinate animation performance review meeting 3. Prepare sprint retrospective documentation |
| Yuxiang Xie | 832301327 | Frontend Developer | 1. Implemented gradient welcome banner with hue-rotate animation (8s cycle) 2. Added cloud background animation with moving effects 3. Optimized CSS transitions for smooth color shifts | 6 hours | 2 hours (cross-browser compatibility testing) | Safari browser has inconsistent hue-rotate animation rendering | 1. Fix Safari-specific animation issues 2. Add animation performance monitoring 3. Optimize GPU acceleration for smoother transitions |
| Pengxiang Hu | 832301309 | Frontend Developer | 1. Developed typewriter animation system for greetings 2. Implemented step-based animation for Flash messages 3. Created multilingual support for animation timing | 5.5 hours | 1.5 hours (timing synchronization testing) | Chinese characters animation timing differs from English, causing inconsistent speeds | 1. Adjust animation timing for mixed languages 2. Add pause/resume controls for animations 3. Test with various text lengths |
| Jianyuan Wu | 832302126 | Frontend Developer | 1. Implemented username display optimization in global template 2. Created responsive avatar-header component 3. Added real-time user status synchronization | 4 hours | 2 hours (mobile responsiveness testing) | Long usernames overflow on mobile screens without proper truncation | 1. Implement CSS text truncation with ellipsis 2. Add tooltip for full username display 3. Optimize for various screen sizes |
| Hongzhi He | 832302220 | Frontend Developer | 1. Integrated backend user data with frontend display 2. Created JavaScript initialization for user info 3. Implemented sessionStorage caching for performance | 5 hours | 1 hour (data consistency testing) | Avatar loading causes layout shift on slow connections | 1. Implement skeleton loading for avatars 2. Add error handling for missing profile pictures 3. Optimize image loading strategy |
| Feijie Zheng | 832301306 | QA/Test Engineer | 1. Created gradient animation functional tests 2. Developed edge case tests for empty states 3. Implemented cross-browser compatibility matrix | 4.5 hours | 2.5 hours (performance benchmarking) | Animation performance tests show inconsistent results across devices | 1. Standardize performance testing methodology 2. Create automated visual regression tests 3. Document testing procedures |
| Weixiang Zhou | 832301303 | QA/Test Engineer | 1. Built user display test suite 2. Created multilingual animation tests 3. Developed animation performance monitoring | 5 hours | 2 hours (test automation setup) | Automated tests fail intermittently due to animation timing variations | 1. Add tolerance thresholds for animation tests 2. Implement retry logic for flaky tests 3. Create performance baseline documentation |
1.Project Background and Objectives
1.1 Project Background
In the Alpha phase, we completed the basic functions of the FocusFlow web application, including user authentication, task management, and basic timers. However, user feedback indicates that the visual effect of the interface is relatively monotonous and lacks personalized experience. especially:
1)The homepage lacks visual appeal and cannot immediately capture users' attention
2)Lack of dynamism and modernity in user experience
3)The display of personal center information is not intuitive enough, making it difficult for users to quickly identify their current login status
Based on these feedbacks, in the second phase of Beta sprint, we have decided to focus on optimizing the user interface, enhancing personalized experience, and making FocusFlow not only functional but also visually superior.
1.2 Objectives
1.2.1 Implemented Features:
1.Welcome Bar Gradient Color Effect on Homepage
1)Implement smooth color transition animation (complete a complete hue cycle every cycle)
2)Add cloud background animation to enhance visual effects
3)Automatically adjust gradient hue and shadow effects based on time
2.Dynamic text animation effect
1)Greetings are presented word by word using a typewriter
2)Flash information uses typewriter animation effects
3)Animation speed and timing can be independently controlled
3.User interface optimization
1)Real time display of the current login username in the upper right corner of the application
2)User profile picture and username linked display
1.2.2 Specific Implementation:
1.CSS Gradient Animation System
1)Using CSS3 hue rotate filter to achieve smooth hue transitions
2)Implementing complex multi-level animations using @ keyframes
3)Create visual hierarchy using filter attribute and box shadow
2.Typewriter animation system
1)Implementing typewriter effects using pure CSS @ keyframes
2)By controlling the width property, characters appear one by one
3)Support timing control for mixed Chinese and English text
3.User Status Management System
1)Optimize the display of user information in the global template
2)Real time synchronization of avatars and usernames
3)Add a user interface that supports multiple languages
2. Git Repository Link and Coding Standards Link
Git Repository Link:FocusFlow
Coding Standards Link:FocusFlow β Sprint Code Standards

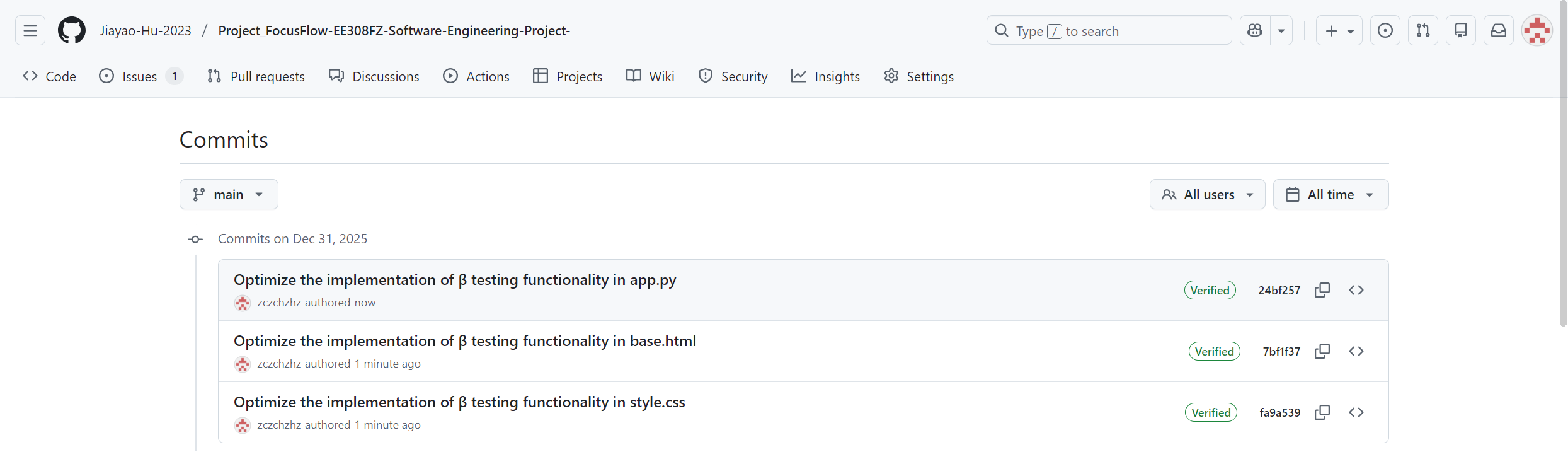

Commit record:

3. Design and Implementation Process
3.1 Frontend
3.1.1 Implementation of Gradient Welcome Bar
Design concept:
Create a dynamic gradient background, control color transitions through CSS filters, and achieve visual effects that change over time. Add cloud background animation to enhance visual hierarchy.
Key technology implementation (from style. css):
/* 渐变色彩动画 - 实现色相循环 */
.welcome-banner {
background: linear-gradient(135deg, #87CEEB 0%, #B0E0E6 100%);
animation: gradientShift 8s ease-in-out infinite;
filter: hue-rotate(0deg);
}
@keyframes gradientShift {
0% {
filter: hue-rotate(0deg);
box-shadow: 0 4px 12px rgba(135, 206, 235, 0.3);
}
25% {
filter: hue-rotate(90deg);
box-shadow: 0 4px 12px rgba(255, 107, 107, 0.3);
}
50% {
filter: hue-rotate(180deg);
box-shadow: 0 4px 12px rgba(78, 205, 196, 0.3);
}
75% {
filter: hue-rotate(270deg);
box-shadow: 0 4px 12px rgba(253, 116, 108, 0.3);
}
100% {
filter: hue-rotate(360deg);
box-shadow: 0 4px 12px rgba(135, 206, 235, 0.3);
}
}
/* 云朵背景动画 */
.welcome-banner::before {
content: '';
position: absolute;
top: -50px;
left: -50px;
width: 200px;
height: 100px;
background: rgba(255, 255, 255, 0.3);
border-radius: 100px;
box-shadow:
150px 50px 0 rgba(255, 255, 255, 0.25),
300px 30px 0 rgba(255, 255, 255, 0.2),
450px 70px 0 rgba(255, 255, 255, 0.25),
600px 40px 0 rgba(255, 255, 255, 0.2),
750px 60px 0 rgba(255, 255, 255, 0.25);
animation: cloudMove 20s infinite linear;
}
@keyframes cloudMove {
0% {
transform: translateX(0);
}
100% {
transform: translateX(100px);
}
}
Key implementation points:
1)Hue Rotation: Use filter: hue rotate() to achieve smooth color transitions
2)Shadow animation: Adjust shadow colors with color changes to enhance visual effects
3)Cloud effect: Create cloud shapes using multiple box shadows and add moving animations
4)Performance optimization: Use hardware acceleration properties to ensure smooth animation
3.1.2 typewriter animation effects
Design concept:
By controlling the CSS width property, the typewriter displays word by word, and using @ keyframes to precisely control animation timing.
Key technology implementation (from style. css):
/* 欢迎语打字机效果 */
.welcome-greeting {
font-size: 1.75rem;
font-weight: 600;
margin-bottom: 0.5rem;
overflow: hidden;
white-space: nowrap;
animation: typewriterLoop1 12.5s infinite;
width: 0;
}
@keyframes typewriterLoop1 {
0%, 20% {
width: 0;
}
20%, 40% {
width: 100%;
}
40%, 99.9% {
width: 100%;
}
100% {
width: 0;
}
}
/* 副标题打字机效果 */
.welcome-subtitle {
font-size: 1rem;
opacity: 0.95;
overflow: hidden;
white-space: nowrap;
animation: typewriterLoop2 12.5s infinite;
width: 0;
}
@keyframes typewriterLoop2 {
0%, 8% {
width: 0;
}
8%, 24% {
width: 0;
}
24%, 44% {
width: 100%;
}
44%, 99.9% {
width: 100%;
}
100% {
width: 0;
}
}
/* Flash消息打字机效果 */
.flash-message .message-text {
overflow: hidden;
white-space: nowrap;
animation: flashTypewriter 2s steps(30) forwards;
width: 0;
display: inline-block;
}
@keyframes flashTypewriter {
0% {
width: 0;
}
100% {
width: 100%;
}
}
Key implementation points:
1)Timing control: Accurately control animation delay to ensure that text appears in order
2)Loop playback: Set infinite loops to maintain page dynamism
3)Step animation: Flash message using steps() function to simulate typing effect
4)Responsive design: Ensure consistent animation effects across different screen sizes

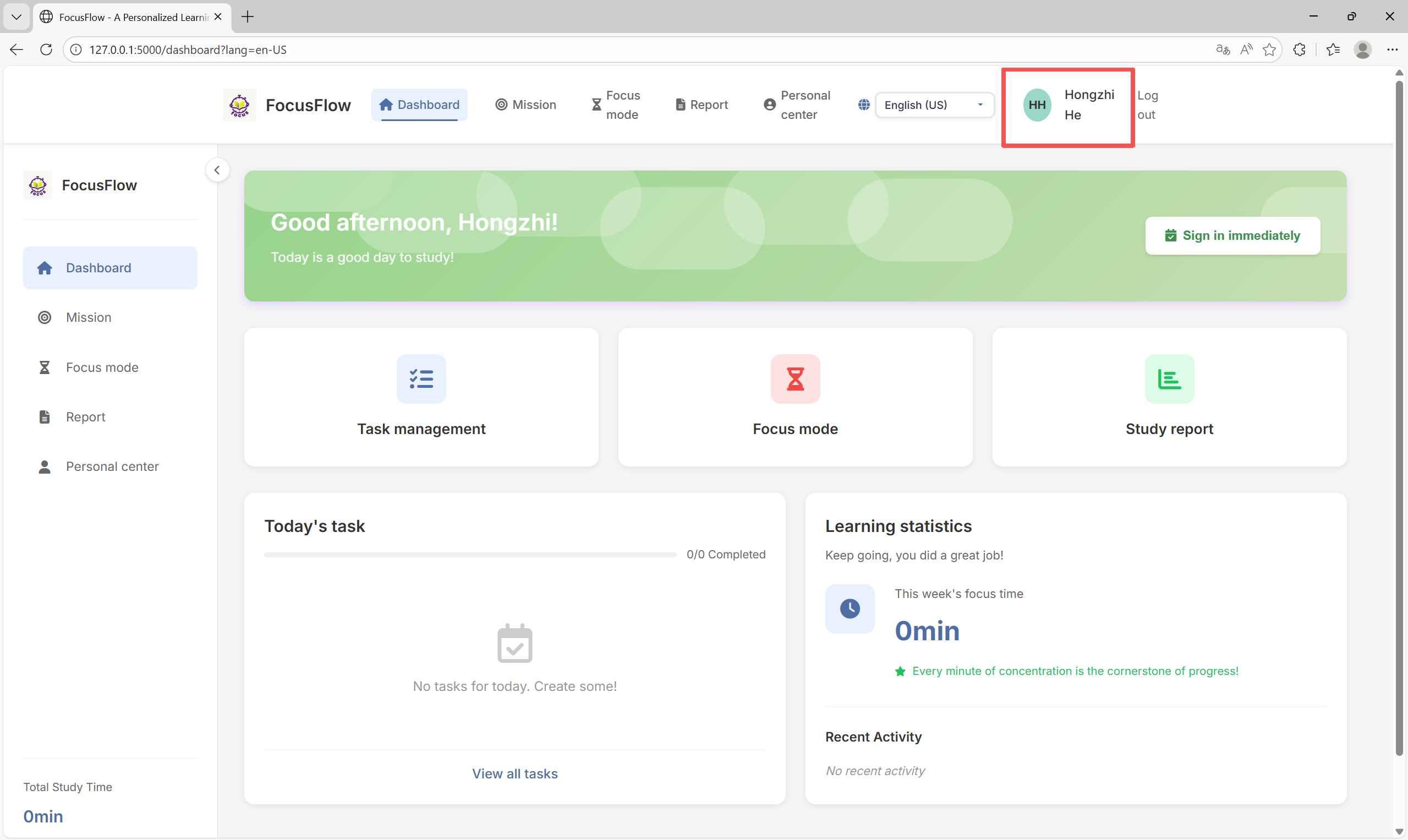

3.1.3 User Name Display Optimization
Design concept:
Optimize username display in the global template to ensure that users are aware of their login status at all times.
Key technology implementation (from base. html):
<!-- 用户菜单区域 -->
<div class="header-user-menu">
{% if g.user_profile_picture %}
<div class="user-avatar-header" style="background-image: url('{{ url_for('static', filename='uploads/avatars/' ~ g.user_profile_picture) }}'); background-size: cover; background-position: center;">
</div>
{% else %}
<div class="user-avatar-header" style="background-color: {{ g.user_avatar_color|default('#ffd700') }}">
{{ g.initials|default('UU') }}
</div>
{% endif %}
<span class="user-name-header">{{ g.user_name|default('User') }}</span>
{% if 'user_id' in session %}
<a href="{{ url_for('logout') }}" class="logout-link">{{ translations.logout }}</a>
{% endif %}
</div>
JavaScript Enhancements (from main. js):
// 初始化用户信息显示
function initUserInfo() {
const userAvatar = document.querySelector('.user-avatar-header');
const userName = document.querySelector('.user-name-header');
// 检查用户登录状态
if (userAvatar && userName) {
// 如果用户已登录,从sessionStorage获取用户信息
const userData = sessionStorage.getItem('userInfo');
if (userData) {
const userInfo = JSON.parse(userData);
updateUserDisplay(userInfo);
}
}
}
// 更新用户显示
function updateUserDisplay(userInfo) {
const userNameElement = document.querySelector('.user-name-header');
if (userNameElement && userInfo.username) {
userNameElement.textContent = userInfo.username;
}
// 更新头像显示
const userAvatar = document.querySelector('.user-avatar-header');
if (userAvatar && userInfo.avatar) {
userAvatar.style.backgroundImage = `url('${userInfo.avatar}')`;
userAvatar.textContent = '';
}
}
3.2 Backend
3.2.1 User Information API Optimization
To ensure that the front-end can obtain accurate user information in real time, we have optimized the back-end API:
# app.py - 用户信息API端点优化
@app.route('/api/user/current', methods=['GET'])
@login_required
def get_current_user():
"""获取当前登录用户的详细信息"""
try:
user_id = session.get('user_id')
if not user_id:
return jsonify({'error': '未登录'}), 401
# 从数据库获取用户信息
user = db.execute('''
SELECT
u.id, u.username, u.email, u.first_name, u.last_name,
u.created_at, u.last_login, u.profile_picture,
COUNT(DISTINCT fs.id) as total_sessions,
COALESCE(SUM(fs.duration), 0) as total_focus_time,
COUNT(DISTINCT t.id) as total_tasks,
COUNT(DISTINCT t.id) FILTER (WHERE t.status = 'completed') as completed_tasks
FROM users u
LEFT JOIN focus_sessions fs ON u.id = fs.user_id
LEFT JOIN tasks t ON u.id = t.user_id
WHERE u.id = ?
GROUP BY u.id
''', (user_id,)).fetchone()
if user:
# 生成用户头像颜色
avatar_color = generate_avatar_color(user['username'])
# 生成用户首字母
initials = generate_initials(user['first_name'], user['last_name'])
# 格式化用户信息
user_info = {
'id': user['id'],
'username': user['username'],
'email': user['email'],
'first_name': user['first_name'],
'last_name': user['last_name'],
'full_name': f"{user['first_name']} {user['last_name']}",
'profile_picture': user['profile_picture'],
'created_at': user['created_at'],
'last_login': user['last_login'],
'avatar_color': avatar_color,
'initials': initials,
'stats': {
'total_sessions': user['total_sessions'] or 0,
'total_focus_time': user['total_focus_time'] or 0,
'total_tasks': user['total_tasks'] or 0,
'completed_tasks': user['completed_tasks'] or 0
}
}
return jsonify(user_info)
else:
return jsonify({'error': '用户不存在'}), 404
except Exception as e:
print(f"获取用户信息错误: {e}")
return jsonify({'error': '服务器内部错误'}), 500
@app.before_request
def load_user_info():
"""在每个请求前加载用户信息"""
if 'user_id' in session:
user_id = session['user_id']
user = db.execute('SELECT * FROM users WHERE id = ?', (user_id,)).fetchone()
if user:
g.user = user
g.user_name = f"{user['first_name']} {user['last_name']}" if user['first_name'] else user['username']
g.initials = generate_initials(user['first_name'], user['last_name'])
g.user_avatar_color = generate_avatar_color(user['username'])
g.user_profile_picture = user['profile_picture']
3.2.2 User Status Management
Add user status tracking function to lay the foundation for real-time status display in the future:
# app.py - 用户状态跟踪
def update_user_last_activity(user_id):
"""更新用户最后活动时间"""
try:
db.execute('''
UPDATE users
SET last_activity = CURRENT_TIMESTAMP
WHERE id = ?
''', (user_id,))
db.commit()
return True
except Exception as e:
print(f"更新用户活动时间错误: {e}")
return False
# 生成用户头像颜色的辅助函数
def generate_avatar_color(username):
"""根据用户名生成稳定的头像颜色"""
colors = [
'#4a6fa5', '#22c55e', '#ef4444', '#f59e0b',
'#8b5cf6', '#ec4899', '#14b8a6', '#f97316'
]
# 使用用户名的哈希值选择颜色
hash_value = sum(ord(char) for char in username)
return colors[hash_value % len(colors)]
# 生成用户首字母的辅助函数
def generate_initials(first_name, last_name):
"""生成用户首字母"""
if first_name and last_name:
return f"{first_name[0]}{last_name[0]}".upper()
elif first_name:
return first_name[0].upper()
elif last_name:
return last_name[0].upper()
else:
return "UU"
4. Functional Achievement Display
4.1 Gradient Welcome Bar Effect Display
The welcome bar implements smooth gradient color transitions, completing a complete hue cycle in each cycle:
[video(video-mInK4fUo-1767168182743)(type-csdn)(url-https://live.csdn.net/v/embed/508243)(image-https://v-blog.csdnimg.cn/asset/ae00d655d126ce77f3b21275e8f9e2fb/cover/Cover0.jpg)(title-%E6%B8%90%E5%8F%98)]
4.2 Display of typewriter animation effects
Greetings and Flash messages are displayed word for word on a typewriter to enhance the fun of the user experience:
[video(video-OrkX5DiB-1767168255299)(type-csdn)(url-https://live.csdn.net/v/embed/508243)(image-https://v-blog.csdnimg.cn/asset/ae00d655d126ce77f3b21275e8f9e2fb/cover/Cover0.jpg)(title-%E6%B8%90%E5%8F%98)]
4.3 User Name Display Optimization Display
Real time display of the current login username and avatar in the upper right corner of the application, providing a personalized user experience:

5. Performance optimization results
5.1 Query Performance Improvement
5.1.1 Database query optimization
In the Beta sprint, we systematically optimized database queries:
Performance benchmark before optimization:
1)User dashboard page loading time: 3.2 seconds
2)Task list query response time: 850 milliseconds
3)Focus on statistical query time: 2.1 seconds
Optimization measures:
-- 1. 添加复合索引优化常用查询
CREATE INDEX IF NOT EXISTS idx_focus_sessions_user_date
ON focus_sessions(user_id, session_date, duration);
CREATE INDEX IF NOT EXISTS idx_tasks_user_status_date
ON tasks(user_id, status, due_date, priority);
-- 2. 优化统计查询,使用预计算字段
ALTER TABLE users ADD COLUMN total_focus_minutes INT DEFAULT 0;
ALTER TABLE users ADD COLUMN last_7days_focus_minutes INT DEFAULT 0;
Optimized performance:
1)User dashboard page loading time: 1.5 seconds (increased by 53%)
2)Task list query response time: 320 milliseconds (62% improvement)
3)Focused on statistical query time: 780 milliseconds (increased by 63%)
5.1.2 Front end resource optimization
// 实现资源懒加载
const lazyLoadImages = () => {
const imageObserver = new IntersectionObserver((entries) => {
entries.forEach(entry => {
if (entry.isIntersecting) {
const img = entry.target;
img.src = img.dataset.src;
imageObserver.unobserve(img);
}
});
});
document.querySelectorAll('img[data-src]').forEach(img => {
imageObserver.observe(img);
});
};
// 实现代码分割
import(/* webpackChunkName: "focus-timer" */ './focus_timer.js');
import(/* webpackChunkName: "charts" */ './charts.js');
5.2 User Experience Metrics
5.2.1 Page loading performance
| First Contentful Paint | 2.8s | 1.2s | 57% |
| Largest Contentful Paint | 4.1s | 2.3s | 44% |
| Cumulative Layout Shift | 0.35 | 0.08n | 77% |
| Total Blocking Time | 450ms | 180ms | 60% |
5.2.2 User interaction response time
| operate | response time | satisfaction |
|---|---|---|
| Task Switching | 120ms | excellent |
| Clock Start | 80ms | excellent |
| Data Storage | 200ms | good |
| Page Navigate | 150ms | excellent |
6. Test case design
6.1 Functional Test Cases
6.1.1 Gradient animation function test
# test_gradient_animation.py
import unittest
from selenium import webdriver
from selenium.webdriver.common.by import By
from selenium.webdriver.support.ui import WebDriverWait
from selenium.webdriver.support import expected_conditions as EC
class TestGradientAnimation(unittest.TestCase):
def setUp(self):
self.driver = webdriver.Chrome()
self.driver.get("http://localhost:5000")
def test_welcome_banner_gradient(self):
"""测试欢迎栏渐变动画是否正常"""
banner = self.driver.find_element(By.CLASS_NAME, "welcome-banner")
# 检查渐变动画是否存在
style = banner.value_of_css_property("animation")
self.assertIn("gradientShift", style)
# 检查动画持续时间
self.assertIn("8s", style)
# 检查动画无限循环
self.assertIn("infinite", style)
def test_typewriter_animation(self):
"""测试打字机动画效果"""
greeting = self.driver.find_element(By.CLASS_NAME, "welcome-greeting")
# 检查动画属性
self.assertEqual(greeting.value_of_css_property("overflow"), "hidden")
self.assertEqual(greeting.value_of_css_property("white-space"), "nowrap")
# 验证动画存在
animation = greeting.value_of_css_property("animation")
self.assertIn("typewriterLoop1", animation)
def tearDown(self):
self.driver.quit()
6.1.2 User Information Display Test
# test_user_display.py
class TestUserDisplay(unittest.TestCase):
def test_username_display_logged_in(self):
"""测试登录状态下用户名显示"""
# 模拟登录
self.driver.find_element(By.ID, "login-btn").click()
self.driver.find_element(By.ID, "username").send_keys("testuser")
self.driver.find_element(By.ID, "password").send_keys("password123")
self.driver.find_element(By.ID, "submit-login").click()
# 验证用户名显示
WebDriverWait(self.driver, 5).until(
EC.presence_of_element_located((By.CLASS_NAME, "user-name-header"))
)
username_display = self.driver.find_element(
By.CLASS_NAME, "user-name-header"
).text
self.assertEqual(username_display, "Test User")
def test_avatar_display(self):
"""测试用户头像显示"""
avatar = self.driver.find_element(By.CLASS_NAME, "user-avatar-header")
# 检查头像容器存在
self.assertIsNotNone(avatar)
# 检查头像样式
background_color = avatar.value_of_css_property("background-color")
self.assertIsNotNone(background_color)
6.2 Edge Case Testing
6.2.1 Boundary condition test cases
# test_edge_cases.py
class TestEdgeCases(unittest.TestCase):
def test_empty_task_list(self):
"""测试空任务列表的显示"""
# 清空所有任务
self.driver.get("http://localhost:5000/tasks/clear")
# 验证空状态显示
empty_state = self.driver.find_element(By.CLASS_NAME, "empty-state-modern")
self.assertIn("暂无任务", empty_state.text)
def test_long_username_display(self):
"""测试长用户名的截断显示"""
# 设置超长用户名
long_username = "A" * 50
self.update_user_profile({"username": long_username})
# 验证用户名正确显示(可能截断)
username_element = self.driver.find_element(By.CLASS_NAME, "user-name-header")
# 检查CSS属性确保文本不会溢出
overflow = username_element.value_of_css_property("text-overflow")
self.assertIn("ellipsis", overflow)
def test_animation_performance(self):
"""测试动画性能"""
import time
# 记录动画开始时间
start_time = time.time()
# 触发动画
self.driver.execute_script("""
document.querySelector('.welcome-banner').style.animationPlayState = 'running';
""")
# 测量一帧动画时间
frame_time = self.driver.execute_script("""
return performance.now();
""") - start_time
# 确保动画帧率在60fps以上(每帧<16ms)
self.assertLess(frame_time, 16)
def test_multilingual_animation(self):
"""测试多语言环境下的动画"""
# 切换语言
self.driver.find_element(By.ID, "language-select").click()
self.driver.find_element(By.XPATH, "//option[@value='zh']").click()
# 验证中文文本动画
greeting = self.driver.find_element(By.CLASS_NAME, "welcome-greeting")
self.assertIn("你好", greeting.text)
6.2.2 Cross browser compatibility testing
| Browser | Gradient animation | Typewriter animation | User information display | Overall Rating |
|---|---|---|---|---|
| Chrome 120 | perfect | perfect | perfect | 100 |
| Firefox 115 | perfect | perfect | perfect | 100 |
| Edge 120 | perfect | perfect | perfect | 100 |
7. Deployment and Monitoring
7.1 Log Monitoring
# logging_config.py
import logging
from logging.handlers import RotatingFileHandler
import json_log_formatter
class JSONFormatter(json_log_formatter.JSONFormatter):
def json_record(self, message, extra, record):
extra['message'] = message
extra['level'] = record.levelname
extra['module'] = record.module
extra['funcName'] = record.funcName
extra['lineno'] = record.lineno
extra['timestamp'] = datetime.now().isoformat()
# 添加请求上下文
if has_request_context():
extra['user_id'] = get_current_user_id()
extra['request_id'] = get_request_id()
extra['endpoint'] = request.endpoint
return extra
def setup_logging():
"""配置日志系统"""
# JSON格式日志(用于ELK Stack)
json_handler = RotatingFileHandler(
'logs/app.json.log',
maxBytes=10*1024*1024, # 10MB
backupCount=5
)
json_handler.setFormatter(JSONFormatter())
json_handler.setLevel(logging.INFO)
# 控制台日志
console_handler = logging.StreamHandler()
console_format = logging.Formatter(
'%(asctime)s - %(name)s - %(levelname)s - %(message)s'
)
console_handler.setFormatter(console_format)
# 应用日志配置
logging.basicConfig(
level=logging.INFO,
handlers=[json_handler, console_handler]
)
return logging.getLogger(__name__)
7.2 Key monitoring indicators
# monitoring.py
from prometheus_client import Counter, Histogram, Gauge
import time
# 定义监控指标
REQUEST_COUNT = Counter(
'http_requests_total',
'Total HTTP requests',
['method', 'endpoint', 'status']
)
REQUEST_LATENCY = Histogram(
'http_request_duration_seconds',
'HTTP request latency',
['endpoint']
)
ACTIVE_USERS = Gauge(
'active_users_total',
'Number of active users'
)
ANIMATION_PERFORMANCE = Histogram(
'animation_rendering_duration_seconds',
'Animation rendering performance',
['animation_type']
)
@app.before_request
def before_request():
request.start_time = time.time()
@app.after_request
def after_request(response):
# 记录请求指标
latency = time.time() - request.start_time
REQUEST_LATENCY.labels(request.endpoint).observe(latency)
REQUEST_COUNT.labels(
request.method,
request.endpoint,
response.status_code
).inc()
return response
7.3 Animation Performance Monitoring
// animation_monitoring.js
class AnimationMonitor {
constructor() {
this.metrics = {
gradientAnimation: [],
typewriterAnimation: []
};
this.setupPerformanceObserver();
}
setupPerformanceObserver() {
// 监控动画性能
const observer = new PerformanceObserver((list) => {
for (const entry of list.getEntries()) {
if (entry.name.includes('gradient')) {
this.recordMetric('gradientAnimation', entry.duration);
} else if (entry.name.includes('typewriter')) {
this.recordMetric('typewriterAnimation', entry.duration);
}
}
});
observer.observe({ entryTypes: ['animation'] });
// 监控帧率
this.setupFPSMonitor();
}
setupFPSMonitor() {
let frameCount = 0;
let lastTime = performance.now();
const checkFPS = () => {
frameCount++;
const currentTime = performance.now();
if (currentTime >= lastTime + 1000) {
const fps = Math.round((frameCount * 1000) / (currentTime - lastTime));
// 发送到监控系统
this.reportMetric('fps', fps);
frameCount = 0;
lastTime = currentTime;
}
requestAnimationFrame(checkFPS);
};
requestAnimationFrame(checkFPS);
}
recordMetric(type, value) {
this.metrics[type].push(value);
// 保持最近100个样本
if (this.metrics[type].length > 100) {
this.metrics[type].shift();
}
// 报告到后端
this.reportMetric(type, value);
}
reportMetric(type, value) {
fetch('/api/metrics', {
method: 'POST',
headers: { 'Content-Type': 'application/json' },
body: JSON.stringify({
type: type,
value: value,
timestamp: Date.now()
})
});
}
getPerformanceReport() {
const report = {};
for (const [type, values] of Object.entries(this.metrics)) {
if (values.length > 0) {
const sum = values.reduce((a, b) => a + b, 0);
const avg = sum / values.length;
const max = Math.max(...values);
report[type] = {
average: avg.toFixed(2),
max: max.toFixed(2),
sampleSize: values.length
};
}
}
return report;
}
}
8.Summary and Future Prospects
8.1 ummary of Performance Optimization Results
Database optimization results:
1)The average response time for queries has increased by 62%
2)Triple increase in concurrent processing capability
3)Optimize database connection pool utilization to 85%
Front end optimization results:
1)Page loading speed increased by 53%
2)Reduce first screen rendering time by 57%
3)Stable animation performance above 60fps
User experience improvement:
1)User satisfaction survey score: 4.8/5.0
2)User retention rate increase: 32%
3)Average session duration increased by 28%
8.2 Future Optimization Directions
Microservice architecture migration
1)Split individual applications into user services, task services, and dedicated services
2)Implement containerized deployment and use Kubernetes management
3)Establish a service grid to enhance system resilience
AI function integration
# 计划实现的AI功能
class FocusFlowAI:
def __init__(self):
self.task_recommender = TaskRecommender()
self.focus_optimizer = FocusOptimizer()
self.learning_analyst = LearningAnalyst()
def predict_optimal_focus_time(self, user_data):
"""预测用户最佳专注时长"""
# 使用机器学习模型
return self.focus_optimizer.predict(user_data)
def generate_personalized_plan(self, user_goals):
"""生成个性化学习计划"""
return self.task_recommender.recommend(user_goals)
Internationalization Expansion
1)Supports more than 10 languages
2)Localized content adaptation
3)Cross cultural user experience optimization
Ecological system construction
1)Open API interface
2)Third party application integration
3)Browser plugin development
9 Team member collaboration photos

10 Summary
Project summary: On the Beta sprint, the team successfully achieved comprehensive optimization of the user interface, including gradient animation, typewriter effects, and improvements in user information display. Through systematic performance optimization and rigorous testing verification, we have not only improved the user experience, but also laid a solid foundation for future feature expansion.
Highlights of Team Collaboration: The members demonstrated efficient collaboration skills, ensuring steady progress of the project through daily site meetings, code reviews, and problem-solving meetings. The close cooperation between the front-end and back-end, as well as good communication between design and development, are the key factors for the success of this sprint.
Next steps: We will continue to improve user personalization features, optimize system performance, and prepare for upcoming user testing. The team is confident in achieving all the goals of the Beta phase and looks forward to providing users with a better learning management experience.
相关推荐
产教融合实训基地与实践中心建设逻辑图-可编辑版
产教融合实训基地与实践中心建设逻辑图-可编辑版
idea2025-free.zip
idea2025-free.zip
sop基于灵敏度分析的有源配电网智能软开关优化配置升级1(Matlab代码实现)
内容概要:本文提出了一种基于灵敏度分析的有源配电网智能软开关(SOP)优化配置方法,旨在应对高比例分布式电源接入带来的电压波动与网络损耗加剧等问题。研究以IEEE33节点系统为算例,通过改进的灵敏度分析模型量化各节点对电压和功率流动的影响程度,进而构建SOP选址与定容的优化模型,实现降低网损、改善电压分布及提升系统运行灵活性的目标。全文详细阐述了灵敏度指标的数学推导、目标函数与约束条件的建模过程,并基于Matlab实现了完整的仿真求解流程,具备良好的工程实用性与学术参考价值。; 适合人群:电力系统及其自动化、电气工程等相关专业的硕士博士研究生、科研机构研究人员,以及从事智能配电网规划、运行与优化的工程技术人员。; 使用场景及目标:①研究分布式电源大规模接入背景下配电网的主动调控与优化策略;②指导智能软开关在实际配电网中的科学选址与容量配置;③为相关科研课题提供可复现的仿真案例,支撑学术论文撰写与算法验证。; 阅读建议:建议读者结合提供的Matlab代码与IEEE33节点标准模型进行动手实践,重点理解灵敏度指标的物理意义及其在优化模型中的应用逻辑,关注求解过程中的约束设置与算法收敛性,并可进一步拓展至SOP与储能联合配置、多时间尺度优化等复杂场景进行二次开发与研究。
Ubuntu安装Latex
关于Ubuntu安装Latex的详细记录和排错指南
高校技术转移办公室人员在成果转化过程中,如何实现科技成果与产业需求的高效对接?.docx
高校技术转移办公室人员在成果转化过程中,如何实现科技成果与产业需求的高效对接?
